2X Dedicated USB 3.0 5Gbps Channel, 10Gbps Bandwidth,4-Ports Super speed 5Gbps USB 3.0 PCIE Expansion Card

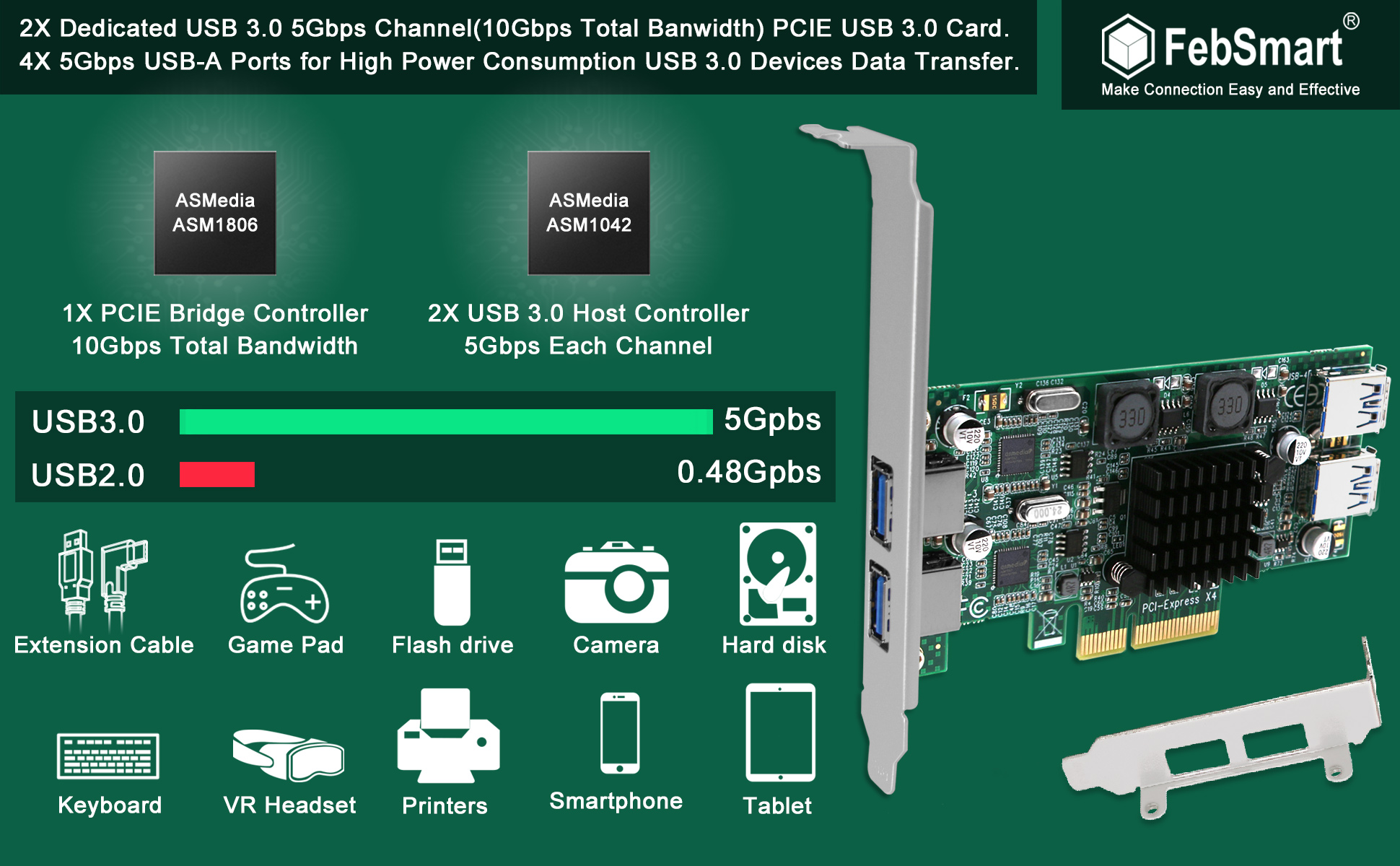

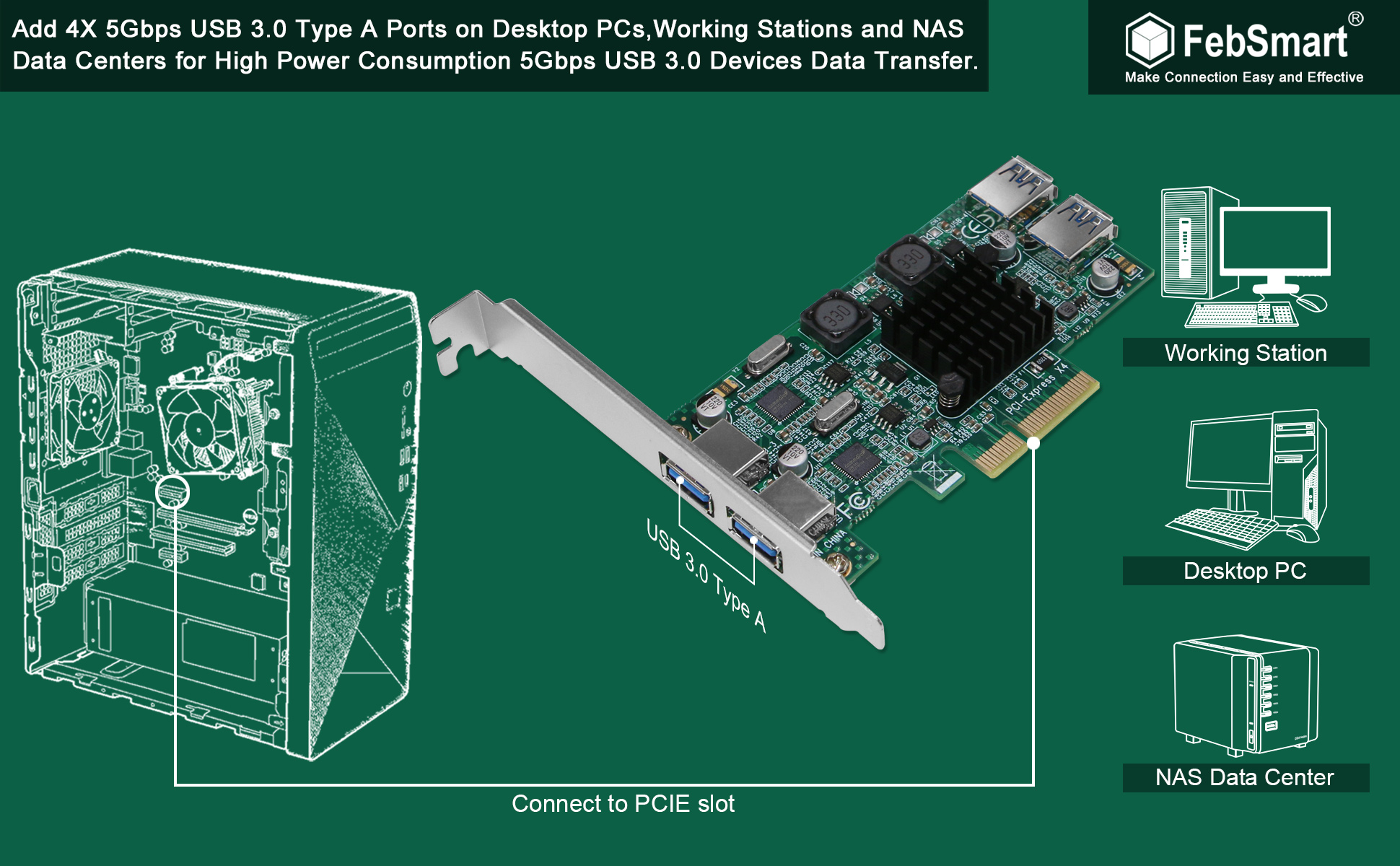

FebSmart FS-2C-U4-Pro is a PCIE X4 interface to 4X super speed 5Gbps USB 3.0 ports expansion card. It is based on 1X ASMedia ASM1806 10Gbps PCIE bridge controller and 2X ASMedia ASM1042 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platforms. It will provide 2X independent USB 3.0 5Gbps channels, 10Gbps total bandwidth on 2X external USB-A and 2X internal USB-A interface. 1X external USB 3.0 port and 1X internal USB 3.0 port will share 1X USB 3.0 5Gbps bandwidth. 4X USB 3.0 Ports will share 10Gbps bandwidth. It is built in FebSmart Self-Powered Technology, no need to plug any additional power cables from Desktop PCs power supply unit. Allow each USB 3.0 channel two USB 3.0 ports get 5V/3A 15W (5V/6A 30W in total) max power supply from motherboard directly for connected high power consumption USB 3.0 devices. It is mainly used on Desktop PCs, Working Stations, and NAS data centers for high-bandwidth USB 3.0 devices which including industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It also works with normal USB-A interface devices such as USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smart phone, tablet and more.

What is FebSmart Self-Powered Technology?

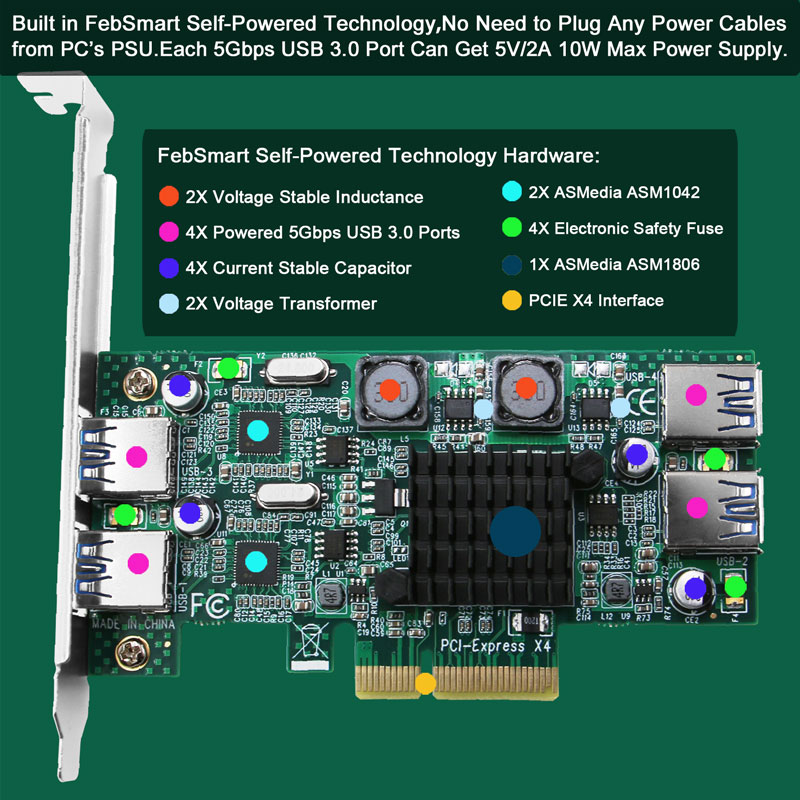

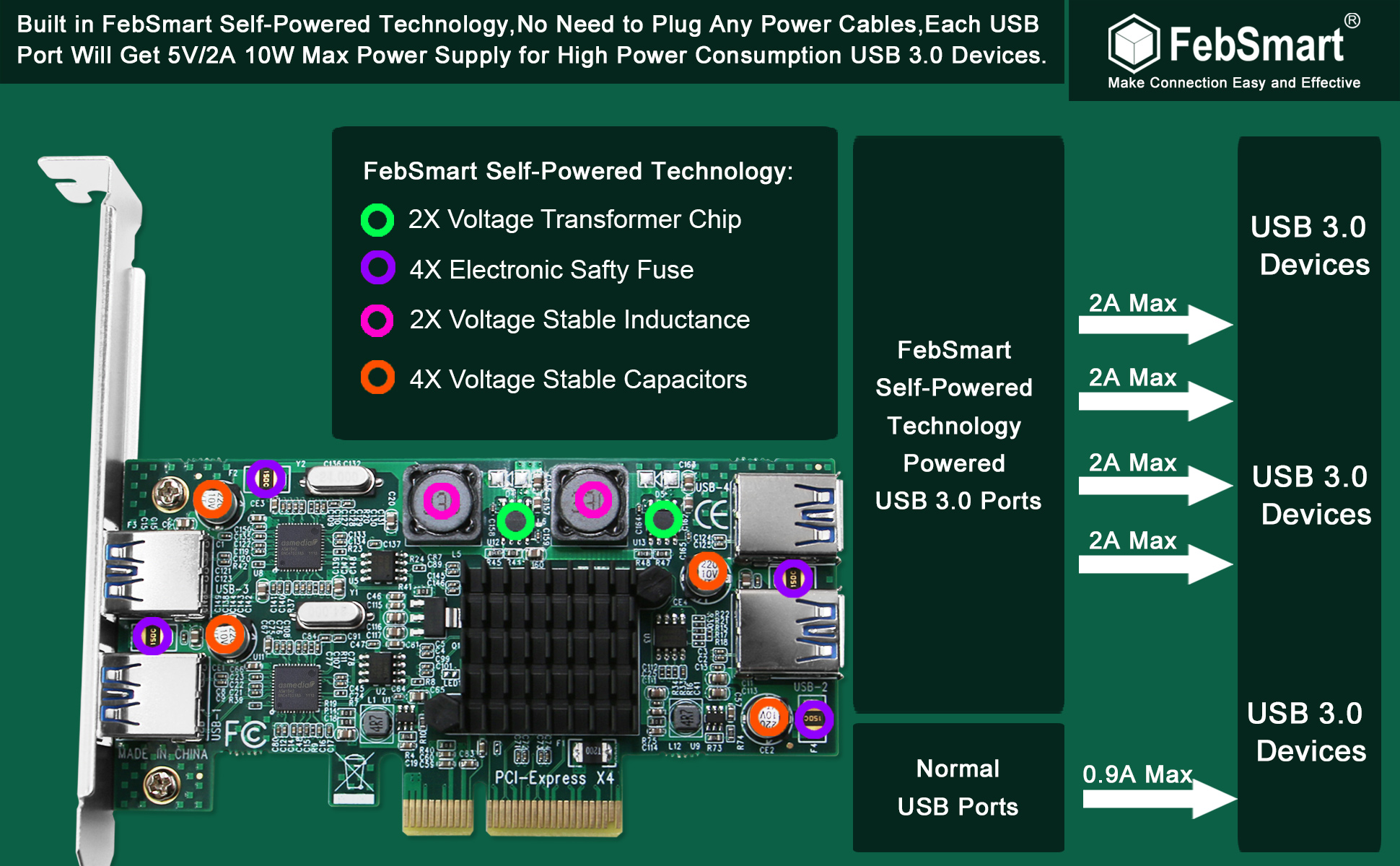

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.0 expansion cards. The old version PCI Express USB 3.0 cards need to plug power cables from Desktop PC’s power supply unit. Even added on additional power, sometime it still lacks power when running few high power-consuming devices simultaneously such as USB HDD/SSD enclosures and USB NVME enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A for PCIE devices. FebSmart add 2X voltage transformer on 2X channel USB 3.0 card. 2X independent USB 3.0 channel has 2X way power supply. Each way power supply will pick up 12V/1.25A power and convert to 5V/3A 15W. So each USB 3.0 channel 1X Internal USB 3.0 port and 1X external USB 3.0 port will get 5V/3A 15W max power supply for USB 3.0 devices. Most of the high-power consumption devices just need 4~8W which means this USB 3.0 expansion card can light up 4X high power-consumption devices simultaneously in full speed. FebSmart built 4X electronic safety fuse, 2X voltage stable inductance and 4X voltage stable capacitors on the board, will protect users’ data and USB 3.0 devices. Never burn USB 3.0 device and never lost data. Add 2-channel 4-Ports super speed USB 3.0 expansion card on Desktop PCs. Enjoy more stable, super speed and safe USB 3.0 connection with FebSmart.

ATTENTION:

1. Must make sure Desktop PCs have one empty PCIE X16 slot before purchase.

2. Must install driver on Windows 7 (32/64bit) and previous systems.

3. Slim PC users need change to low profile bracket by hand.

4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed.

Technical Specifications:

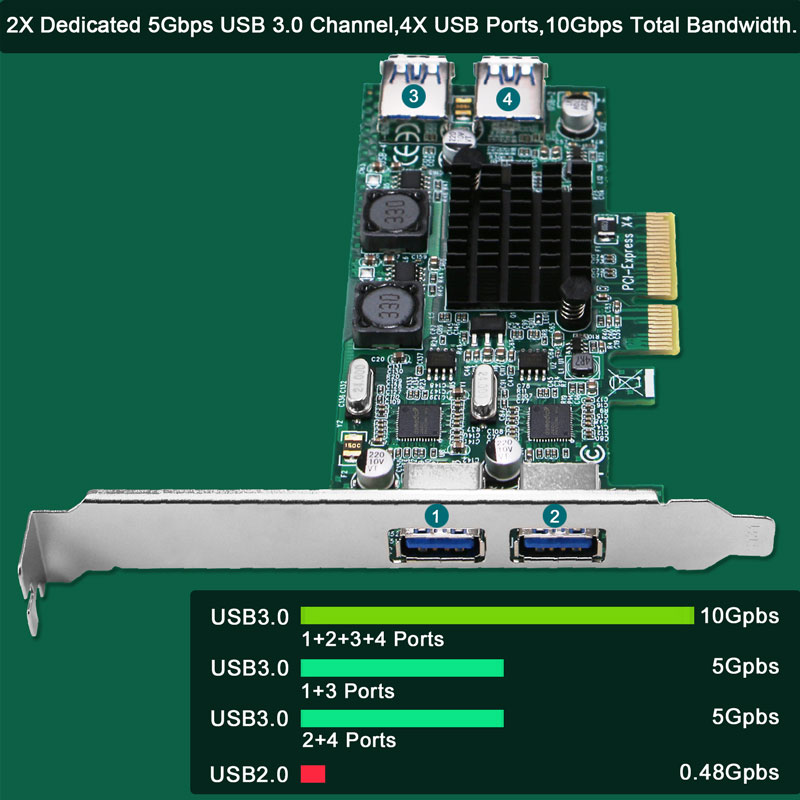

1. 10Gbps Total Bandwidth, 2X USB 3.0 5Gbps: Provide 2X USB 3.0 5Gbps channels, 10Gbps total bandwidth on 4X 5Gbps USB 3.0 ports. Add 4X super speed USB 3.0 5Gbps max ports on Desktop PCs for large data transfer. Light UP 4X high-bandwidth USB 3.0 devices such as USB video adapters, cameras, USB NVME enclosures, VR-Systems and more.

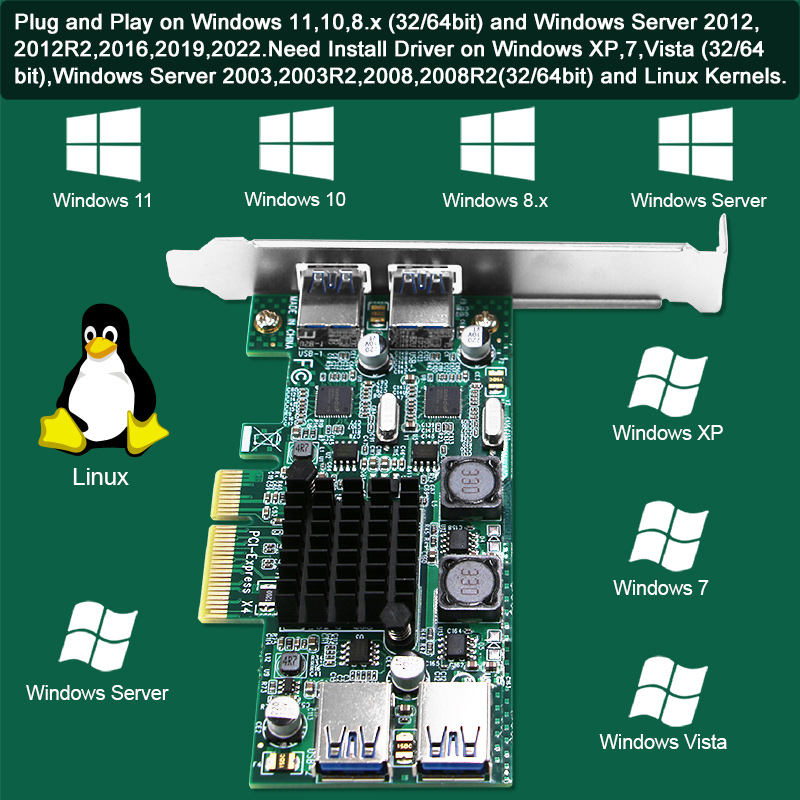

2. Support Windows, MAC OS X and Linux: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. Plug and Play on most Linux kernels. Support Plug and Play on MAC OS X.

3. Easy Install, Protect USB 3.0 Devices: Super Easy to install on supported Desktop PCs, No need to plug any Power Cables, plug and play on most system. With added on 4X electronic safety fuse, 4X voltage stable capacitor and 2X Voltage stable Inductance will protect users' Data Safety and USB 3.0 Devices. Never burn USB 3.0 devices, never lost data.

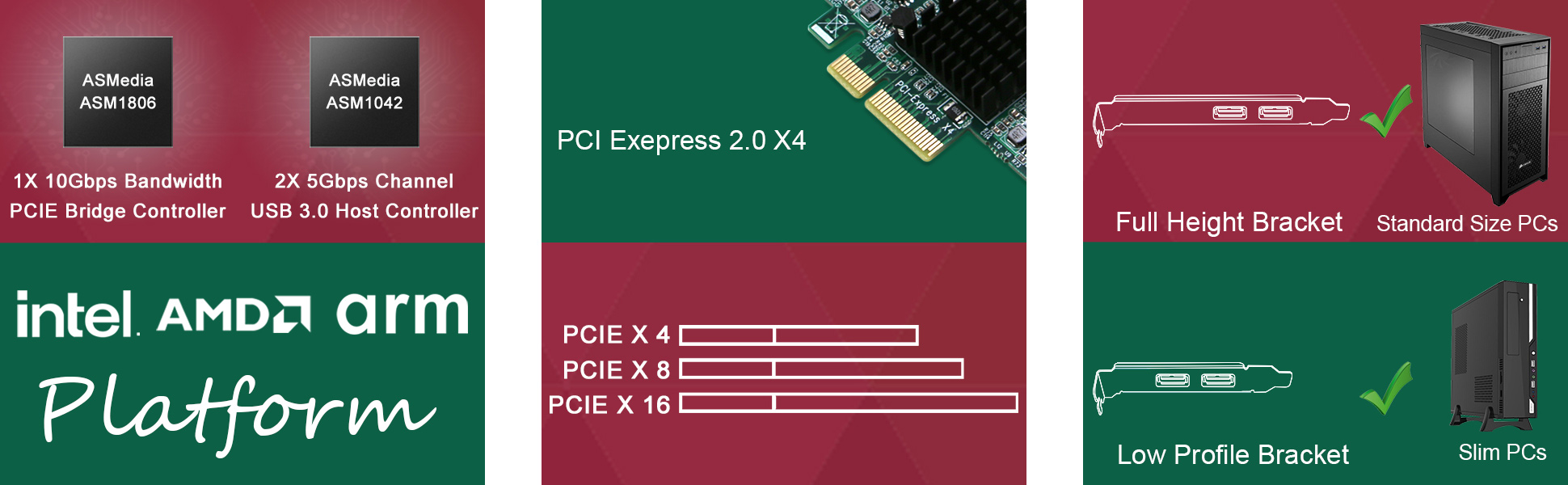

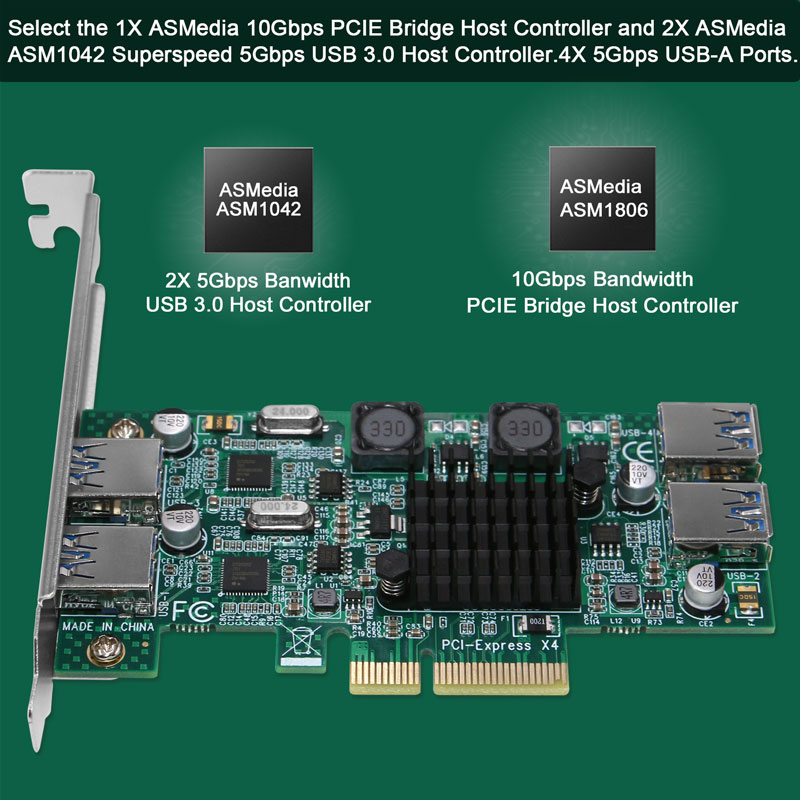

1. ASMedia ASM1806,2X ASM1042: Based on 1X ASMedia ASM1806 10Gbps bandwidth PCIE Bridge Controller and 2X ASMedia ASM1042 5Gbps bandwidth USB 3.0 Host Controller. Will compatible with ARM, MAC, Intel and AMD RYZEN hardware platform PCs. Designed with Heatsink, will help the PCIE USB 3.0 card core components stay away from overheat. Make sure connected devices always stay at 5Gbps max speed.

2. PCIE 2.0 Standard, PCIE X4 Interface: PCIE X4 Interface design, will compatible with PCIE X4, X8, X16 slot. NOT work on PCIEX1, X2 slot. Based on PCIE 2.0 standard, will works on PCIE 1.X, 2.X, 3.X, 4.X slot. Users must make sure motherboard have 1X empty PCIE X16 slot for this PCIE X4 USB 3.0 expansion card before purchase.

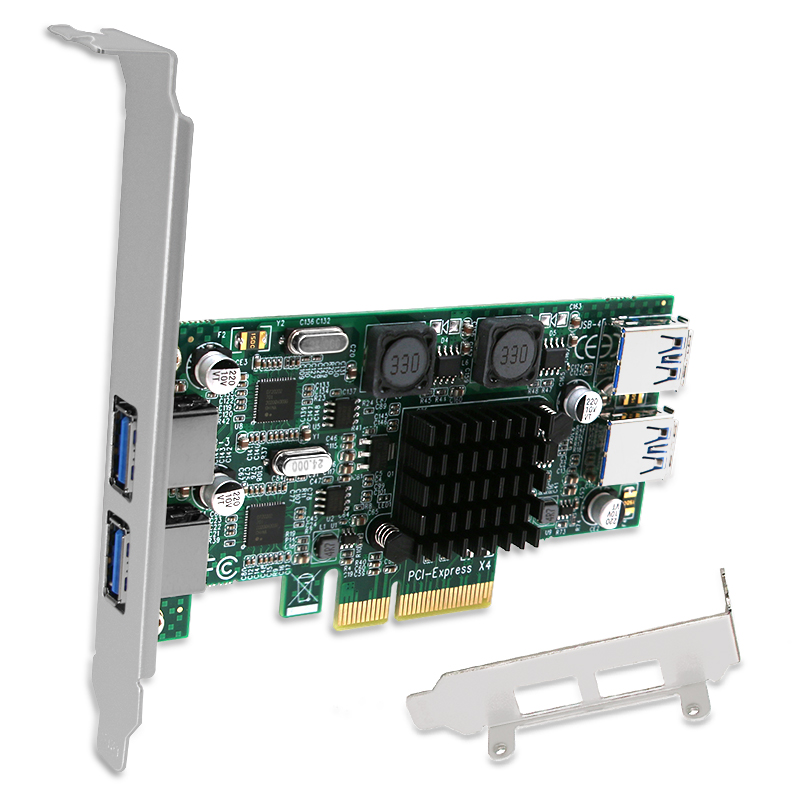

3. Standard Size PCs and Slim PCs: Full height Bracket mounted on the PCIE USB card, will works on Standard Size PCs. Low-profile bracket in the package, will works on Slim PCs. Users need change to low profile bracket by hand.

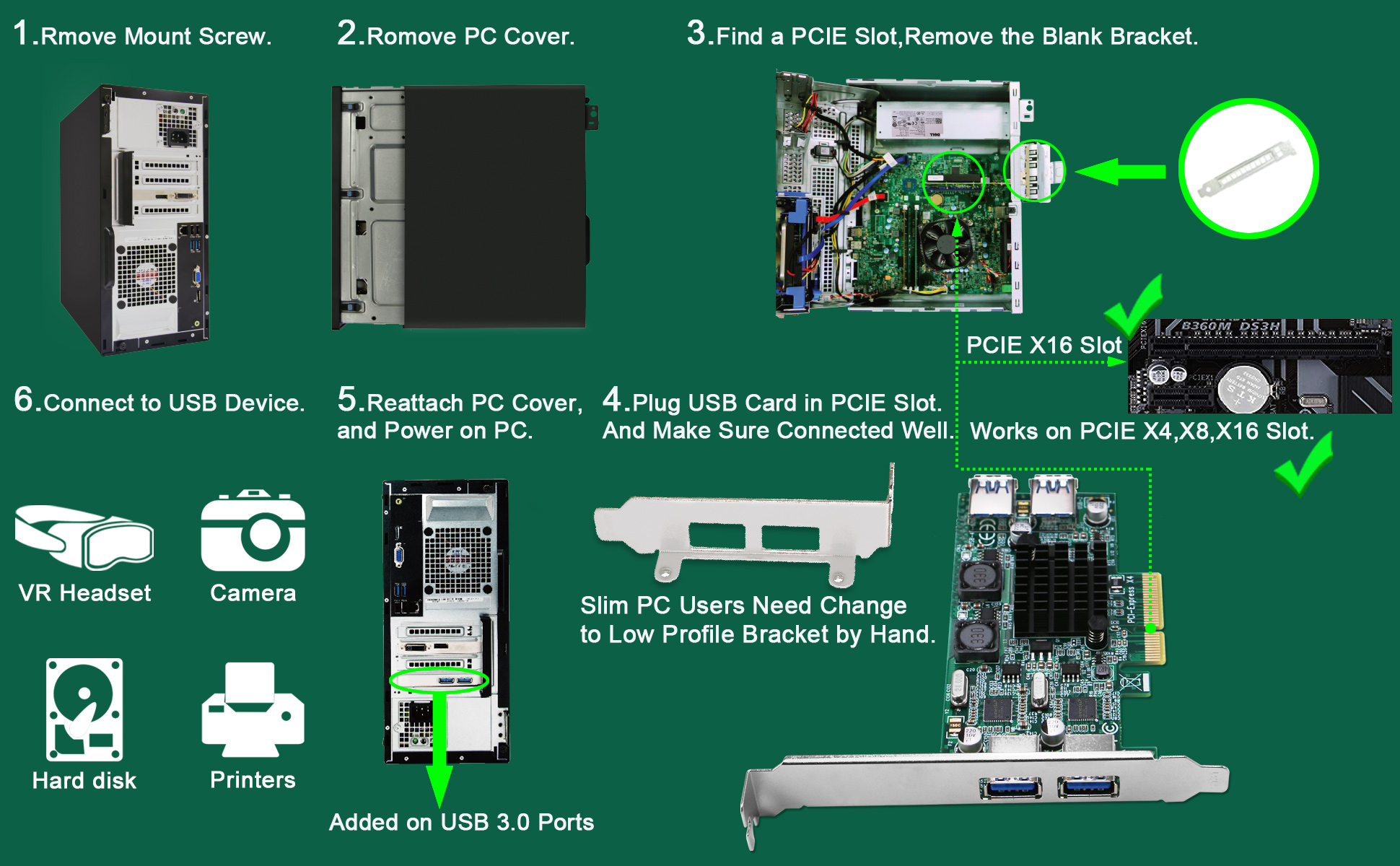

Easy to Install on desktop computers without any additional power supply.

Product Description:

FebSmart FS-2C-U4-Pro is a PCIE X4 interface to 4X super speed 5Gbps USB 3.0 ports expansion card. It is based on 1X ASMedia ASM1806 10Gbps PCIE bridge controller and 2X ASMedia ASM1042 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platforms. It will provide 2X independent USB 3.0 5Gbps channels, 10Gbps total bandwidth on 2X external USB-A and 2X internal USB-A interface. 1X external USB 3.0 port and 1X internal USB 3.0 port will share 1X USB 3.0 5Gbps bandwidth. 4X USB 3.0 Ports will share 10Gbps bandwidth. It is built in FebSmart Self-Powered Technology, no need to plug any additional power cables from Desktop PCs power supply unit. Allow each USB 3.0 channel two USB 3.0 ports get 5V/3A 15W (5V/6A 30W in total) max power supply from motherboard directly for connected high power consumption USB 3.0 devices. It is mainly used on Desktop PCs, Working Stations, and NAS data centers for high-bandwidth USB 3.0 devices which including industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It also works with normal USB-A interface devices such as USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smart phone, tablet and more.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.

2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

3. Plug and Play on most Linux kernels.

4. Support Plug and Play on MAC OS X.

ATTENTION:

1. Must make sure Desktop PCs have one empty PCIE X16 slot before purchase.

2. Must install driver on Windows 7 (32/64bit) and previous systems.

3. Slim PC users need change to low profile bracket by hand.

4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed.

Package: 1X FS-2C-U4-Pro 1X User Manual 1XMini CD 1X Mounting Screw 1X Low Profile Bracket.
