WiFi 6 Standard Dual Band 3000Mbps PCI Express WiFi Adapter, 2.4GHz 574Mbps and 5GHz 2400Mbps WiFi Speed

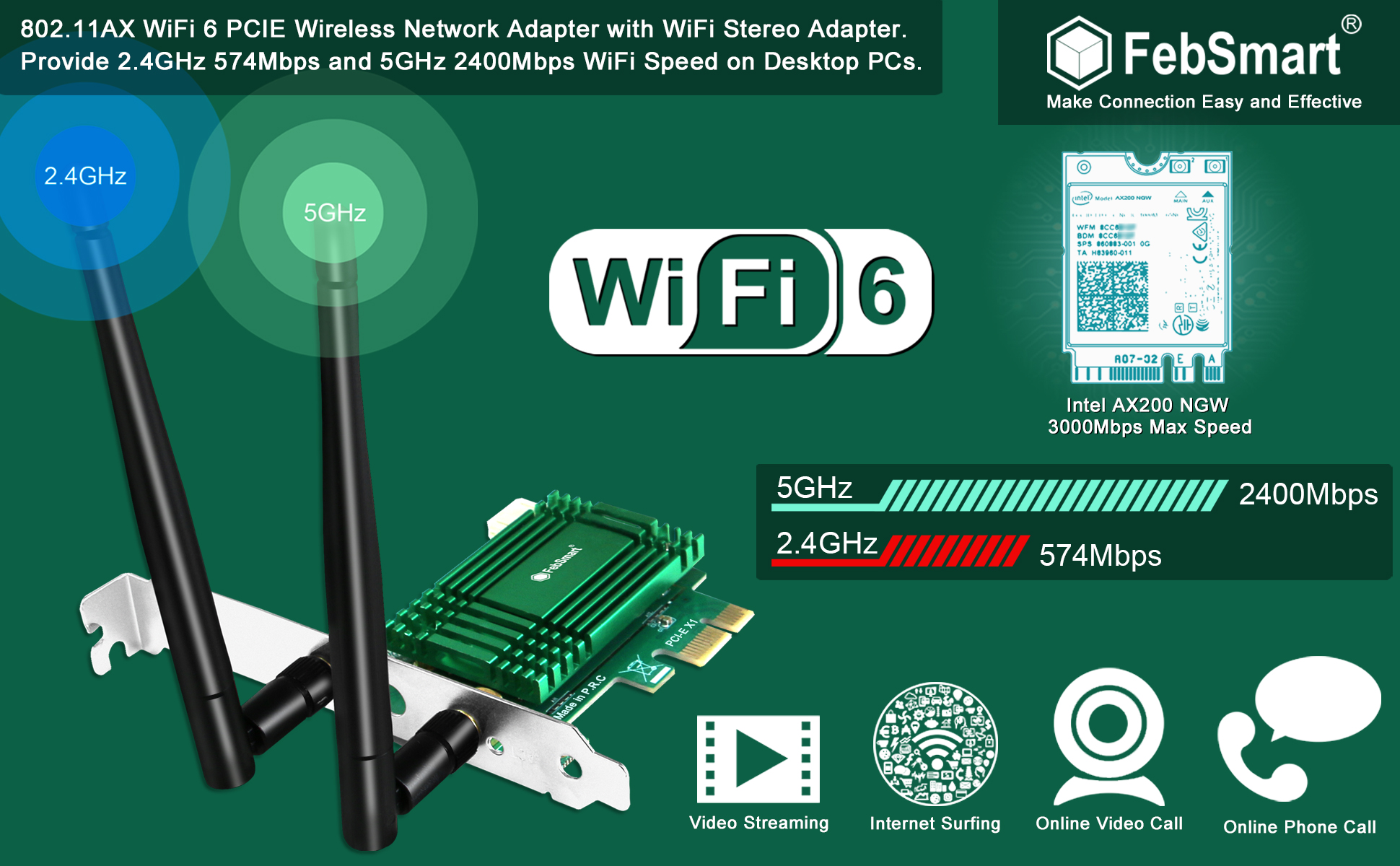

FebSmart AX3000 is an IEEE 802.11AX WiFi 6 dual band 3000Mbps max speed PCI Express WiFi adapter. Allow users add latest WiFi 6 standard network and WiFi stereo function on desktop PCs for online video call, online phone call, online gaming and 8K ultra-HD video streaming. Based on Intel WiFi 6 AX200NGW WiFi module. Will Deliver dual band WiFi connection speed at 2.4GHz 574Mbps and 5GHz(160MHz) 2400Mbps. Built in WiFi stereo adapter for WiFi audio device signal transmission such as WiFi headset, WiFi TWS earphones, WiFi speakers and WiFi sound bars. Enabled with more technology such as 2X2 MU-MIMO, OBSS, OFDMA and 1024AM ensure wireless network stability. Equipped 2X3dBi external omni-directional dual band antenna will enhance WiFi stability and reception range. Add the long reception range, few losses, low latency wireless network adapter on Desktop PCs.

802.11 AX WiFi 6 Wireless Network Adapter More WiFi Capacity, Lighting Fast Speed, More Coverage

1. By implementing the new 802.11AX standard with its unique features such as 2X2 MU-MIMO, OFDA, OBSS, 1024QAM, Target Wake Time and Spatical Reuse. AX3000 WiFi 6 (Intel AX200 module) WiFi adapter enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router/AP and in dense environments.

2. When using WiFi 6 technology with 1024QAM and 160MHz channels. AX3000 WiFi card (Intel WiFi 6 AX200 module) can deliver nearly 3X higher speed up to 2400Mbps and up to 4x capacity improvement in dense of congested environments comparing with 802.11 AC.

WiFi 6 Introduced Few New Ideas Include OFDMA and OBSS Technology to Improve Communication Speed and Stability Orthogonal Frequency Division Multiple Access (OFDMA)

OFDMA works by subdividing channels into subcarriers and allowing for transmission to multiple endpoints (devices) at the same time. A Wi-Fi 6 router can send different signals in the same transmission window. This results in a single transmission from the router being able to communicate with multiple devices, instead of each device having to wait its turn as the router serves up the data across the network.

Overlapping Basic Service Sets (OBSS)

OBSS can help to improve network congestion. With older versions of Wi-Fi, devices trying to connect to a network used a “listen before talk” process, which meant they had to “listen” for any noise on a channel before transmitting.

Working together, OFDMA and OBSS allow for more effective communication on crowded networks. As more and more of our devices utilize Wi-Fi, this will help preserve the speed and stability of our connections.

Technical Specifications:

1. WiFi 6 3000Mbps Max Speed: WiFi 6 Standard dual band WiFi card,provide 3000Mbps (2.4GHz 574Mbps and 5GHz (160MHz) 2400Mbps) total bandwidth Wireless connectivity on desktop PCs .

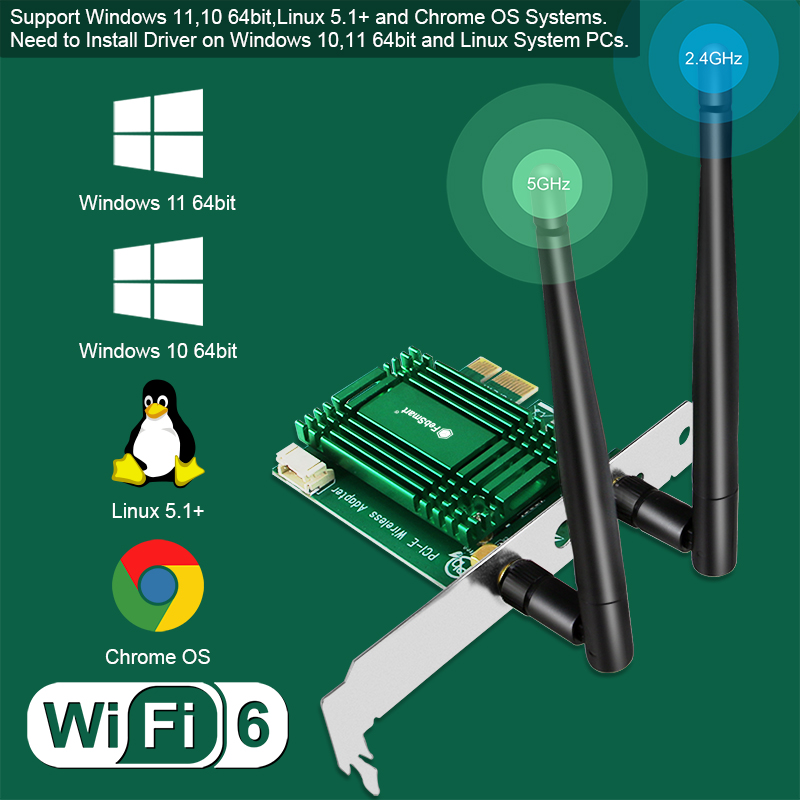

2. Support Mul-Main System: Support Windows 11, 10 64bit, Linux Kernel 5.1+ and Chrome OS system.
3. Safty WiFi Network Than Ever: Supports new WPA3 security features, enableing next generation authentication and military grade encryption.

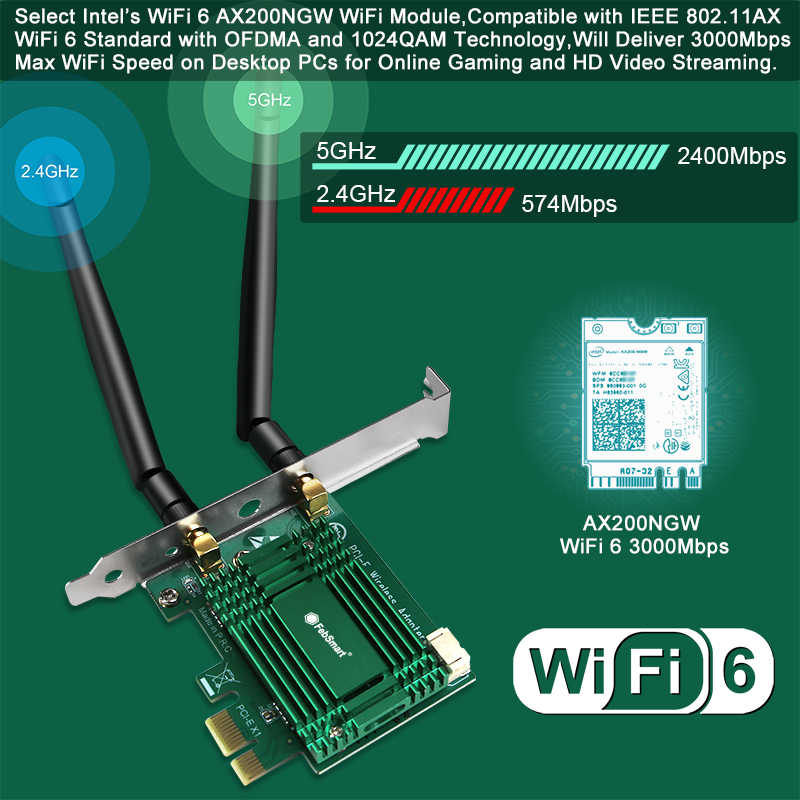

1. Intel Wireless AX200 NGW: Select the Intel wireless AX200NGW WiFi 6 module will provide 3000Mbps solid wireless network connection. Will compatible AMD, Intel and ARM platform device such as PCs, Working Stations and NAS systems.
2. PCIE 2.0 X1 Interface: PCI Express 2.0 standard design,will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard. PCI Express X1 interface design will works on PCI Express X1, X2, X4, X8, X16 slot.
3. Support Multiple Type PCs: Mounted with the full height bracket, will works on the full size PCs and working stations. Packed with the low profile bracket, will works on the slim PCs and working station.

Easy Install WiFi Card on Desktop PCs:

Description:

802.11 AX WiFi 6 Wireless Network Adapter, More WiFi Capacity, Lighting Speed, More Coverage

1. By implementing the new 802.11AX WiFi 6 standard with its unique features such as 2X2 MU-MIMO, OFDA, OBSS, 1024QAM, Target Wake Time and Spatial Reuse. AX3000 WiFi 6 (Intel AX200 module) WiFi adapter enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router/AP and in dense environments.

Safty Wireless Network Than Ever

AX3000 WiFi Adapter (Intel WiFi 6 module) supports latest WPA3 security features, enabling next generation authentication and military grade encryption.

Compatible System: Windows 11 64bit, Windows 10 64bit, Linux Kernel 5.1+ and Chrome OS.

Package List: 1X AX3000, 1X Mini CD, 1X User Manual, 1X Mount Screw, 1X Low Profile Bracket, 2X 3dBi Antennas, 1X USB 2.0 Cable.
