PCI Express 3.0 X1 Interface to 6-Ports 6Gbps Max Speed SATA III Expansion Card

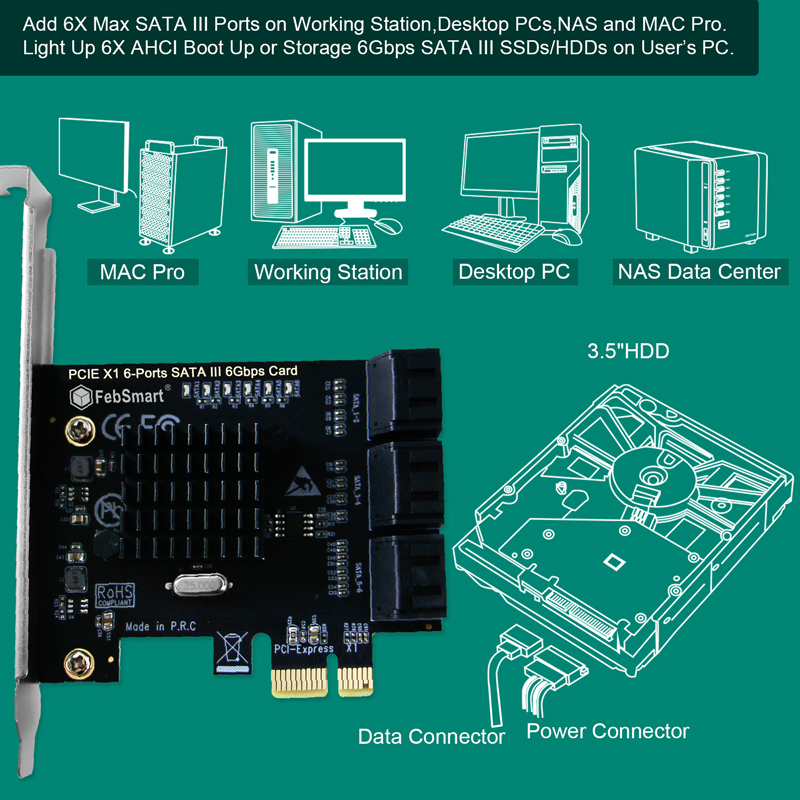

 1. The FS-S6X1-Pro is a PCI Express 3.0 X1 interface to 6-Ports 6 Gbps speed SATA III expansion card. It allows users add 6X NONE-RAID SATA III storage or AHCI BOOT UP HDDs/SSDs on desktop PCs, Working Stations, MAC Pros and Network Attached Storage (NAS).
2. Select the ASMedia ASM1166 the most stable NONE-RAID PCIE 3.0 SATA III host controller. PCIE 3.0 X1 interface, provide 16Gbps total bandwidth. Each SATA 3.0 port will get 6Gbps max speed for AHCI BOOT UP or storage for HDDs/SSDs.
3. Plug and Play on Windows 11, 10, 8.x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64). MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and most of Linux kernel systems.
4.Compatible with Serial ATA(SATA) Revision 3.1 specifications, auto switch to SATA 3.0 6Gbps max speed. Backward compatible with SATA 1.0 1.5Gbps speed and SATA 2.0 3Gbps speed. Support PCIE 1.0, 2.0, 3.0, 4.0 protocol and works on motherboard PCIE X1, X8, X16 slot.
5.ATTENTION: 1. This SATA card was set on AHCI Boot mode, make sure now PCs in AHCI BOOT UP mode or it will report Blue Screen Death (BSD). 2. Make sure PCs power supply unit (PSU) can provide 6X max SATA interface power connector. 3. Users must make sure Motherboards have at least one PCIE X16 slot before purchase. 4. Slim PCs need user change to low profile bracket.

SATA Controller Down Stream Features:
    Compliant with Serial ATA Specification 3.1.Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbp.
    Supports programmable transmitter signal levels.Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
    Supports AHCI 1.0 programming interface.Supports Native Command Queuing (NCQ).
    Supports Port Multiplier FIS based switching or command-based switching.
    Supports Partial and Slumber Power Management states.Supports Staggered Spin-up.
PCIE Up Stream Features:
    Compliant with PCIe 3.0 specifications.Supports communication speed of 2.5 Gbps,5 Gbps, 8Gbps and 16Gbps
    Supports AHCI programming interface registers for the SATA controller.Supports aggressive power management.
    Supports error reporting, recovery, and correction.Supports Message Signaled Interrupt (MSI).

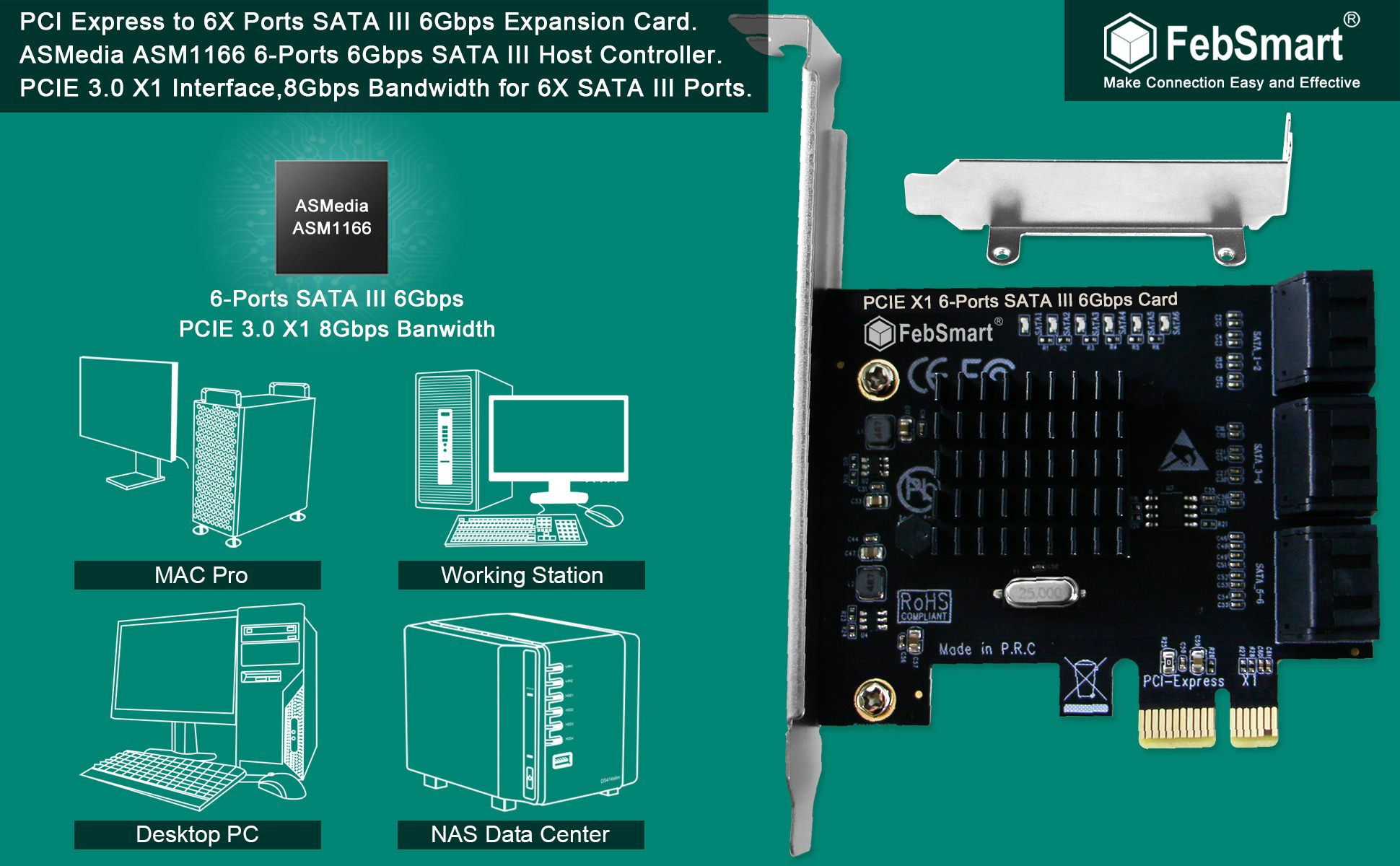

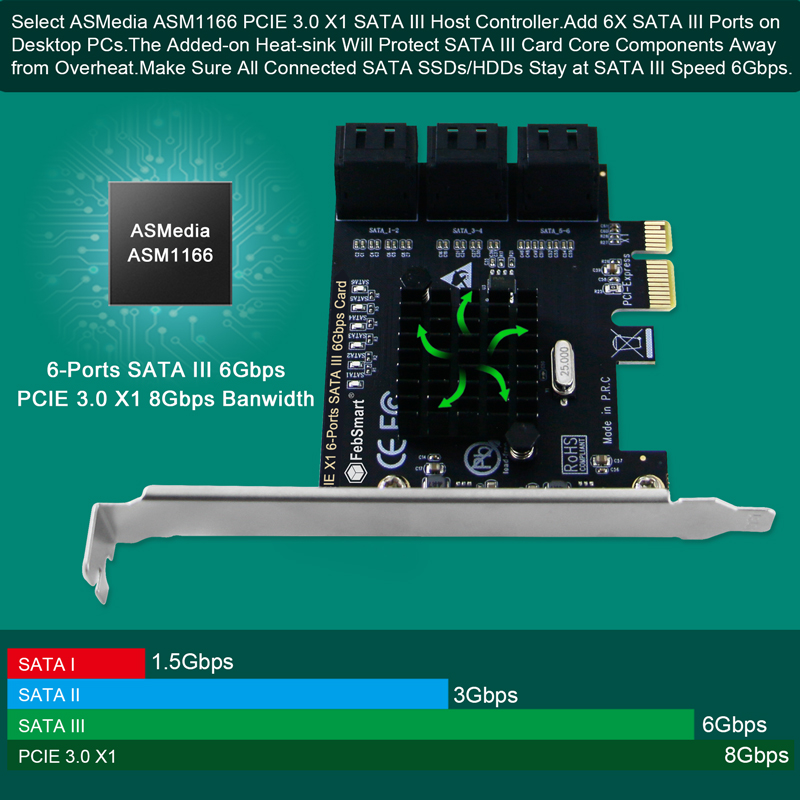

A.  1. FebSmart FS-S6X1-Pro is based on 6-Ports PCIE SATA III host controller ASMedia ASM1166, will works on Intel,AMD, MAC and ARM platform. 2. Designed the Heat-Sink on the ASMedia ASM166 major chipset, will protect the ASM166 away from overheat, make sure the connected SSDs or HDDs aways get the peak speed 6Gbps max.

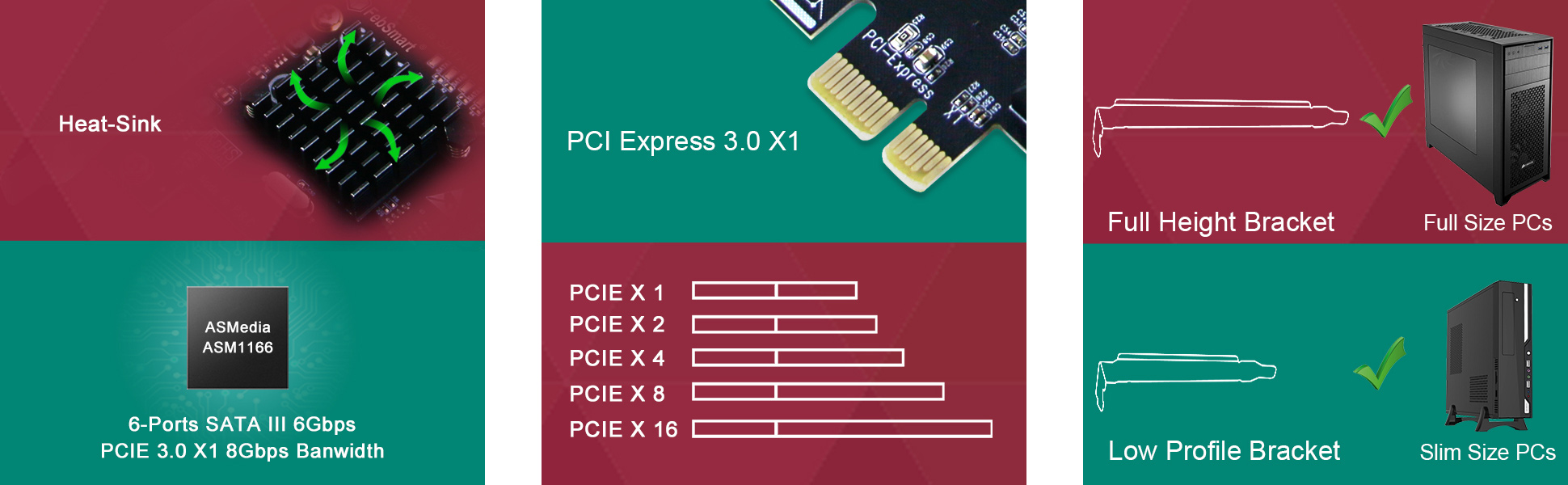

B.  1. PCI Express 3.0 standard design, will works on PCI Express 1.x, 2.x, 3.x and 4.x protocol. 2. PCI Express X1 interface design, will works on PCIE X1, X8, X16 slot. 3. PCIE 3.0 X1 degsin will provide 16Gbps total bandwidth.
C.  1. Mounted with full height bracket, will works on standard size desktop PCs. 2. Packed with low profile bracket will works on Slim size desktop PCs.

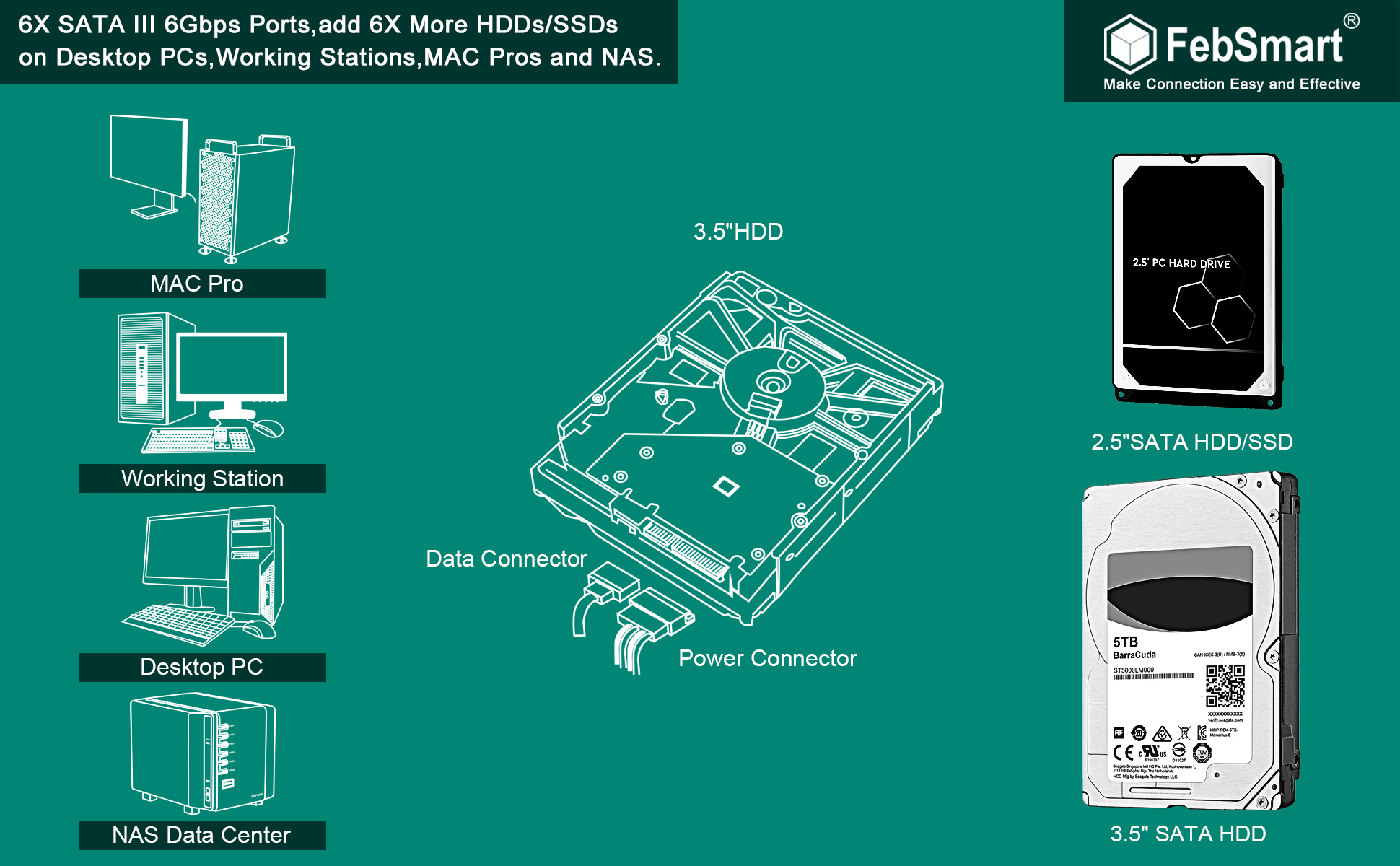

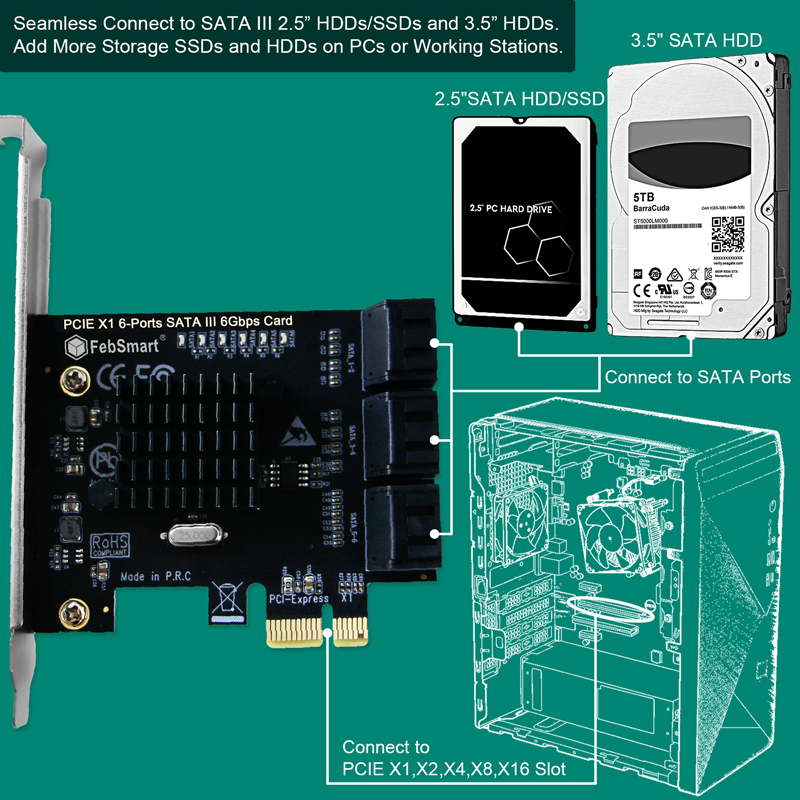

D.  1. 6X SATA III 6Gbps Ports, will backward compatible with SATA I 1.5Gbps, SATA II 3Gbps. 2. Seamless works with SATA I, SATA II and SATA III standard SSDs/HDDs. 3. Light up 6X Max SSDs/HDDs on desktop PCs, also support AHCI mode BOOT UP.

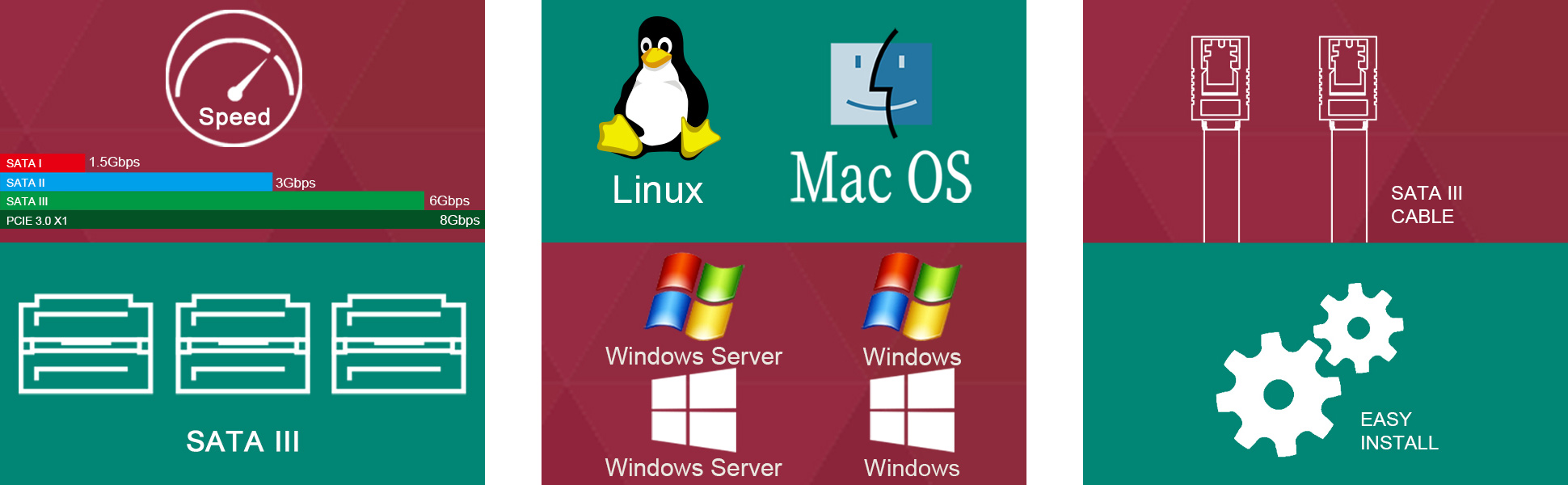

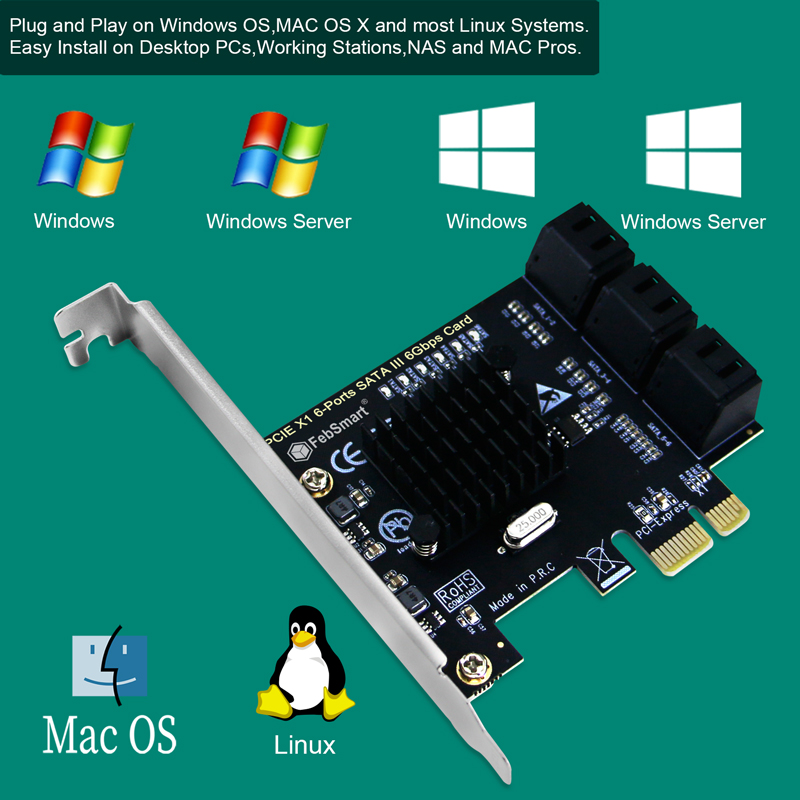

E.  1. Plug and Play on Windows 11, 10, 8.x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64bit). 2. Support IN-BOX driver on MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15. x. 3. Support Plug and Play on most main stream Linux kernel system.

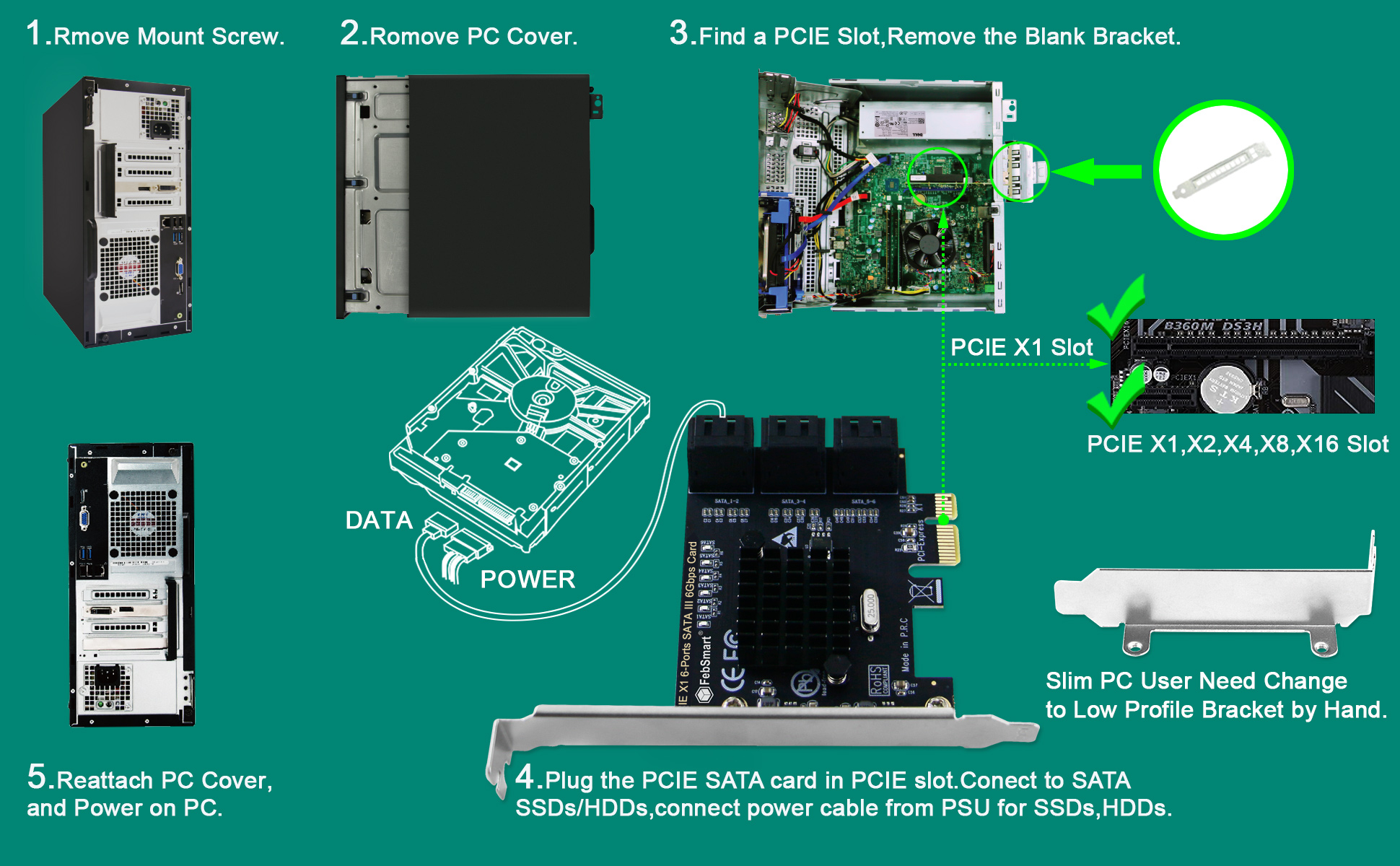

F.  1. To improve PCIE SATA card performance we packed 6X SATA 3 cable in the retail package. Users no need to buy SATA cable anymore. 2. Enjoy super easy installation with plug and play function on most of desktop PCs, working station and NAS data centers.


 This FebSmart FS-S6X1-Pro is a PCI Express X1 interface to 6-Ports SATA III 6Gbps expansion card. It is based on ASMedia ASM1166 PCIE 3.0 to SATA III host controller, will support plug and play on Windows OS, MAC OS, and Linux kernel systems. It is designed on PCIE 3.0 X1 interface, will provide 16Gbps total bandwidth, each SATA 3.0 ports will get 6Gbps max speed for connected HDDs/SSDs. It supports none boot mode(storage) and AHCI BOOT UP mode, users must make sure connected HDDs/SSDs was set on AHCI mode when use it as BOOT UP disk. It will provide 6X NONE-RAID SATA III 6Gbps ports on Desktop PCs, Working Stations, MAC Pros, Network Attached Storage (NAS), allow users light up 6X HDDs/SSDs in its system.

Compatible System:


1. Plug and Play on Windows 11, 10, 8.x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64bit).

2. Support IN-BOX driver on MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15. x.

3. Support Plug and Play on most main stream Linux kernel system.

SATA Controller Down Stream Features:

Compliant with Serial ATA Specification 3.1. Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbp.

Supports programmable transmitter signal levels. Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.


Supports AHCI 1.0 programming interface. Supports Native Command Queuing (NCQ). Supports Staggered Spin-up.

Supports Port Multiplier FIS based switching or command-based switching. Supports Partial and Slumber Power Management states.

PCIE Up Stream Features:

Compliant with PCIe 3.0 specifications. Supports communication speed of 2.5 Gbps,5 Gbps, 8Gbps and 16Gbps.

Supports AHCI programming interface registers for the SATA controller. Supports aggressive power management.

Supports error reporting, recovery, and correction. Supports Message Signaled Interrupt (MSI).

Package:

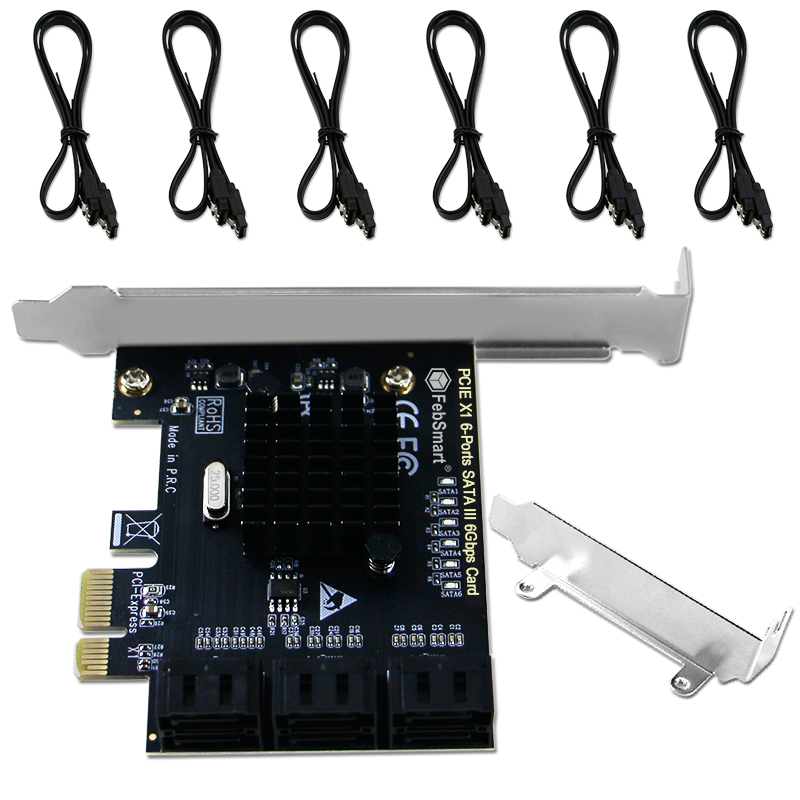

1X FS-S6X1-Pro, 1X User manual, 6X SATA III cable, 1X Mount screw, 1X Low profile bracket.
