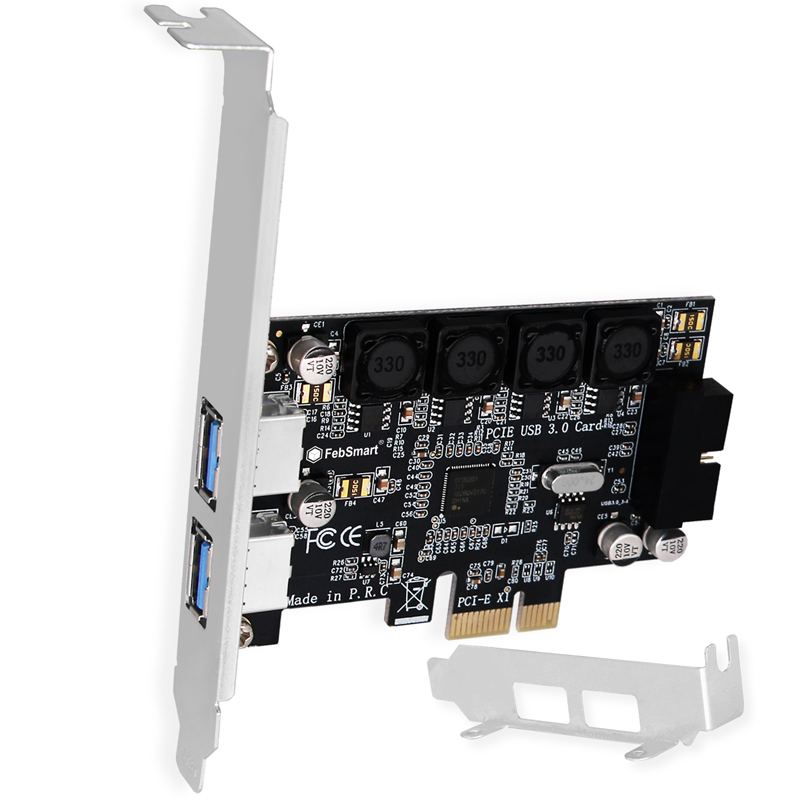

PCIE to 2X USB-A and 1X 19Pin USB 3.0 Header Card,Extend to 4X 5Gbps USB-A Ports

 1. This FS-HA-Pro is a PCIE X1 interface to (2X 5Gbps USB-A and 1X 5Gbps 19Pin USB 3.0 header) 3.0 expansion card. The 19Pin USB 3.0 header will extend to Desktop PCs front panel 2X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs for large data transfers. Will light up 4X USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, gaming pad, smartphone, tablet, and more USB-A interface devices.
2. Built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A max (5V/8A in total) power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as USB industrial cameras, USB VR-Systems, USB 3.0 NVME enclosures, USB live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations.

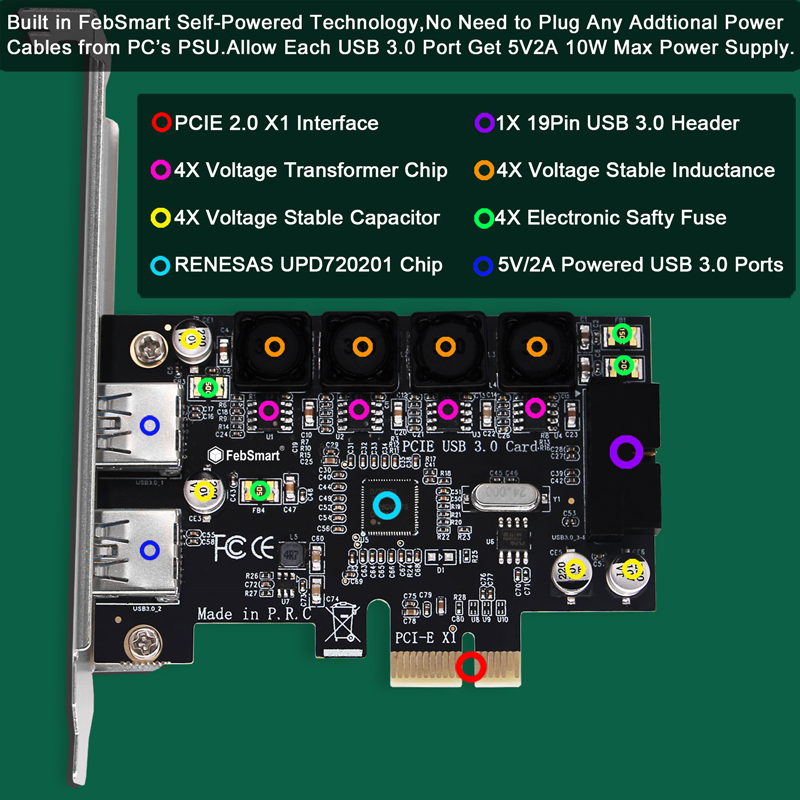

3. Based on RENESAS UPD720201 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platform Desktop PCs. FebSmart built in 4X voltage transformers to pick up 12V power from motherboard and covert to 5V/8A in total power supply for 4X USB 3.0 devices power consumption. Febsmart also designed 4X electronic safety fuse, 4X voltage stable capacitor and 4X voltage stable inductance to protect USB 3.0 devices and users’ data safety.
4. Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. NOT support MAC OS X.

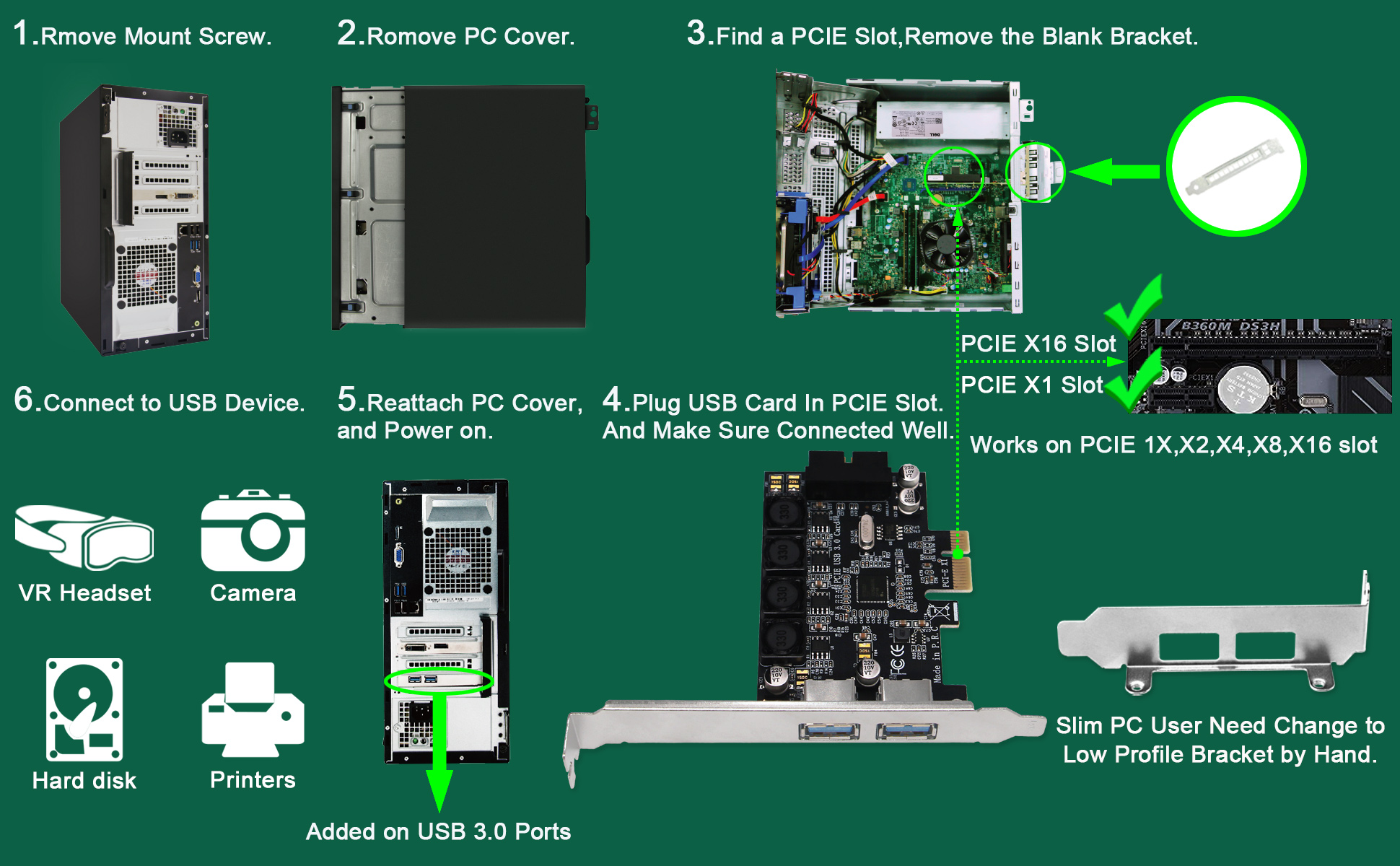

5. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.x, 2.x, 3.x, 4.x PCIE slot. The full height bracket mounted on this PCIE USB 3.0 expansion card, will works on Standard Size PCs. The low-profile bracket in the package, will supports Slim PCs.
6. ATTENTION: 1. Must make sure Desktop PCs have one empty PCIE X1 slot before purchase. 2. Must install driver on Windows 7 (32/64bit) and previous systems. 3. Slim PC users need change to low profile bracket by hand. 4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed.

 Product Advantage:

    1. 4X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.
    2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/8A max) supply for USB 3.0 devies. Light up 4X high power-consuming USB 3.0 devices simultaneously.
    3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.
    4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.

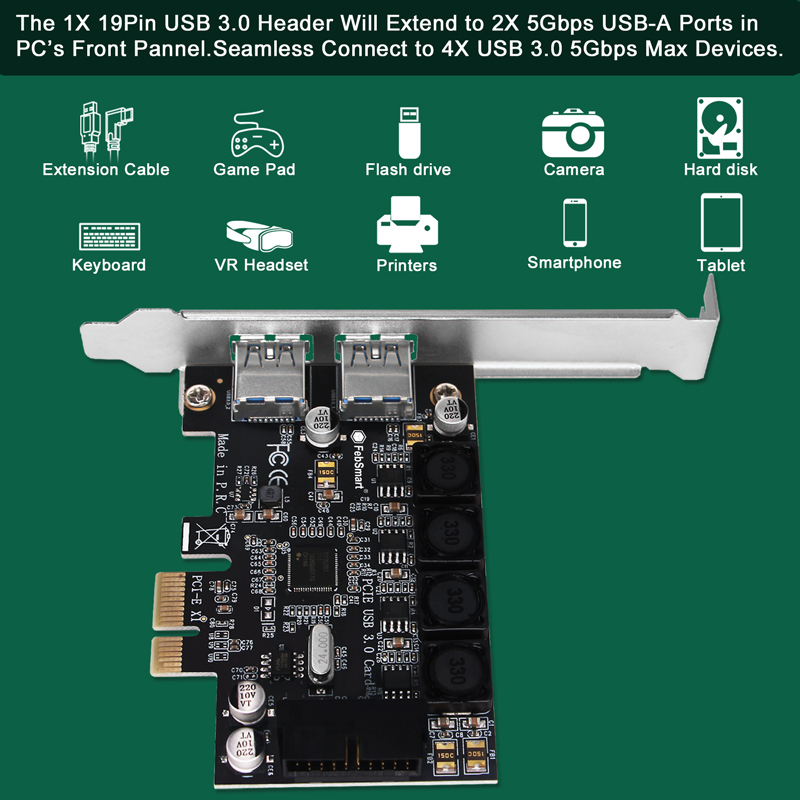

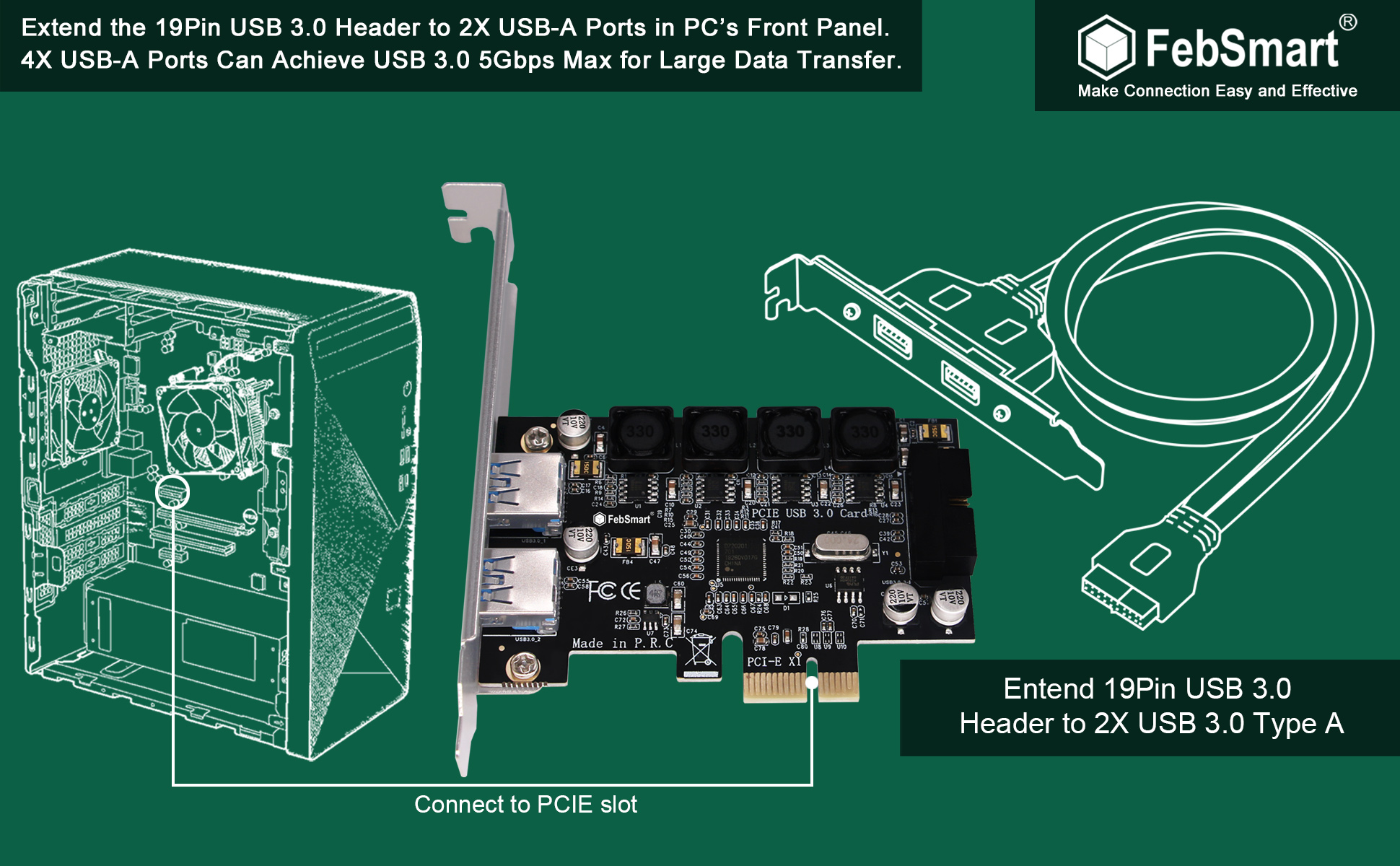

    5. Add 4X 5Gbps USB-A ports on Desktop PCs, 2X USB-A in Desktop PCs back pannel and 1X 19 Pin USB 3.0 Header will extend to Desktop PCs front pannel 2X USB-A ports.
    6. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.
    7. Full height bracket mount on USB card, will works on Standard Size PCs. Low profile in the package will works on Slim PCs.

 Waht is FebSmart Self-Powered Technology?

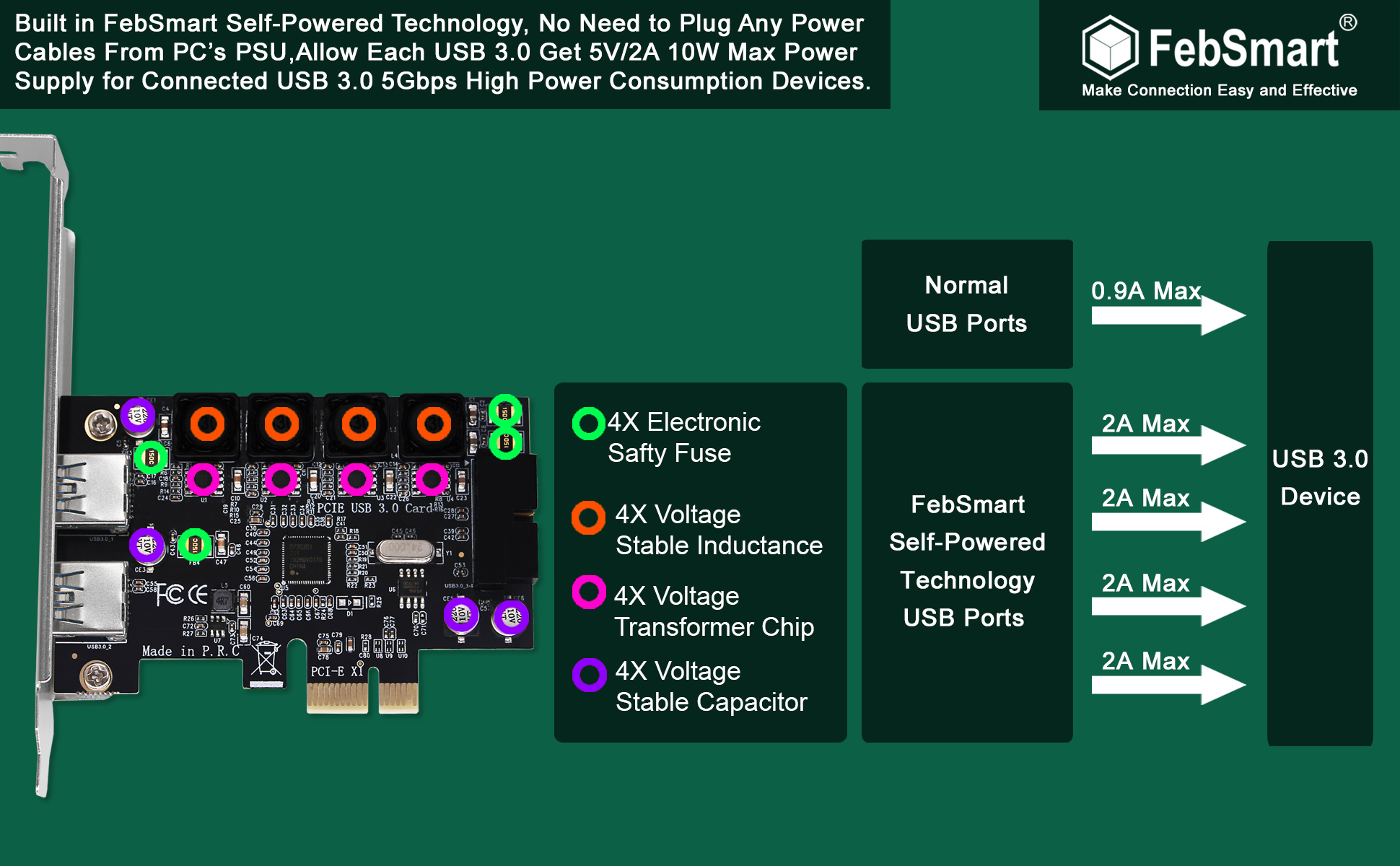

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.0 expansion cards. The old version PCI Express USB 3.0 card need to plug a power cable from the Desktop PC’s power power supply unit. Even added-on additional power, USB 3.0 ports still lacks power when running few high power-consuming devices simultaneously, such as USB NVME enclosures or USB SATA SSD/HDD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 4X voltage transformer on 4X USB 3.0 port, will pick up 12/3.5A power supply from PCIE slot and convert to 5V/8A in total. Each USB 3.0 port will get 5V/2A 10W max (NOT support fast charging) power supply for connected USB 3.0 devices. Most high-power consumption USB 3.0 devices will need 4~8W power supply. Which means 4X USB 3.0 ports can light up 4X high power consumption devices simultaneously. FebSmart also designed 4X electronic safty fuse, 4X voltage stable capacitor and 4X voltage stable inductance, will protect USB 3.0 device and users datas. Never burn USB 3.0 devices, never lost datas. Add superspeed 5Gbps USB 3.0 expansion card on Desktop PCs. Choose stable, fast and safe USB 3.0 connection with FebSmart.

A. 1. USB 3.0 standard, provide superspeed USB 3.0 5Gbps total bandwidth, each USB-A ports get 5Gbps max speed. 2. Backward compatible with USB 2.0 480Mbps and USB 1.1 12Mbps. 3. Supports high resolution USB Graphic Adapters, easy stream Pro HD video source.

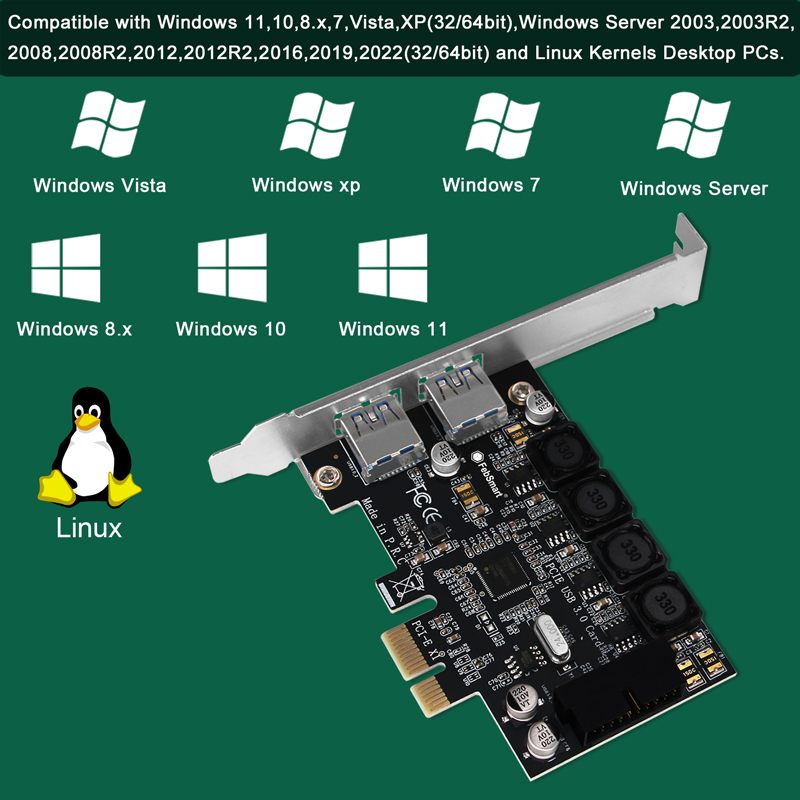

B. 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.
2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.3. Plug and Play on most Linux kernels.4. NOT support MAC OS X.

C. 1. Built in FebSmart Self-Powered technology no need to plug any power cable from Desktop PC's PSU, enjoy super easy and safe installation. 2. Designed 4X electronic safty fuse, 4X voltage stable capacitor and 4X voltage stable inductance protect USB 3.0 device from overcurrent, overload ensure data security.

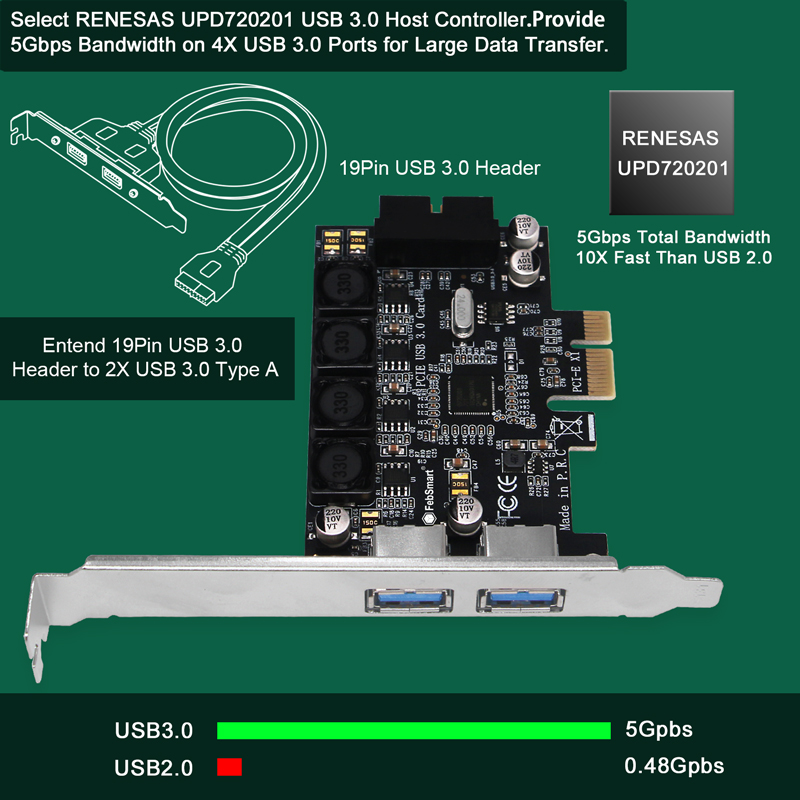

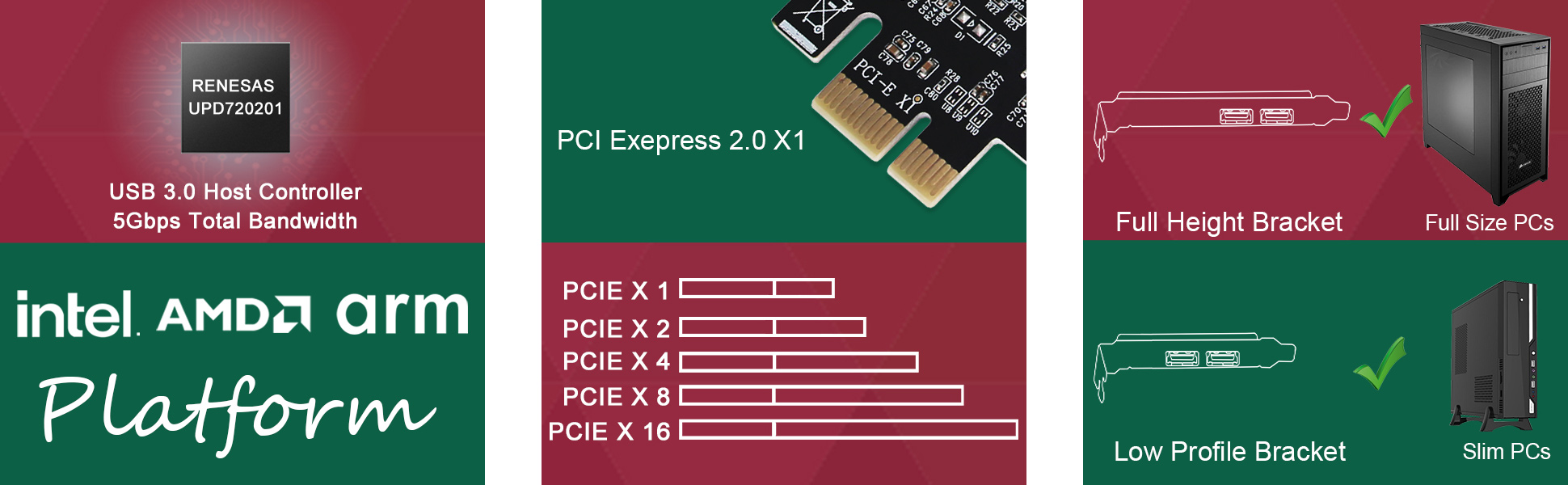

D. 1. Bsed on RENESAS UPD720201 USB 3.0 5Gbps host controller, will compatible with AMD, Intel and ARM hardware platform Desktop PCs. 2. Light up 4X high power consumption USB 3.0 5Gbps devices simultaneously.

E. 1. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. do not work on PCI slot.2. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

F. 1. Mounted with standard size bracket for standard size PCs. 2. Packed with low-profile bracket,works on slim size PCs. Need change to the low profile braket by users.

FebSmart FS-HA-Pro is a PCIE X1 interface to 2X 5Gbps USB-A and 1X 5Gbps 19Pin USB 3.0 header expansion card. The 19Pin USB 3.0 header will extend to Desktop PCs front pannel 2X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs, Working Stations, and NAS Data Centers for large data transfer. It is based on RENESAS UPD720201 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platform Desktop PCs. All added-on 4X USB-A ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/8A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as indusrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclusures, USB 3.0 video adapters and USB 3.0 universal docking stations.It will also light up 4X normal USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

Product Advantage:

1. 4X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.

2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/8A max) supply for USB 3.0 devies. Light up 4X high power-consuming USB 3.0 devices simultaneously.

3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.

4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.

5. Add 4X 5Gbps USB-A ports on Desktop PCs, 2X USB-A in Desktop PCs back pannel and 1X 19 Pin USB 3.0 Header will extend to Desktop PCs front pannel 2X USB-A ports.

6. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

7. Full height bracket mount on USB card, will works on Standard Size PCs. Low profile in the package will works on Slim PCs.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.

2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

3. Plug and Play on most Linux kernels.

4. NOT support MAC OS X.

Package: 1X FS-HA-Pro 1X User Manual 1X Mounting Screw 1X Low Profile Bracket
