2-Ports Superspeed 5Gbps USB 3.0 PCI Express Expansion Card

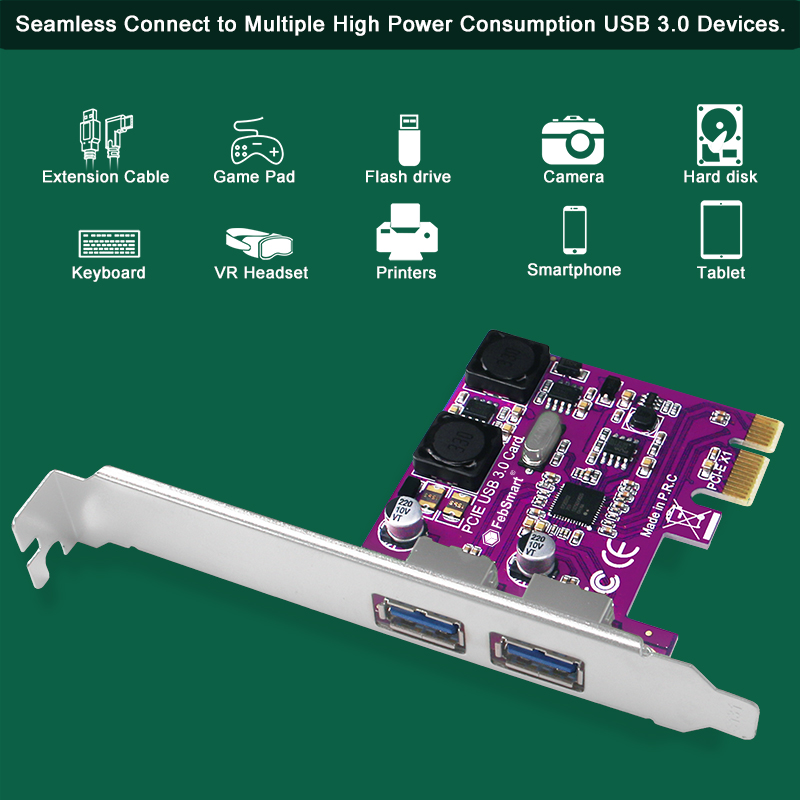

 1. This FS-U2-Pro is a PCIE X1 interface to 2X 5Gbps (USB-A ports) USB 3.0 expansion card. Allow users add 2X 5Gbps max USB-A ports on Desktop PCs, MAC Pros, Working Stations, and NAS Data Centers for large data transfers. It will light up 2X USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.
2. Built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/4A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as USB industrial cameras, USB VR-Systems, USB 3.0 NVME enclosures, USB SATA HDD/SSD enclosures, USB live broadcast devices, USB 3.0 video adapters and USB 3.0 universal docking stations.

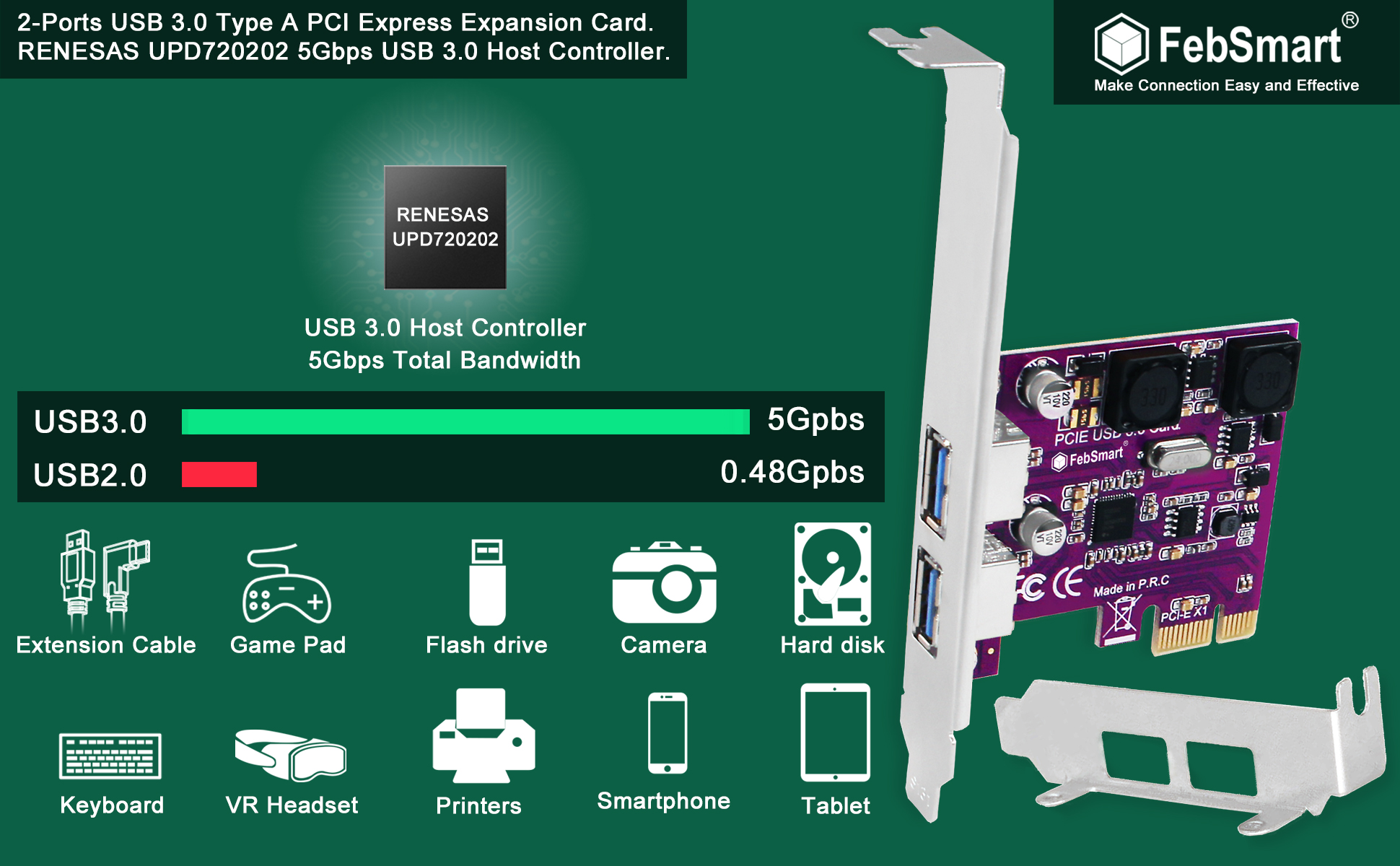

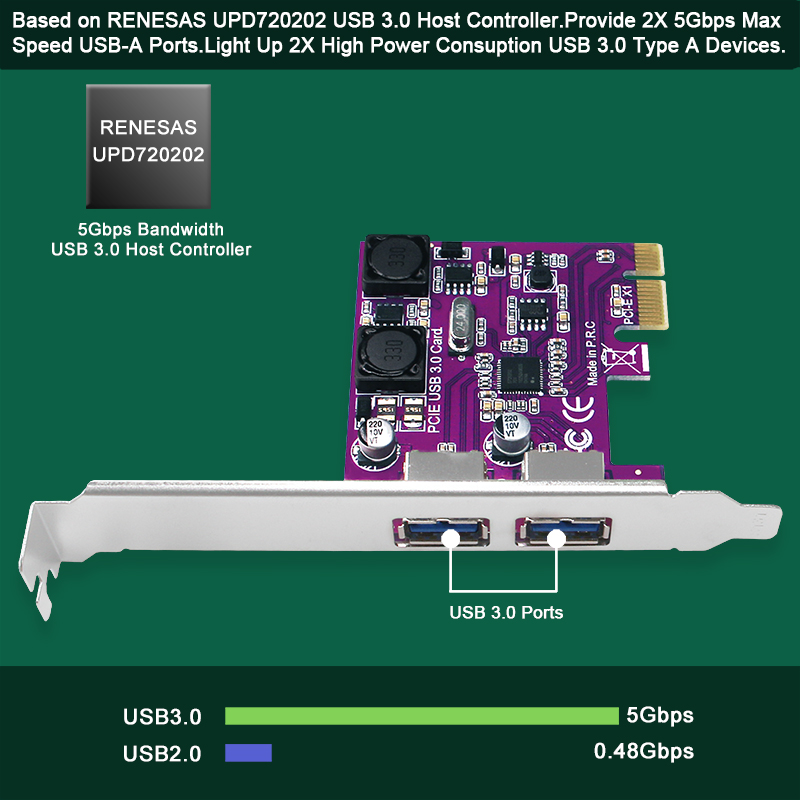

3. Based on RENSAS UPD720202 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, MAC, and Intel hardware platform Desktop PCs. FebSmart built in 2X voltage transformers to pick up 12V power from motherboard and covert to 5V/4A in total power supply for 2X USB 3.0 devices power consumption. Febsmart also designed 2X electronic safety fuse, 2X voltage stable capacitor and 2X voltage stable inductance to protect USB 3.0 devices and users’ data safety.

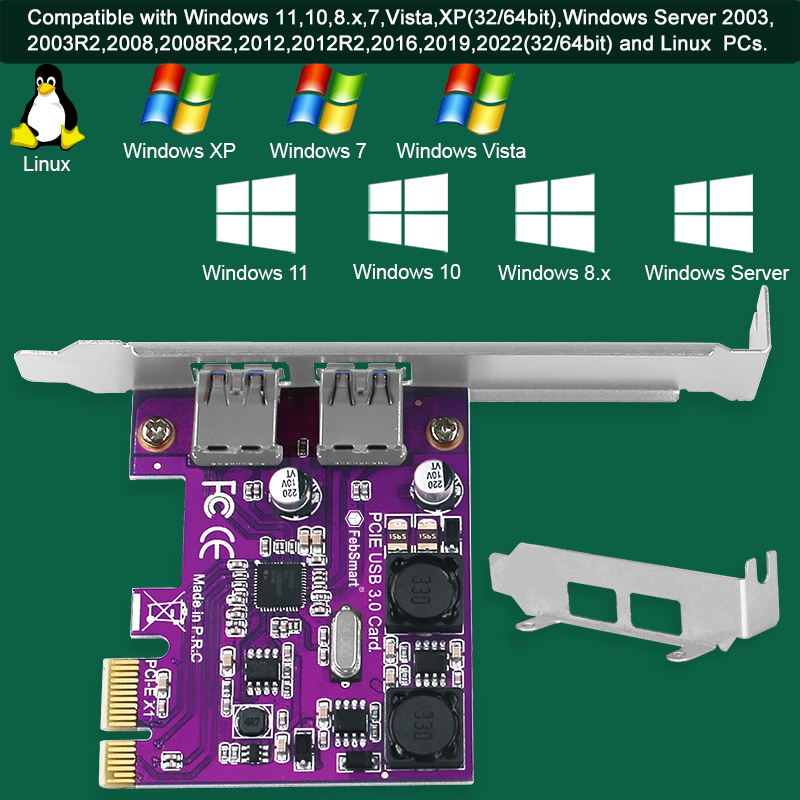

4. Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. NOT support MAC OS.

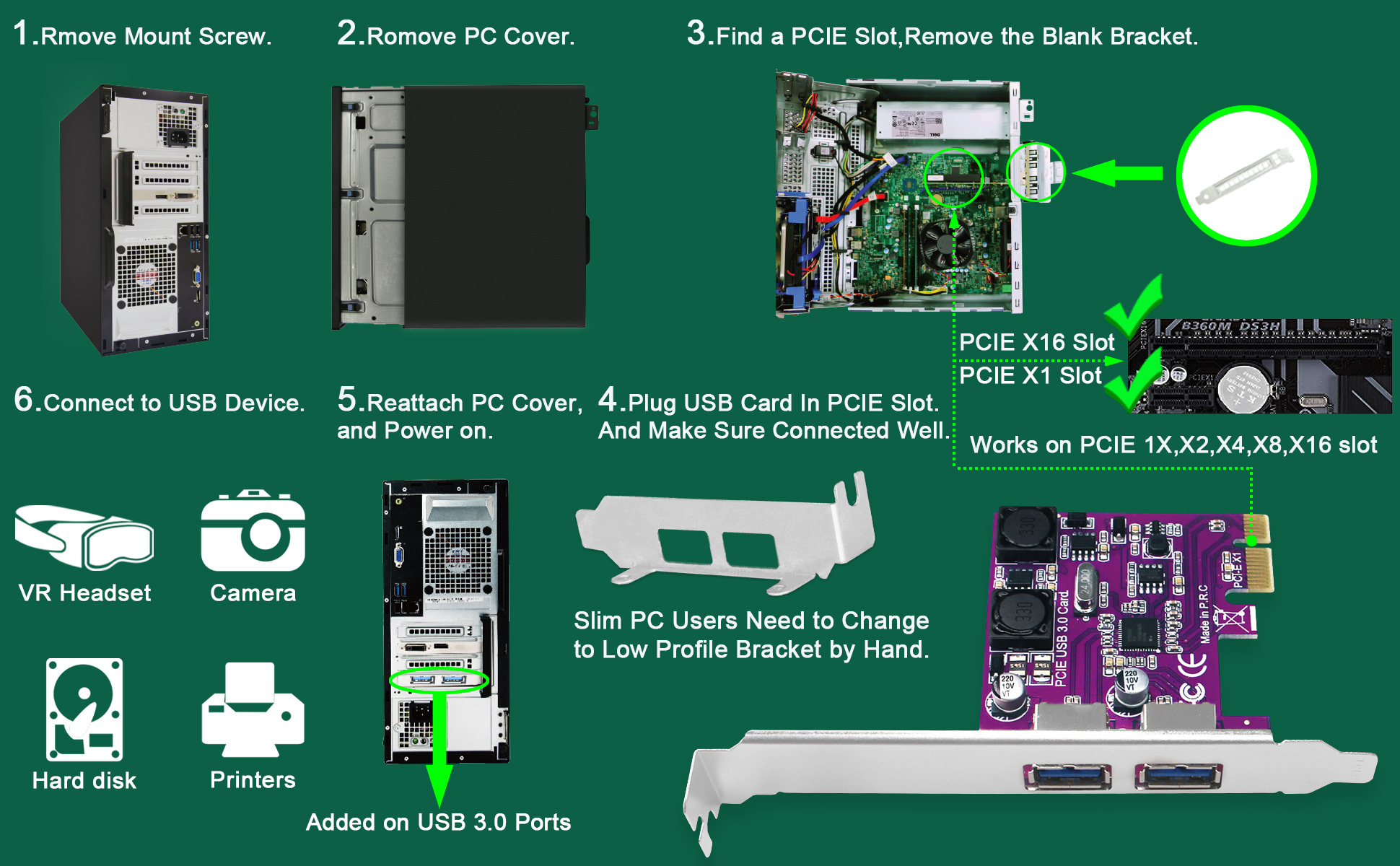

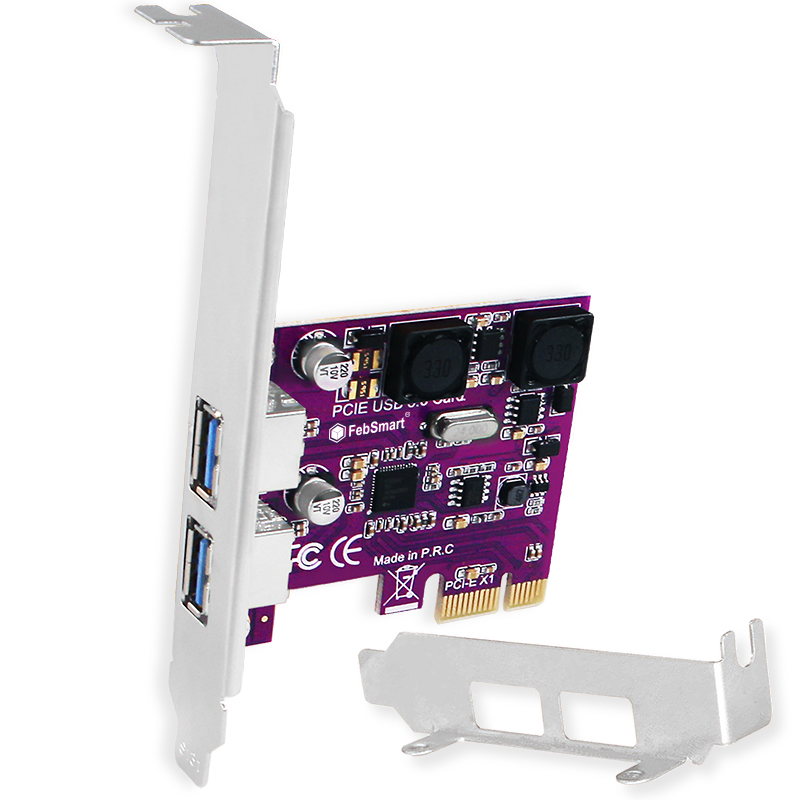

5. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.x, 2.x, 3.x, 4.x PCIE slot. The full height bracket mounted on this PCIE USB 3.0 expansion card, will works on Standard Size PCs. The low-profile bracket in the package, will supports Slim PCs.
6. ATTENTION: 1. Must make sure Desktop PCs have one empty PCIE X1 slot before purchase. 2. Must install driver on Windows 7 (32/64bit) and previous systems. 3. Slim PC users need change to low profile bracket by hand. 4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed.

 Product Advantage:

    1. 2X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.
    2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/4A max) supply for USB 3.0 devies. Light up 2X high power-consuming USB 3.0 devices simultaneously.
    3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.
    4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.
    5. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.
    6. Full height bracket mount on USB card, will works on Standard Size PCs. Low profile in the package will works on Slim PCs.

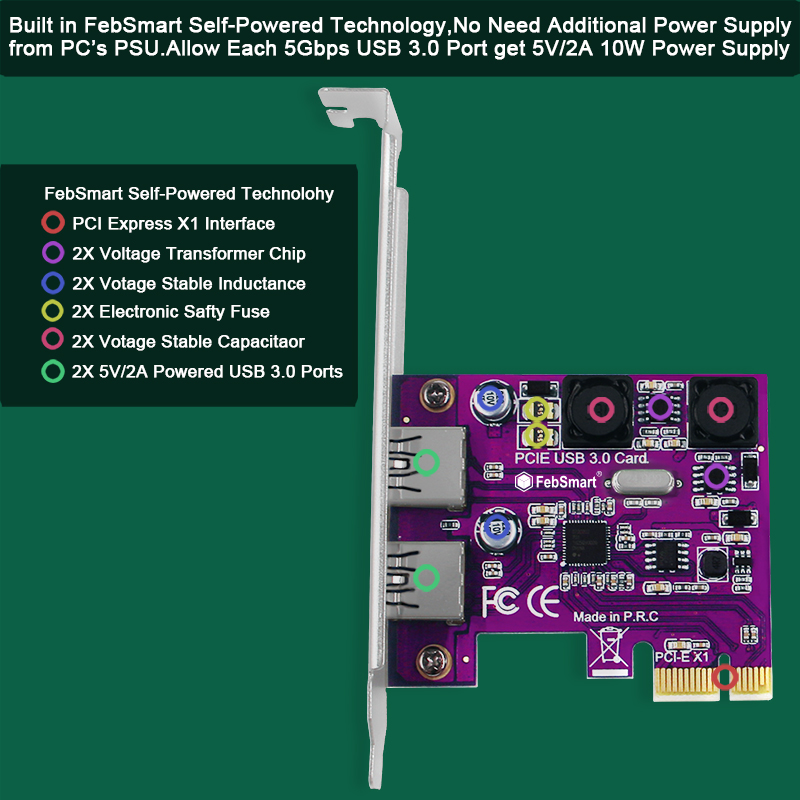

 What is FebSmart Self-Powered Technology?

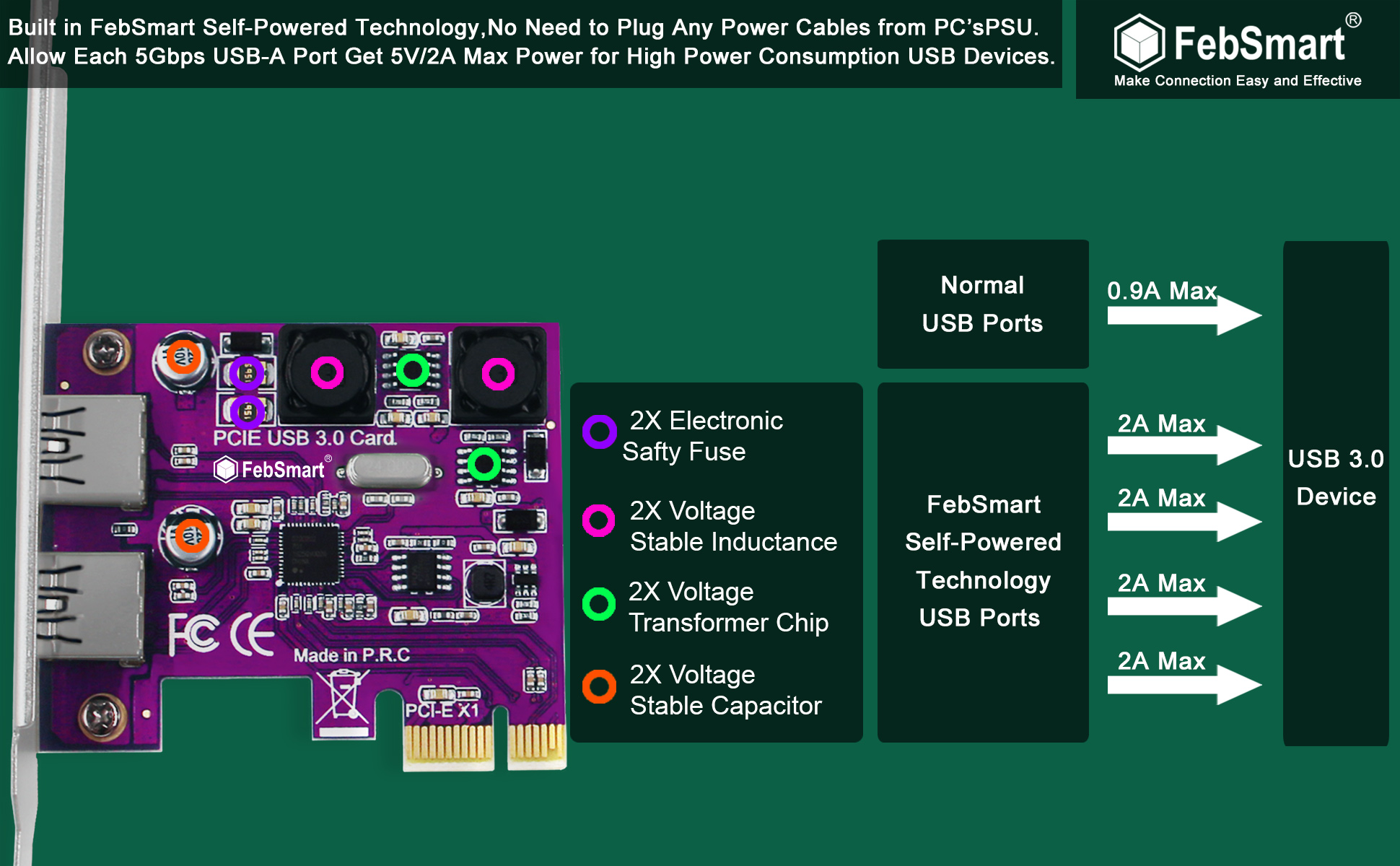

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.0 expansion cards. The old version PCI Express USB 3.0 card need to plug a power cable from the Desktop PC’s power power supply unit. Even added-on additional power, USB 3.0 ports still lacks power when running few high power-consuming devices simultaneously, such as USB NVME enclosures or USB SATA SSD/HDD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 2X voltage transformer on 2X USB 3.0 port, will pick up 12/2.5A power supply from PCIE slot and convert to 5V/4A in total. Each USB 3.0 port will get 5V/2A 10W max (NOT support fast charging) power supply for connected USB 3.0 devices. Most high-power consumption USB 3.0 devices will need 4~8W power supply. Which means 2X USB 3.0 ports can light up 2X high power consumption devices simultaneously. FebSmart also designed 2X electronic safty fuse, 2X voltage stable capacitor and 2X voltage stable inductance, will protect USB 3.0 device and users datas. Never burn USB 3.0 devices, never lost datas. Add superspeed 5Gbps USB 3.0 expansion card on Desktop PCs. Choose stable, fast and safe USB 3.0 connection with FebSmart.

A. 1. USB 3.0 standard,Support super speed USB 3.0 5Gbps total bandwidth,10X faster than USB 2.0 0.48Gbps. 2. Backward compatible with USB 2.0 480Mbps and USB 1.1 12Mbps. 3. Supports high resolution USB Graphic Adapters, easy stream Pro HD video source.

B. 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. Support Plug and Play on MAC OS X.

C. 1. Built in FebSmart Self-Powered technology no need to plug any power cable from Desktop PC's PSU, enjoy super easy and safe installation. 2. Designed 2X electronic safty fuse, 2X voltage stable capacitor and 2X voltage stable inductance protect USB 3.0 device from overcurrent, overload ensure data security.

D. 1. Bsed on RENSAS UPD720202 USB 3.0 5Gbps host controller, will compatible with AMD, Intel, MAC and ARM hardware platform Desktop PCs. 2. Light up 2X high power consumption USB 3.0 5Gbps devices simultaneously.

E. 1. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. do not work on PCI slot. 2. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

F. 1. Mounted with standard size bracket for standard size PCs. 2. Packed with low-profile bracket,works on slim size PCs. Need change to the low profile braket by users.

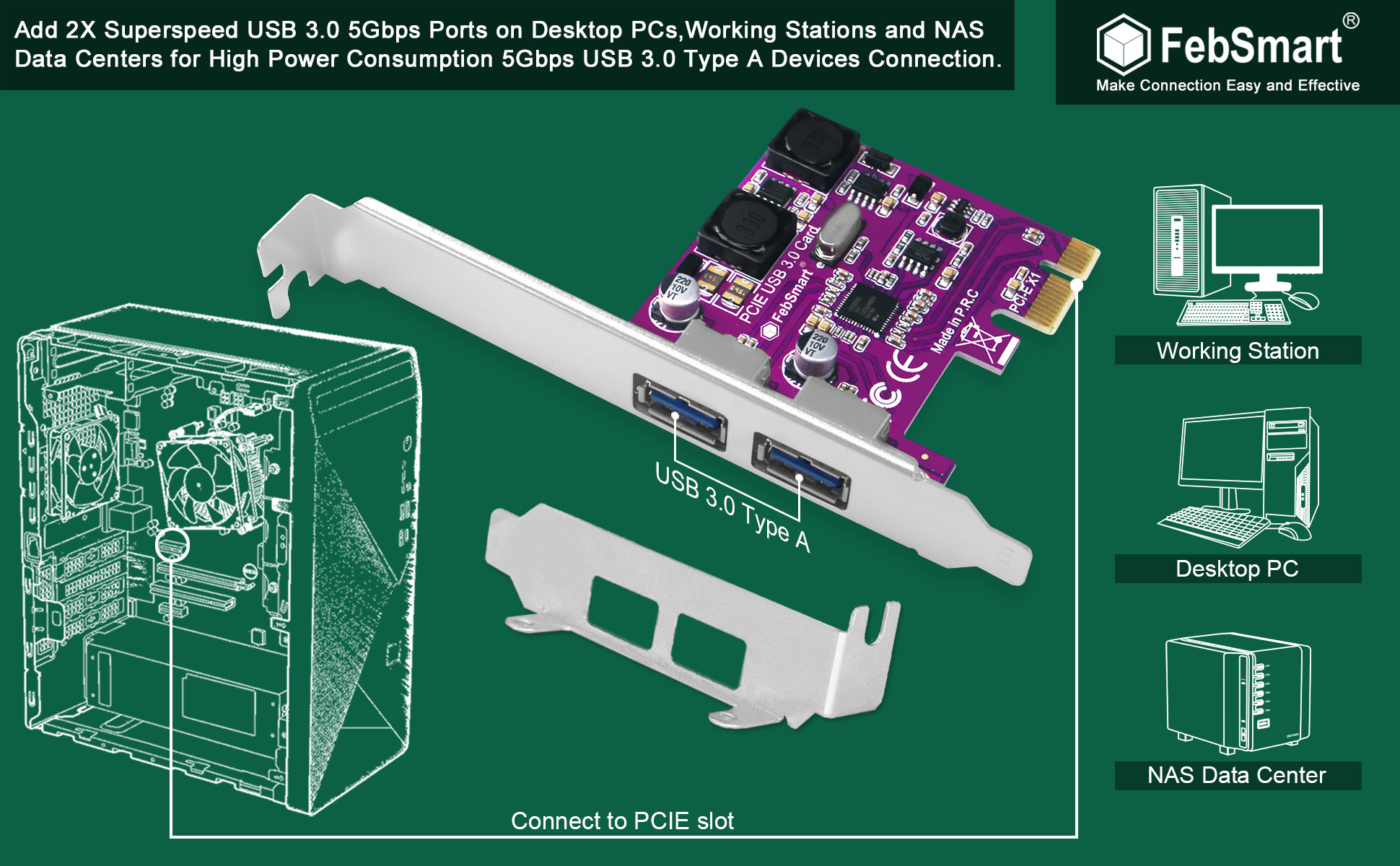

FebSmart FS-U2S-Pro is a PCIE X1 interface to 2X 5Gbps (USB-A Port) USB 3.0 expansion card. Allow users add 2X 5Gbps max USB-A ports on Desktop PCs, Working Stations, MAC Pros and NAS Data Centers for large data transfer. The 2X USB 3.0 ports will share 5Gbps total bandwidth.It is based on RENESAS UPD720202 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, MAC, and Intel hardware platform Desktop PCs. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/4A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as indusrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclusures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will light up 2X normal USB 3.0 devices also which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

Product Advantage:

1. 2X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.

2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/4A max) supply for USB 3.0 devies. Light up 2X high power-consuming USB 3.0 devices simultaneously.

3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.

4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.

5. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

6. Full height bracket mount on USB card, will works on Standard Size PCs. Low profile in the package will works on Slim PCs.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.

2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

3. Plug and Play on most Linux kernels.

4. Support Plug and Play on MAC OS X.

Package: 1X FS-U2-Pro 1X User Manual 1X Mounting Screw 1X Low Profile Bracket
