PCIE Wireless-AC 600Mbps (2.4GHz 150Mbps and 5GHz 433Mbps) WiFi Adapter

 1. This FS-AC60SE offers fast and stable WiFi connection at 2.4GHz 150Mbps and 5GHz 433Mbps on Desktop PCs. Allow users get long range, few losses low latency WiFi network for internet surfing, file downloading, online phone call, online gaming, online video call and HD video streaming.

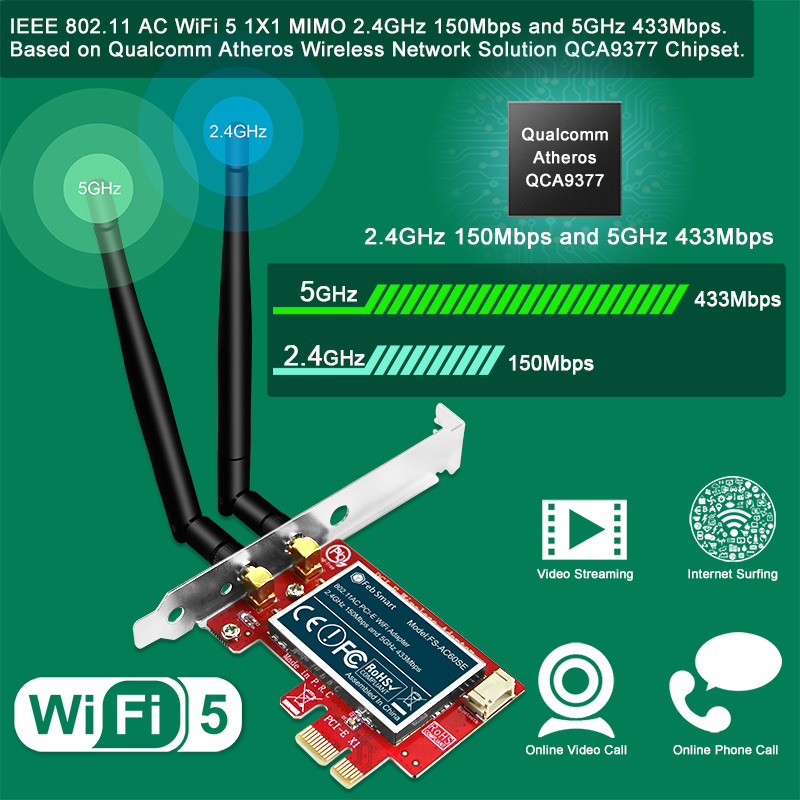

2. WiFi Protocol: IEEE 802.11 AC WiFi 5; Major Chipset: Qualcomm Atheros QCA9377; Operation Frequency: 5GHz and 2.4GHz; Max Speed: 2.4GHz 150Mbps and 5GHz 433Mbps; Wireless Encryption: WEP, WPA, WPA2, WPA3, WPA, PSK, WPA2, PSK (TKIP/AES).

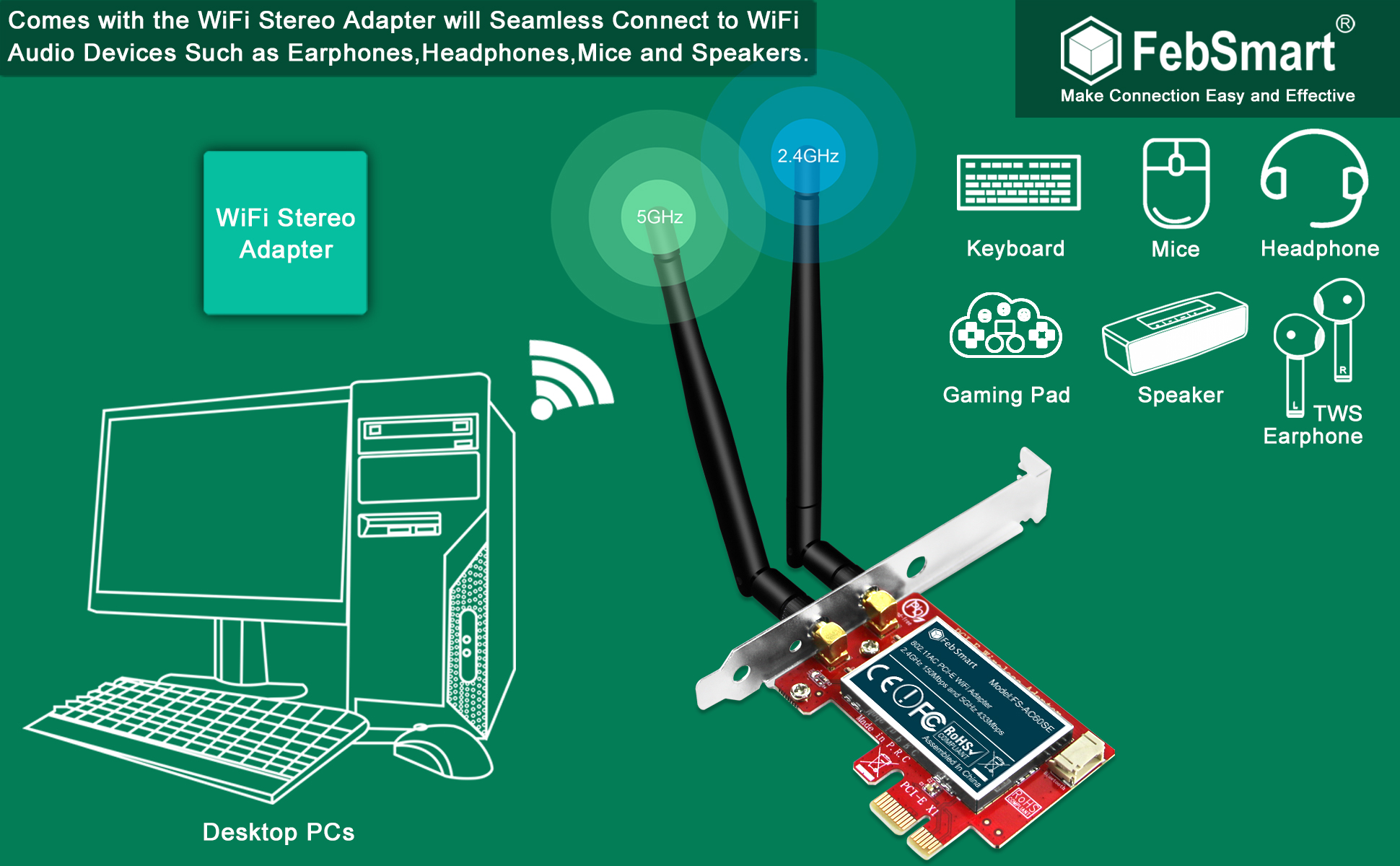

3. Built in WiFi stereo adapter for WiFi headphone, WiFi earphone, WiFi speakers, WiFi audio systems. Equipped with 2X 3dBi external detachable omni-directional dual band antenna will enhance Wi-Fi stability and WiFi reception range.
4. Advanced 802.11 AC features such as 1X1 MIMO and Transmit Beamformee to increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection.
5. System Requirements: Plug and Play on Windows 10, 11 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to Install Driver on Windows XP,7, 8.x (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit). Linux users please refer ATH10K driver.

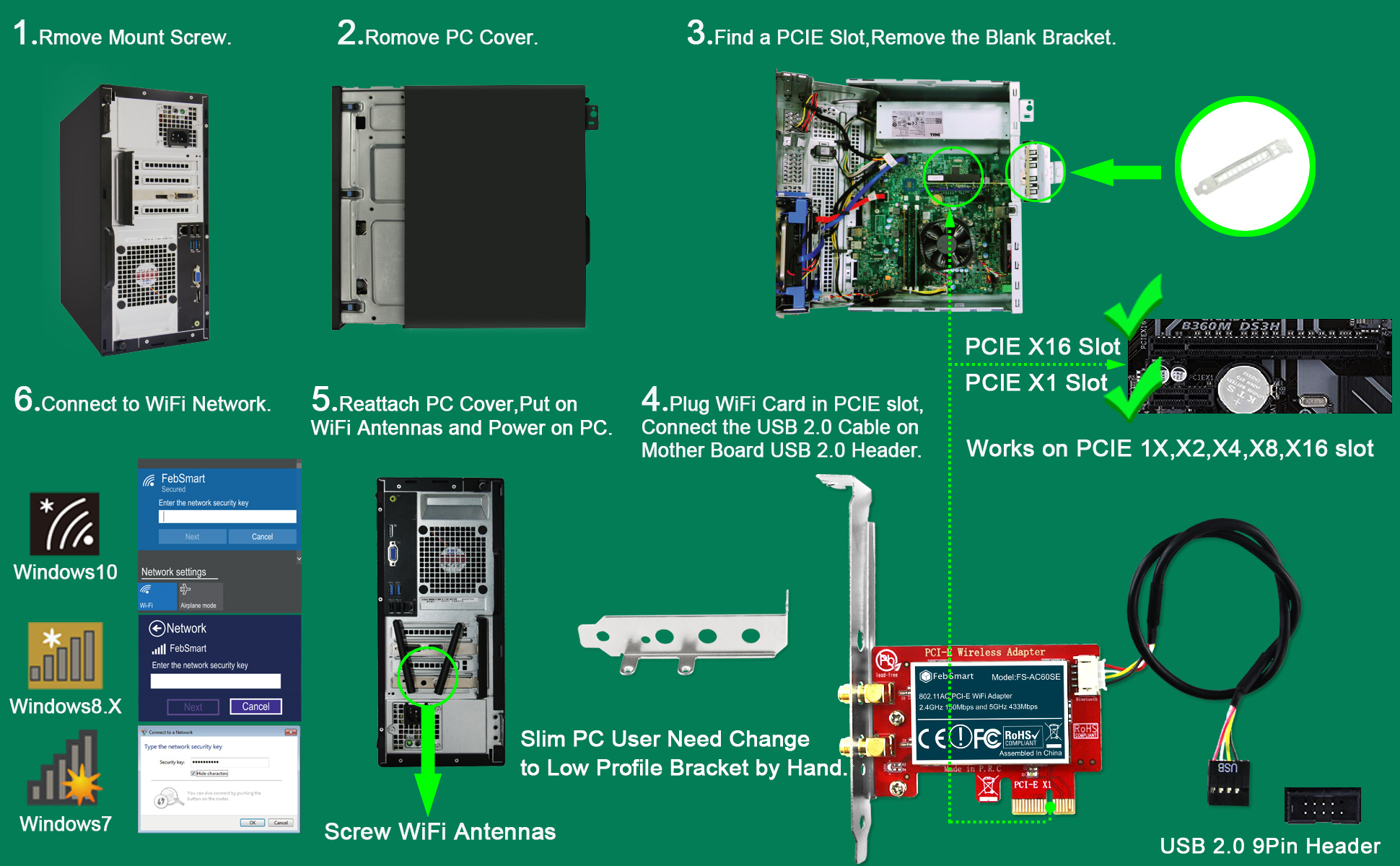

ATTENTION：1. Users must make sure Desktop PCs have 1X empty PCIE slot and USB 2.0 9Pin header. 2. Slim PCs users need change to low profile bracket by hand.

 Product Specifications:

Major Chip: Qualcomm Atheros QCA9377. Compatible Device: Standard Size PCs and Slim PCs.

Wireless Technology: 1X1 MU-MIMO, TX Beamformee. Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP.

WiFi Antennas: 2X3dBi Omni-directional External Detachable Dual Band WiFi Antennas.Max Wi-Fi Speed: 2.4GHz 40MHz

150Mbps (802.11AC/N) and 5GHz 40MHz 433Mbps (802.11AC).WiFi Standard: IEEE802.11 AC WiFi 5, Will compatible with

IEEE 802.11 A/B/G/N/AC/AX Wireless Router, Access Pinot.Product Advantage: Connect to Motherboard PCIE Slot Directly,

Provide More Stable WiFi Connection than USB WiFi Adapters.

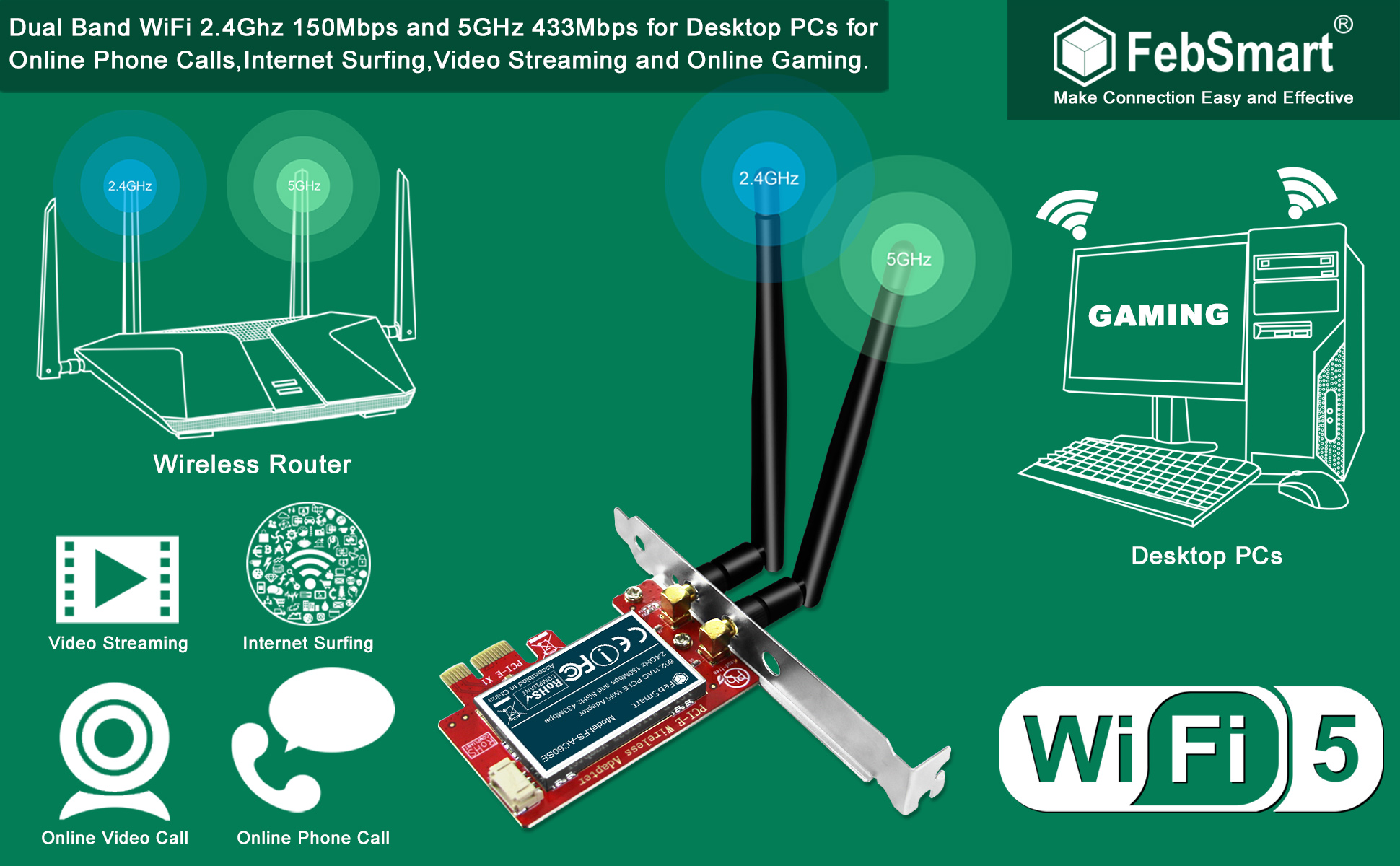

A.  Provide dual band wireless network connection at 2.4GHz 150Mbps and 5GHz 433Mbps max speed for internet surfing. Move the desktop PCs in home and office no wire ethernet cable limitation anymore.

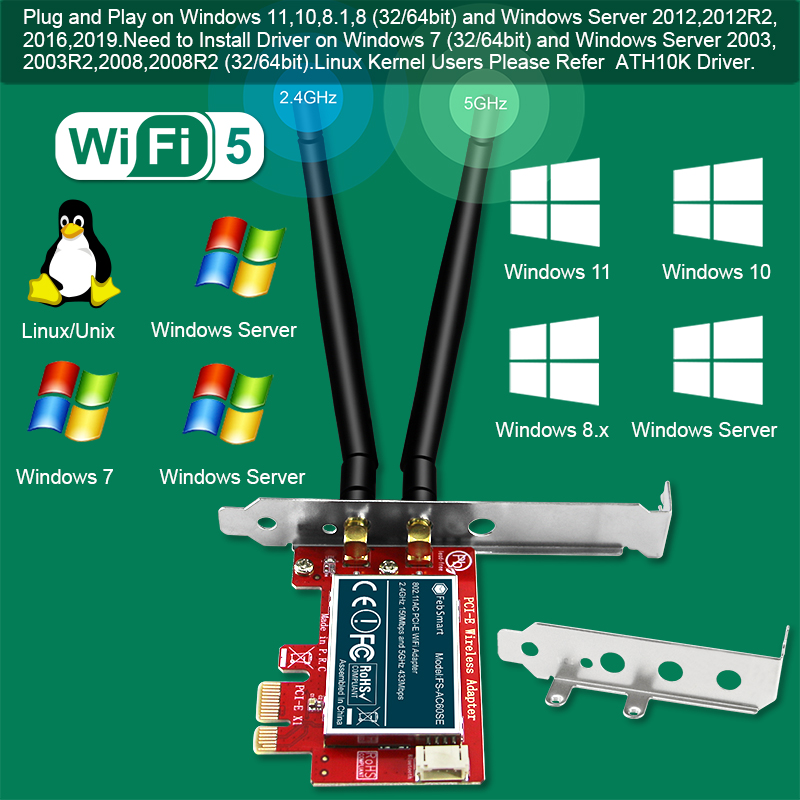

B.  Plug and Play on Windows 11, 10, 8.1, 8, 7 (32/64bits), Windows Server 2012, 2012R2, 2016, 2019, 2022 (32/64bit). Need to Install driver on Windows 7, XP (32/64bit), Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bits). Linux users please refer ATH10K driver.

C.  Super Easy to install on supported system. Seamless connect to most wireless encryption routers, access piont: WEP, WPA, WPA2 ,WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

D.  Select the Qualcomm Atheros QCA9377 wireless AC WiFi 5 network controller will provide solid wireless network connection. The Qualcomm Atheros network solution will compatible AMD, Intel and ARM platform device such as PCs, Working Stations and NAS systems.

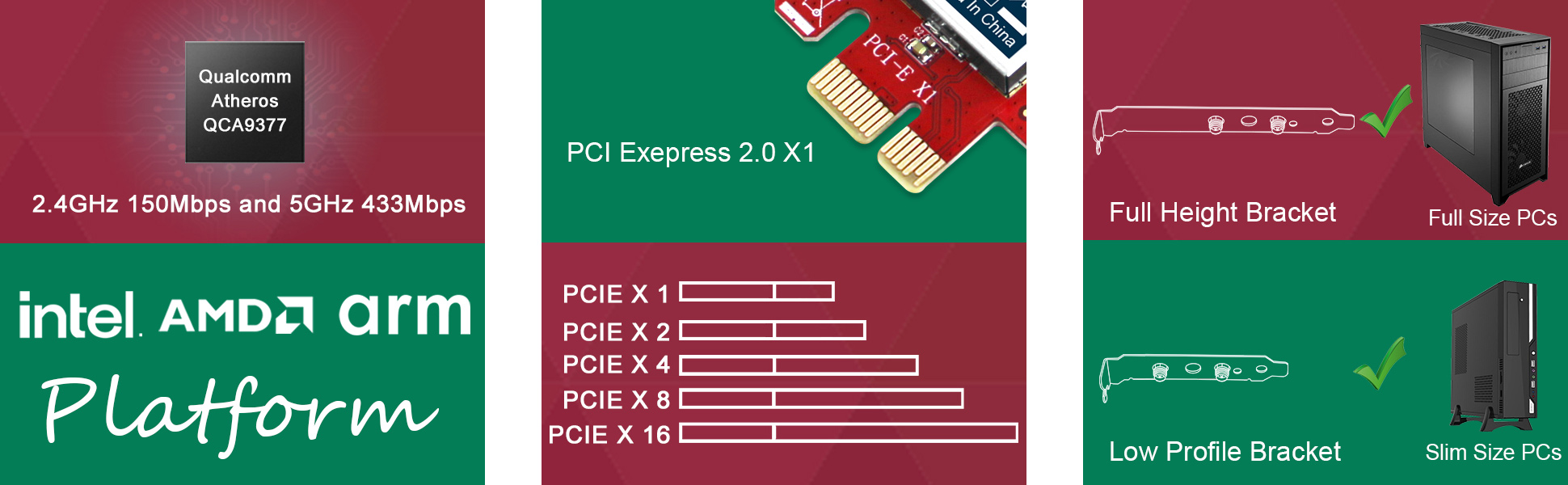

E.  PCI Express 2.0 standard design, compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard. PCI Express X1 interface design will works on PCI Express X1, X2, X4, X8, X16 slot. Make sure the desktop PCs have at least one active and open PCI Express slot.

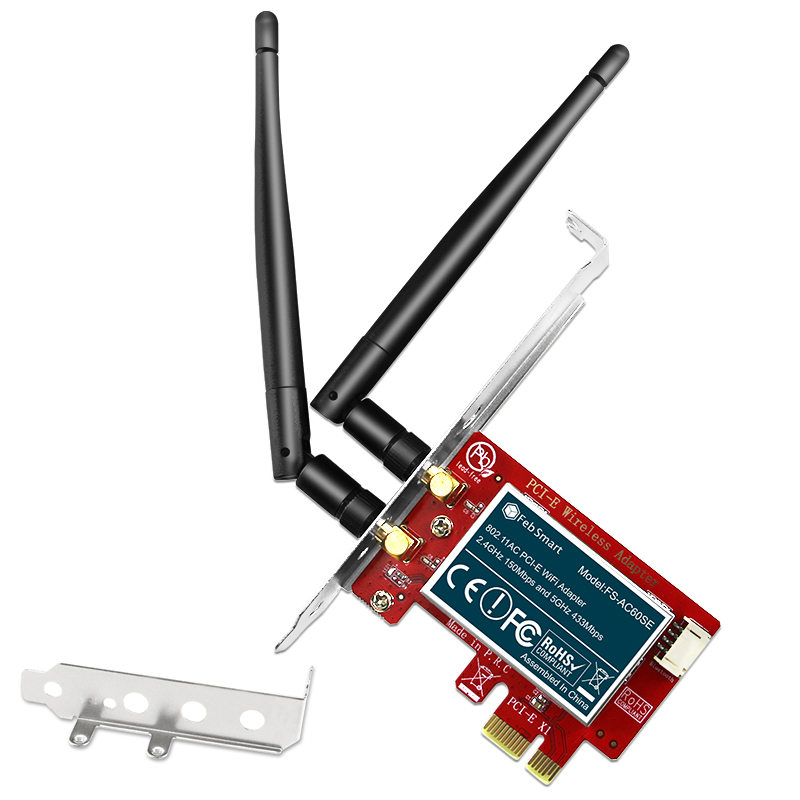

F.  Mounted with the full height bracket, will works on the full size PCs and working stations. Packed with the low profile bracket, will works on the slim PCs and working stations

 FebSmart FS-AC60SE is a Wireless-AC WiFi 5 600Mbps PCIE WiFi card with WiFi stereo adapter. It offers fast, stable, few losses, low latency wireless network connectivity at 2.4GHz 150Mbps and 5GHz 433Mbps on desktop PCs. It is based on Qualcomm Atheros QCA9377 network solution, will compatible with ARM, Intel, and AMD hardware platforms. With advanced 802.11 AC features such as 1X1 MIMO and Transmit Beamformee will increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection. It is Equipped with 2X 3dBi omni-directional external detachable dual band WiFi antennas will enhance WiFi stability and reception range. It is built in WiFi stereo adapter will allow PCs connect to WiFi audio devices such as WiFi earphone, WiFi headphone and WiFi speakers. It is an easy and cost-effective way to add wireless network on desktop PCs for audio transmission, internet surfing, online phone call, online video call, online gaming, and HD video streaming.

Product Specifications:

Major Chip: Qualcomm Atheros QCA9377.

Compatible Device: Standard Size PCs and Slim PCs.

Wireless Technology: 1X1 MU-MIMO, TX Beamformee.

Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP.

WiFi Antennas: 2X3dBi Omni-directional External Detachable Dual Band WiFi Antennas.

Max Wi-Fi Speed: 2.4GHz 40MHz 150Mbps (802.11AC/N) and 5GHz 40MHz 433Mbps (802.11AC).

WiFi Standard: IEEE802.11 AC WiFi 5, Will compatible with IEEE 802.11 A/B/G/N/AC/AX Wireless Router, Access Pinot.

Product Advantage: Connect to Motherboard PCIE Slot Directly, Provide More Stable WiFi Connection than USB WiFi Adapters.

System Requirements:

Plug and Play on Windows 11, 10 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022.

Need to Install Driver on Windows XP, 7, 8, 8.1 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit). Linux users please refer ATH10K driver.

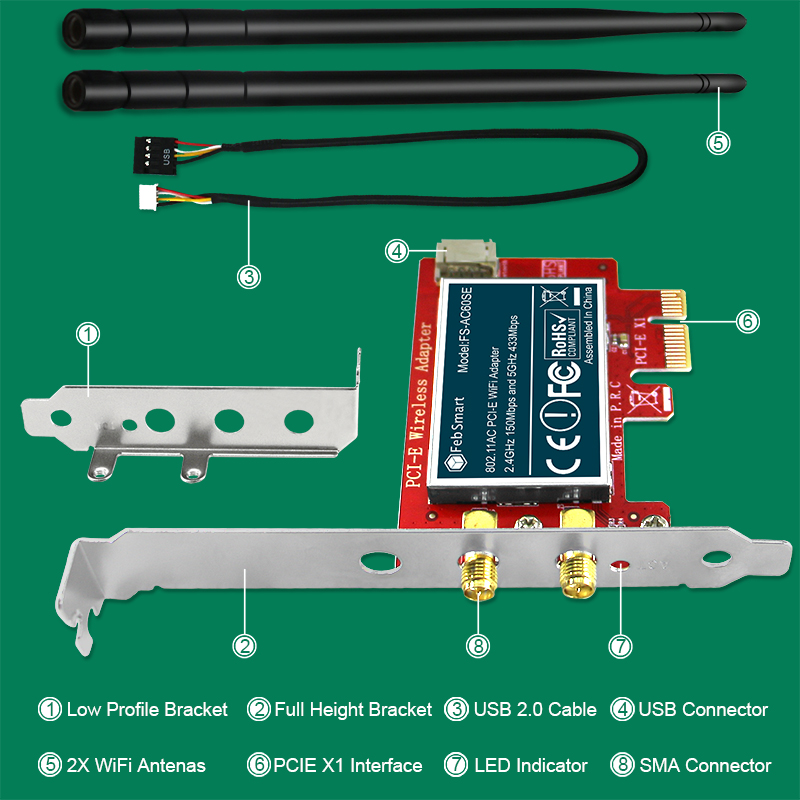

Package List: 1X FS-AC60SE, 1X User Manual, 2X 3dBi Antennas, 1XMounting Screw, 1X USB 2.0 Cable, 1X Low Profile Bracket.
