PCIE 3.0 X4 Interface to 2X USB 3.1 GEN2 10Gbps Type A Ports Expansion Card,2X 10Gbps Max Speed USB-A Ports

 1. FebSmart FS-A2-Pro will allow users add 2X USB 3.1 GEN2 type A 10Gbps max ports on desktop PCs. The 2X USB 3.1 GEN2 USB-A ports will provide superspeed plus 10Gbps (16Gbps in total) data tramsfer rate for USB 3.1 peripheral devices, such as NVME SSD enclosures, SATA HDD/SSD enclosures, USB 3.1 GEN2 hubs and more 10Gbps USB devices.
2. Built in FebSmart Self-Powered Technology. No need to plug any addtional power cables from PCs PSU and get each USB-A port will pick up 5V/3A (5V/6A in total, NOT for fast charging) max power supply. Ensure all connected USB 3.1 GEN2 devices running in suuperspeed plus 10Gbps. Enjoy super easy installation with Plug & Play use on most desktop PCs.

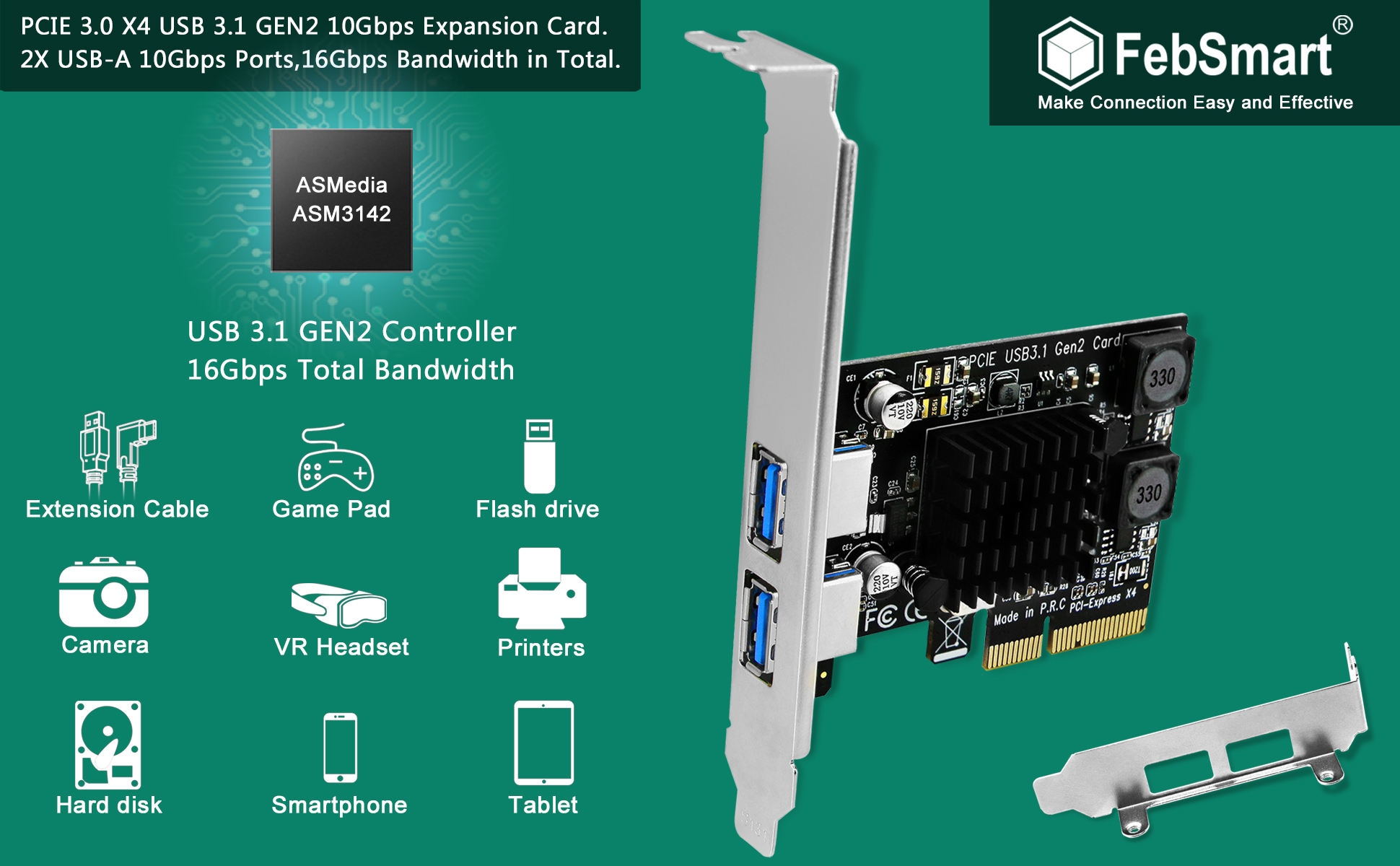

3. Based on ASMedia ASM3142 the 3rd generation USB 3.1 GEN2 10Gbps host controller. Supports USB 3.1 GEN2 Mutiple INs function, will auto-coordinate each USB port data transfer speed. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB devices always stay at 10Gbps max peak speed.

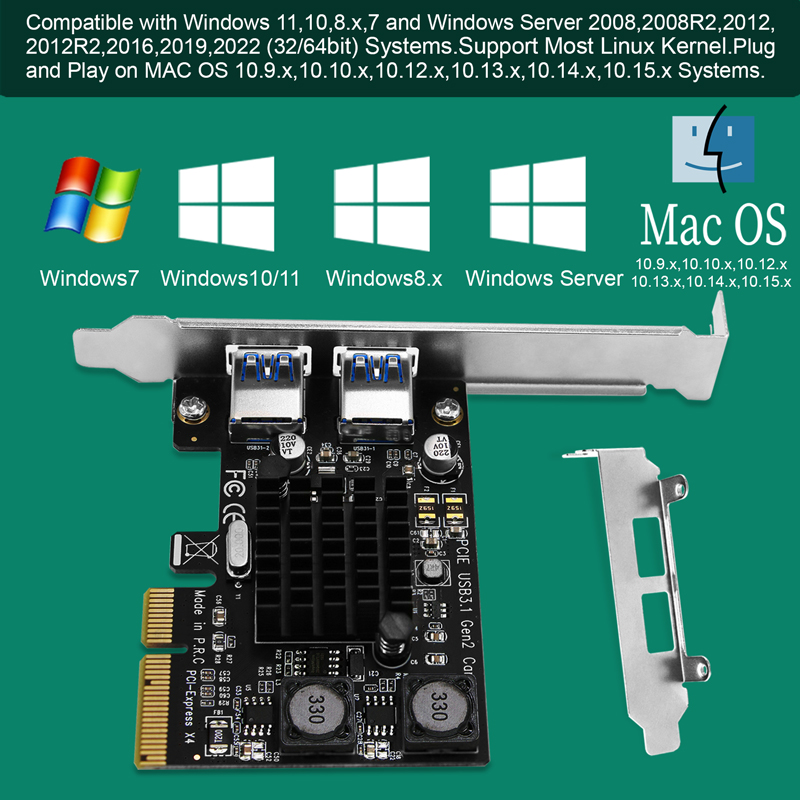

4. Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. 2. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). 3. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. 4. Supports most main stream Linux Kernels.

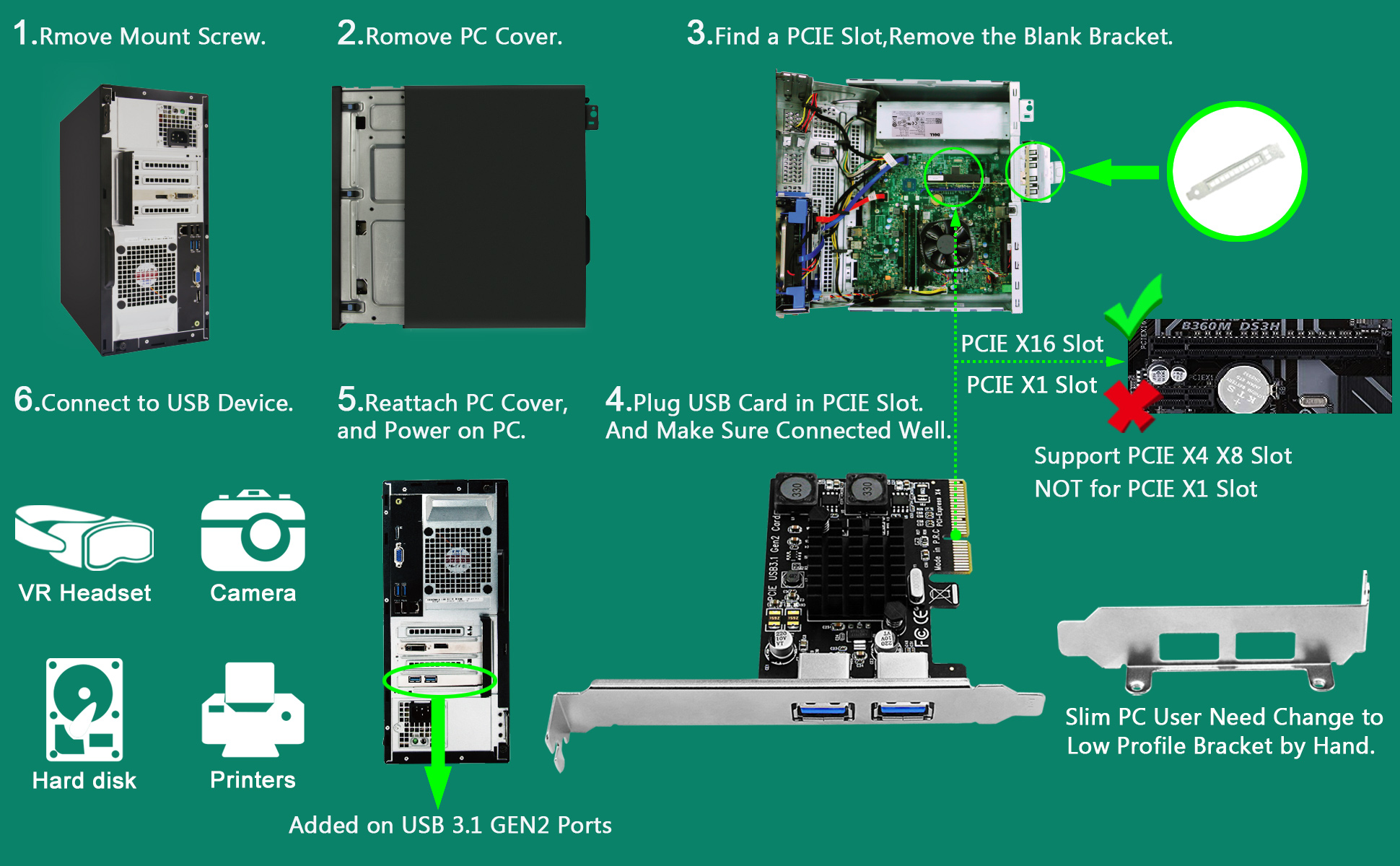

5. ATTENTION: 1. PCIE X4 interface design, will compatible with PCIE X4, X8, X16 slot, NOT works on PCIE X1, X2 slot. 2. Please use this USB 3.1 GEN2 card on PCIE 3.0 slot and use 3.1 GEN2 10Gbps devices or can not get peak speed. 3. Users must make sure desktop PCs have one empty and active PCIE X16 slot for this USB 3.1 GEN2 card.

 What is the FebSmart Self-Powered Technology?

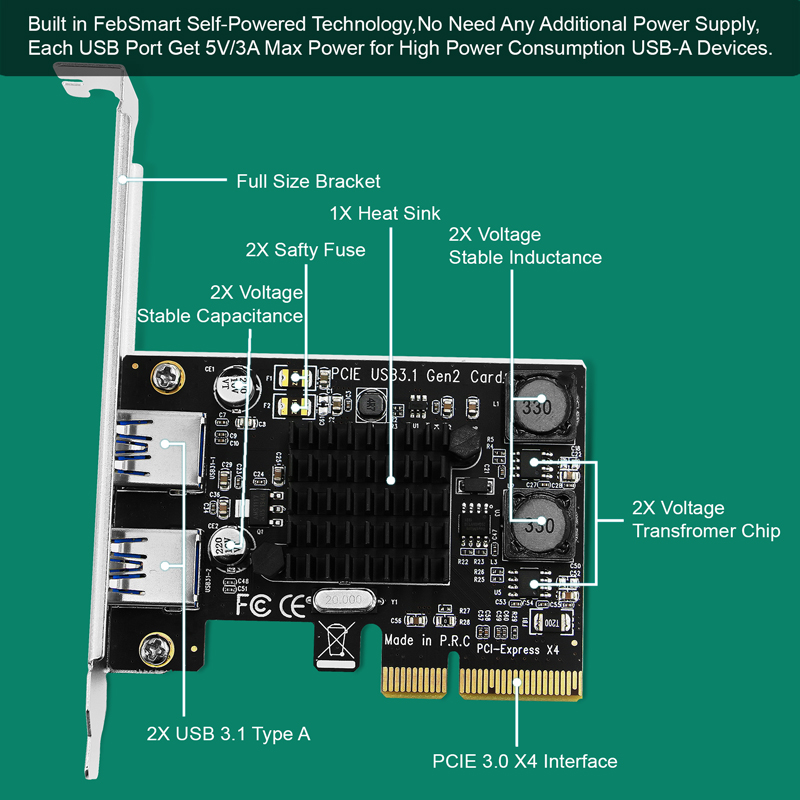

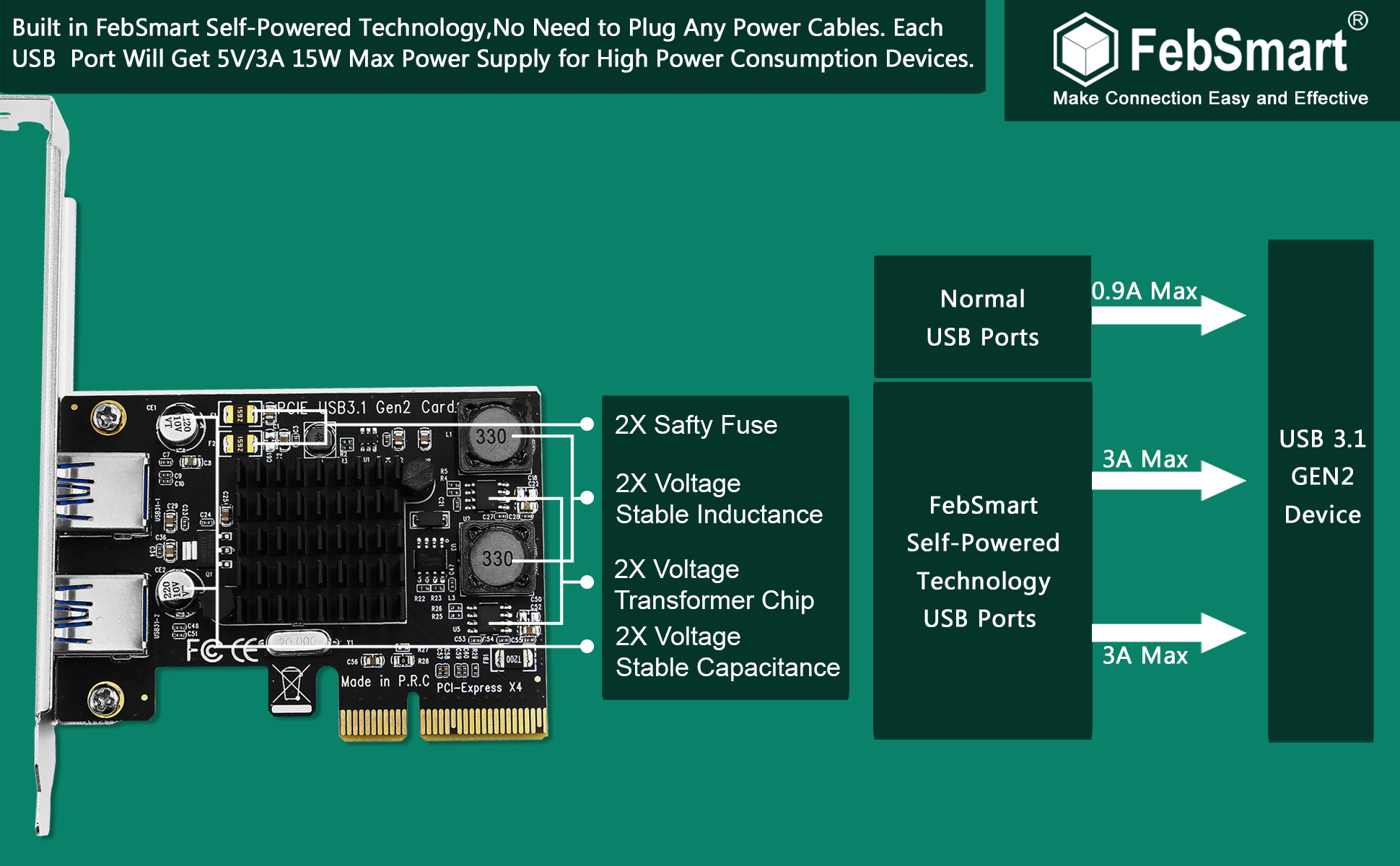

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.1 GEN2 expansion cards. The old version PCI Express USB card need to plug a power cable from the desktop PCs power supply unit. Even added-on additional power, USB ports still lack power when running few high power-consuming devices simultaneously, such as USB MVME SSD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 2X voltage transformer on 2X USB USB 3.1 GEN2 port, and pick up 12/2.5A transfer to 5V/6A 30W. Then distribute current to each port 5V/3A max power for USB 3.1 GEN2 devices. To protect users USB 3.1 GEN2 devices, FebSmart designed 2X electric safty fuse, 2X voltage stable capacitance and 2X voltage stable inductance. Do not worry data loss or burn USB devices now. Add superspeed plus 10Gbps USB 3.1 GEN2 host controller card on Desktop PCs. Choose More Stable, Fast and Safe data connection with FebSmart.

A.  1. Provide 2-Ports USB 3.1 GEN2 Type A superspeed plus 10Gbps max data transfer rate, 16Gbps total bandwidth. 2X faster than USB 3.0 (5Gbps), 20X faster than USB 2.0 (0.48Gbps). 2. Stream more Pixels video source such as 4K or 8K video source when works with external USB graphic cards.

B.  1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). 2. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. 3. Supports most main stream Linux Kernels.

C.  1. Built in FebSmart Self-Powered Technology, no need to plug any power cable from computer power supply unit, enjoy super easy and safe installation. 2. Designed with 2X electricsafty fuse, 2X voltage stable capacitance and 2X voltage stable inductance protect USB 3.1 GEN2 devices from overcurrent, overload ensure data security.

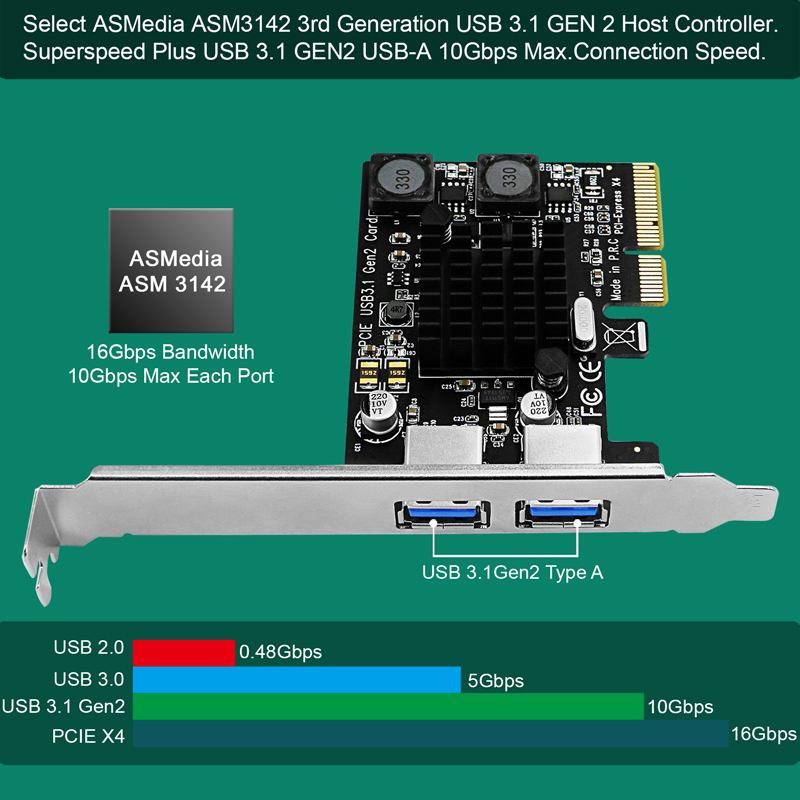

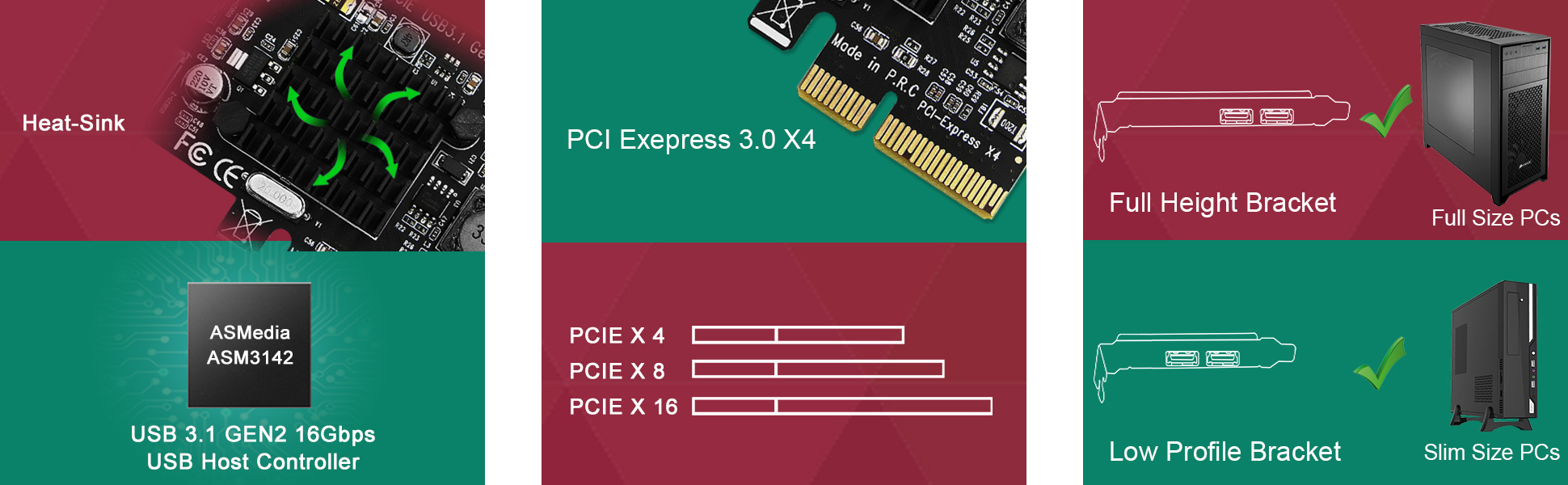

D.  1. Based on ASMedia ASM3142 USB 3.1 GEN2 16Gbps host controller, will provide 16Gbps total bandwidth on 2X USB-A Ports, each port will get 10Gbps max speed. Compatible with AMD, Intel, ARM and MAC hardware platforms. 2. Designed 1X Heat-sink on ASMedia ASM3142 major chip, will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1 GEN2 devices always stay at peak speed 10Gbps.

E.  1. PCI Express 3.0 X4 (X2 signal) design will compatible with PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, and PCIE 1.0 5Gbps. 2. PCIE X4 interface will compatible with PCIE X4, X8, X16 slot, NOT support PCIE X1, X2 slot. 3. Users must make sure PCs Motherboard have 1X empty PCIE X16 slot before purchase.

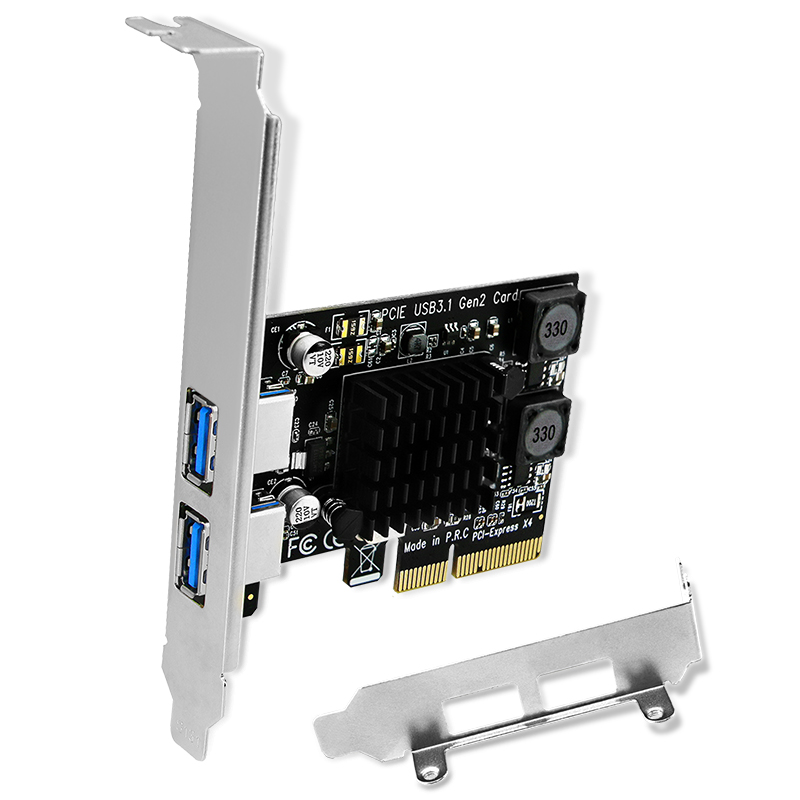

F.  1. Mounted with full height bracket for standard size PCs. 2. Packed with low-profile bracket, works on slim size PCs. Slim PC users need change to the low profile braket by hand.

FebSmart FS-A2-Pro is a PCI Express X4 interface to 2X USB 3.1 GEN2 10Gbps ports expansion card. It will provide 2X USB 3.1 GEN2 Type A 10Gbps ports on Desktop PCs for large data transfer and live data storage. It was built in FebSmart Self-Powered technology, users no need to plug any additional power supply from PCs PSU, but each USB 3.1 GEN2 port will get 5V/3A (5V/6A in total on 2X USB-A ports) max power supply. Allow all connected high-power consumption USB 3.1 GEN2 10Gbps devices get a superspeed plus 10Gbps (16Gbps in total) max speed. It is a cost-affective way add 2X 10Gbps USB-A ports on Desktop PCs, Working Stations, and MAC Pros for high power consumption USB 3.1 GEN2 peripheral devices connection, which including NVME SSD enclosures, SATA SSD/HDD enclosures, VR-Systems, 10Gbps USB hubs and 4K USB video adapter. It will backward compatible with USB 3.0 (5Gbps max) and USB 2.0 (480Mbps max) devies. Such as web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. The 2X added on 10Gbps USB-A ports will not occupy mother board USB Main Lan speed, just an extra bandwidth by PCI Express X4 on Desktop PCs.

Product Features:

1. Expand to 2X USB 3.1 GEN2 type A 10Gbps ports on newly build dektop PCs by PCIE 3.0 X4 interface.

2. Built in FebSmart Self-Powered Technology, no need additional power supply from PSU, provide each USB port 5V/3A (5V/6A in total) power for connected USB devices.

3.The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB device always stay at peak speed 10Gbps.

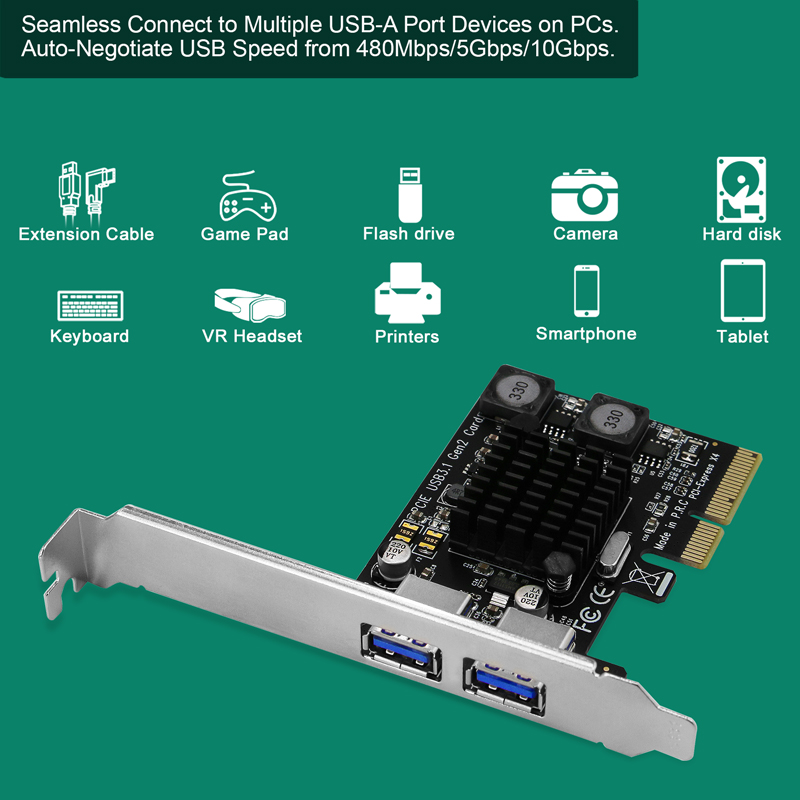

4. Support auto speed negotiation USB 3.1 GEN2 10Gbps, USB 3.0 5Gbps, USB 2.0 480Mbps, USB 1.1 12Mbps.

5. PCIE 3.0 standard and PCIE X4 (X2 signal) interface design, will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard and PCIE X4, X8, X16 slot.

6. Packed with full hight bracket and low-profile bracket, works on standard size PCs and slim PCs.

7. PCI Express communicate total banwidth: PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, PCIE 1.0 5Gbps.

8. Compatible with USB 3.1 GEN2 specification revision 1.0 and Intel extensible host controller interface revision 1.1.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit).

2. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x.

3. Supports most main stream Linux Kernels.

Package:1X FS-A2-Pro 1X User Manual 1X Mount-screw 1X Low Profile Bracket
