PCIE Wireless-AC Dual Band 1200Mbps WiFi Adapter, 2.4GHz 300Mbps and 5GHz 867Mbps

FS-AE120SE is a dual band Wireless-AC 1200Mbps PCI Express WiFi card with WiFi Stereo adapter. It offers ultra fast, stable and few losses wireless connectivity at 2.4GHz 300Mbps and 5GHz 867Mbps max speed on PCs for internet surfing, file downloading, online gaming, Pro HD video streaming and audio device transmission. The build in WiFi Stereo version adapter will allow PCs connect to wireless audio device such as TWS earphones, headphones, and speakers. Based on Marvell AVASTAR 88W8897 Wireless-AC network controller. With advanced 802.11ac features such as MU-MIMO and Transmit Beamformee to increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection. It’s also equipped with 2X3dBi external detachable omni-directional antenna to enhance Wi-Fi stability and reception range.

Product Features:

Major-Chip: Marvell AVASTAR 88W8897.

WiFi Standard: 802.11AC 2X2 MU-MIMO.

Compatible PCs: Standard Size PCs and Slim PCs.

Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP.

Hardware Interface: PCI-E X1 Interface, Works on PCIE X1, X4, X8, X16 Slot.

Wireless Encryption: WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

Max Wi-Fi Speed: 2.4GHz 40MHz 300Mbps (802.11AC/N),5GHz 80MHz 867Mbps (802.11AC).

Compatible WiFi Protocol: IEEE 802.11 AC Standard, Works with IEEE 802.11 A/B/G/N/AC/AX Devices.

Product Specifications:

1. Based on Marvell AVASTAR 88W8897 Wireless-AC network solution provide excellent performance wireless network connectivity and high quality audio transmission.

2. Advanced 802.11ac features such as 2X2 MIMO and TX Beamformee to increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection.

3. Make sure device get 2.4GHz 300 Mbps and 5GHz 867Mbps max wireless throughput and enough bandwidth for internet surfing, online gaming and 4K ultra HD video streaming etc.

Technical Specifications:

1. 2.4GHz 300Mbps and 5GHz 867Mbps: Provide dual band 1200Mbps wireless network connection at 2.4GHz 300Mbps and 5GHz 867Mbps for online gaming and 4K ultra-HD video streaming. Move the desktop PCs anywhere in home and office no wire ethernet cable limitation anymore.

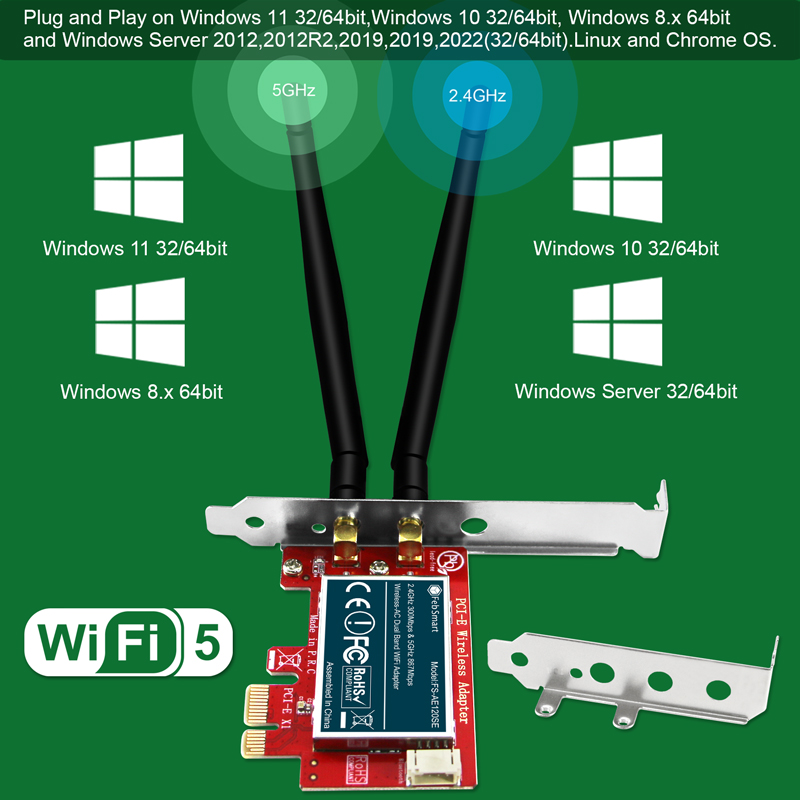

2. Support Windows and Linux Systems: Plug and Play on Windows 11(32/64bit), Windows 10 (32/64bit), Windows 8.0 64bit, Windows 8.1 64bit and Windows Server 2012, 2012R2, 2016, 2019, 2022 (32/64bit). Plug and Play on Chrome OS and Linux system.

3. Easy Install with Secured WiFi Source: Plug and Play on supported system. Seamless connect to most wireless encryption Routers and Access Points: WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

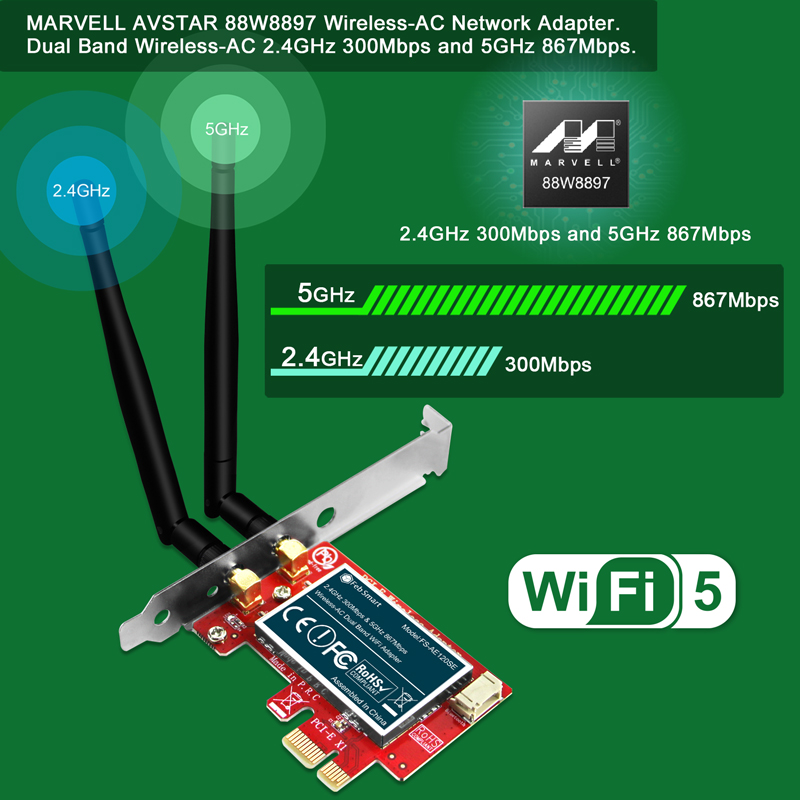

1. Marvell AVASTAR 88W8897: Select the Marvell AVASTAR 88W8897 network controller will provide 1200Mbps solid wireless network connection. The Marvell AVASTAR network solution will compatible AMD, Intel and ARM platform device such as PCs, Working Stations and NAS systems.

2. PCI Express 2.0 X1 Interface: PCI Express 2.0 standard design, will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard. PCI Express X1 interface design will works on PCI Express X1, X2, X4, X8, X16 slot. Make sure the desktop PCs have at least one active and open PCI Express slot.

3. Works on Standard and Slim Size PCs: Mounted with the full height bracket, will work on the full size PCs and working stations. Packed with the low profile bracket, will works on the slim PCs and working stations.

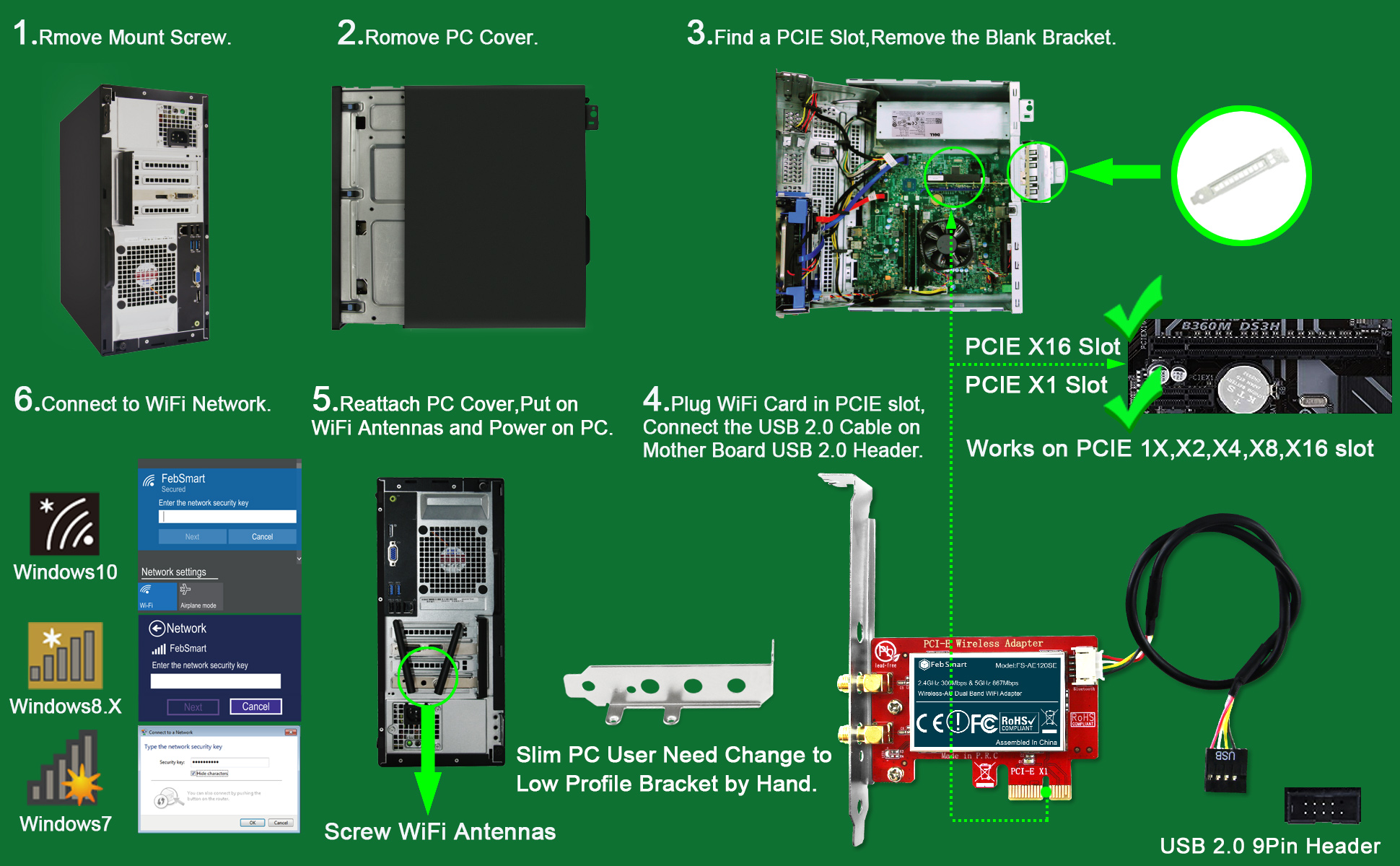

Easy Install on PCS or Working Stations

Product Description:

FS-AE120SE is a dual band Wireless-AC 1200Mbps PCI Express WiFi card with WiFi Stereo adapter. It offers ultra fast, stable and few losses wireless connectivity at 2.4GHz 300Mbps and 5GHz 867Mbps max speed on PCs for internet surfing, file downloading, online gaming, Pro HD video streaming and audio device transmission. The build in WiFi Stereo version adapter will allow PCs connect to wireless audio device such as TWS earphones, headphones, and speakers. Based on Marvell AVASTAR 88W8897 Wireless-AC network controller. With advanced 802.11ac features such as MU-MIMO and Transmit Beamformee to increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection. It’s also equipped with 2X3dBi external detachable omni-directional antenna to enhance Wi-Fi stability and reception range.

Product Specifications:

Major-Chip: Marvell AVASTAR 88W8897.

WiFi Standard: 802.11AC 2X2 MU-MIMO.

Compatible PCs: Standard Size PCs and Slim PCs.

Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP.

Hardware Interface: PCI-E X1 Interface, Works on PCIE X1, X4, X8, X16 Slot.

Wireless Encryption: WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

Max Wi-Fi Speed: 2.4GHz 40MHz 300Mbps (802.11AC/N), 5GHz 80MHz 867Mbps (802.11AC).

Compatible WiFi Protocol: IEEE 802.11 AC Standard, Works with IEEE 802.11 A/B/G/N/AC/AX Devices.

System Requirements:

Plug and Play on Windows 11, 10 (32/64bit), Windows 8.1 64bit, Windows 8 64bit and Windows Server 2012 2012R2 2016 2019. Linux and Chrome OS.

Package List: 1X FS-AE120SE, 1X User Manual, 2X 3dBi Antenna, 1X Mounting Screw, 1X USB 2.0 Cable, 1X Low Profile Bracket.
