PCIE 3.0 X4 Interface to 5X USB 3.1 GEN2 10Gbps Ports Expansion Card,5X 10Gbps USB-A Ports

FebSmart FS-A5-Pro will allow users add 5X USB 3.1 GEN2 Type A super speed plus 10Gbps ports on Desktop PCs, MAC Pros, Working Station and NAS Data Centers for large data transfer and live data storage. Built in FebSmart Self-Powered Technology, users do not need to plug any addtional power supply from PC’s PSU, but each USB 3.1 GEN2 port can get 5V/3A 15W power supply for connected high power consumption USB 3.1 GEN2 devices data transfer, which including NVME USB SSD enclosures, USB SATA SSD/HDD enclosures, VR-System, 10Gbps USB hubs and USB-A 4K video adapters. The 5X USB-A ports also provides stable and fast connection for normal USB 3.0 and USB 2.0 devices such as web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. The 5X added on USB-A ports will not occupy motherboard USB Main Lan speed, it's an extra bandwidth by PCI Express X4 on Desktop PCs.

What is the FebSmart Self-Powered Technology?

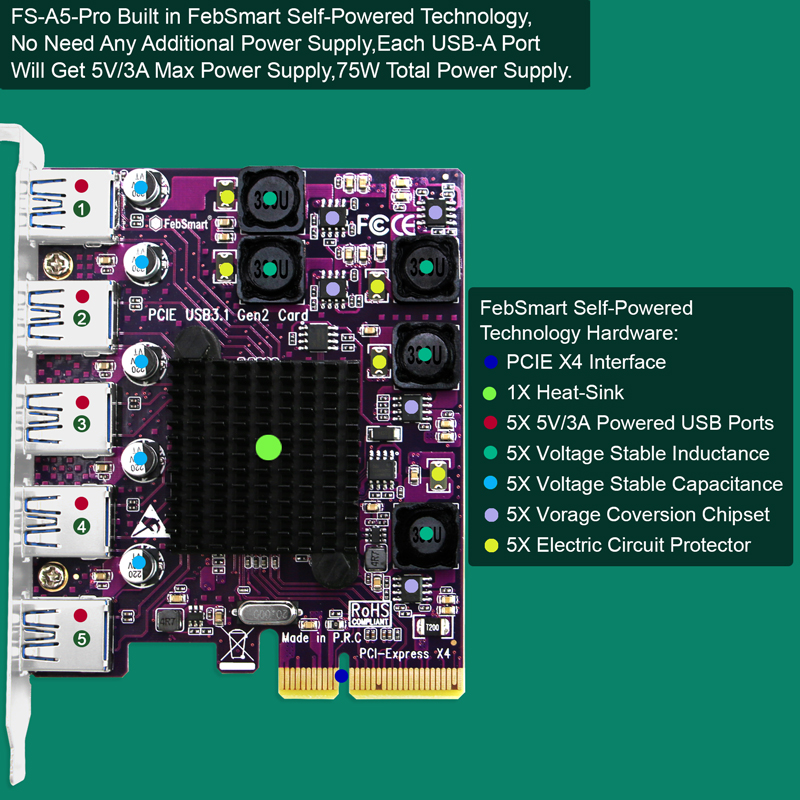

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.1 GEN2 expansion cards. The old version PCI Express USB 3.1GEN2 card need to plug a power cable from the Desktop PCs power supply unit. Even added-on additional power, USB ports still lack power when running few high power-consuming devices simultaneously, such as NVME SSD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 5X voltage transformer on 5X USB 3.1 GEN2 port, pick up 12/2.5A in total power and transfer to 5V/15A. Then distribute current to each USB 3.1 GEN2 port 5V/3A max power for high power consumption USB 3.1 GEN2 devices. To protect USB 3.1 GEN2 devices, FebSmart designed 5X electric safety fuse, 5X voltage stable capacitance and 5X voltage stable inductance. Do not worry data loss or burn USB 3.1 GEN2 devices now. Add super fast and easy install USB 3.1 GEN2 host controller card on Desktop PCs. Choose More Stable, Fast and Safe data connection with FebSmart.

Technical Specification:

1. Superspeed Plus 10Gbps Max: Provide 5-Ports USB-A USB 3.1 GEN2 superspeed plus 10Gbps max data transfer rate, 16Gbps total bandwidth. 2X faster than USB 3.0 (5Gbps), 20X faster than USB 2.0 (0.48Gbps). Stream more Pixels video source such as 4K or 8K video source when works with external USB-C graphic cards.

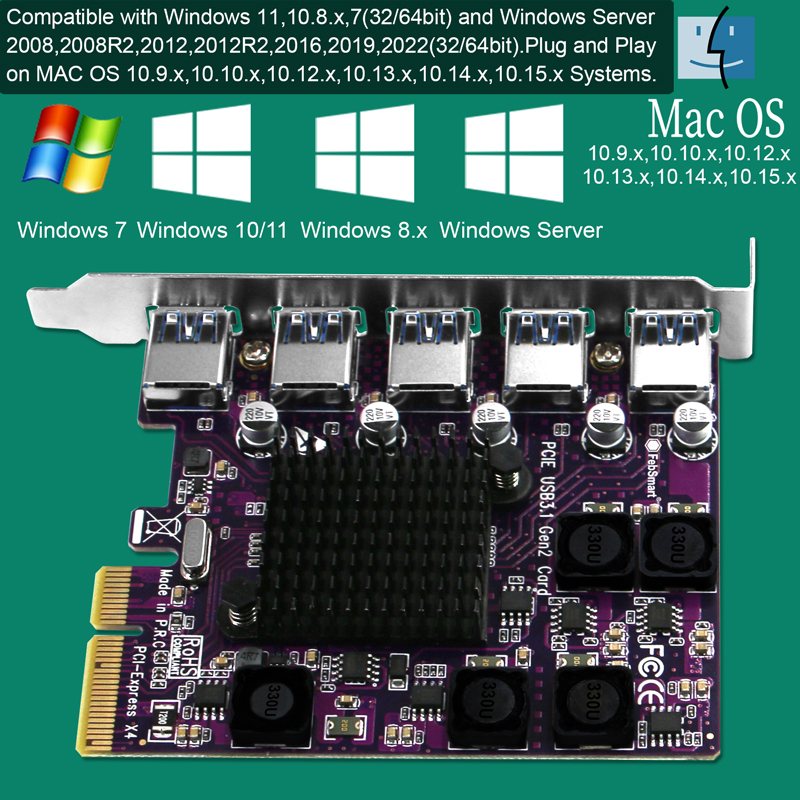

2. Windows and MAC OS System: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. Supports most main stream Linux Kernels.

3. Easy Install, Safeguard User's Data: Built in FebSmart Self-Powered Technology, no need to plug any power cable from computer power supply unit, enjoy super easy and safe installation. Designed with 5X electric safty fuse, 5X voltage stable capacitance and 5X voltage stable inductance protect USB 3.1 GEN2 devices from overcurrent, overload ensure data security.

1. ASMedia ASM3142 and VIALab VL822: Based on ASMedia ASM3142 USB 3.1 GEN2 16Gbps host controller and VIALab VL822 10Gbps USB 3.1 GEN2 HUB controller, will provide 16Gbps total bandwidth on 5X USB-A Ports, each port will get 10Gbps max speed. Compatible with AMD, Intel, ARM and MAC hardware platforms. Designed 1X Heat-sink on major chip, will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1 GEN2 devices always stay at peak speed 10Gbps.

2. PCI Express 3.0 X4 Interface: PCI Express 3.0 X4 (X2 signal) design will compatible with PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, and PCIE 1.0 5Gbps. PCIE X4 interface will compatible with PCIE X4, X8, X16 slot, NOT support PCIE X1, X2 slot. Users must make sure PCs Motherboard have 1X empty PCIE X16 slot before purchase.

3. Work on Standard Size PCs: Mounted with full height bracket for standard size PCs. DO NOT support Slim Size PCs.

Achieving 10 Gbps Data Rates in USB 3.1 GEN2 Using Multiple INs and Hub Payload Buffering

What is USB 3.1 GEN2 Multiple-INs?

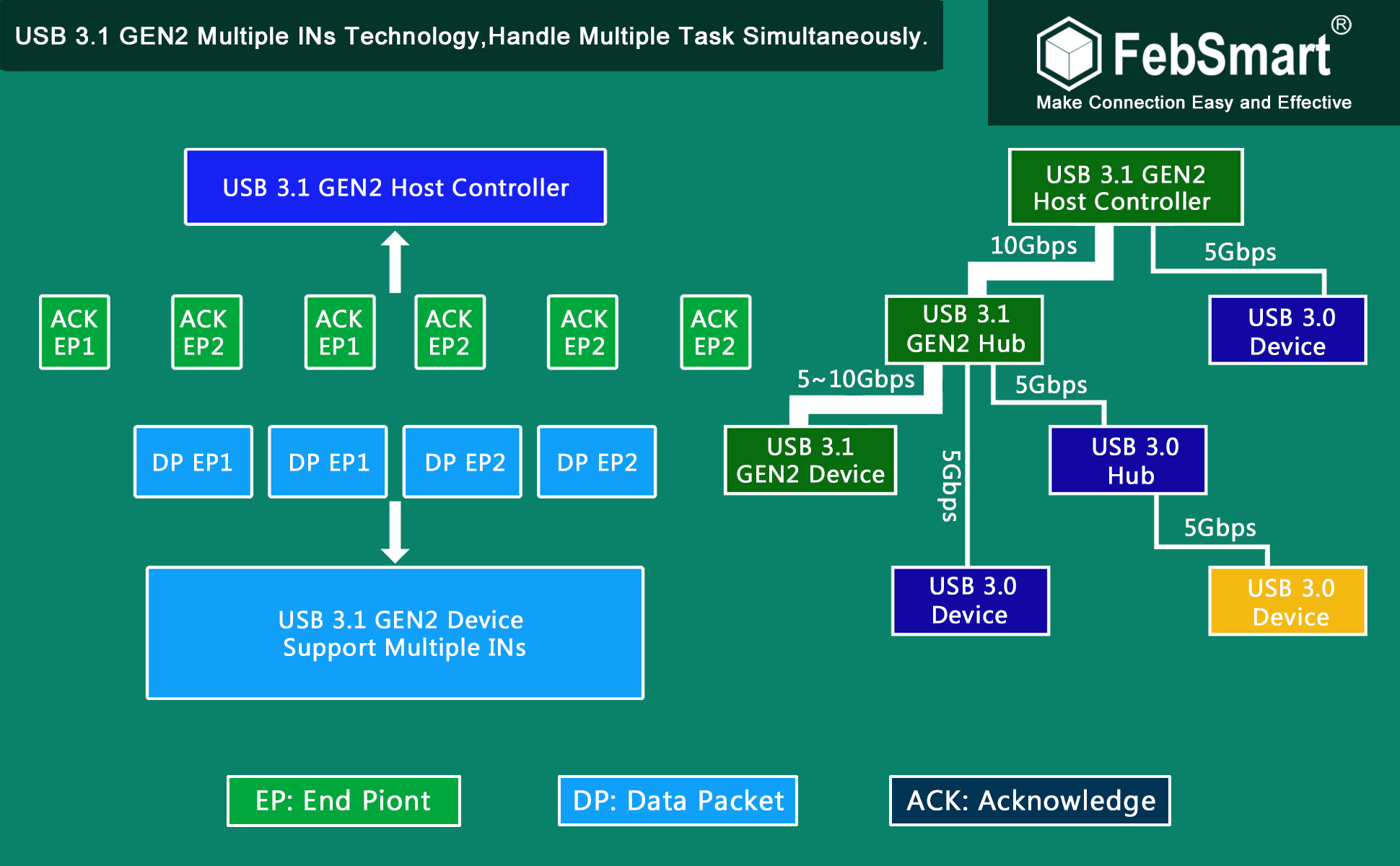

Now USB 3.1 can handle multiple device data transfer simultaneously, without waiting the first device accomplish it's task, NOT like USB3.0/2.0 does. USB 3.1 device may receive a second ACK TP for a different endpoint before it has a chance to respond to the first ACK TP. A more complex USB 3.1 device would take advantage of the multiple INs by servicing the requests separately, possibly returning data to each one, reducing the likelihood that Not Ready would need to be used.

How is Multiple-INs improving USB bandwidth?

When USB 3.0 Host Controller works with the external USB HUB is a “cut-through” model, upstream port and downstream ports on the hub were all operating at the same speed. When put in one USB 2.0 Hub all speed will down. Then USB 3.0 Host Cotroller can not run full speed. When USB 3.1 GEN2 Host Controller works with USB 3.1, 3.0 Hubs "Cut-through" will not work, with the new "store and forward” service, USB 3.1 hubs take a much more active role in making sure that the flow of data is smooth and the user’s experienced performance is not interrupted.

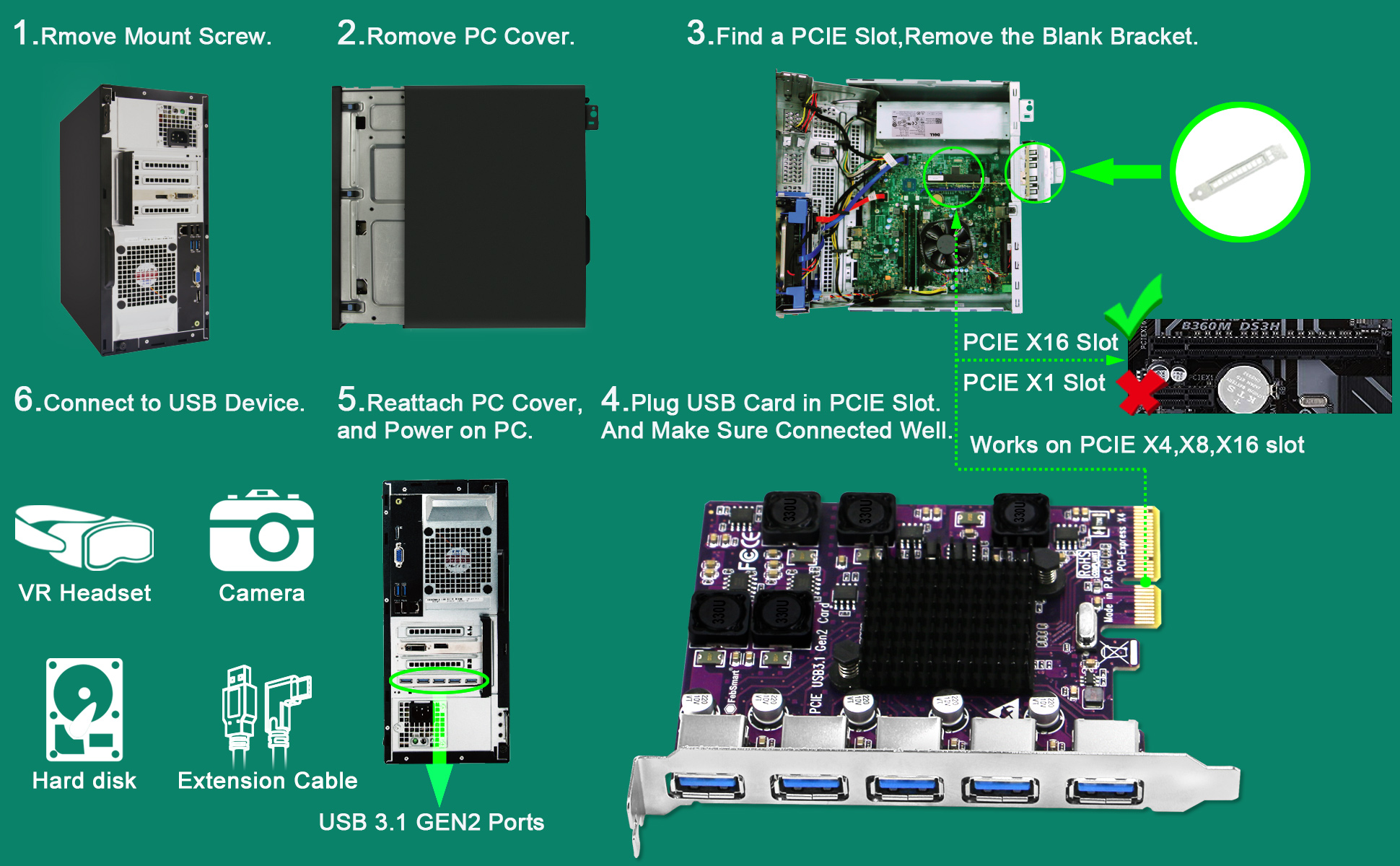

Easy Install on Desktop PCs:

Product Description:

FebSmart FS-A5-Pro will allow users add 5X USB 3.1 GEN2 Type A super speed plus 10Gbps ports on Desktop PCs, MAC Pros, Working Station and NAS Data Centers for large data transfer and live data storage. Built in FebSmart Self-Powered Technology, users do not need to plug any addtional power supply from PC’s PSU, but each USB 3.1 GEN2 port can get 5V/3A 15W power supply for connected high power consumption USB 3.1 GEN2 devices data transfer, which including NVME USB SSD enclosures, USB SATA SSD/HDD enclosures, VR-System, 10Gbps USB hubs and USB-A 4K video adapters. The 5X USB-A ports also provides stable and fast connection for normal USB 3.0 and USB 2.0 devices such as web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. The 5X added on USB-A ports will not occupy motherboard USB Main Lan speed, it's an extra bandwidth by PCI Express X4 on Desktop PCs.

Product Features:

1. Expand to 5X USB 3.1 GEN2 Type A 10Gbps ports on newly build Desktop PCs by PCIE 3.0 X4 interface.

2. Support auto speed negotiation at USB 3.1 GEN 2 10Gbps, USB 3.0 5Gbps, USB 2.0 480Mbps, and USB 1.1 12Mbps.

3. PCIE 3.0 standard with PCIE X4 (X2 signal) interface design will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard on PCIE X4, X8, X16 slot.

4. Built in FebSmart Self-Powered Technology, no need any additional power supply from PSU, each USB-A port can get 5V/3A 15W power supply for high power consumption USB 3.1 GEN2 devices.

5. Mounted with full height bracket for standard size desktop PCs, no low-profile bracket inside, not works on slim size PCs.

6. PCI Express communicate total bandwidth: PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, PCIE 1.0 5Gbps. Users better put this card on PCIE 3.0/4.0 slot on motherboard.

7. Support USB 3.1 GEN2 Multiple INS Technology, will complaint with USB 3.1 GEN2 specification revision 1.0 and Intel extensible host controller interface revision 1.1.

8. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, ensure connected USB 3.1 GEN2 devices always stay at peak speed 10Gbps.

System Requirements:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit).

3. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x.

4. Supports most main stream Linux kernels.

Package: 1X FS-A5-Pro 1X User Manual 1X Mount-screw
