Wireless N Dual Band 600Mbps PCI Express (PCIE) WiFi Adapter,2.4GHz 300Mbps and 5GHz 300Mbps

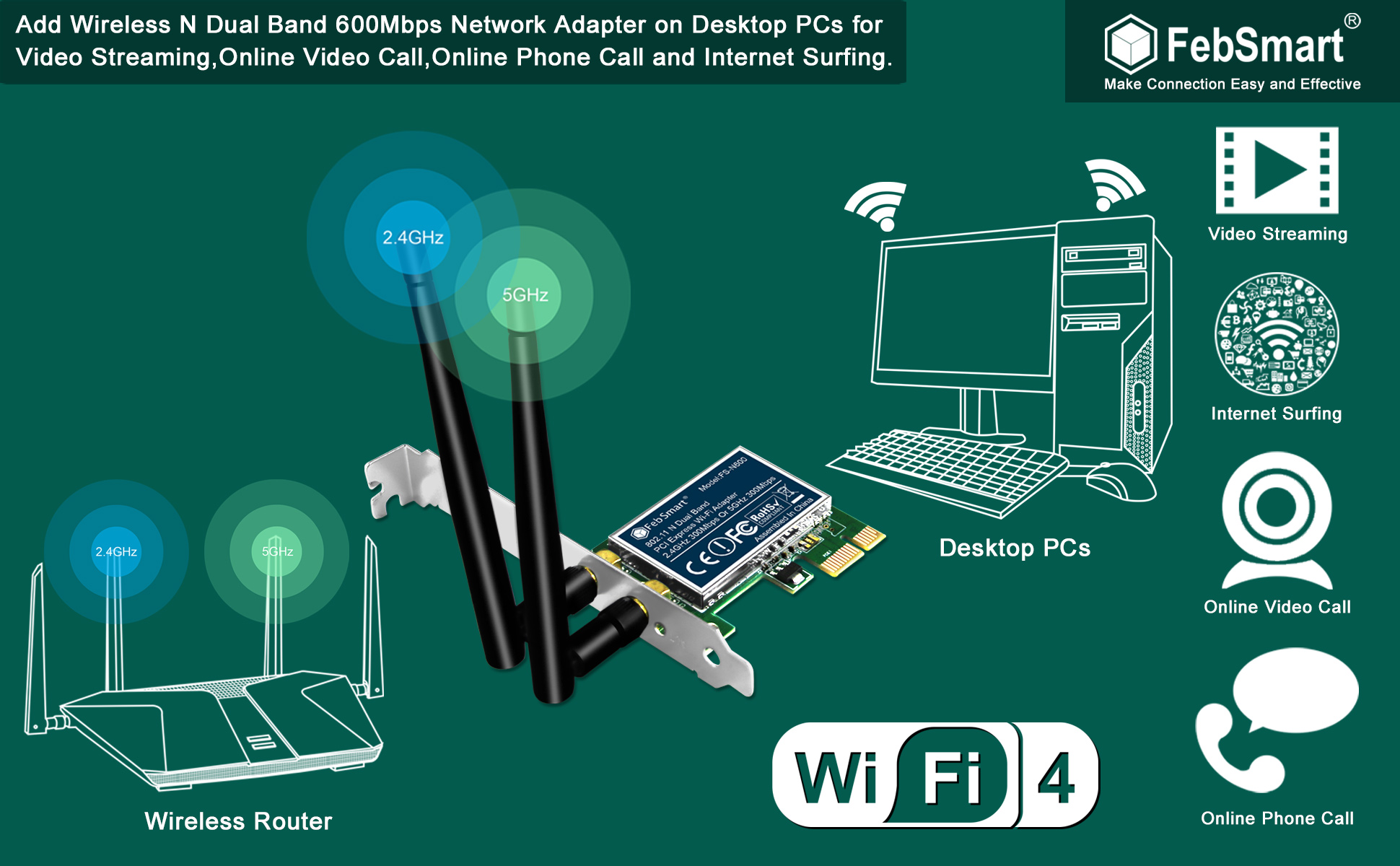

FebSmart FS-N600 is a wireless N 600Mbps PCIE WiFi adapter. Provide dual band WiFi connection at 2.4GHz 300Mbps and 5GHz 300Mbps max speed on home and office desktop PCs for internet surfing, online gaming, online phone call, online video call, and HD video streaming. Based on Qualcomm Atheros wireless network adapter AR946X, will compatible with most ARM, AMD, and Intel hardware platform. Built in 2X2 MIMO and Tx Beamformee technology, will enhance wireless network connection stability. Equipped with 2X 3dBi WiFi antennas, will improve WiFi network coverage and reception range. Add the long range, stable, few losses, low latency wireless network adapter on Desktop PCs.

Qualcomm Atheros Stable,Fast and Low latency Wireless Network Adapter

Product Specification:

1. Supports WiFi Receiver mode and Soft Access Point mode.

2. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot.

3. PCIE interface connection, get more stable signals than USB Wi-Fi adapters.

4. Add wireless network adapter on Desktop PCs, say goodbye to wired internet cable, move PCs anywhere in WiFi coverage.

5. Low profile bracket and full height bracket inside, will work with both slim PCs and full-size PCs.

6. Equipped with 2X 3dBi detachable external WiFi antennas, will improve WiFi coverage and reception range.

7. Comply with 64-128 WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, TKIP/ AES WiFi encryption, will protect users network privacy.

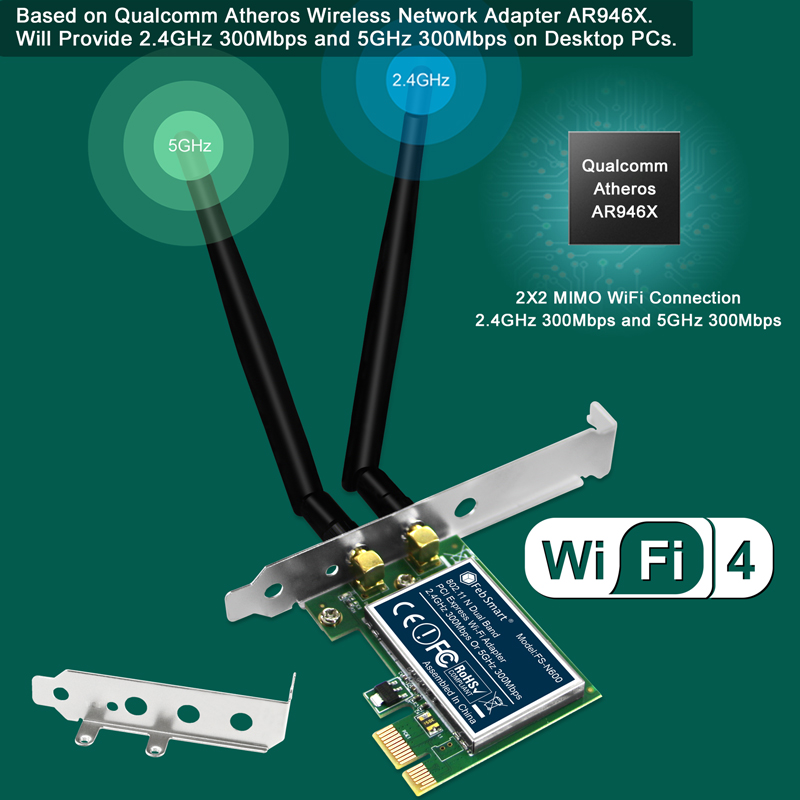

8. Based on Qualcomm Atheros wireless network adapter AR946X, provide stable, fast, and low latency WiFi network.

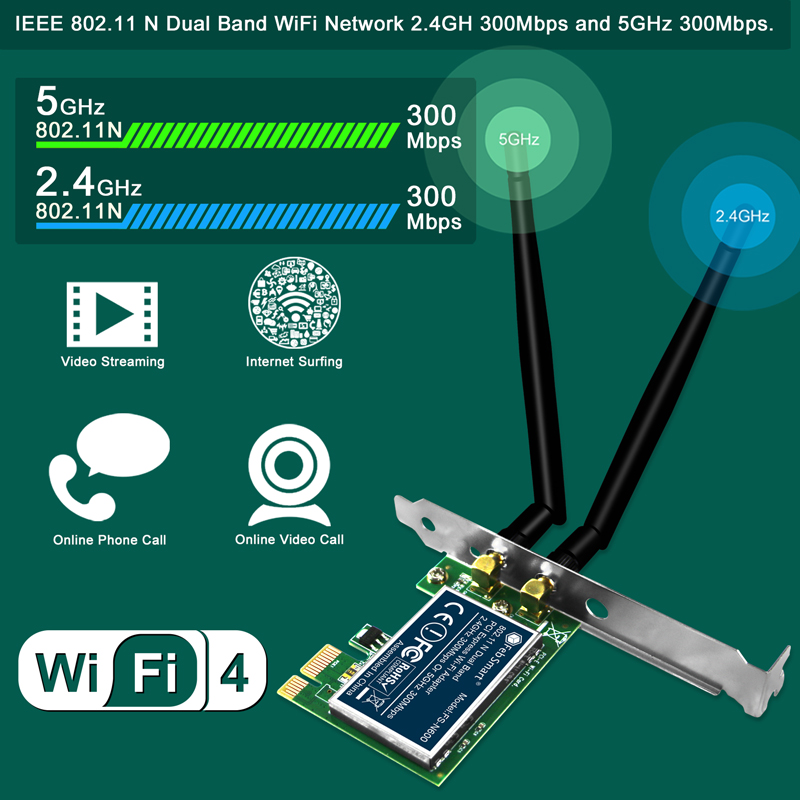

9. IEEE 802.11N Dual Band WiFi network at 2.4GHz 300Mbps and 5GHz 300Mbps speed, will connect to 802.11 ax/ ac/ n/ g/ b/ a WiFi router and access point.

Technical Specifications:

1. 2.4GHz 300Mbps and 5GHz 300Mbps: Add 802.11N dual band 2.4GHz 300Mbps and 5GHz 300Mbps wireless network on desktop PCs, enjoy fast, stable, little losses, low latency WiFi network for internet surfing, online gaming, online phone call, online video call, and HD video streaming.

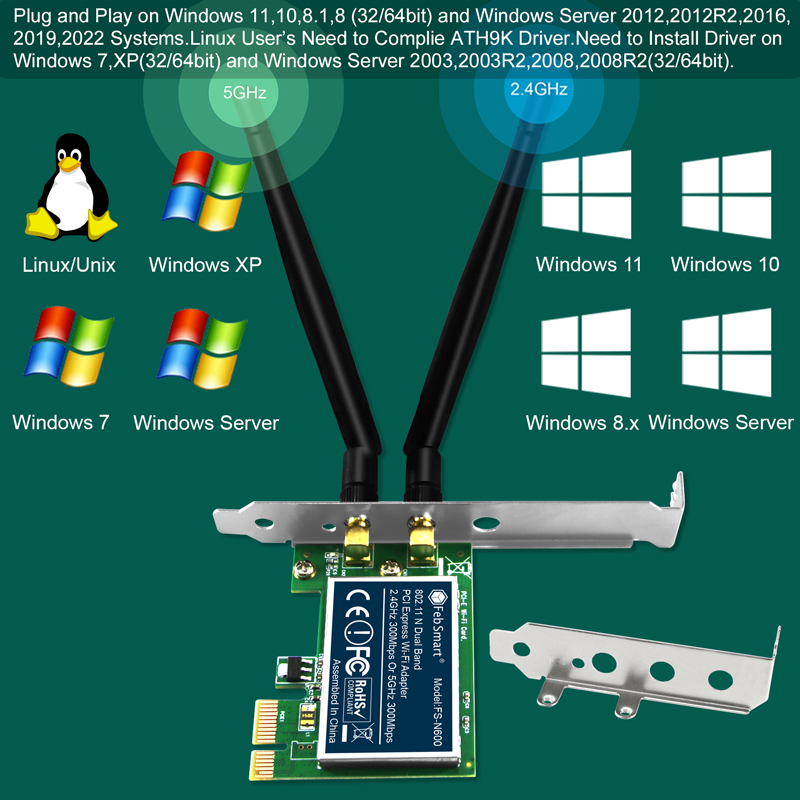

2. Plug and Play on Windows 11, 10: Plug and play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R, 2016, 2019, 2022. Need install driver on Windows XP, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit). NOT for Windows Vista system. Linux PCs refer ATH9K driver.

3. Easy Install, Secured WiFi Signal: Super Easy to install on supported system. Plug and Play on Windows 11, 10 (32/64bit). Compatible with WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

1. Qualcomm Atheros Network Adapter: Based on Qualcomm Atheros network adapter AR946X, will compatible with ARM, Intel and AMD RYZEN processors inside hardware platform PCs. Add 2X2 MIMO dual band wireless N network adapter on desktop PCs.

2. PCI Express 2.0 X1 Interface: Designed on PCIE X1 Interface will compatible with PCIE X1, X2, X4, X8, X16 slot. Based on PCIE Gen 2.0 will work on PCIE 1.X, 2.X, 3.X, 4.x.

3. Standard Size PCs and Slim PCs: Mounted with Full Height Bracket, supports Standard Size desktop PCs. Packed with Low Profile Bracket, Will work on Slim PCs (Users need change to the Low profile bracket ).

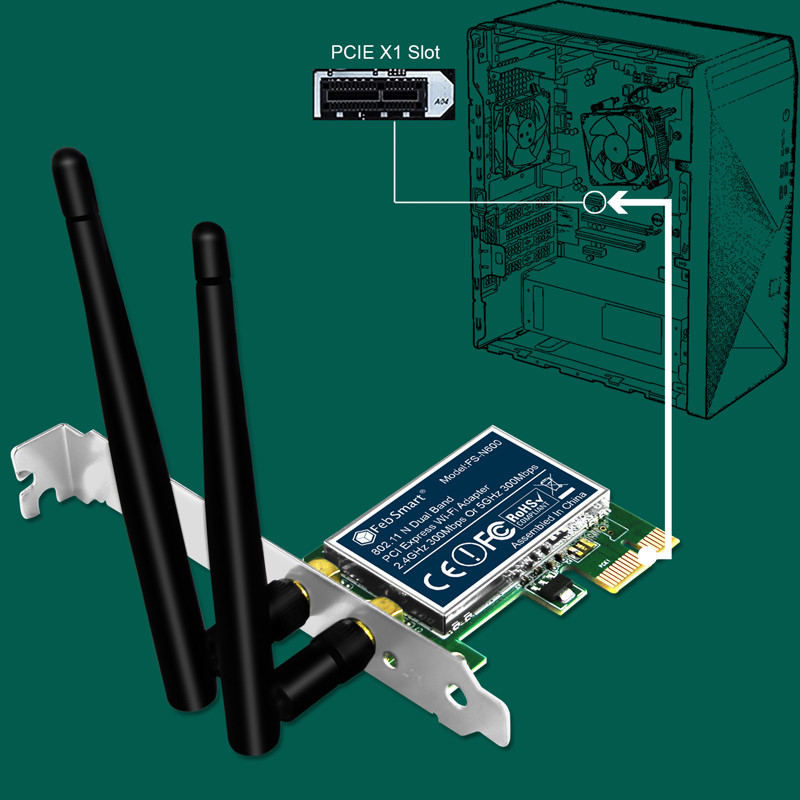

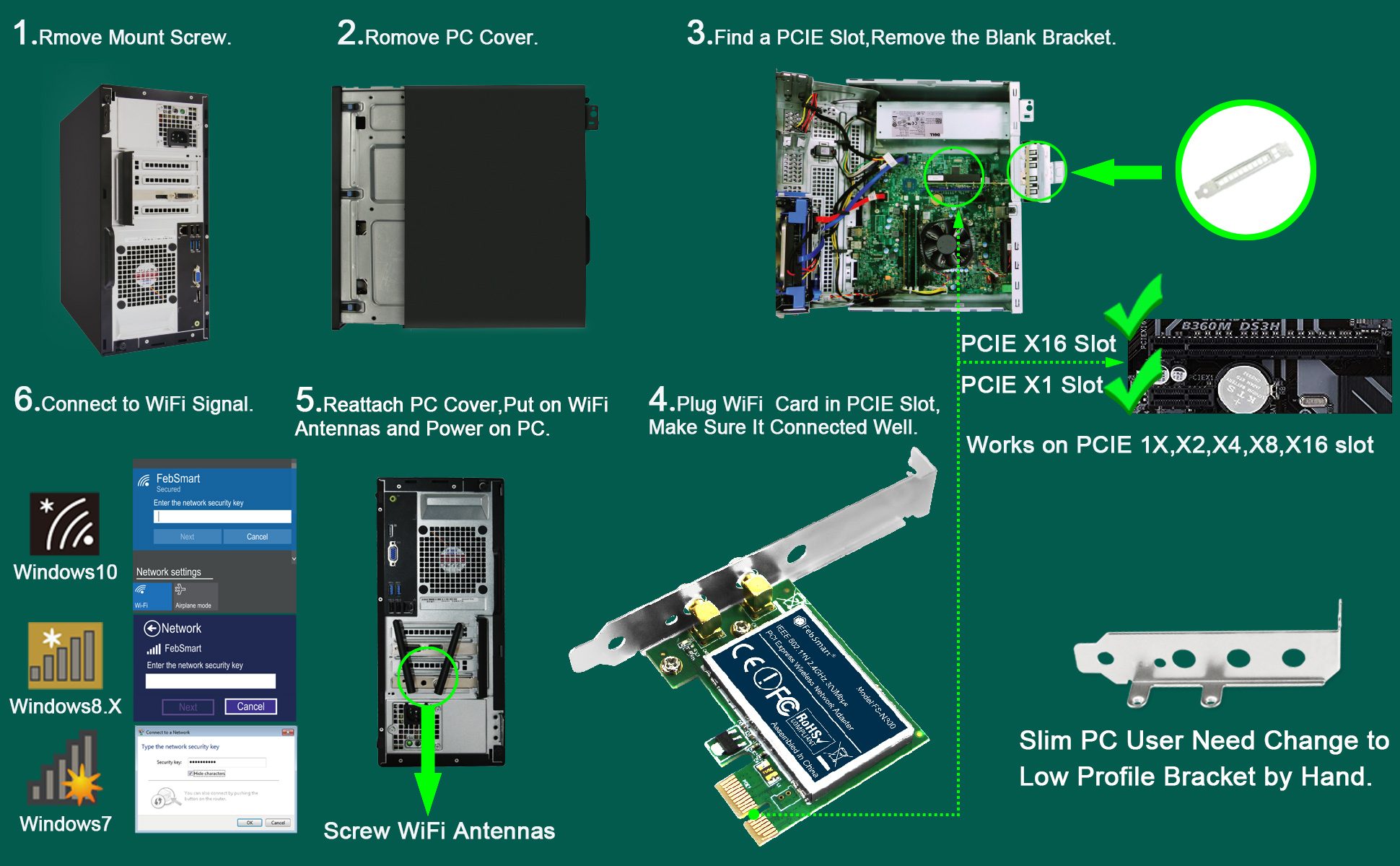

Easy Install on Desktop Computers

Product Description:

FebSmart FS-N600 is a wireless N 600Mbps PCIE WiFi adapter. Provide dual band WiFi connection at 2.4GHz 300Mbps and 5GHz 300Mbps max speed on home and office desktop PCs for internet surfing, online gaming, online phone call, online video call, and HD video streaming. Based on Qualcomm Atheros wireless network adapter AR946X, will compatible with most ARM, AMD, and Intel hardware platform. Built in 2X2 MIMO and Tx Beamformee technology, will enhance wireless network connection stability. Equipped with 2X 3dBi WiFi antennas, will improve WiFi network coverage and reception range. Add the long range, stable, few losses, low latency wireless network adapter on Desktop PCs.

Product Specification:

1. Supports WiFi Receiver mode and Soft Access Point mode.

2. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot.

3. PCIE interface connection, get more stable signals than USB Wi-Fi adapters.

4. Add wireless network adapter on Desktop PCs, say goodbye to wired internet cable, move PCs anywhere in WiFi coverage.

5. Low profile bracket and full height bracket inside, will work with both slim PCs and full-size PCs.

6. Equipped with 2X 3dBi detachable external WiFi antennas, will improve WiFi coverage and reception range.

7. Comply with 64-128 WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, TKIP/ AES WiFi encryption, will protect users network privacy.

8. Based on Qualcomm Atheros wireless network adapter AR946X, provide stable, fast, and low latency WiFi network.

9. IEEE 802.11N Dual Band WiFi network at 2.4GHz 300Mbps and 5GHz 300Mbps speed, will connect to 802.11 ax/ ac/ n/ g/ b/ a WiFi router and access point.

System Requirements:

Plug and play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R, 2016, 2019, 2022. Need install driver on Windows XP, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit). NOT for Windows Vista system. Linux PCs refer to ATH9K driver.

Package: 1X FS-N600, 1X User manual, 2X3dBi antennas, 1X Mounting screw, 1X Low profile bracket.

Why this card can’t connect to 5G signal on my PC?

Solution: Open Wireless Router or Wireless AP DFS Function or in Channel Option: set it as AUTO (DFS).

Then PCs will connect to 5G signal.

 Note: If you know few about internet, you can contact your router manufacture let them help you open DFS. If you want to try please read steps as below.

Step1. Just connect to 2.4G network first, then open web browser input your router’s Short Domain Name, most of them are 192.168.XX.XX (Generally speaking ,you can find it with default account User Name, password and this Domain in back of APs or Routers).Then you will in APs or Router’s setting page.

Step2.  Select Advanced Setting, Basic Setting, 5G setting, AC setting etc (different brand AP or Router have different name). Then you will find “Channel” option, select AUTO (DFS). If router does not have this option please select 48, 108,153 channels try this three. At least one channel will support your PCs.

REFERENCE ROUTER DEFAULT DOMAIN AND PASSWORD:

TP-Link: 192.168.1.1           User Name: admin Password: admin

D-Link: 192.168.1.1           User Name: admin Password: admin

Linksys: 192.168.1.1           User Name: admin Password: admin

ASUS: 192.168.1.1 or http://router.asus.com User Name: admin Password: admin

Netgear: 192.168.0.1 or http://www.routerlogin.com User Name: admin Password: admin

Note: Just for reference, same brand different model may use different IP address or short domain.
