PCIE X1 to PCIE X16 PCIE Riser Cables, GPU Riser Cables, GPU Risers, PCIE Riser

This FebSmart VER006C is a PCIE X1 to PCIE X16 riser cable. The PCIE riser will extend motherboard PCIE X1 slot out and covert PCIE X1 slot to PCIE X16 slot. The extended PCIE X16 slot will provide safe and reliable connection with GPUs. Light up more GPUs in Ethereum Mining Rigs or other GPU Mining Rigs systems for currency mining. Communicate with Ethereum mining pool instantly, ensure Ethereum Miner Rigs get more Ethereum Hash Rate.

Technical Specifications:

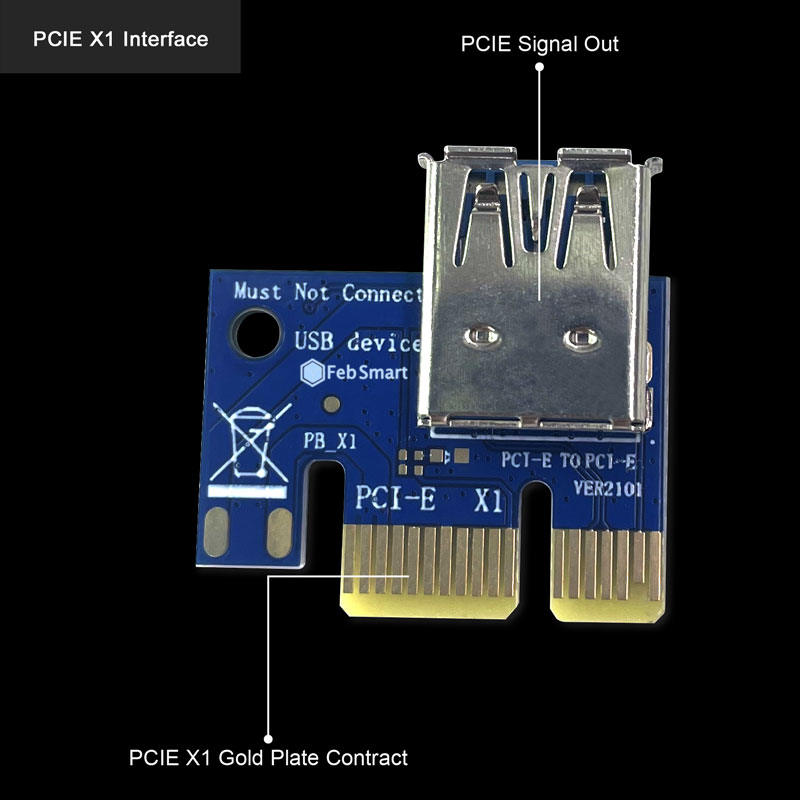

1. The PCIE X1 Gold Plate Contracts, will provide stable and fast connection with mother board PCIE slot, synchronize PCIE data signal instantly.

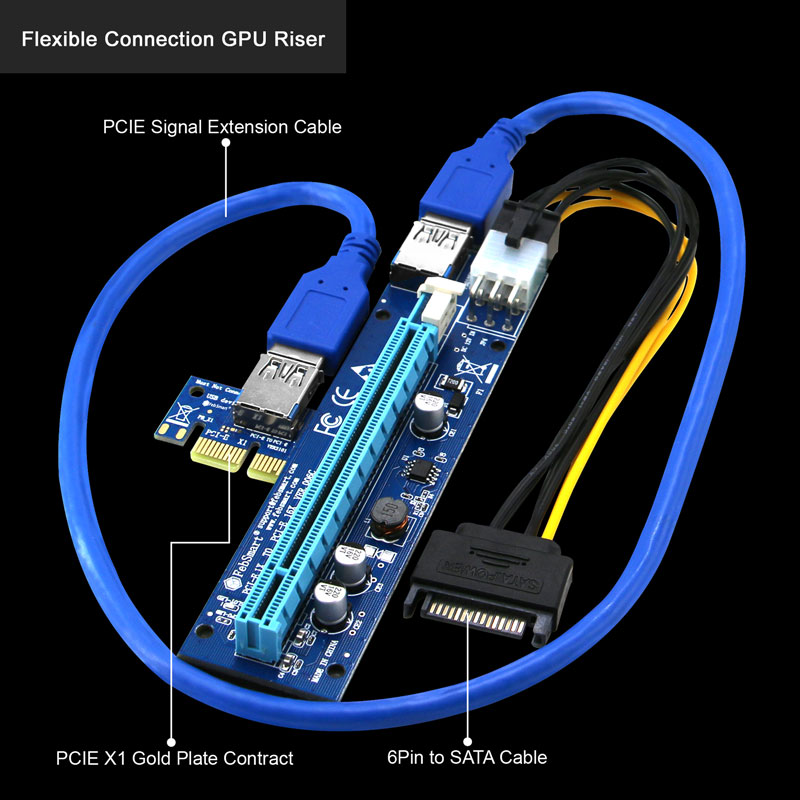

2. The 23.6-inch Fully Shielded USB 3.0 PCIE Signal Extension Cable, will make sure users extend the PCIE X1 slot out, have more room to place GPUs.

3. The 7.9-inch 15Pin SATA to 6 Pin molex power supply cable, will provide basic power supply for GPUs data signal transfer.

4. The 3X High Quality Solid Capacitors, 1X Voltage Transformer and 1X Inductance, will allow GPUs PCIE signal data get stable and reliable power supply.

5. The Electric Safety Fuse, will protect GPUs PCIE signal data signal away from overcurrent, overvoltage, overheats, overload.

What is PCIE Riser?

PCIE riser is also called as GPU riser, PCIE extension cable and GPU extension cable. It will extend PCIE X1 slot from the motherboard out, give users more room to place more GPUs. And covert the motherboard PCIE X1 slot to PCIE X16 slot for GPUs connection. It will light up more GPUs in Ethereum Mining rigs or other GPU Mining Rigs for currency mining. Communicate with Ethereum mining pool instantly, ensure Ethereum Miner Rigs get more Ethereum Hash Rate.

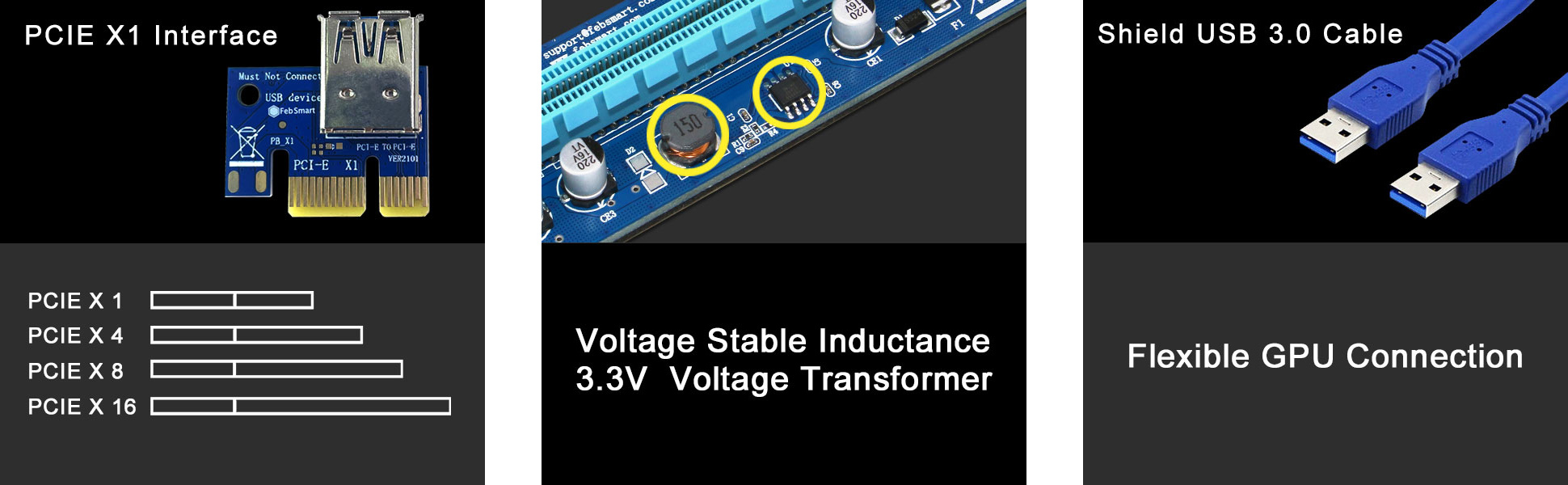

PCIE X1 Extend to PCIE X16 Slot                                           High Quality Voltage Transformer Chip                                23.6IN/60CM Fully Shield USB 3.0 Cable

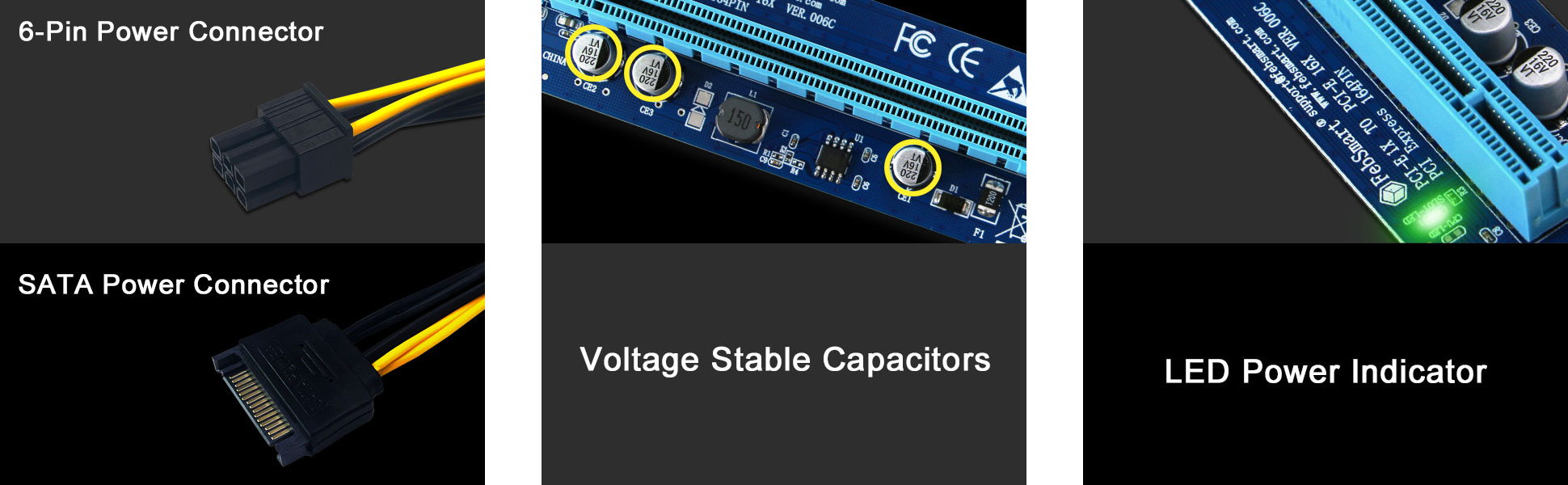

7.9IN/20CM 6Pin to 15Pin SATA Power Supply                     3X Capacitors Protect PCIE Data Signal Quality                  Indicators Show Up GPUs Working Status

ATTENTION:

1. The GPU riser may can not provide enough power for some heavy GPUs when the 6Pin to 15Pin SATA power cable is the only power supply. Users MUST PLUG the 6+2 Pin power supply on the GPUs, pick up power from PSU (power supply unit) directly. In this case users can remove the PCIE riser 6Pin to 15Pin SATA power cable.

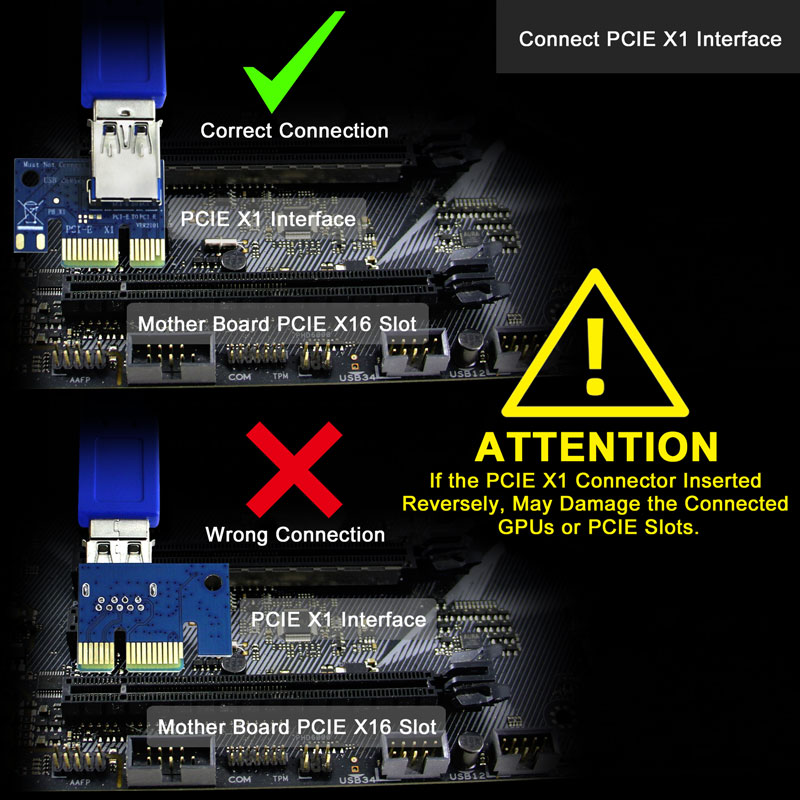

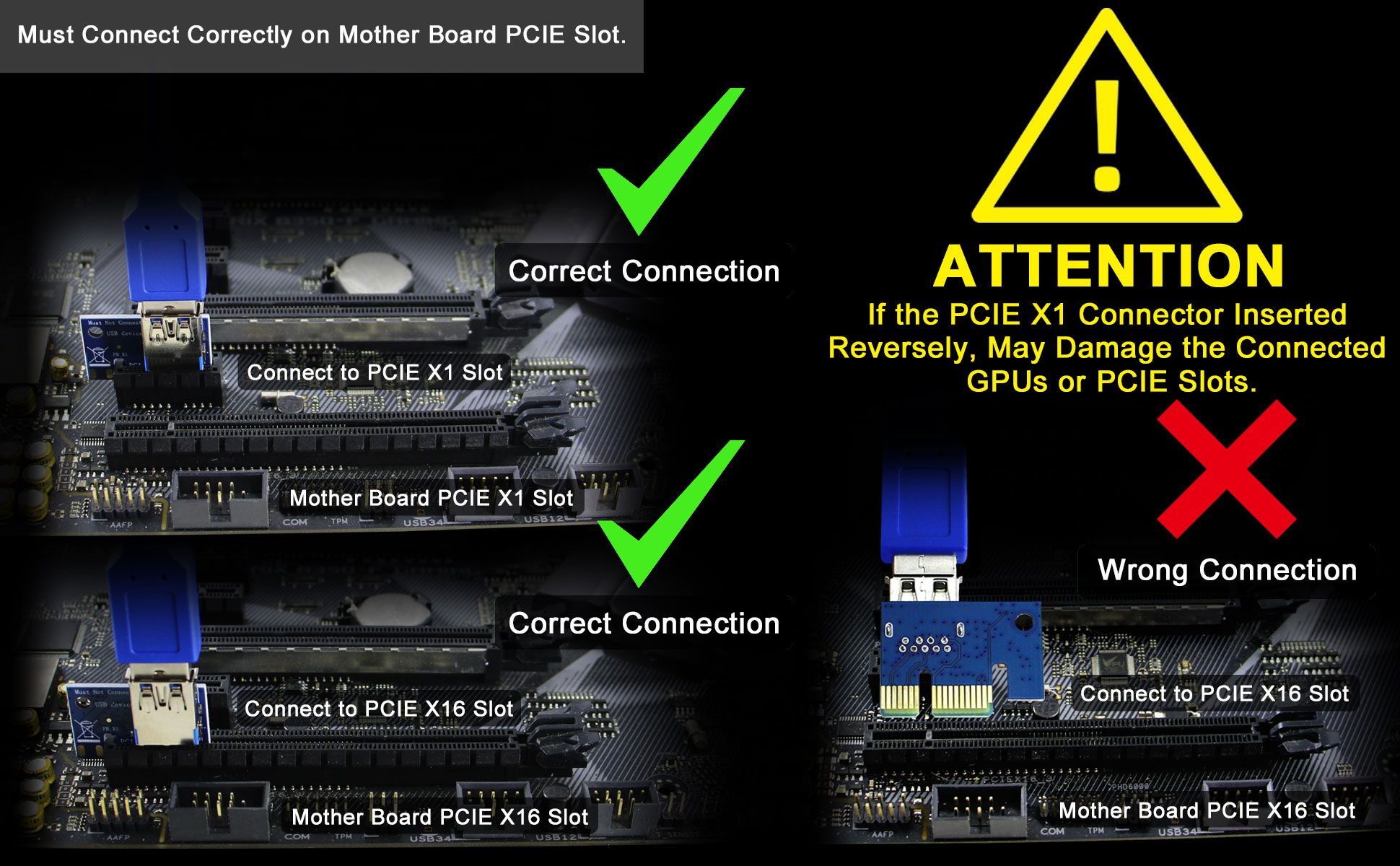

2. If the PCIE X1 interface connector inserted REVERSELY on motherboard PCIE slot, will damage the connected GPUs or PCIE slot. FebSmart do not responsible to these incorrect using damage.

Product Description:

This FebSmart VER006C is a PCIE X1 to PCIE X16 riser cable. The PCIE riser will extend motherboard PCIE X1 slot out and covert PCIE X1 slot to PCIE X16 slot. The extended PCIE X16 slot will provide safe and reliable connection with GPUs. Light up more GPUs in Ethereum Mining Rigs or other GPU Mining Rigs systems for currency mining. Communicate with Ethereum mining pool instantly, ensure Ethereum Miner Rigs get more Ethereum Hash Rate.

Technical Specifications:

1. The PCIE X1 Gold Plate Contracts, will provide stable and fast connection with mother board PCIE slot, synchronize PCIE data signal instantly.

2. The 23.6-inch Fully Shielded USB 3.0 PCIE Signal Extension Cable, will make sure users extend the PCIE X1 slot out, have more room to place GPUs.

3. The 7.9-inch 15Pin SATA to 6 Pin molex power supply cable, will provide basic power supply for GPUs data signal transfer.

4. The 3X High Quality Solid Capacitors, 1X Voltage Transformer and 1X Inductance, will allow GPUs PCIE signal data get stable and reliable power supply.

5. The Electric Safety Fuse, will protect GPUs PCIE signal data signal away from overcurrent, overvoltage, overheats, overload.

Package: 1X PCI Express Riser Boards, 1X 23.6in USB 3.0 Extension cables, 1X 7.9inch 15Pin SATA to 6Pin Power Cables, 1X PCI Express X1 Gold Plate Contracts.

Q: Will this PCIE riser the miner rigs support all brand mother board? A: Actually, this PCIE riser only extend PCIE X1 signal out to PCIE X16 for heavy graphic cards. It supports 99% mother board on the market. That is because PCI Express is a universal standard signal. Will work ARM, AMD, INTEL, NVIDIA based platform.

Q: How to confirm this PCIE riser active in my system? A: We designed the LED indicators on this GPU riser, once user light it up, the LED will start up. If you want to check if the GPU woks, better check in system-Device Manager-Display Adapters.

Q: I have noticed that this GPU risers have designed power already, will my GPU work if do not plug the 6PIN/6+2PIN power on? A: NO, the GPU 6PIN or 6+2 PIN power cable must be connected.

Q: Is this GPU riser support the GPU brand? A: YES, it will light up any GPU from AMD, INTEL, NVIDIA, and any brand such as ASUS, MSI, GIGABYTE, DATALAND.

Q: Can I use the USB ports connect out for my USB signal device? A: NO, it can not support USB signal, it is PCIE signal, we just use USB 3.0 cable transfer PCIE signal here.

Q: Is this works on PCIE 4.0 PCIE slot? A: Yes, both PCIE 4.X, 3.X, 2.X, 1.X will work no issue, can light up GPUs under these PCIE standard.

Q: Can I use this on GPU system? A: Yes, will works no problems.

Q: In device manager, these are coming up unknown device. Is there a device driver needed? A: Actually, this PCIE riser no need drivers, but PCs will read GPUs by this, you may need to install drivers on your system, please just contact your GPU provider claim the GPU driver.

Q: Will this works on my MAC Pro system? A: Yes, once you confirm the MAC Pro can accept more GPUs, it works then.

Q: Do I need to use the PCIE 1x adapter or can I connect them to a usb 3.0 hub? A: PCIE X1 or X4, X8, X16, but do not support USB hub. If users want to extend to more PCIE ports, please buy FebSmart PCIE Bridge Card PCIE-T4.

Q: How much power does the riser draw? A: If must count this riser’s power, it is less than 1W. The GPUs power consumption will come of GPU Miner Rigs PSU.
