FS-S4-Pro
FS-S4-Pro
PCIE 4-Ports SATA 3.0 Expansion Card
Model: FS-S4-Pro
PCIE Interface: PCIE 2.0 X1 Interface
SATA Ports: 4X SATA 3.0 Ports
Compatible System: Windows,Linux and MAC OS.
Compatible Device: PCs,Working Stations,NAS System
PCI Express 3.0 to 4-Ports 6Gbps Max Speed SATA III Expansion Card

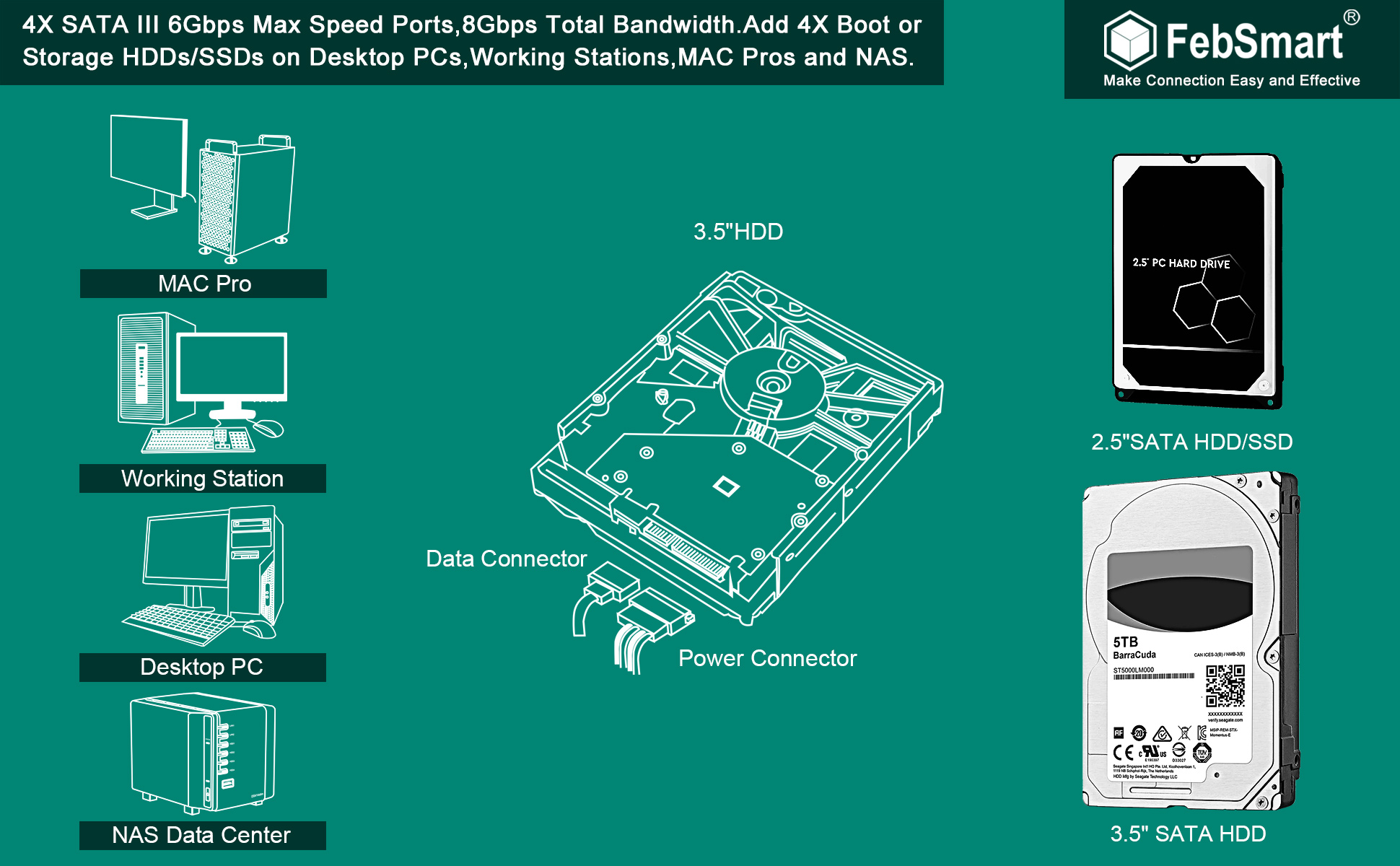

This FebSmart FS-S4-Pro is a PCI Express 3.0 X1 interface to 4-Ports 6Gbps SATA III expansion card. It is designed on PCIE 3.0 X1 interface will provide 8Gbps total bandwidth, each SATA III ports will get 6Gbps max speed for connected HDDs/SSDs. It is based in ASMedia ASM1064 PCIE 3.0 to SATA III host controller, will support plug and play on Windows OS, MAC OS, and most Linux kernel desktop PCs. It supports none boot mode(storage) and AHCI BOOT UP mode, users must make sure connected HDDs/SSDs was set on AHCI mode when use it as BOOT UP disk. It will provide 4X NONE-RAID SATA III 6Gbps ports on Desktop PCs, Working Stations, MAC Pros, Network Attached Storage (NAS), allow users light up 4X HDDs/SSDs in its system.
SATA Controller Down Stream Features:
Compliant with Serial ATA Specification 3.1. Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
Supports programmable transmitter signal levels. Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports 4X SATA III ports. Supports AHCI 1.0 programming interface.
Supports Native Command Queuing (NCQ). Supports Port Multiplier FIS based switching or command-based switching.
Supports Partial and Slumber Power Management states. Supports Staggered Spin-up.
PCIE Up Stream Features:
Compliant with PCIe 3.0 specifications. Supports communication speed of 2.5 Gbps,5 Gbps and 8Gbps.
Supports AHCI programming interface registers for the SATA controller. Supports aggressive power management.
Supports error reporting, recovery, and correction. Supports Message Signaled Interrupt (MSI).
FS-S4-Pro Tech Specifications:
1. 4X 6Gbps Max SATA III Data Ports: 4X SATA III 6Gbps Ports, will backward compatible with SATA I 1.5Gbps, SATA II 3Gbps. Light up 4X SATA III, SATA II, SATA I SSDs or HDDs on desktop PCs, also support AHCI mode BOOT UP.
2. Windows OS,MAC OS, Linux: Plug and Play on Windows 11, 10, 8.x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64bit). Support IN-BOX driver on MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15. x. Support Plug and Play on most main stream Linux kernel system.
3. Packed with 4X SATA III Cable: To improve the PCIE SATA III card working performance, packed 4X SATA III cable in the retail package. Users no need to buy SATA III cable anymore. Enjoy super easy installation with plug and play function on most of desktop PCs, working stations and NAS data centers.

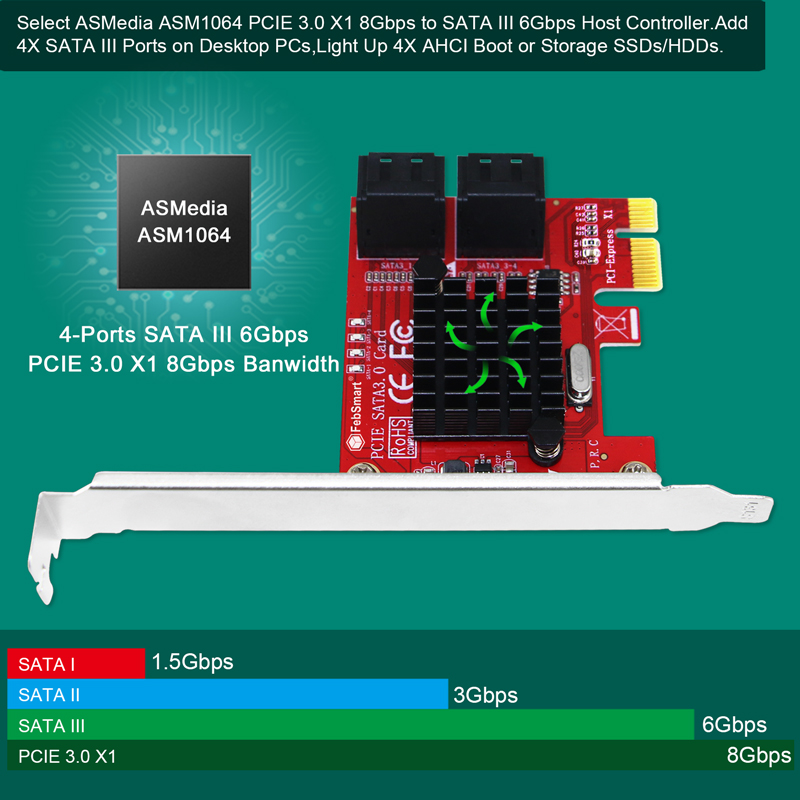

1. ASMedia ASM1064 SATA III Host Controller: FebSmart FS-S4-Pro is based 4-Ports PCIE SATA III host controller ASMedia ASM1064, will works on Intel, AMD, MAC and ARM hardware platform. Designed the Heat-Sink on the ASMedia ASM1166 major-chip, will protect the ASM1166 away from over-heat, ensure the SATA III 6Gbps peak connection speed.

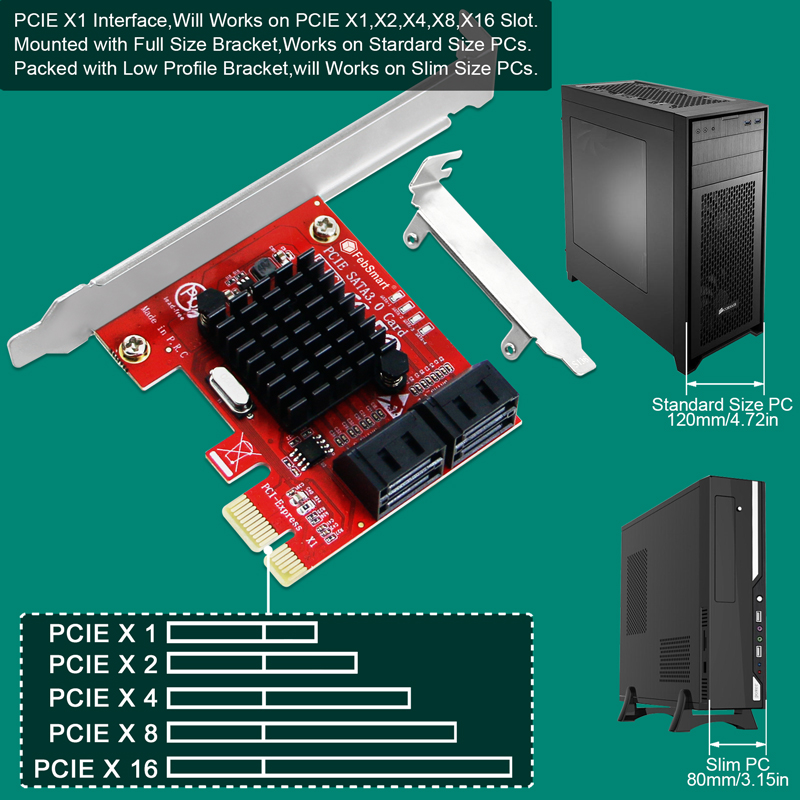

2. PCI Express 3.0 X1 Interface: PCI Express 3.0 standard design, will works on PCI Express 1.x, 2.x, 3.x and 4.x protocol. PCI Express X1 interface design, works on PCIE X1, X2, X4, X8, X16 slot. PCIE 3.0 X1 design, will provide 8Gbps total bandwidth.
3. Standard Size PCs and Slim PCs: Mounted with full height bracket, will work on standard PCs. Packed with low profile bracket will works slim PCs.

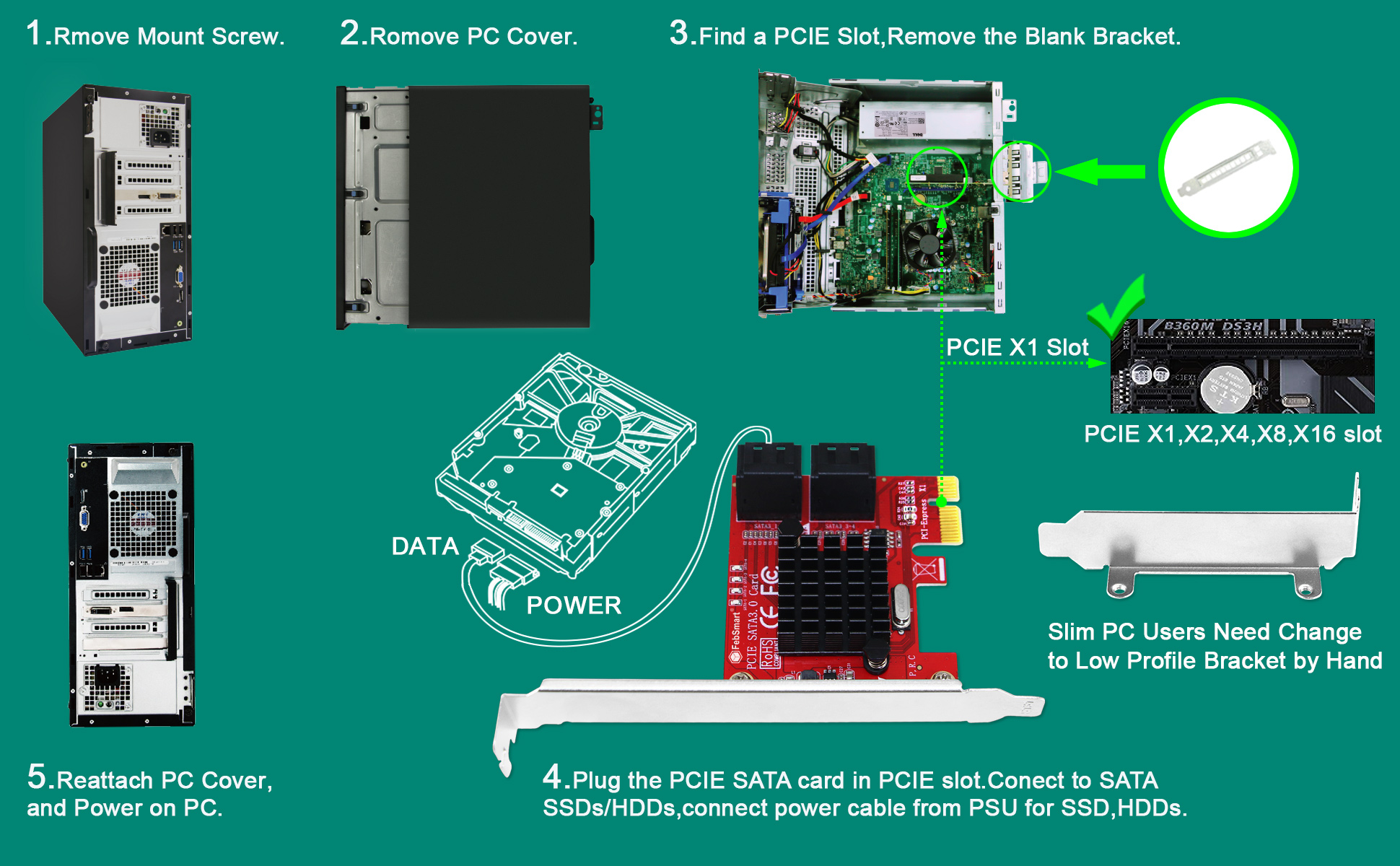

Super Easy Install on Desktop PCs or Servers
This FebSmart FS-S4-Pro is a PCI Express 3.0 X1 interface to 4-Ports 6Gbps SATA III expansion card. It is designed on PCIE 3.0 X1 interface will provide 8Gbps total bandwidth, each SATA III ports will get 6Gbps max speed for connected HDDs/SSDs. It is based in ASMedia ASM1064 PCIE 3.0 to SATA III host controller, will support plug and play on Windows OS, MAC OS, and most Linux kernel desktop PCs. It supports none boot mode(storage) and AHCI BOOT UP mode, users must make sure connected HDDs/SSDs was set on AHCI mode when use it as BOOT UP disk. It will provide 4X NONE-RAID SATA III 6Gbps ports on Desktop PCs, Working Stations, MAC Pros, Network Attached Storage (NAS), allow users light up 4X HDDs/SSDs in its system.

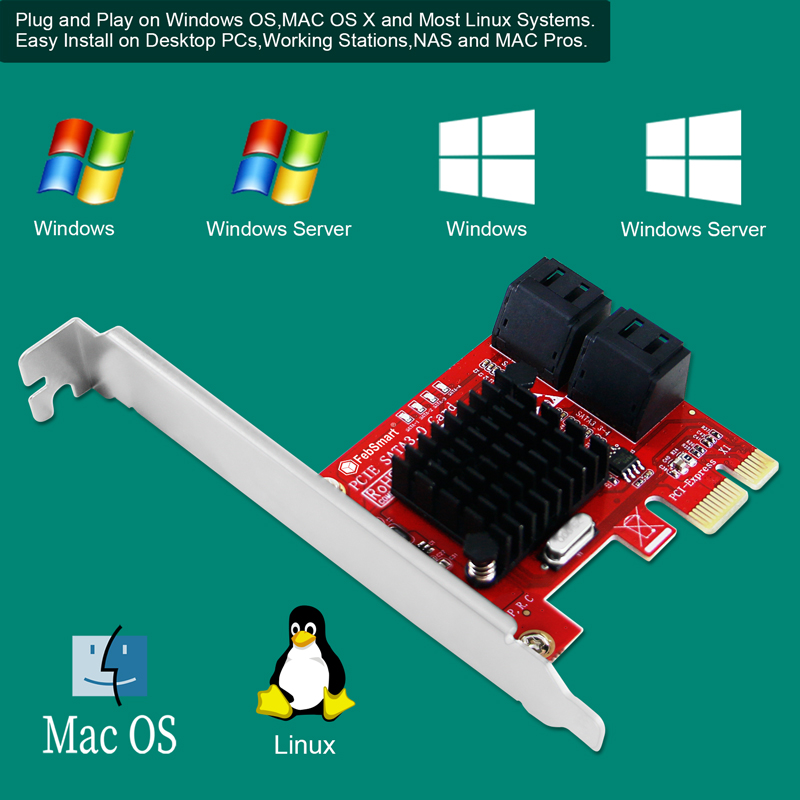

Compatible System:
1. Plug and Play on Windows 11, 10, 8.x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64bit).
2. Support IN-BOX driver on MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15. x.
3. Support Plug and Play on most main stream Linux kernel system.
SATA Controller Down Stream Features:
Compliant with Serial ATA Specification 3.1. Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
Supports programmable transmitter signal levels. Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports 4X SATA III ports. Supports AHCI 1.0 programming interface.
Supports Native Command Queuing (NCQ). Supports Port Multiplier FIS based switching or command-based switching.
Supports Partial and Slumber Power Management states. Supports Staggered Spin-up.
PCIE Up Stream Features:
Compliant with PCIe 3.0 specifications. Supports communication speed of 2.5 Gbps,5 Gbps and 8Gbps.
Supports AHCI programming interface registers for the SATA controller. Supports aggressive power management.
Supports error reporting, recovery, and correction. Supports Message Signaled Interrupt (MSI).
Package: 1X FS-S4-Pro, 1X User manual, 4X SATA III cable, 1X Mount screw, 1X Low profile bracket.
