WiFi 6E Standard Tri-band 5400Mbps PCIE WiFi Adapter, 2.4GHz 574Mbps, 5GHz 2400Mbps and 6GHz 2400Mbps

FebSmart AX5400 is an IEEE 802.11AX WiFi 6E tri-band 5400Mbps PCI Express WiFi adapter. Allow users add latest WiFi 6E network and WiFi stereo function on desktop PCs. Based on latest Intel wireless WiFi 6E AX210NGW WiFi module. Will Deliver tri-band WiFi connection at 2.4GHz 574 Mbps, 5GHz(160MHz) 2400Mbps and 6GHz 2400Mbps for online gaming, online video call, online phone call and 8K ultra-HD video streaming. Built in WiFi stereo adapter for WiFi audio device signal transmission such as WiFi headset, WiFi earphones, WiFi speakers and WiFi sound bars. Enabled with more technology such as 2X2 MU-MIMO, OBSS, OFDMA and 1024AM ensure wireless network stability. Equipped 2X3dBi external omni-directional dual band antenna will enhance WiFi stability and reception range. Add the long reception range, few losses, low latency wireless network adapter on Desktop PCs.

More WiFi Capacity, Lighting Fast Speed, More Coverage

1. By implementing the new 802.11ax WiFi 6E standard with its unique features such as OFDA,1024QAM, Target Wake Time and Spatial Reuse .AX5400 WiFi 6E (Intel AX210NGW module) WiFi adapter enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the Router, Access Point (AP) in dense environments.

2. When using WiFi 6E technology with 1024QAM and 160MHz channels.AX5400 WiFi card (Intel WiFi 6E AX210NGW module) can deliver nearly 3X higher speed up to 2400Mbps and up to 4x capacity improvement in dense of congested environments comparing with 802.11ac on 5GHz band. The WiFi 6E also takes 6GHz band in and provide 2400Mbps bandwidth on 6GHz for users desktop PCs and servers.

Experience Higher Bandwidth,Lower Network Delay with WiFi 6 OFDMA and OBSS Technology

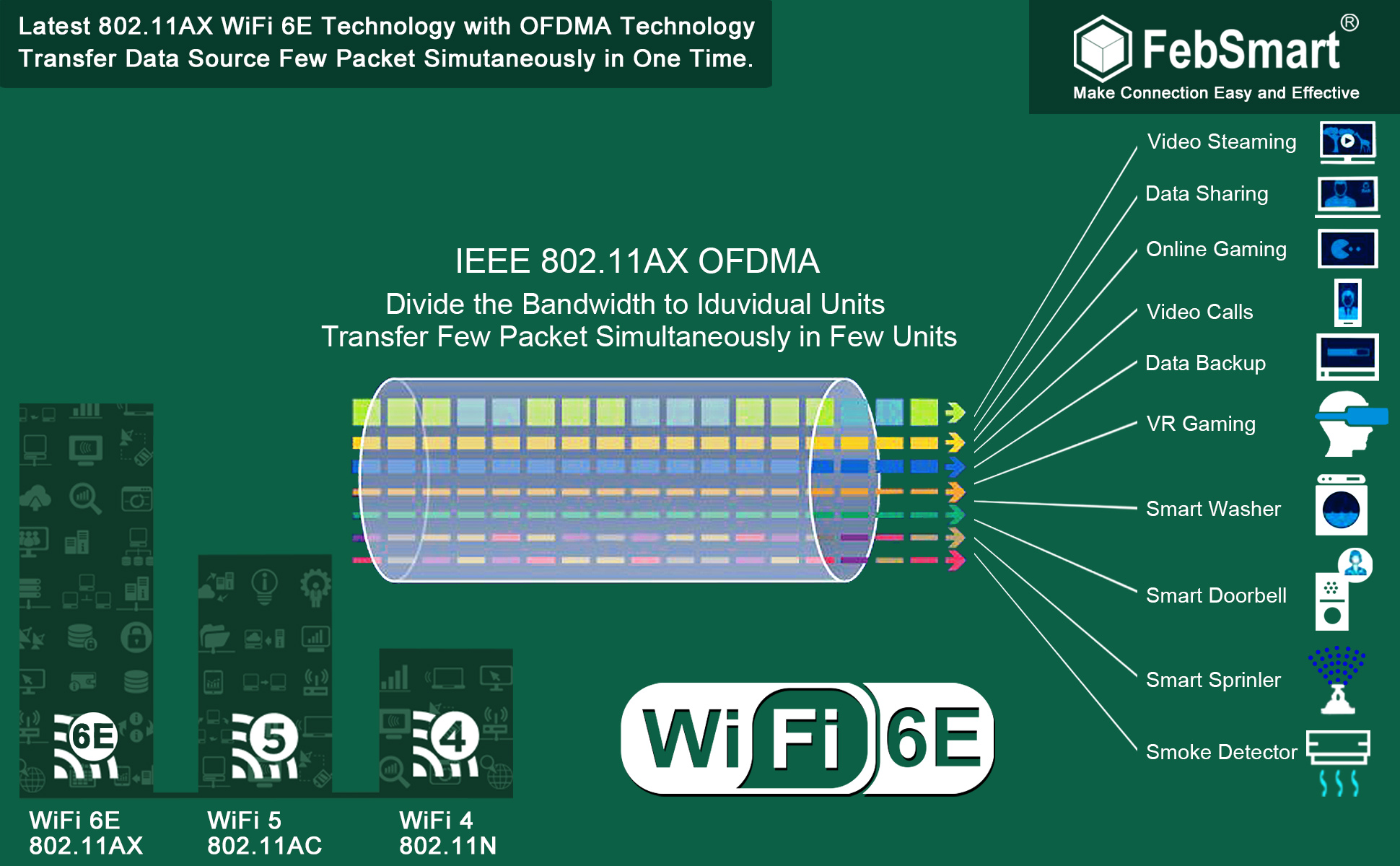

Orthogonal Frequency Division Multiple Access (OFDMA)

OFDMA works by subdividing channels into subcarriers and allowing for transmission to multiple endpoints (devices) at the same time. A Wi-Fi 6 router can send different signals in the same transmission window. This results in a single transmission from the router being able to communicate with multiple devices, instead of each device having to wait its turn as the router serves up the data across the network.

Overlapping Basic Service Sets (OBSS)

OBSS can help to improve network congestion. With older versions of Wi-Fi, devices trying to connect to a network used a “listen before talk” process, which meant they had to “listen” for any noise on a channel before transmitting.

Working together, OFDMA and OBSS allow for more effective communication on crowded networks. As more and more of our devices utilize Wi-Fi, this will help preserve the speed and stability of our connections.

Technical Specifications:

1. WiFi 6E Tri-Band 5400Mbps: WiFi 6E Tri-band PCIE WiFi card, provide 5400Mbps(2.4GHz 574Mbps， 5GHz(160MHz)2400Mbps and 6GHz 2400Mbps) total bandwidth Wireless connectivity on desktop PCs .

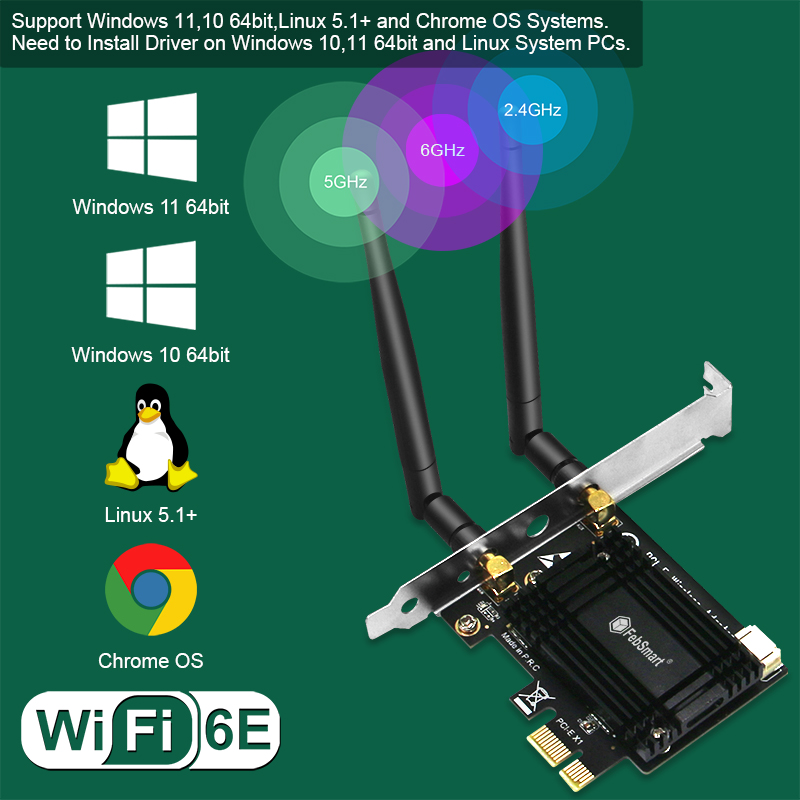

2. Support Windows 10, 11 64bit: Support Windows 11,10 64bit, Linux Kernel 5.1+ and Chrome OS system.

3. Safty WiFi Network Than Ever: Supports new WPA3 security features, enabling next generation authentication and military grade encryption.

1. Intel Wireless WiFi 6E AX210NGW: Select the Intel wireless WiFi 6E AX210NGW will provide 5400Mbps solid wireless network connection. Will compatible AMD, Intel and ARM platform device such as PCs, Working Stations and NAS systems.

2. PCIE 2.0 X1 Interface: PCI Express 2.0 standard design,will compatible with PCIE 1.0,2.0,3.0,4.0 standard. PCI Express X1 interface design will works on PCI Express X1,X2,X4,X8,X16 slot.

3. Support Multiple Type PCs: Mounted with the full height bracket, will work on the full size PCs and working stations. Packed with the low profile bracket, will work on the slim PCs and working station.

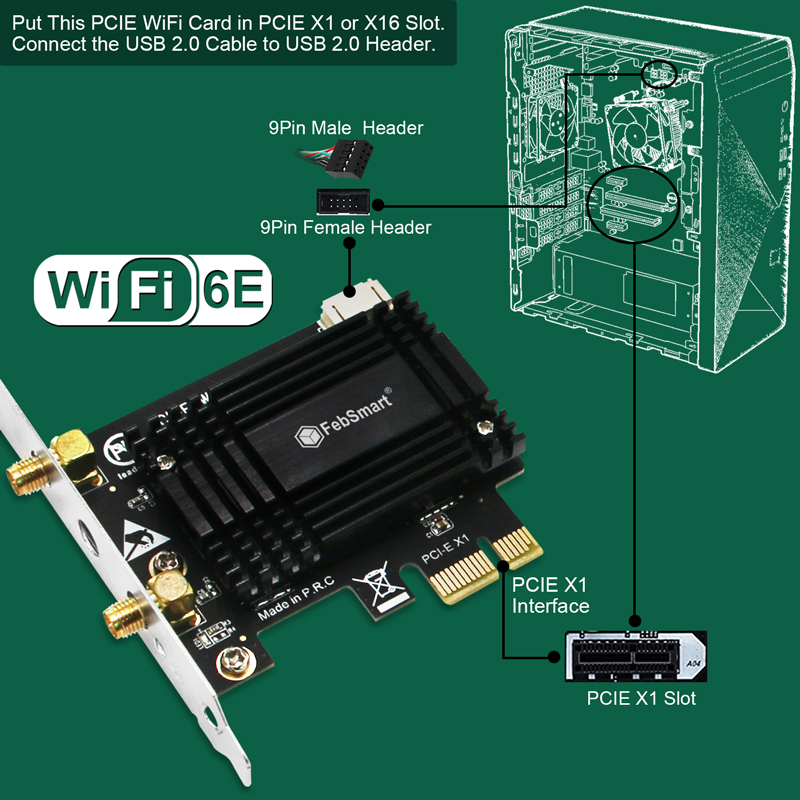

Easy Install WiFi Card on Desktop PCs:

Description:

FebSmart AX5400 is an IEEE 802.11AX WiFi 6E tri-band 5400Mbps PCI Express WiFi adapter. Allow users add latest WiFi 6E network and WiFi stereo function on desktop PCs. Based on latest Intel wireless WiFi 6E AX210NGW WiFi module. Will Deliver tri-band WiFi connection at 2.4GHz 574 Mbps, 5GHz(160MHz) 2400Mbps and 6GHz 2400Mbps for online gaming, online video call, online phone call and 8K ultra-HD video streaming. Built in WiFi stereo adapter for WiFi audio device signal transmission such as WiFi headset, WiFi earphones, WiFi speakers and WiFi sound bars. Enabled with more technology such as 2X2 MU-MIMO, OBSS, OFDMA and 1024AM ensure wireless network stability. Equipped 2X3dBi external omni-directional dual band antenna will enhance WiFi stability and reception range. Add the long reception range, few losses, low latency wireless network adapter on Desktop PCs.

More WiFi Capacity, Lighting Speed, More Coverage

1. By implementing the new 802.11ax WiFi 6E standard with its unique features such as OFDA, 1024QAM, OBSS, 2X2 MU-MIMO, Target Wake Time, and Spatial Reuse.AX5400 WiFi 6E (Intel AX210NGW module) WiFi adapter enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the Router, Access Point (AP) in dense environments.

2. When using WiFi 6E technology with 1024QAM and 160MHz channels.AX5400 WiFi card (Intel WiFi 6E AX210NGW module) can deliver nearly 3X higher speed up to 2400Mbps and up to 4x capacity improvement in dense of congested environments comparing with 802.11ac on 5GHz band. The WiFi 6E also takes 6GHz band in and provide 2400Mbps bandwidth on 6GHz for desktop PC and servers.

Safty Wireless Network Than Ever

AX5400 WiFi Adapter (Intel WiFi 6E module) supports latest WPA3 WiFi security features, enabling next generation authentication and military grade encryption. Will fully protect users WiFi network privacy.

Compatible System: Windows 11 64bit, Windows 10 64bit, Linux Kernel 5.1+ and Chrome OS.

Package List: 1x AX5400, 1X Mini CD, 1x User Manual, 1x Mount Screw 1x Low Profile Bracket, 2x 3dBi Antenna, 1x USB 2.0 Cable.
