PCI Express to Gigabit Lan RJ45 Port Network Interface Card for Office, Home, Education and Public Desktop PCs

FebSmart FS-E1-Pro is a single port PCI express gigabit network interface controller card. Allow desktop computers upgrade to latest gigabit ethernet by PCIE X1 slot. Each port will auto-communicate with Router/Switch/Modem, adjust ethernet speed to 10/100/1000Mbps.Support multiple Windows system, and most Linux system(include NAS).It is a super low cost solution add gigabit ethernet ports on Windows server, virtual system and multi system desktop computers. For single system Windows and Linux PCs, it will increase the network connection stability and throughput.

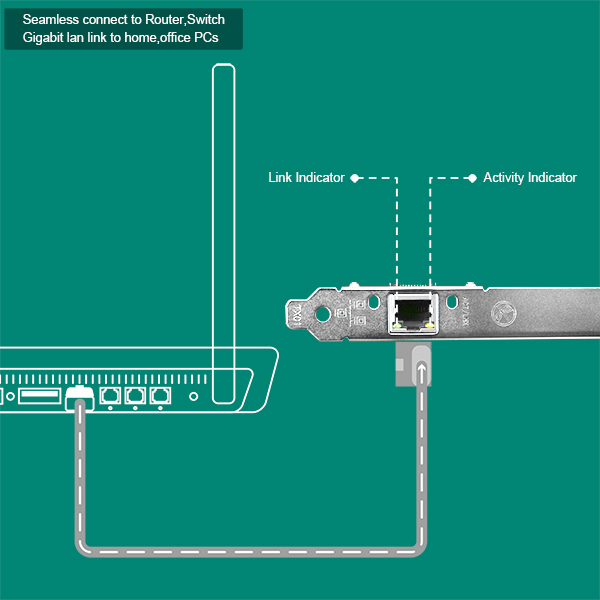

Link to Solid Network Easily, Compatible with 99.99% Modems, Routers and Switches Brand in the Market.

Technical Specifications

1. Gigabit Ethernet Controller: Auto speed adjustment to 10/100/1000,increase users network speed capacity.2.Stream HD, Pro HD,4K,8K video source for most working, gaming and home PCs.

2. Multiple Windows System: 1. Plug and Play on Windows 8, 8.1, 10(32/64bit) and Windows Server 2012, 2012R2, 2016, 2019 (32/64bit) systems. 2. Need to install driver on Windows XP,7,Vista(32/64bit) and Windows Server 2003,2003R2,2008,2008R2(32/64bit) systems.

3. Easy Install/Wake Up on Lane: 1.Fully support Windows wake up on line, now wake the desktop computers anywhere and anytime you want.2. Super easy install on most current working systems, both Windows, Linux and MAC OS.

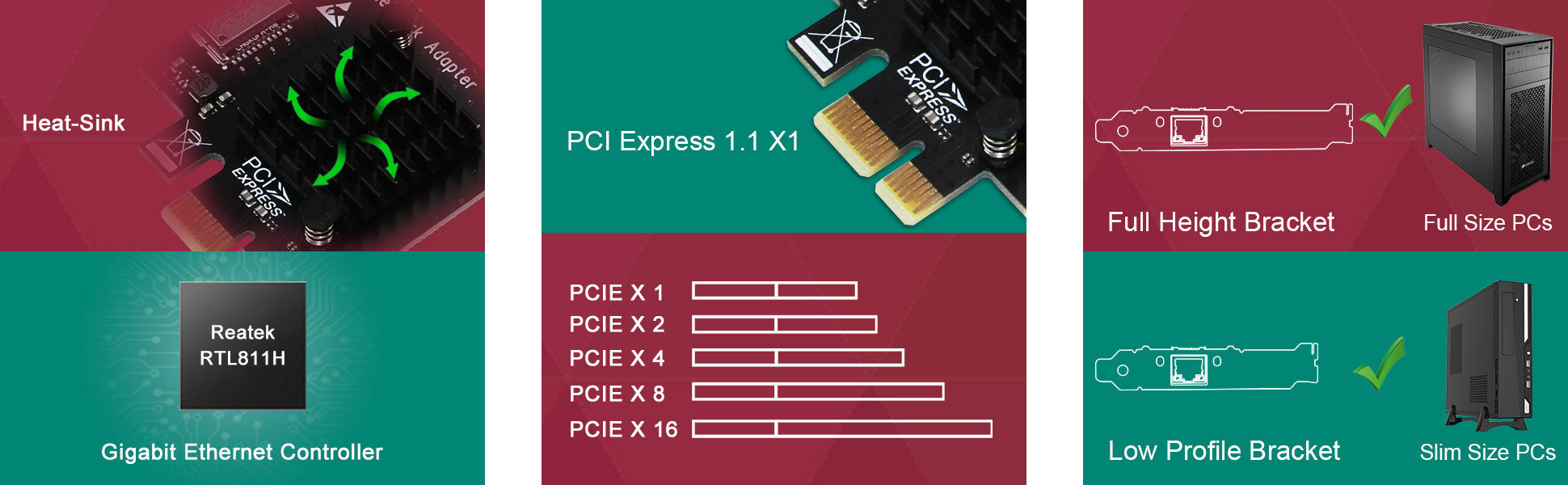

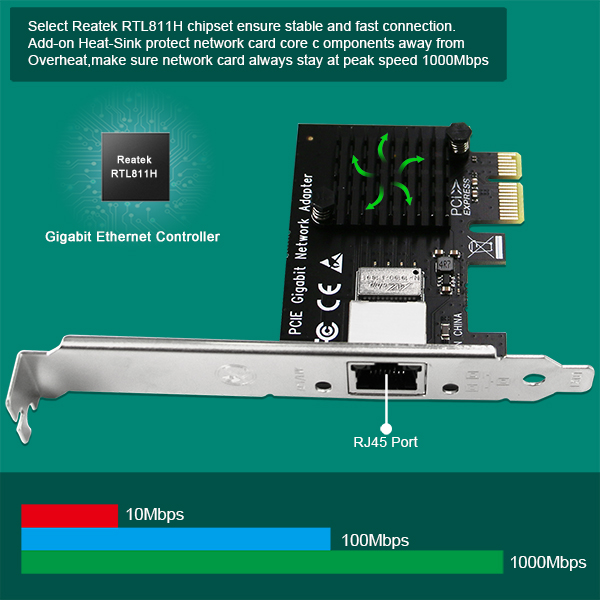

1. Realtek RTL811H NIC Chip: 1.Based Realtek RTL811H network interface controller, provide best speed for most desktop PCs.2.Designed 1X Heat-sink on major chip, it will help NIC card core components stay away from overheat, make sure PCs always stay at peak speed 1Gbps.

2. PCI Express 1.1 X1 Interface: 1.Based on PCI Express and X1 interface, will work on PCIE X1, X2, X4, X8, X16 slot.2. PCI Express 1.1 protocol design, support PCIE 1.0,1.1,2.0,3.0,4.0 standard.

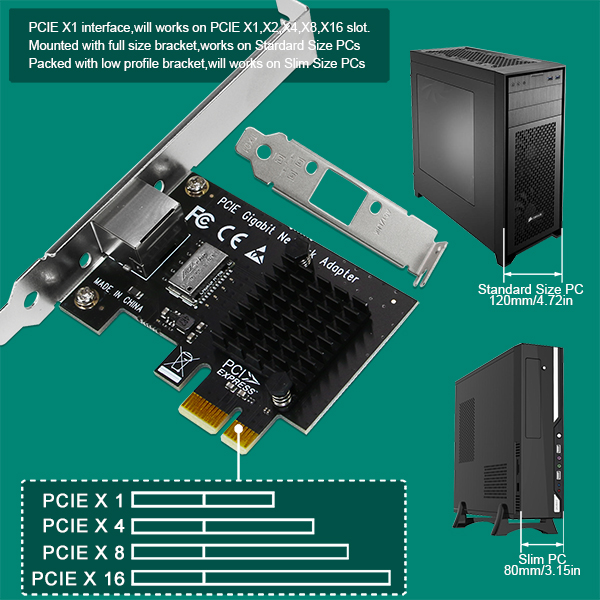

3. Standard Size and Slim Size PCs: 1. Packed with low profile bracket will compatible with slim size computers. 2. Mounted with full height bracket fully compliant with standard size desktop computers.

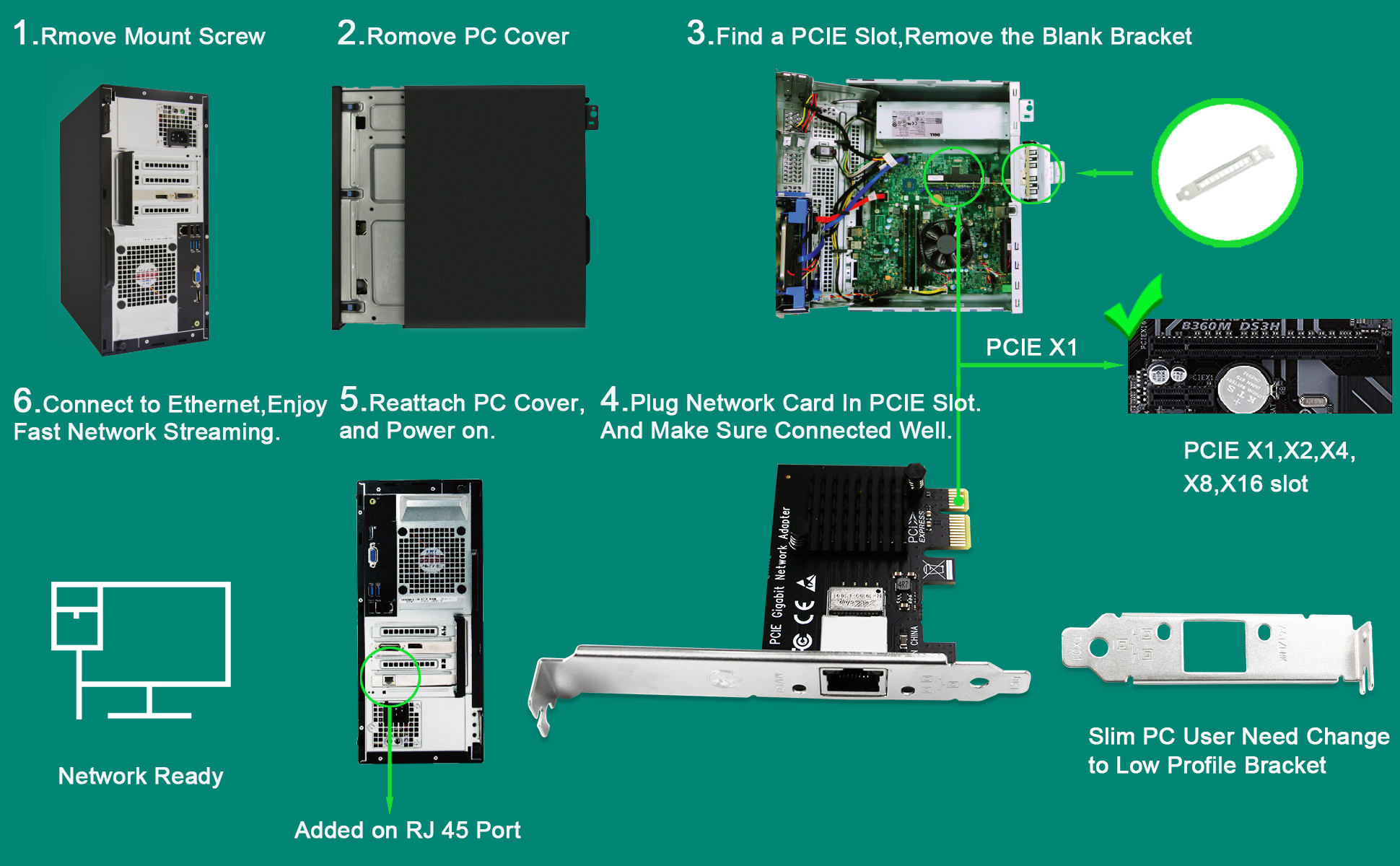

Easy Install Plug and Play on Most System

FebSmart FS-E1-Pro is a PCI Express gigabit network interface controller card. Allow desktop computers upgrade to latest gigabit ethernet by PCIE X1 slot. Will auto-communicate with Router/Switch/Modem, adjust ethernet speed to 10/100/1000Mbps. Fully support most of Windows, Linux, Unix systems and some version MAC OS system.

Product Features:

1. Auto-adjust ethernet speed to 10/100/1000Mbps.

2. PCIE X1 design, will compatible with PCIE X1, X2, X4, X8, X16 slot.

4. Based on PCI express 1.1 bus interface, 2.5Gbps total bandwidth.

5. Supports link change wake up, Wake-On-LAN and remote wake-up

6. Supports 32-set 128-byte Wake-Up Frame pattern exact matching

7. Supports Microsoft WPI (Wake Packet Indication)

8. Fully compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

9. Supports IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.1Q VLAN tagging

10. Supports IEEE 802.3az-2010 (Energy Efficient Ethernet) and Full Duplex flow control (IEEE 802.3x)

11. Supports jumbo frame to 9K bytes, quad core Receive-Side Scaling (RSS) and Protocol Offload (ARP & NS)

12. Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2)

13. Mounted with full size bracket, packed with low profile bracket will works on both standard size and slim size PCs.

14. Designed a Heat-Sink will protect NIC card core components stay away from overheat, make sure internet always stay at peak speed.

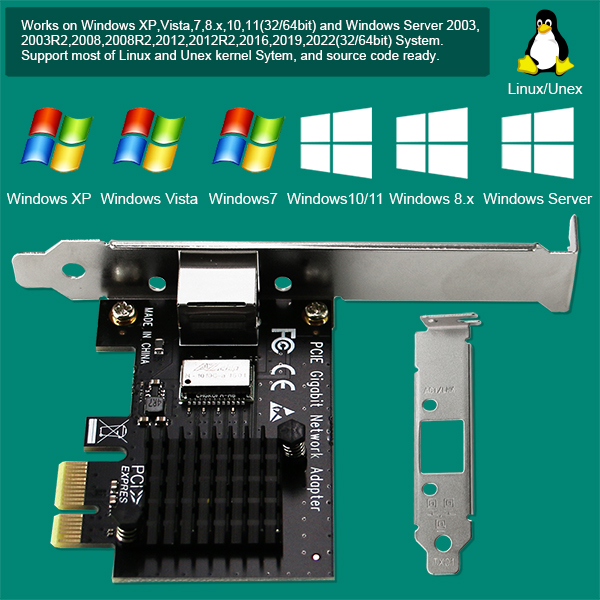

System Compatibility:

1. Support most of main stream Linux system.

2. Windows 98SE, Windows ME and DOS systems.

3. Support MAC OS 10.4, 10.5, 10.6, 10.7 Intel based MAC PCs.

4. Windows 10, 8.1, 8, 7, Vista, XP (32/64bit) and Windows Server 2003,2003R2,2008,2008R2,2012,2012R2,2016,2019(32/64bit).

Package: 1X FS-E1-Pro 1X User manual 1X Mount screw 1X Low profile bracket

Warning:

1. Works on PCI Express slot only, NOT support PCI slot.

2. Do not plug this network card on PCIE slot when PCs light up.

3. Do not put this network interface controller card in old type PCI slot.
