FS-A2-Pro
FS-A2-Pro
2X USB-A PCIE USB 3.1/3.2 Gen 2 Card
Model: FS-A2-Pro
Max Speed:10Gbps
USB Ports: 2X USB-A
Total Banwidth: 16Gbps
PCIE Interface: PCIE 3.0 X4 Interface X2 Signal
Compatible System: 1.Plug and Play on MAC OS
10.9.x,10.10.x,10.12.x,10.13.x,
10.14.x,10.15.x and later system. NOT works on MAC OS 10.11.x system. 2. Driver free
on Windows 11,10,8.1,8(32/64bit), Windows Server 2012,2012R2,2016,2019,2022. Need to
install driver on Windows7, Server 2008,2008R2(32/64bit) 3. Supports most main stream Linux Kernel.
PCIE 3.0 X4 Interface to 2X USB 3.1 GEN2 10Gbps Type A Ports Expansion Card,2X 10Gbps Max Speed USB-A Ports

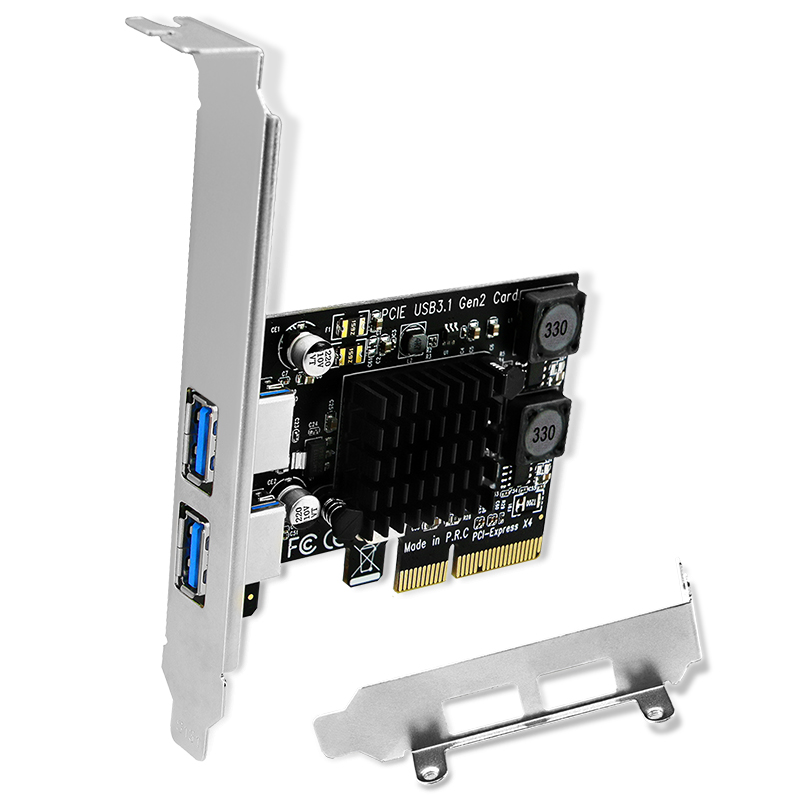

FebSmart FS-A2-Pro is a PCI Express X4 interface to 2X USB 3.1 GEN2 10Gbps ports expansion card. It will provide 2X USB 3.1 GEN2 Type A 10Gbps ports on Desktop PCs for large data transfer and live data storage. It was built in FebSmart Self-Powered technology, users no need to plug any additional power supply from PCs PSU, but each USB 3.1 GEN2 port will get 5V/3A (5V/6A in total on 2X USB-A ports) max power supply. Allow all connected high-power consumption USB 3.1 GEN2 10Gbps devices get a superspeed plus 10Gbps (16Gbps in total) max speed. It is a cost-affective way add 2X 10Gbps USB-A ports on Desktop PCs, Working Stations, and MAC Pros for high power consumption USB 3.1 GEN2 peripheral devices connection, which including NVME SSD enclosures, SATA SSD/HDD enclosures, VR-Systems, 10Gbps USB hubs and 4K USB video adapter. It will backward compatible with USB 3.0 (5Gbps max) and USB 2.0 (480Mbps max) devices. Such as web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. The 2X added on 10Gbps USB-A ports will not occupy mother board USB Main Lan speed, just an extra bandwidth by PCI Express X4 on Desktop PCs.
What is the FebSmart Self-Powered Technology?

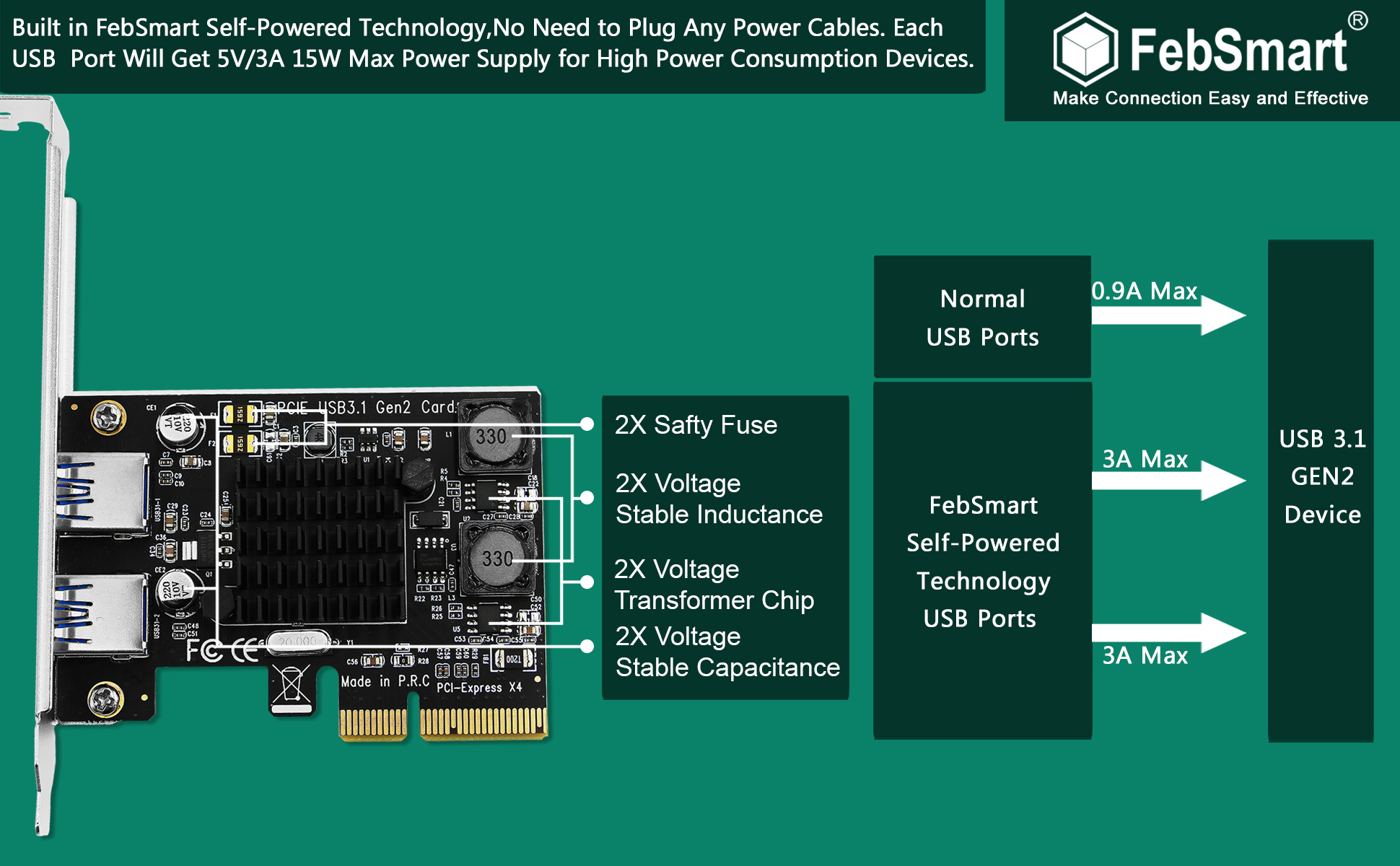

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.1 GEN2 expansion cards. The old version PCI Express USB card need to plug a power cable from the desktop PCs power supply unit. Even added-on additional power, USB ports still lack power when running few high power-consuming devices simultaneously, such as USB MVME SSD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 2X voltage transformer on 2X USB USB 3.1 GEN2 port, and pick up 12/2.5A transfer to 5V/6A 30W. Then distribute current to each port 5V/3A max power for USB 3.1 GEN2 devices. To protect users USB 3.1 GEN2 devices, FebSmart designed 2X electric safety fuse, 2X voltage stable capacitance and 2X voltage stable inductance. Do not worry data loss or burn USB devices now. Add superspeed plus 10Gbps USB 3.1 GEN2 host controller card on Desktop PCs. Choose More Stable, Fast and Safe data connection with FebSmart.
Technical Specification:
1. Superspeed Plus 10Gbps Max: Provide 2-Ports USB 3.1 GEN2 Type A superspeed plus 10Gbps max data transfer rate, 16Gbps total bandwidth. 2X faster than USB 3.0 (5Gbps), 20X faster than USB 2.0 (0.48Gbps). Stream more Pixels video source such as 4K or 8K video source when works with external USB graphic cards.
2. Windows and MAC OS System: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. Supports most main stream Linux Kernels.
3. Easy Install, Safeguard User's Data: Built in FebSmart Self-Powered Technology, no need to plug any power cable from computer power supply unit, enjoy super easy and safe installation. Designed with 2X electric safety fuse, 2X voltage stable capacitance and 2X voltage stable inductance protect USB 3.1 GEN2 devices from overcurrent, overload ensure data security.

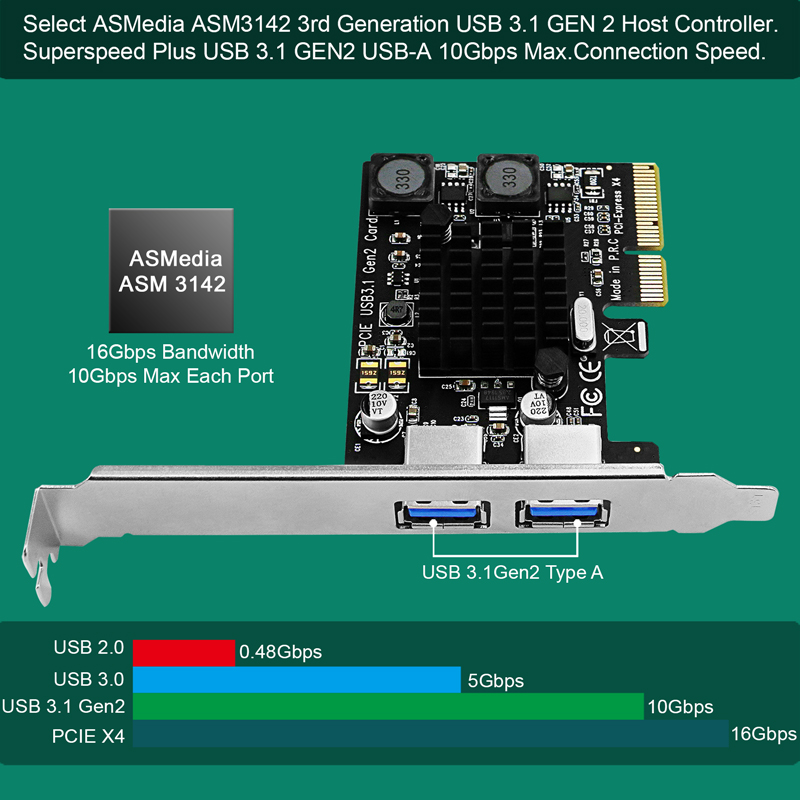

1. Heat-sink on ASM3142 Major Chip: Based on ASMedia ASM3142 USB 3.1 GEN2 16Gbps host controller, will provide 16Gbps total bandwidth on 2X USB-A Ports, each port will get 10Gbps max speed. Compatible with AMD, Intel, ARM and MAC hardware platforms. Designed 1X Heat-sink on ASMedia ASM3142 major chip, will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1 GEN2 devices always stay at peak speed 10Gbps.
2. PCI Express 3.0 X4 Interface: PCI Express 3.0 X4 (X2 signal) design will compatible with PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, and PCIE 1.0 5Gbps. PCIE X4 interface will compatible with PCIE X4, X8, X16 slot, NOT support PCIE X1, X2 slot. Users must make sure PCs Motherboard have 1X empty PCIE X16 slot before purchase.
3. Standard Size PCs and Slim PCs: Mounted with full height bracket for standard size PCs. Packed with low-profile bracket, works on slim size PCs. Slim PC users need change to the low profile bracket by hand.
Achieving 10 Gbps Data Rates in USB 3.1 GEN2 Using Multiple INs and Hub Payload Buffering

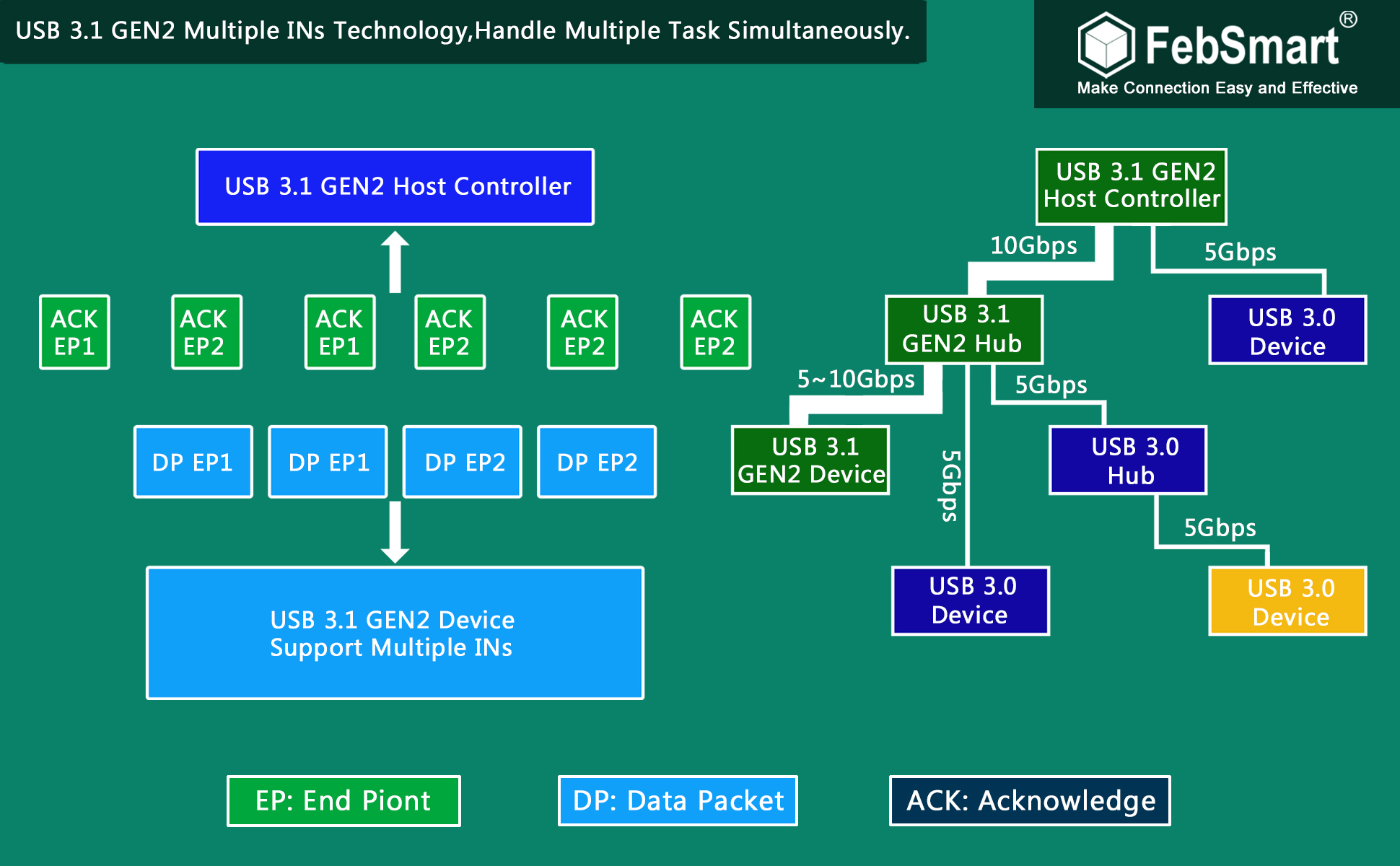

What is USB 3.1 GEN2 Multiple-INs?
Now USB 3.1 can handle multiple device data transfer simultaneously, without waiting the first device accomplish it's task, NOT like USB3.0/2.0 does. USB 3.1 device may receive a second ACK TP for a different endpoint before it has a chance to respond to the first ACK TP. A more complex USB 3.1 device would take advantage of the multiple INs by servicing the requests separately, possibly returning data to each one, reducing the likelihood that Not Ready would need to be used.
How is Multiple-INs improving USB bandwidth?
When USB 3.0 Host Controller works with the external USB HUB is a “cut-through” model, upstream port and downstream ports on the hub were all operating at the same speed. When put in one USB 2.0 Hub all speed will down. Then USB 3.0 Host Controller can not run full speed. When USB 3.1 GEN2 Host Controller works with USB 3.1, 3.0 Hubs "Cut-through" will not work, with the new "store and forward” service, USB 3.1 hubs take a much more active role in making sure that the flow of data is smooth and the user’s experienced performance is not interrupted.
Easy Install on Desktop PCs:
Product Description:
FebSmart FS-A2-Pro is a PCI Express X4 interface to 2X USB 3.1 GEN2 10Gbps ports expansion card. It will provide 2X USB 3.1 GEN2 Type A 10Gbps ports on Desktop PCs for large data transfer and live data storage. It was built in FebSmart Self-Powered technology, users no need to plug any additional power supply from PCs PSU, but each USB 3.1 GEN2 port will get 5V/3A (5V/6A in total on 2X USB-A ports) max power supply. Allow all connected high-power consumption USB 3.1 GEN2 10Gbps devices get a superspeed plus 10Gbps (16Gbps in total) max speed. It is a cost-affective way add 2X 10Gbps USB-A ports on Desktop PCs, Working Stations, and MAC Pros for high power consumption USB 3.1 GEN2 peripheral devices connection, which including NVME SSD enclosures, SATA SSD/HDD enclosures, VR-Systems, 10Gbps USB hubs and 4K USB video adapter. It will backward compatible with USB 3.0 (5Gbps max) and USB 2.0 (480Mbps max) devices. Such as web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. The 2X added on 10Gbps USB-A ports will not occupy mother board USB Main Lan speed, just an extra bandwidth by PCI Express X4 on Desktop PCs.
Product Features:
1. Expand to 2X USB 3.1 GEN2 type A 10Gbps ports on newly build desktop PCs by PCIE 3.0 X4 interface.
2. Built in FebSmart Self-Powered Technology, no need additional power supply from PSU, provide each USB port 5V/3A (5V/6A in total) power for connected USB devices.
3. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB device always stay at peak speed 10Gbps.
4. Support auto speed negotiation USB 3.1 GEN2 10Gbps, USB 3.0 5Gbps, USB 2.0 480Mbps, USB 1.1 12Mbps.
5. PCIE 3.0 standard and PCIE X4 (X2 signal) interface design, will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard and PCIE X4, X8, X16 slot.
6. Packed with full height bracket and low-profile bracket, works on standard size PCs and slim PCs.
7. PCI Express communicate total bandwidth: PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, PCIE 1.0 5Gbps.
8. Compatible with USB 3.1 GEN2 specification revision 1.0 and Intel extensible host controller interface revision 1.1.
Compatible System:
1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2 (32/64bit).
2. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT work on MAC OS 10.11. x.
3. Supports most main stream Linux Kernels.
Package: 1X FS-A2-Pro 1X User Manual 1X Mount-screw 1X Low Profile Bracket
