PCIE to 2X 19Pin USB 3.0 Header, Extend to PC's Front Panel 4X 5Gbps USB-A Ports

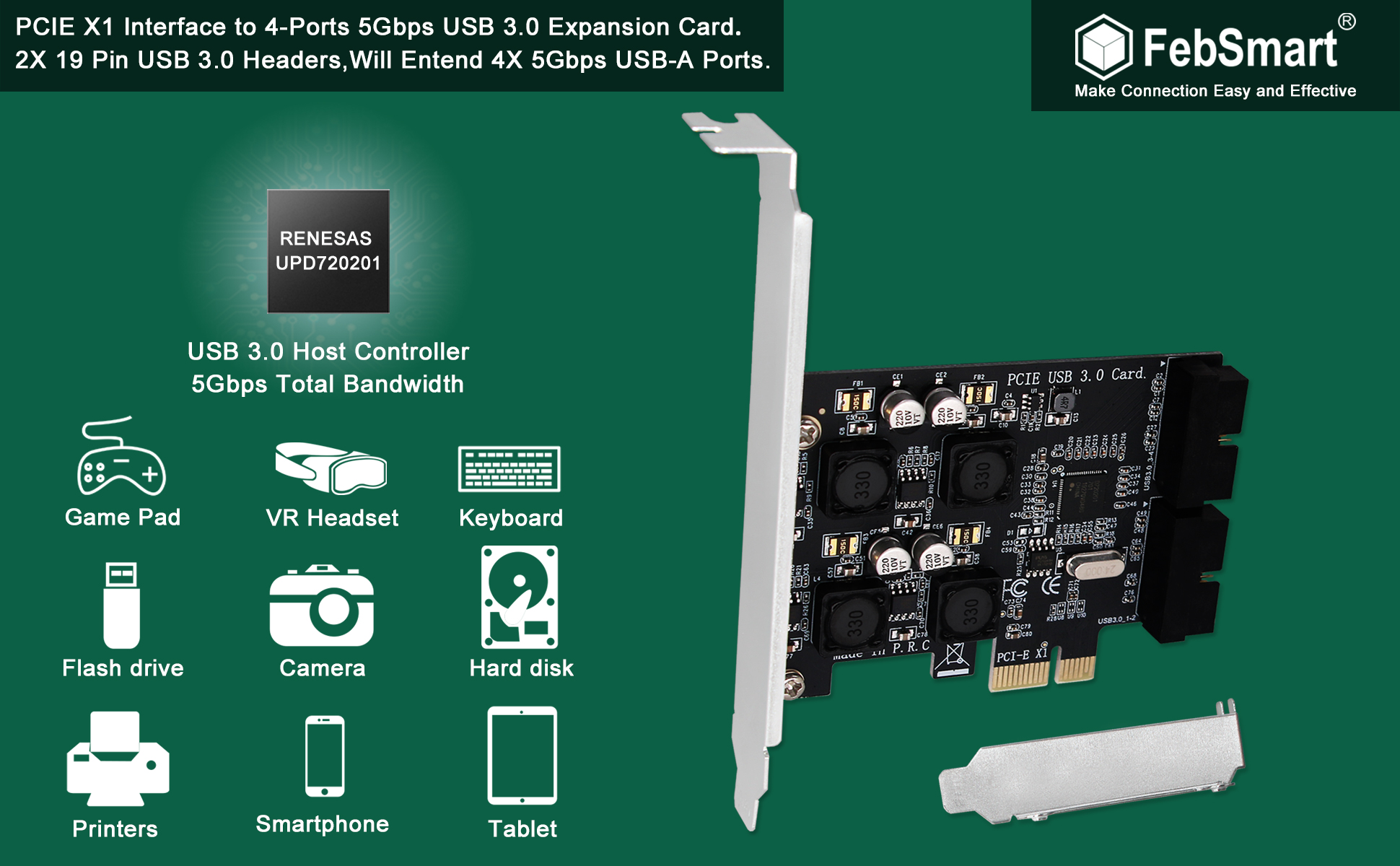

FebSmart FS-H2-Pro is a PCIE X1 interface to 2X 5Gbps 19Pin USB 3.0 header expansion card. The 2X 19Pin USB 3.0 header will extend to Desktop PCs front panel 4X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs, Working Stations, and NAS Data Centers for large data transfer. It is based on RENESAS UPD720201 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platform Desktop PCs. All added-on 4X USB-A ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A max (5V/8A in total) power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will also light up 4X normal USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

What is FebSmart Self-Powered Technology?

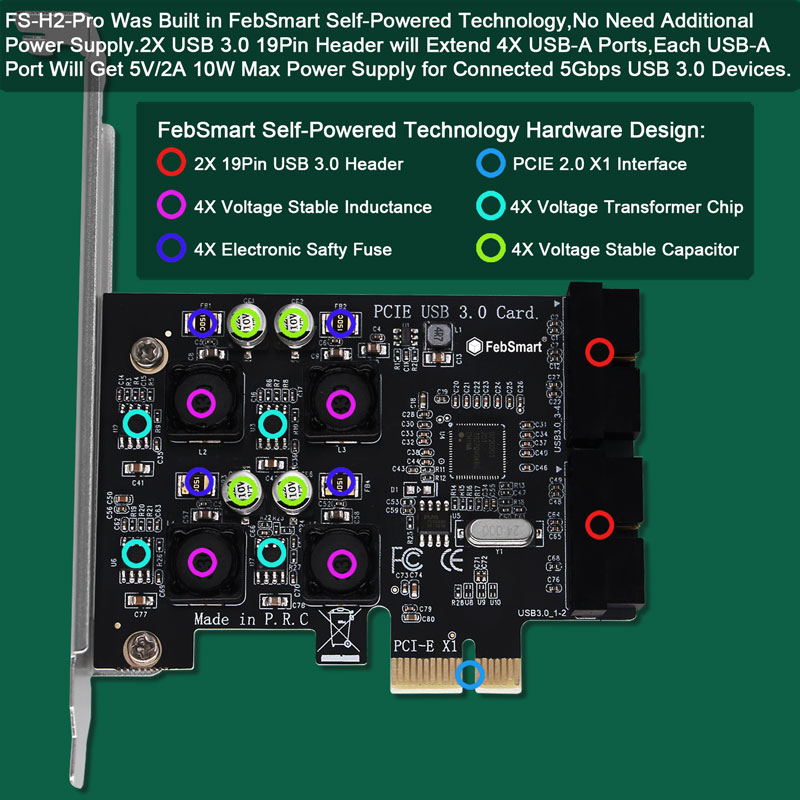

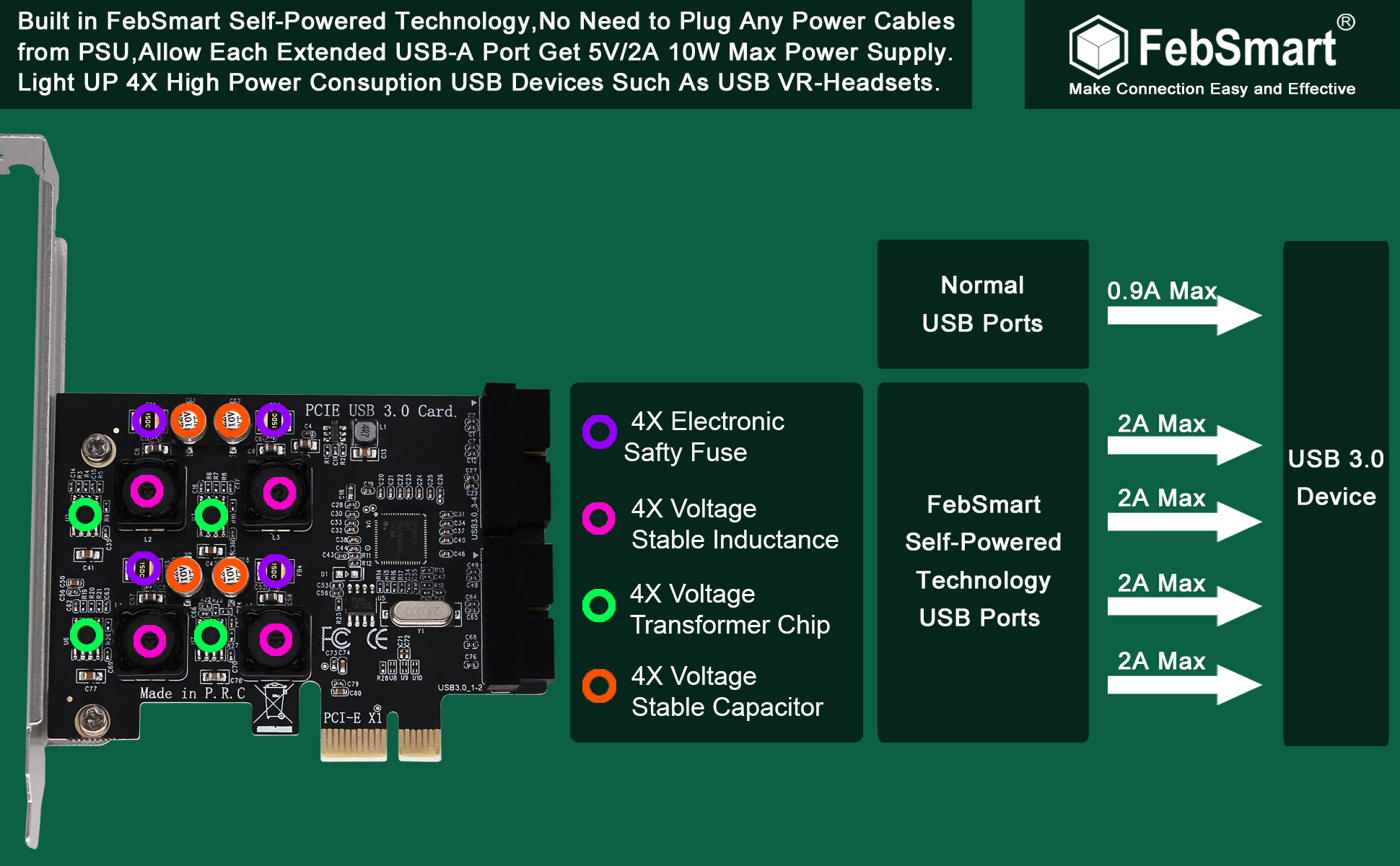

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.0 expansion cards. The old version PCI Express USB 3.0 card need to plug a power cable from the Desktop PC’s power supply unit. Even added-on additional power, USB 3.0 ports still lacks power when running few high power-consuming devices simultaneously, such as USB NVME enclosures or USB SATA SSD/HDD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 4X voltage transformer on 4X USB 3.0 port, will pick up 12/3.5A power supply from PCIE slot and convert to 5V/8A in total. Each USB 3.0 port will get 5V/2A 10W max (NOT support fast charging) power supply for connected USB 3.0 devices. Most high-power consumption USB 3.0 devices will need 4~8W power supply. Which means 4X USB 3.0 ports can light up 4X high power consumption devices simultaneously. FebSmart also designed 4X electronic safety fuse, 4X voltage stable capacitor and 4X voltage stable inductance, will protect USB 3.0 device and users data. Never burn USB 3.0 devices, never lost data.  Add superspeed 5Gbps USB 3.0 expansion card on Desktop PCs. Choose stable, fast and safe USB 3.0 connection with FebSmart.

Product Advantage:

1. 4X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.

2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/8A max) supply for USB 3.0 devices. Light up 4X high power-consuming USB 3.0 devices simultaneously.

3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.

4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.

5. Add 4X 5Gbps USB-A ports on Desktop PCs, 2X 19 Pin USB 3.0 Header will extend to Desktop PCs front panel 4X USB-A ports.

6. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

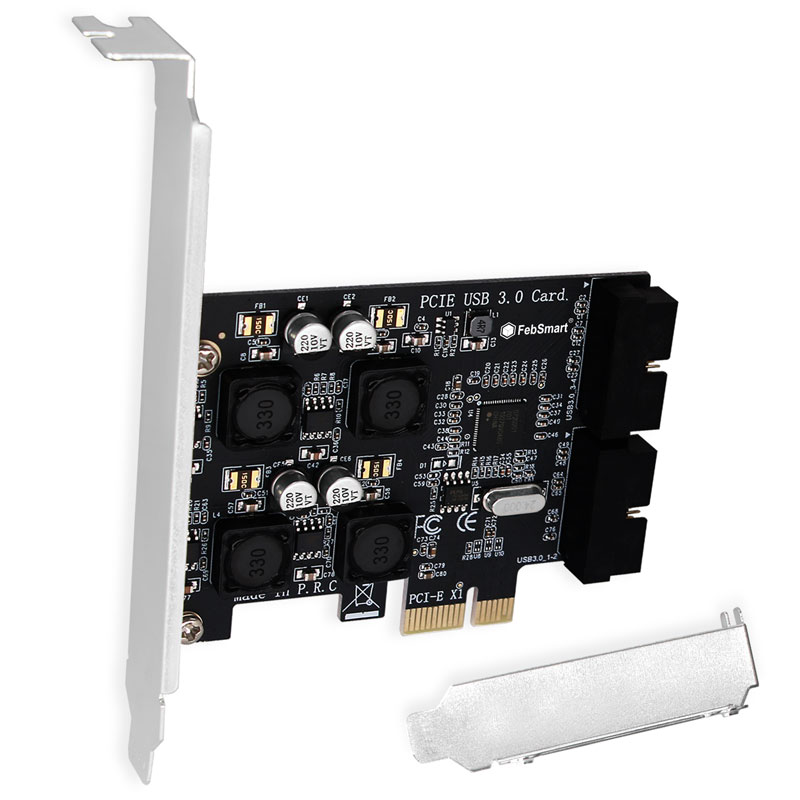

7. Full height bracket mount on USB card, will work on Standard Size PCs. Low profile in the package will work on Slim PCs.

Technical Specifications：

1. USB 3.0 5Gbps Total Bandwidth: USB 3.0 standard, provide superspeed USB 3.0 5Gbps total bandwidth, 10X faster than USB 2.0 0.48Gbps. Backward compatible with USB 2.0 480Mbps and USB 1.1 12Mbps. Supports high resolution USB Graphic Adapters, easy stream Pro HD video source.

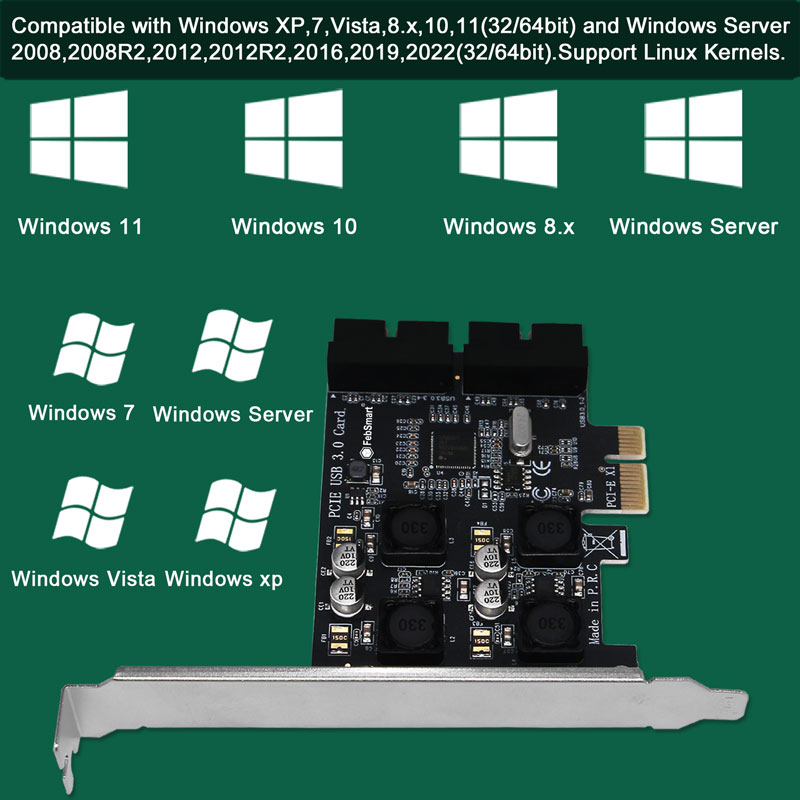

2. Support Windows and Linux PCs: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. Plug and Play on most Linux kernels. NOT support MAC OS X.

3. Easy Installation, Safeguard User's Data: Built in FebSmart Self-Powered technology no need to plug any power cable from Desktop PC's PSU, enjoy super easy and safe installation. Designed 4X electronic safty fuse, 4X voltage stable capacitor and 4X voltage stable inductance protect USB 3.0 device from overcurrent, overload ensure data security.

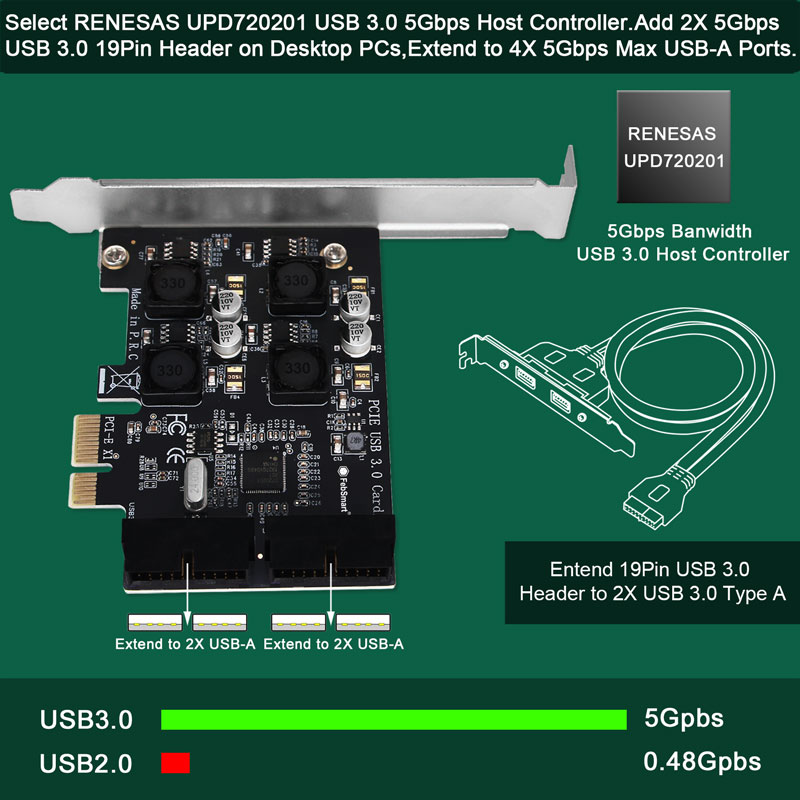

1. 5Gbps USB 3.0 Host Controller: Based on RENESAS UPD720201 USB 3.0 5Gbps host controller, will compatible with AMD, Intel and ARM hardware platform Desktop PCs. Light up 4X high power consumption USB 3.0 5Gbps devices simultaneously.

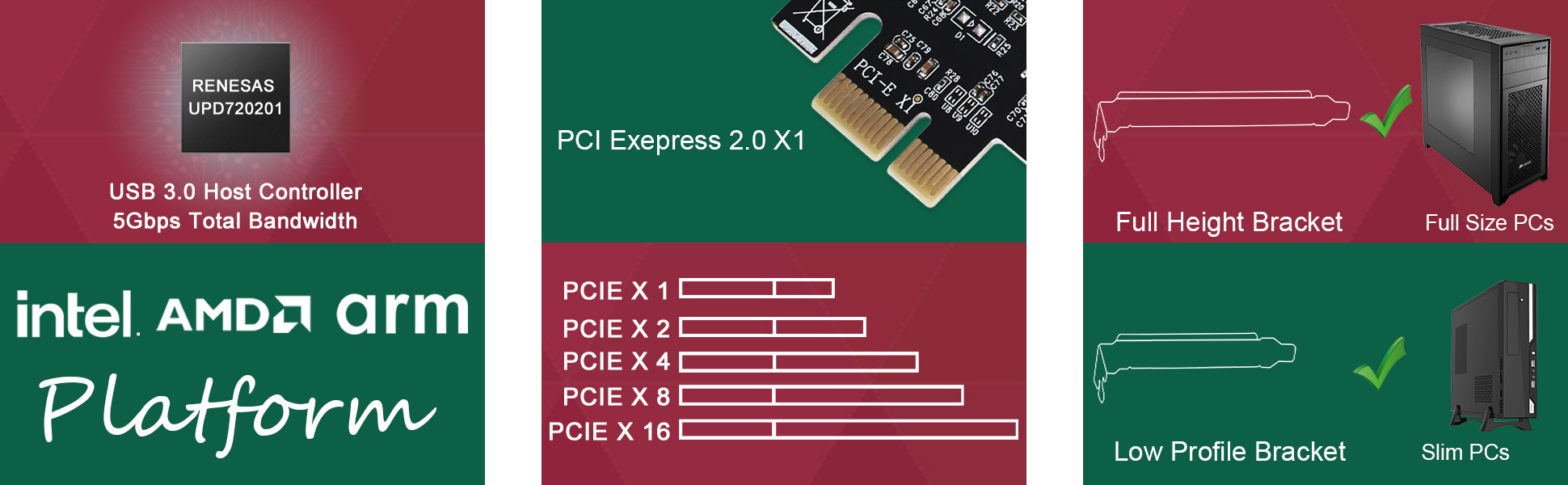

2. PCIE 2.0 Standard, PCIE X1 Interface: PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. Do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

3. Support Standard Size PCs and Slim PCs: Mounted with standard size bracket for standard size PCs. Packed with low-profile bracket, works on slim size PCs. Need change to the low profile bracket by users.

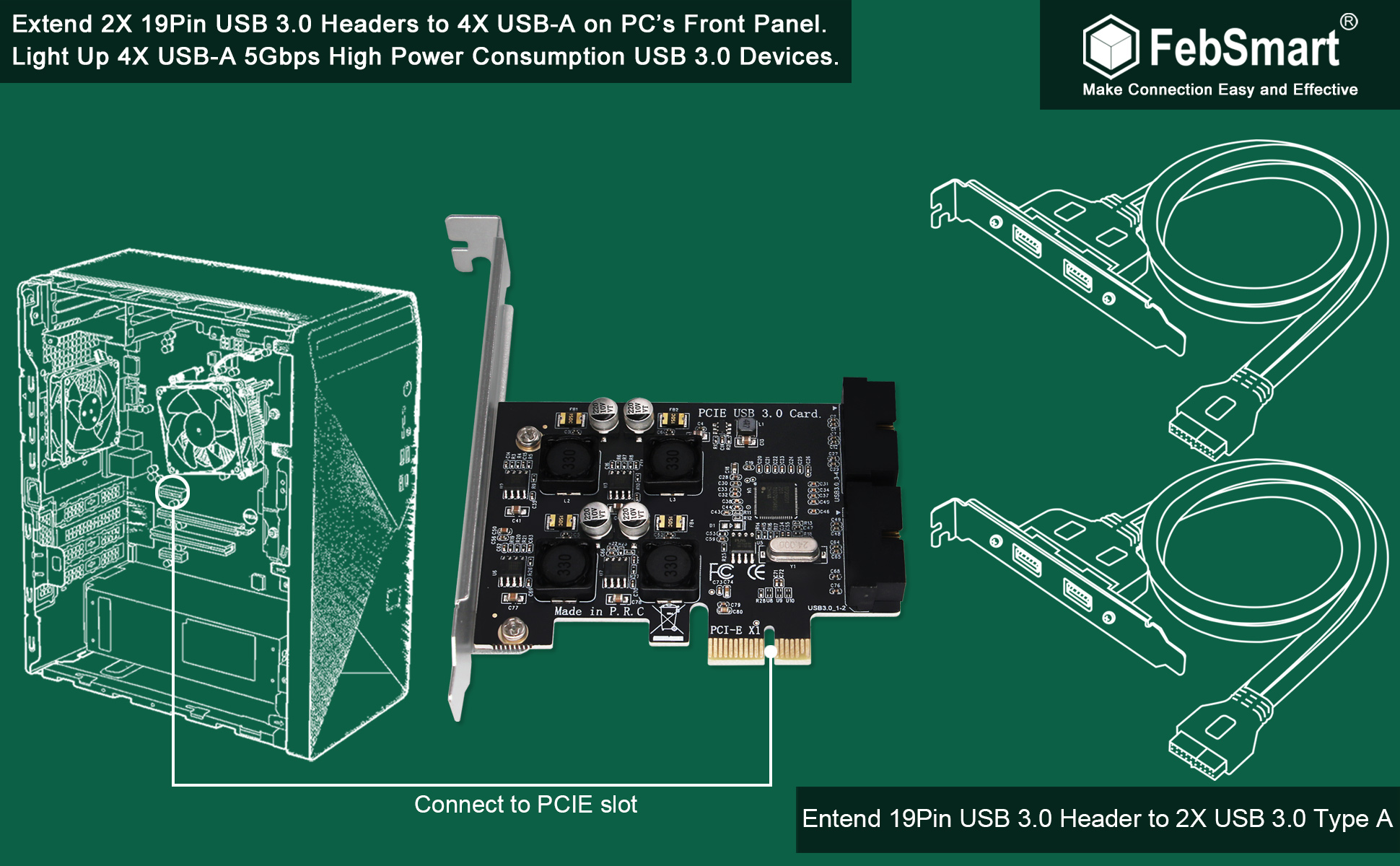

Super Easy Install on Desktop PCs:

Product Description:

FebSmart FS-H2-Pro is a PCIE X1 interface to 2X 5Gbps 19Pin USB 3.0 header expansion card. The 2X 19Pin USB 3.0 header will extend to Desktop PCs front panel 4X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs, Working Stations, and NAS Data Centers for large data transfer. It is based on RENESAS UPD720201 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platform Desktop PCs. All added-on 4X USB-A ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A max (5V/8A in total) power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will also light up 4X normal USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

Product Advantage:

1. 4X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.

2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/8A max) supply for USB 3.0 devices. Light up 4X high power-consuming USB 3.0 devices simultaneously.

3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.

4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.

5. Add 4X 5Gbps USB-A ports on Desktop PCs, 2X 19 Pin USB 3.0 Header will extend to Desktop PCs front panel 4X USB-A ports.

6. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

7. Full height bracket mount on USB card, will work on Standard Size PCs. Low profile in the package will work on Slim PCs.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.

2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

3. Plug and Play on most Linux kernels.

4. NOT support MAC OS X.

Package: 1X FS-H2-Pro 1X User Manual 1X Mount Screw 1X Low Profile Bracket
