FS-U2-Pro
FS-U2-Pro
2 Ports PCI Express USB 3.0 Expansion Card
Model:FS-U2-Pro
Max Speed: 5Gbps
Total Banwidth:5Gbps
USB Ports: 2X USB 3.0 Ports
Plug in Interface: PCI Express 2.0 X1 Interface
Power Supply: Feb Smart Self-Power Technology
Compatible PCs Type: Standard and Slim PCs
Compatible Device:Desktop PCs,Working Stations,NAS Systems
Compatible System:
1. Plug and Play on Windows 11,10,8.1,8(32/64bit) and Windows Server 2012,2012R2,2016,2019,2022.
2. Need to Install Driver on Windows XP, Vista,7(32/64bit) and Windows Server 2003,2003R2,2008,2008R2(32/64bit).
3. Works on most of Linus and Unix kernel.4.NOT for MAC OS.
2-Ports Superspeed 5Gbps USB 3.0 PCI Express Expansion Card
FebSmart FS-U2S-Pro is a PCIE X1 interface to 2X 5Gbps (USB-A Port) USB 3.0 expansion card. Allow users add 2X 5Gbps max USB-A ports on Desktop PCs, Working Stations, MAC Pros and NAS Data Centers for large data transfer. The 2X USB 3.0 ports will share 5Gbps total bandwidth.It is based on ASMedia ASM1042 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, MAC, and Intel hardware platform Desktop PCs. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/4A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will light up 2X normal USB 3.0 devices also which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

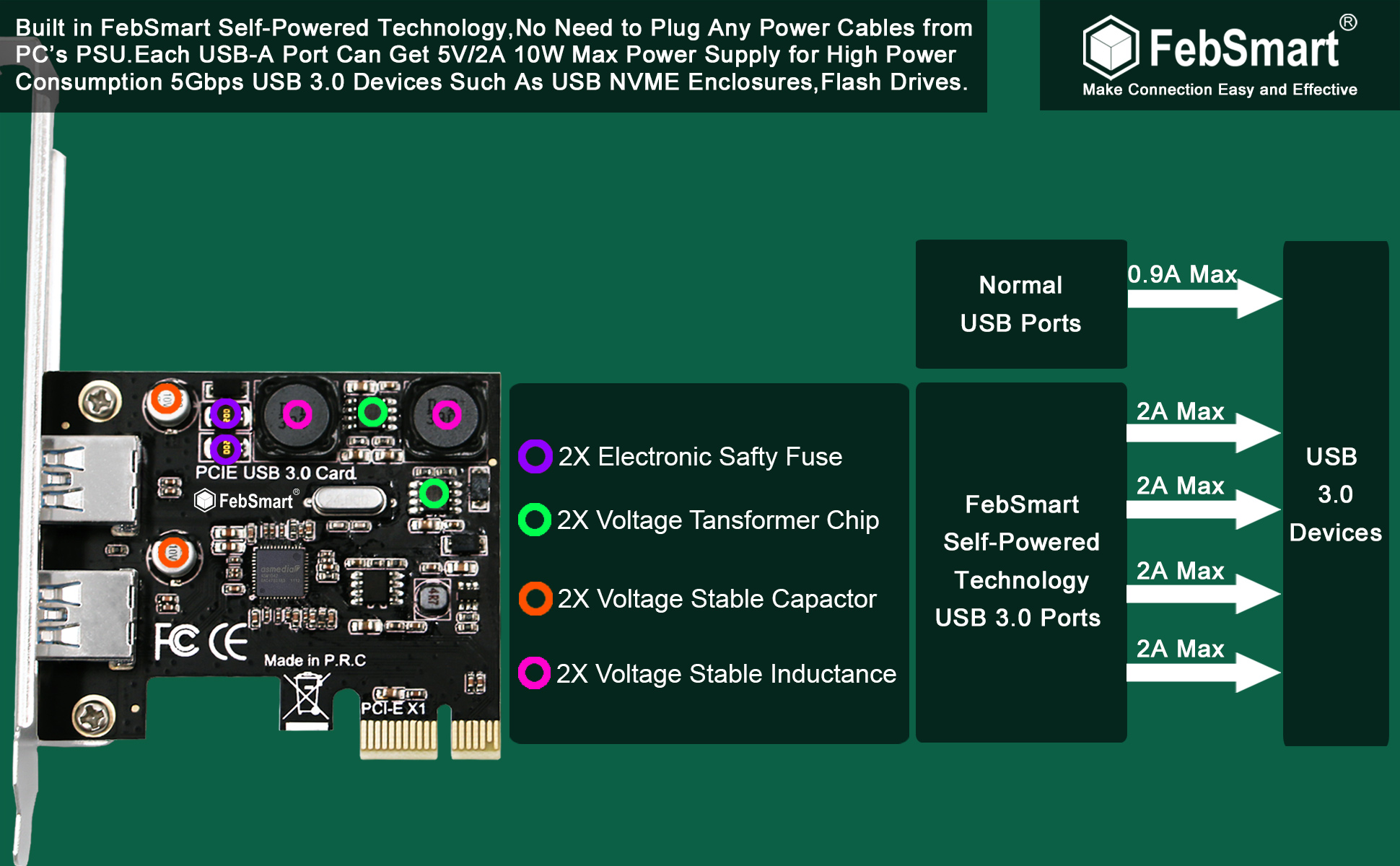

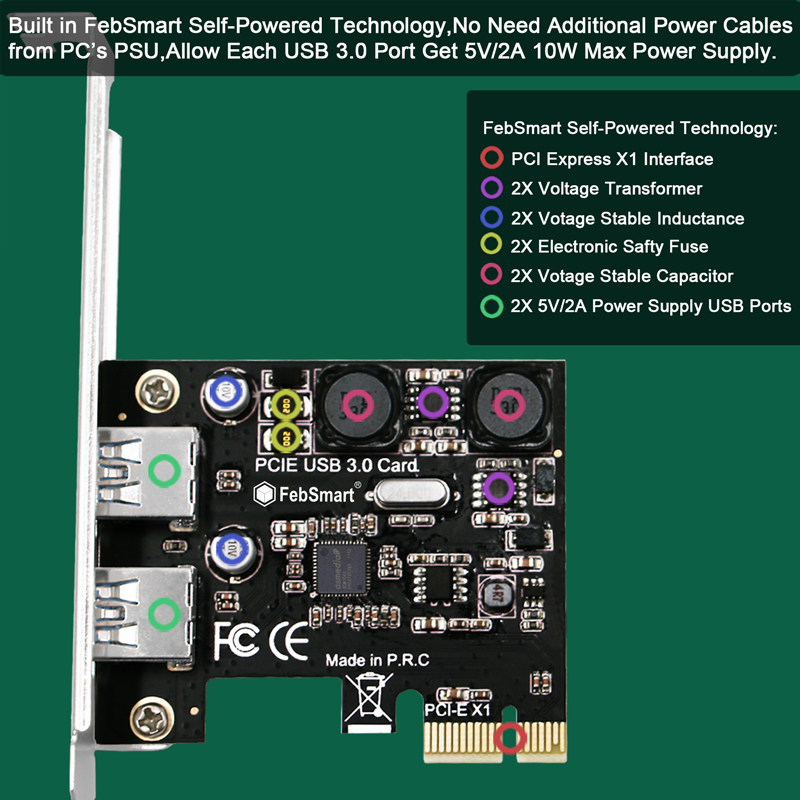

What is FebSmart Self-Powered Technology?
FebSmart FS-U2S-Pro is a PCIE X1 interface to 2X 5Gbps (USB-A Port) USB 3.0 expansion card. Allow users add 2X 5Gbps max USB-A ports on Desktop PCs, Working Stations, MAC Pros and NAS Data Centers for large data transfer. The 2X USB 3.0 ports will share 5Gbps total bandwidth. It is based on ASMedia ASM1042 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, MAC, and Intel hardware platform Desktop PCs. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/4A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will light up 2X normal USB 3.0 devices also which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.
Product Advantage:
1. 2X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.
2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/4A max) supply for USB 3.0 devices. Light up 2X high power-consuming USB 3.0 devices simultaneously.
3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.
4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.
5. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.
6. Full height bracket mount on USB card, will work on Standard Size PCs. Low profile in the package will work on Slim PCs.
Technical Specifications:
1. USB 3.0 5Gbps Total Bandwidth: USB 3.0 standard, Support super speed USB 3.0 5Gbps total bandwidth,10X faster than USB 2.0 0.48Gbps. Backward compatible with USB 2.0 480Mbps and USB 1.1 12Mbps. Supports high resolution USB Graphic Adapters, easy stream Pro HD video source.
2. Support Windows and Linux: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. Plug and Play on most Linux kernels. Not support MAC OS X.
3. Easy Install, Safeguard DATAs: Built in FebSmart Self-Powered technology no need to plug any power cable from Desktop PC's PSU, enjoy super easy and safe installation. Designed 2X electronic safety fuse, 2X voltage stable capacitor and 2X voltage stable inductance protect USB 3.0 device from overcurrent, overload ensure data security.

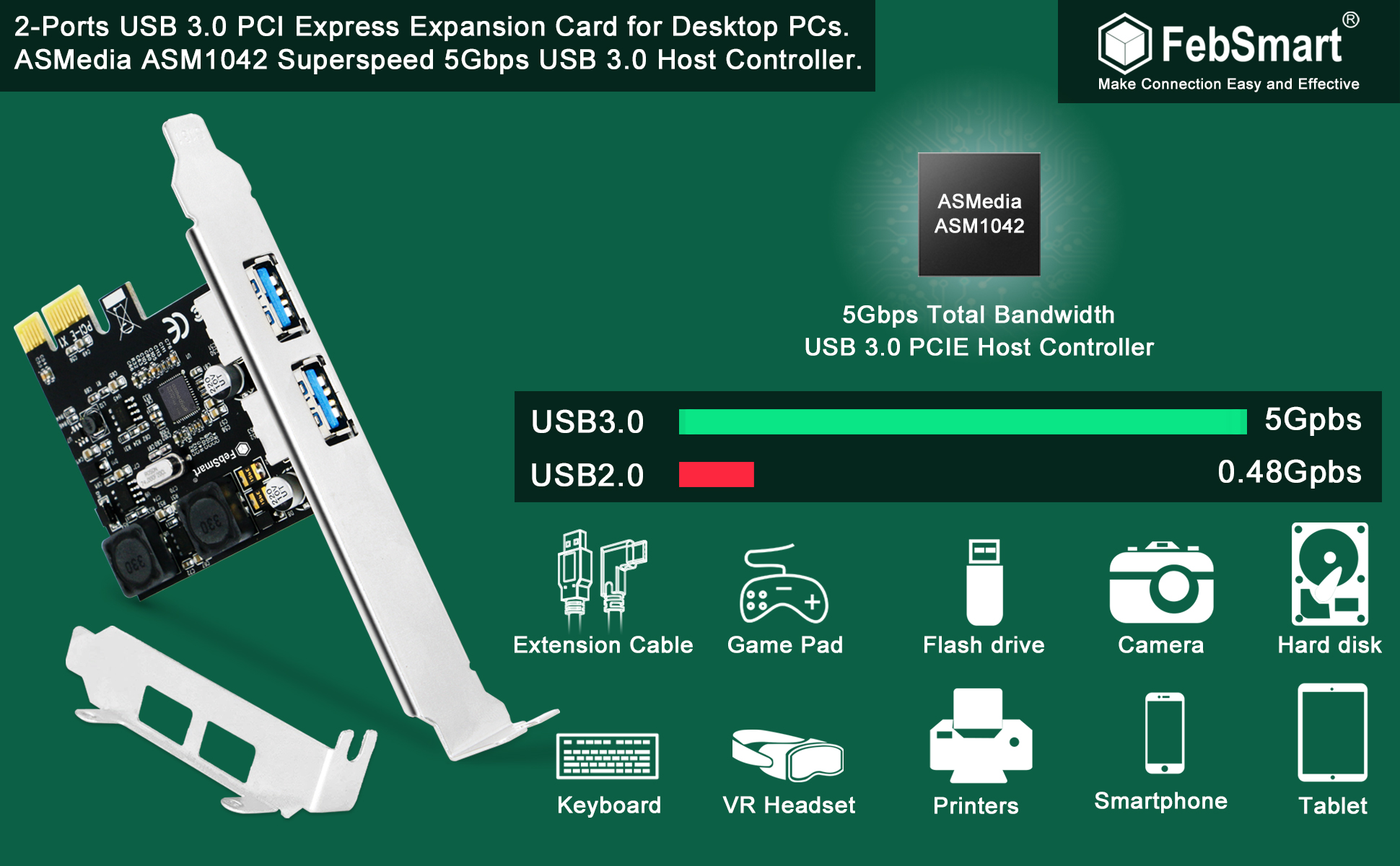

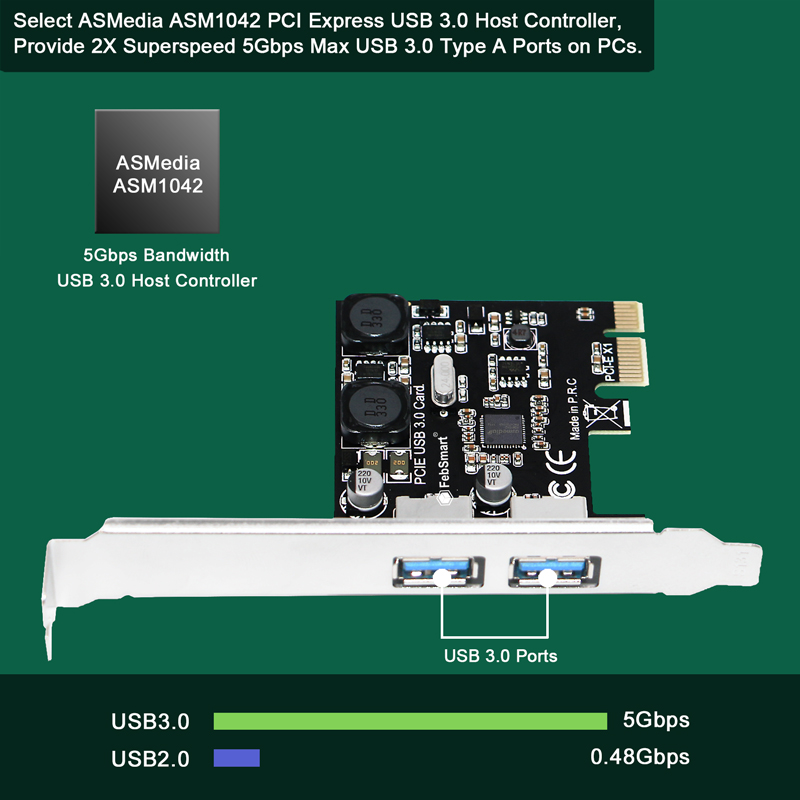

1. 5Gbps USB 3.0 Host Controller: Based on ASMedia ASM1042 USB 3.0 5Gbps host controller, will compatible with AMD, Intel, MAC and ARM hardware platform Desktop PCs. Light up 2X high power consumption USB 3.0 5Gbps devices simultaneously.
2. PCIE X1 Interface: PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. Do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

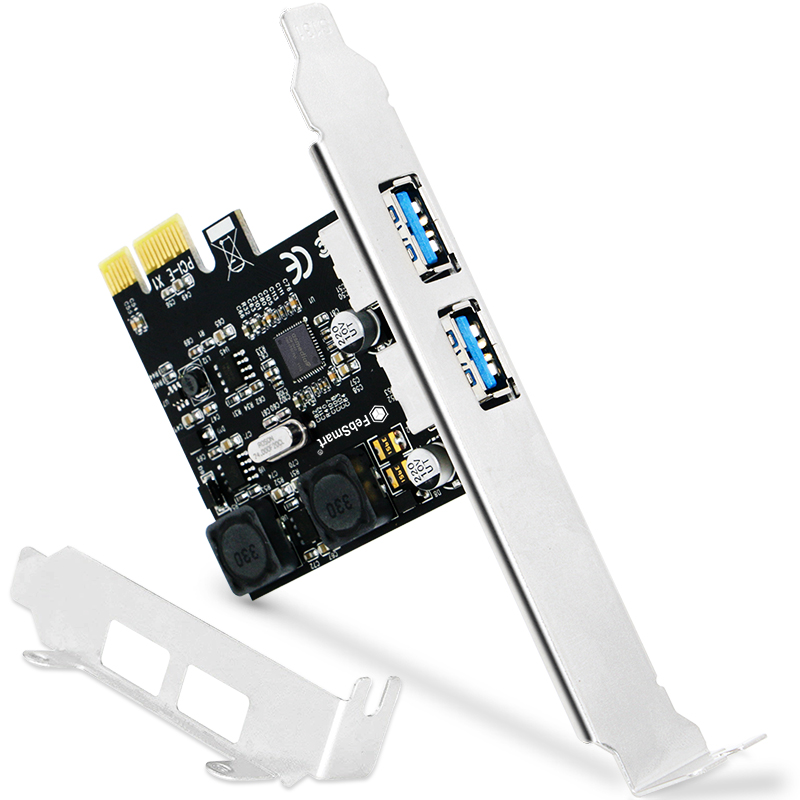

3. Standard Size PCs and Slim PCs: Mounted with standard size bracket for standard size PCs. Packed with low-profile bracket, works on slim size PCs. Need change to the low profile bracket by users.

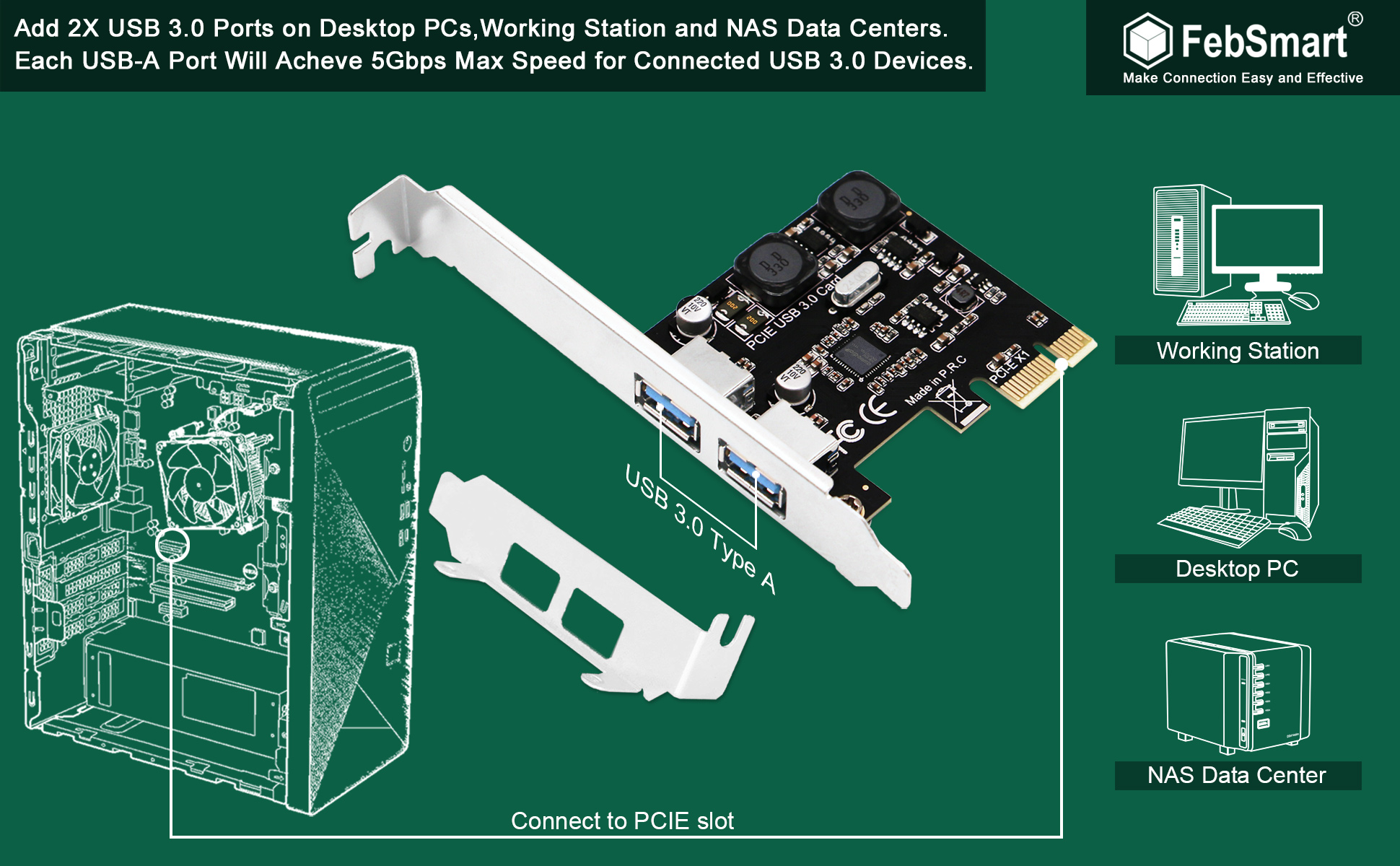

Easy Install on Desktop PCs
Product Description:
FebSmart FS-U2S-Pro is a PCIE X1 interface to 2X 5Gbps (USB-A Port) USB 3.0 expansion card. Allow users add 2X 5Gbps max USB-A ports on Desktop PCs, Working Stations, MAC Pros and NAS Data Centers for large data transfer. The 2X USB 3.0 ports will share 5Gbps total bandwidth.It is based on ASMedia ASM1042 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, MAC, and Intel hardware platform Desktop PCs. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/4A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will light up 2X normal USB 3.0 devices also which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.
Product Advantage:
1. 2X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.
2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/4A max) supply for USB 3.0 devices. Light up 2X high power-consuming USB 3.0 devices simultaneously.
3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.
4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.
5. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.
6. Full height bracket mount on USB card, will work on Standard Size PCs. Low profile in the package will work on Slim PCs.
Compatible System:
1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.
2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.
3. Plug and Play on most Linux kernels.
4. Not support MAC OS X.
Package: 1X FS-U2S-Pro 1X User Manual 1X Mounting Screw 1X Low Profile Bracket
