PCI Express 3.0 X1 Interface to 6-Ports Serial 6Gbps Max Speed SATA III Expansion Card

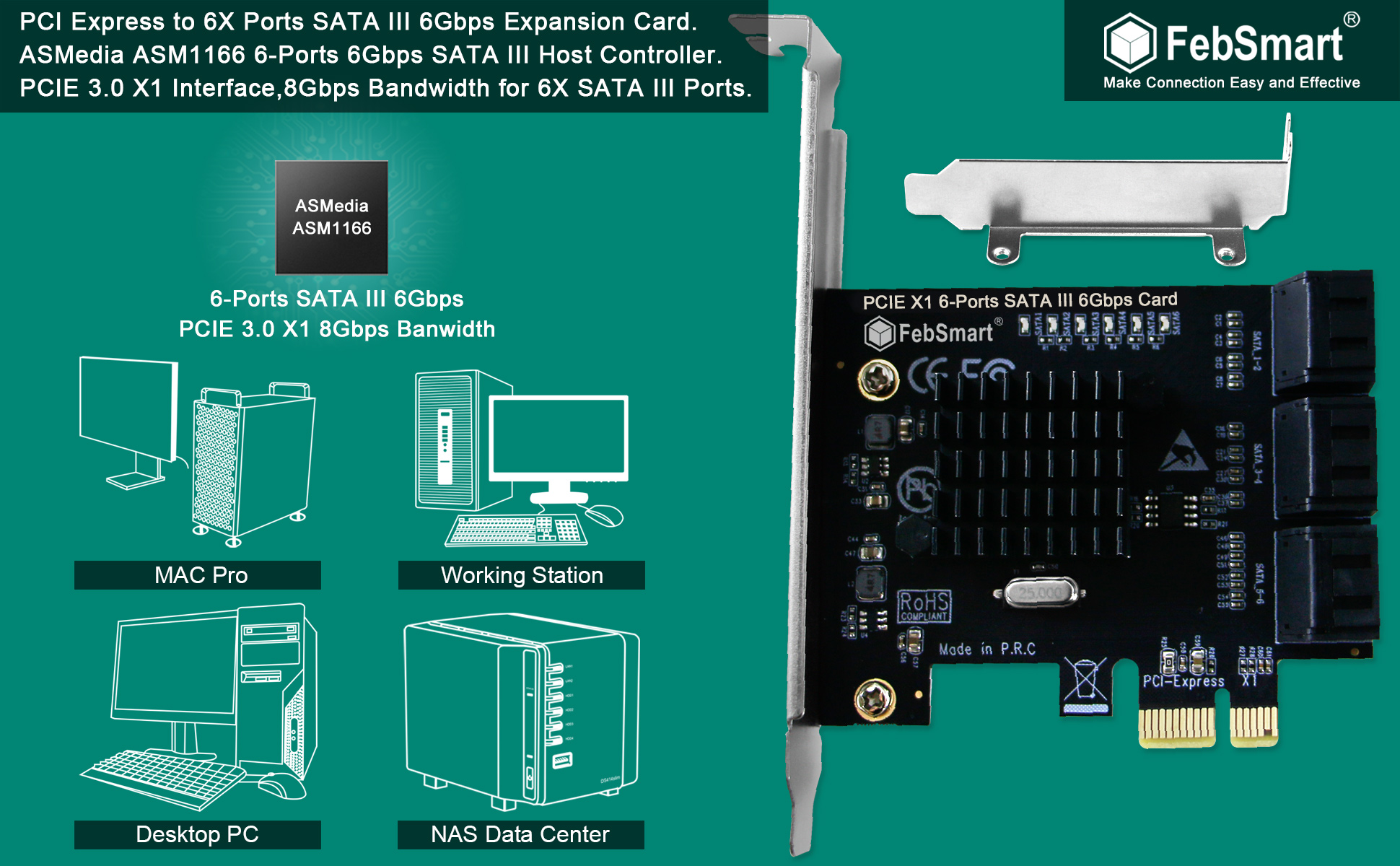

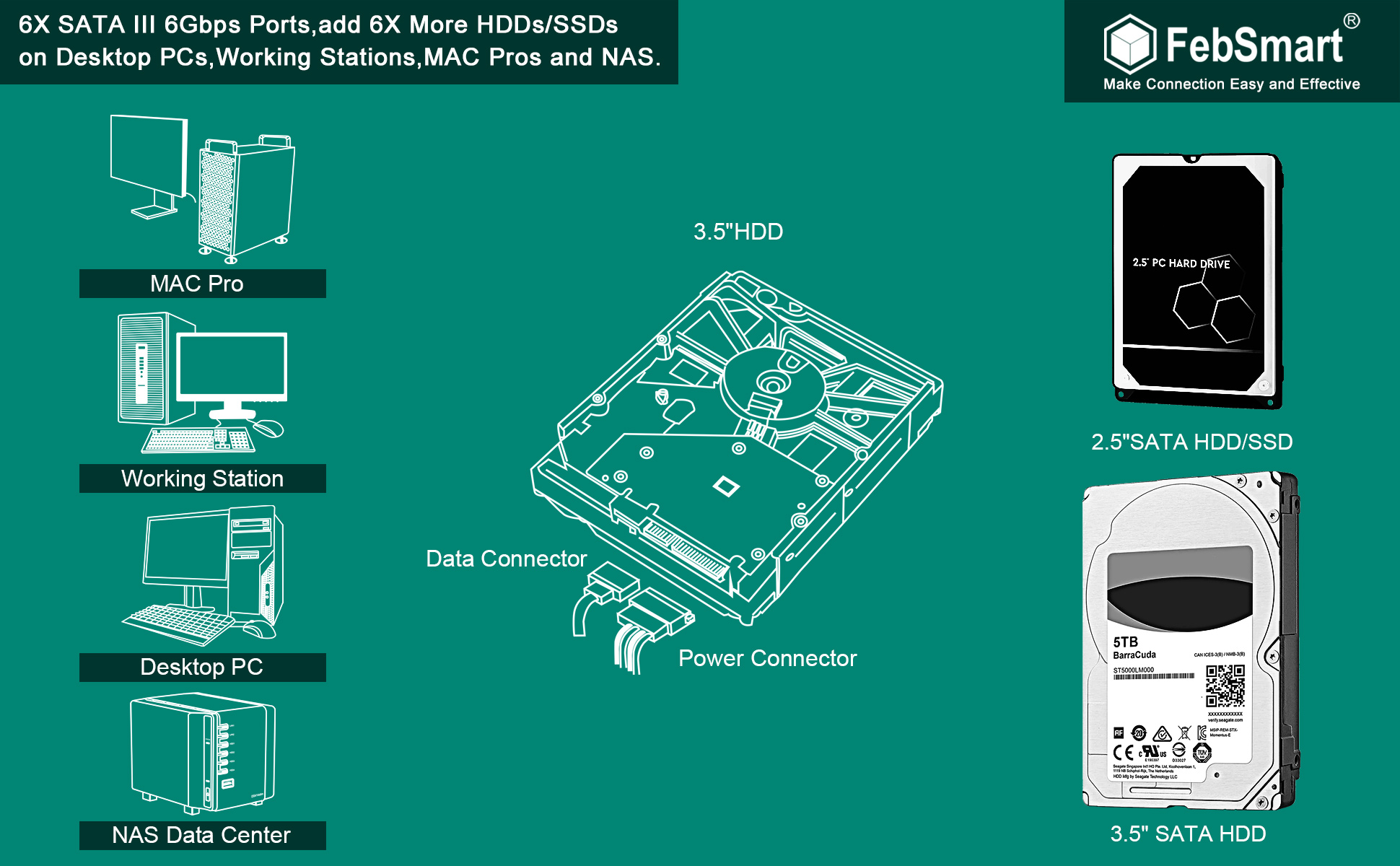

This FebSmart FS-S6X1-Pro is a PCI Express X1 interface to 6-Ports SATA III 6Gbps expansion card. It is based on ASMedia ASM1166 PCIE 3.0 to SATA III host controller, will support plug and play on Windows OS, MAC OS, and Linux kernel systems. It is designed on PCIE 3.0 X1 interface, will provide 8Gbps total bandwidth, each SATA 3.0 ports will get 6Gbps max speed for connected HDDs/SSDs. It supports none boot mode(storage) and AHCI BOOT UP mode, users must make sure connected HDDs/SSDs was set on AHCI mode when use it as BOOT UP disk. It will provide 6X NONE-RAID SATA III 6Gbps ports on Desktop PCs, Working Stations, MAC Pros, Network Attached Storage (NAS), allow users light up 6X HDDs/SSDs in its system.

SATA Controller Down Stream Features:

Compliant with Serial ATA Specification 3.1. Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbp. Supports Staggered Spin-up. Supports Native Command Queuing.

Supports programmable transmitter signal levels. Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i. Supports AHCI 1.0 programming interface.

Supports Port Multiplier FIS based switching or command-based switching. Supports Partial and Slumber Power Management states.

PCIE Up Stream Features:

Compliant with PCIe 3.0 specifications. Supports communication speed of 2.5 Gbps,5 Gbps, 8Gbps.

Supports AHCI programming interface registers for the SATA controller. Supports aggressive power management.

Supports error reporting, recovery, and correction. Supports Message Signaled Interrupt.

Tech Specifications:

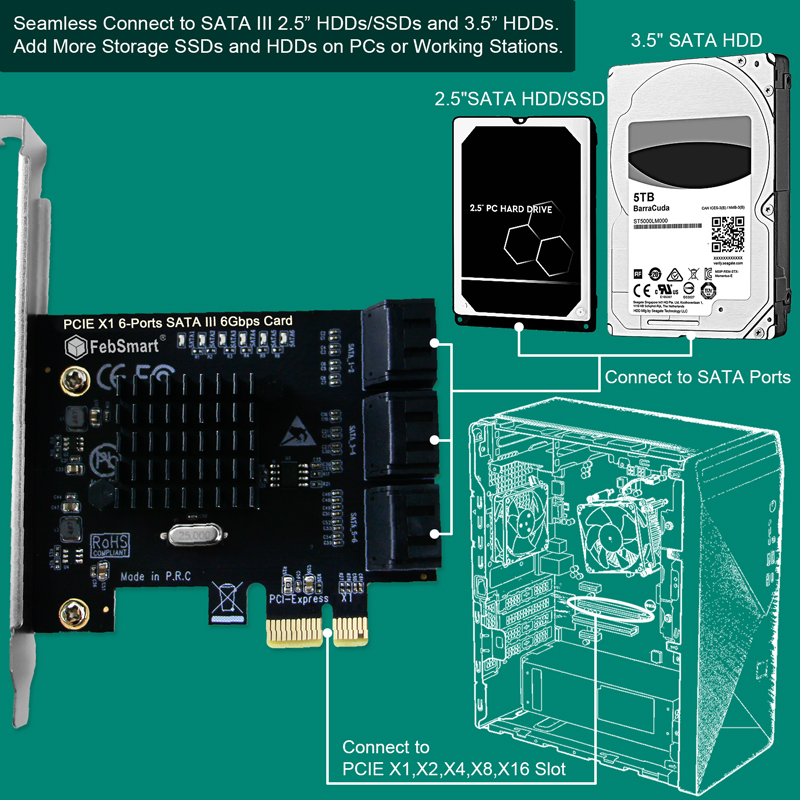

1. 6X 6Gbps Max SATA III Data Ports: 6X SATA III 6Gbps Ports, will backward compatible with SATA I 1.5Gbps, SATA II 3Gbps. Light up 6X Max SSDs/HDDs on PCs, also support AHCI mode BOOT UP. PCIE 3.0 X1 design will provide 8Gbps total bandwidth.

2. Support Windows OS,MAC OS, Linux: Plug and Play on Windows 11, 10, 8.x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64). Support IN-BOX driver on MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x. Support Plug and Play on most main stream Linux system.

3. Packed with 6X SATA III Cable: To improve the PCIE SATA card performance we packed 6X SATA III cable in the retail package. Users no need to buy SATA cables anymore. Enjoy super easy installation with plug and play function on most of desktop PCs, working station and data centers.

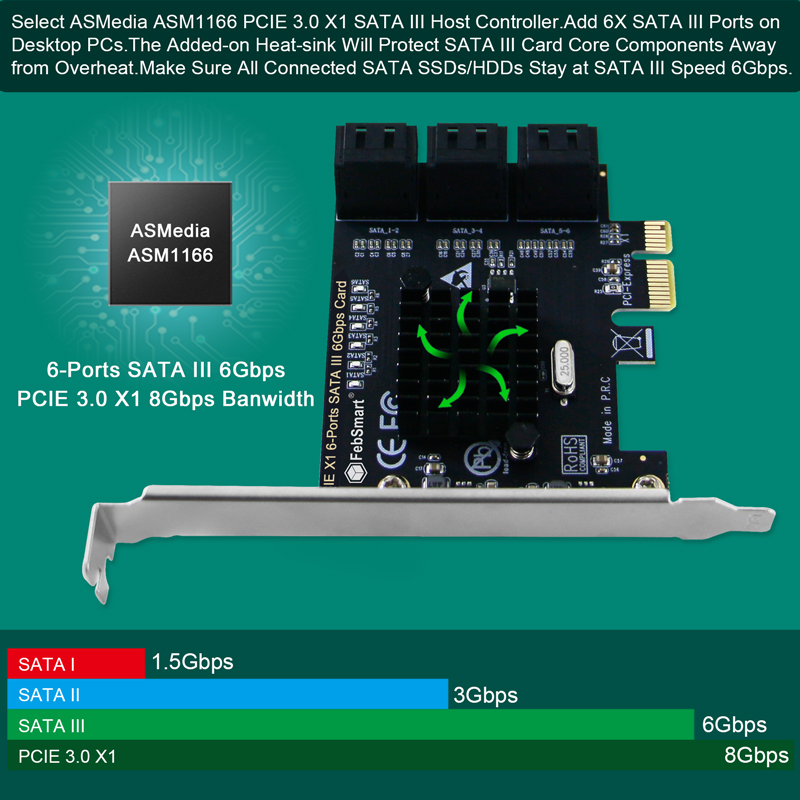

1. ASMedia ASM1166 SATA III Controller: FebSmart FS-S6X1-Pro is based 6-Ports PCIE SATA III host controller ASMedia ASM1166. will works on Intel, AMD, MAC and ARM platform. Designed the Heat-Sink on the ASMedia ASM1166, will protect the chipset away from overheat, make sure PCIE SATA III card always stay at peak speed 6Gbps max.

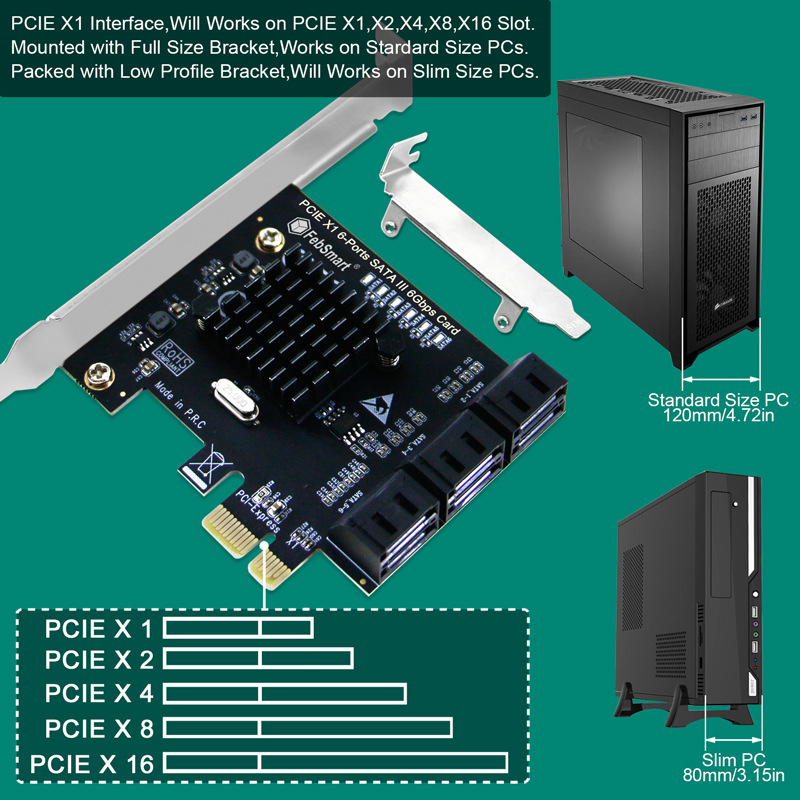

2. PCI Express 3.0 X1 Interface: PCI Express 3.0 standard design, will works on PCI Express 1.x, 2.x, 3.x and 4.x protocol. PCI Express X1 interface design, works on PCIE X1, X2, X4, X8, X16 slot.

3. Full Size PCs and Slim PCs: Mounted with full height bracket, will work on standard size desktop PCs. Packed with low profile bracket will work on Slim desktop PCs.

Super Easy Install on Desktop PCs or Servers

This FebSmart FS-S6X1-Pro is a PCI Express X1 interface to 6-Ports SATA III 6Gbps expansion card. It is based on ASMedia ASM1166 PCIE 3.0 to SATA III host controller, will support plug and play on Windows OS, MAC OS, and Linux kernel systems. It is designed on PCIE 3.0 X1 interface, will provide 8Gbps total bandwidth, each SATA 3.0 ports will get 6Gbps max speed for connected HDDs/SSDs. It supports none boot mode(storage) and AHCI BOOT UP mode, users must make sure connected HDDs/SSDs was set on AHCI mode when use it as BOOT UP disk. It will provide 6X NONE-RAID SATA III 6Gbps ports on Desktop PCs, Working Stations, MAC Pros, Network Attached Storage (NAS), allow users light up 6X HDDs/SSDs in its system.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x, 7, Vista, XP (32/64bit) and Windows Server 2022, 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64).

2. Support IN-BOX driver on MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x.

3. Support Plug and Play on most main stream Linux system.

SATA Controller Down Stream Features:

Compliant with Serial ATA Specification 3.1. Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbp. Supports Staggered Spin-up. Supports Native Command Queuing.

Supports programmable transmitter signal levels. Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i. Supports AHCI 1.0 programming interface.

Supports Port Multiplier FIS based switching or command-based switching. Supports Partial and Slumber Power Management states.

PCIE Up Stream Features:

Compliant with PCIe 3.0 specifications. Supports communication speed of 2.5 Gbps, 5 Gbps, 8Gbps.

Supports AHCI programming interface registers for the SATA controller. Supports aggressive power management.

Supports error reporting, recovery, and correction. Supports Message Signaled Interrupt.

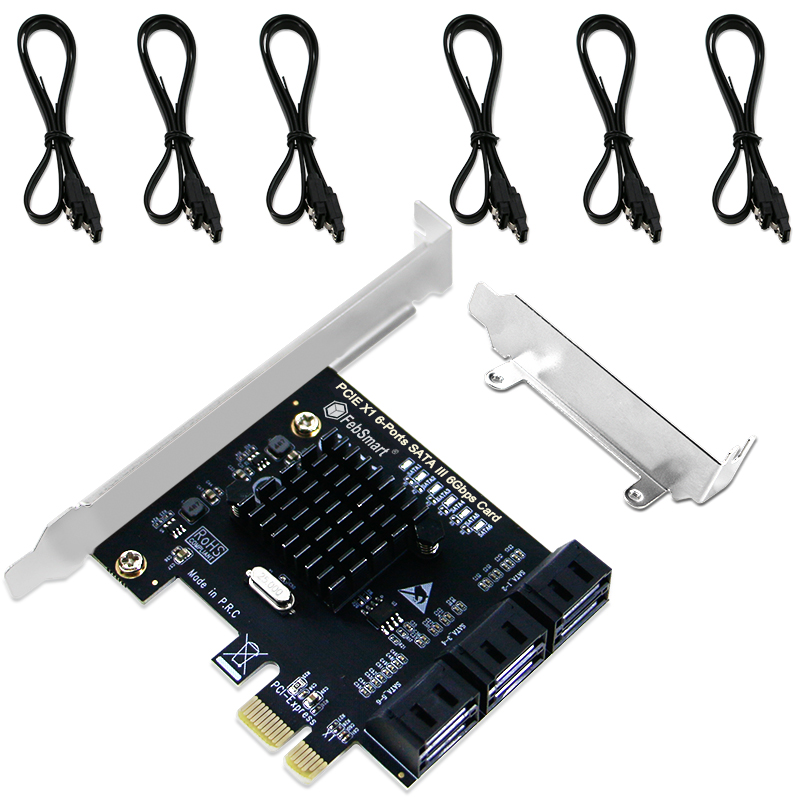

Package: 1X FS-S6X1-Pro, 1X User manual, 6X SATA III cable, 1X Mount screw, 1X Low profile bracket.
