FS-U3C2-Pro
FS-U3C2-Pro
Model: FS-U3C2-Pro
USB Port: 3X USB-A and 2X USB-C
Connector Interface: PCIE X1 Interface
Compatible PCs Type: Standard Size PCs. NOT support Slim PCs
Compatible Device: Desktop PCs, Working Stations, NAS Systems
Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.
2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.
3. Plug and Play on most Linux kernels. 4. NOT support MAC OS X.
5-Ports Superspeed 5Gbps USB 3.0 PCI Express Expansion Card,3X USB-A and USB-C Ports

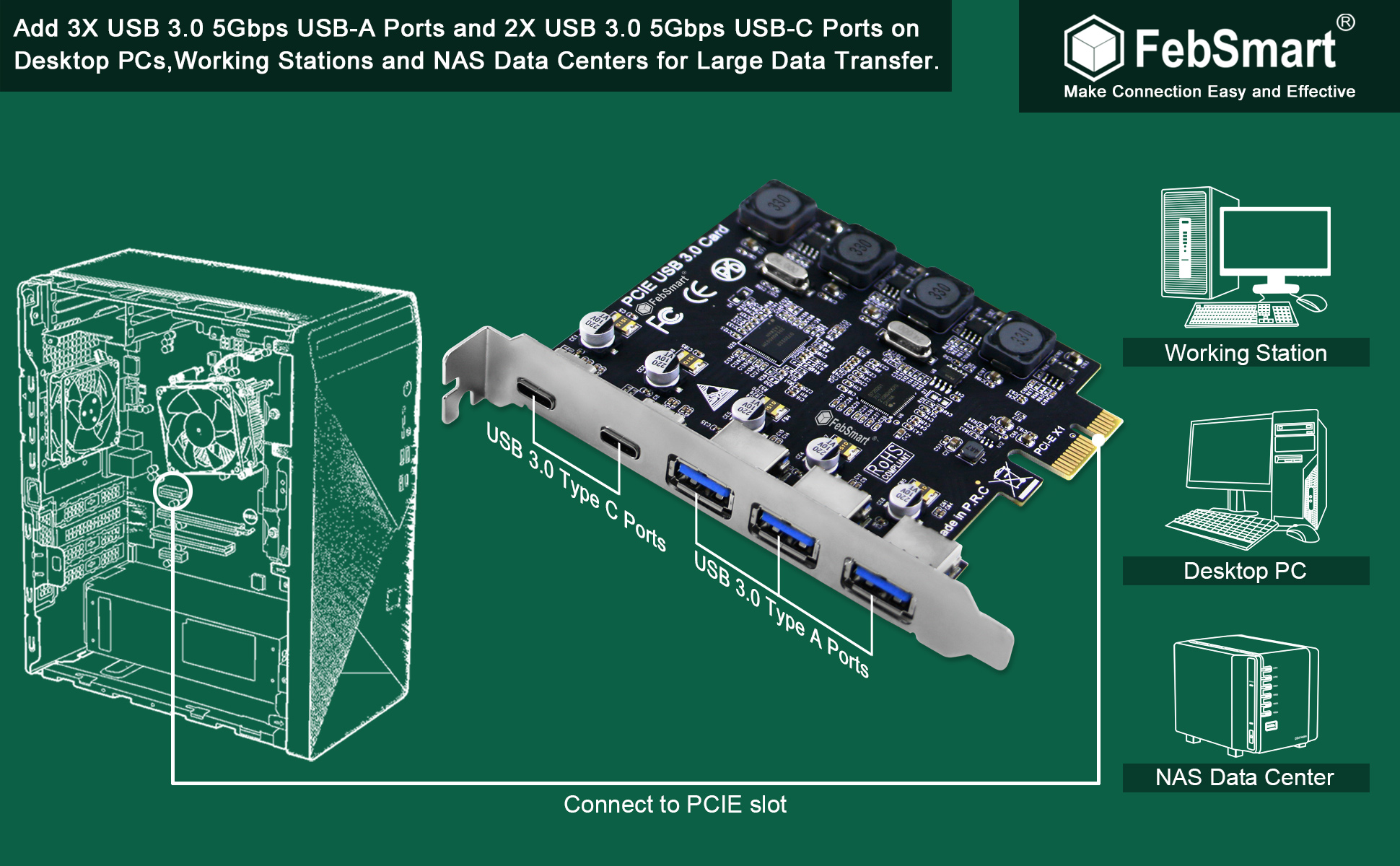

FebSmart FS-U3C2-Pro is a PCIE X1 interface to 5-Ports (3X USB-A and 2X USB-C) superspeed 5Gbps USB 3.0 expansion card. It is based on 1X RENESAS UPD720201 USB 3.0 host controller and 1X RENESAS UPD720210 USB 3.0 HUB controller, will compatible with ARM, AMD, and Intel hardware platforms Desktop PCs. The added-on 3X USB-A ports and 2X USB-C ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, no need to plug any additional power cables from Desktop PCs power supply unit. Allow each USB 3.0 ports get 5V/2A 10W max (5V/10A 50W in total) power supply from motherboard. It is mainly used on Desktop PCs, Working Stations, and NAS Data Centers for high-power consumption USB 3.0 devices which including industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will also compatible with normal USB-A and USB-C interface devices such as USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smart phone, tablet and more.
What is FebSmart Self-Powered Technology?

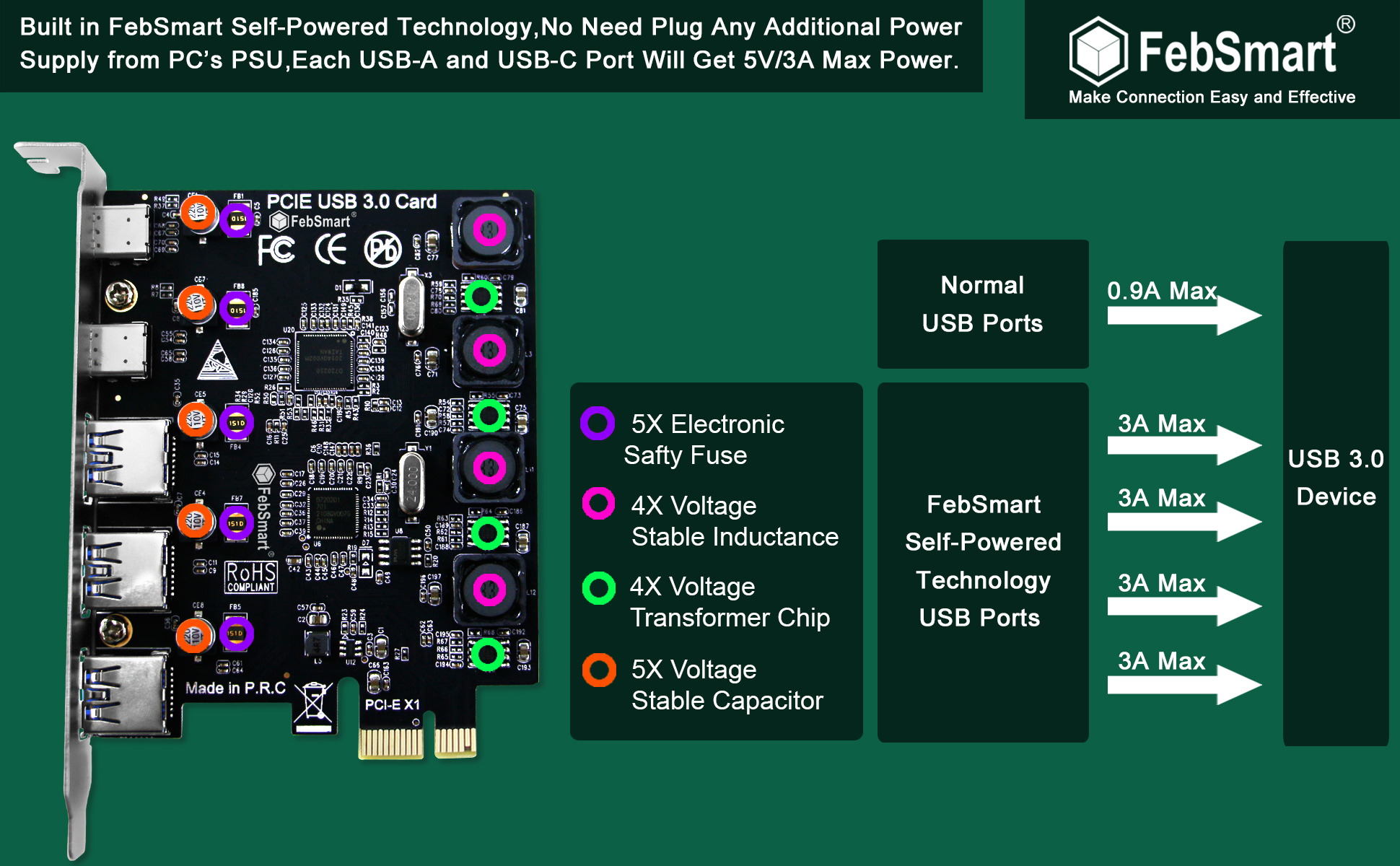

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.0 expansion cards. The old version PCI Express USB 3.0 cards need to plug power cables from Desktop PC’s power supply unit. Even added on additional power, sometime it still lacks power when running few high power-consuming devices simultaneously such as USB HDD/SSD enclosures and USB NVME enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A for PCIE devices. FebSmart add 4X voltage transformer on USB 3.0 card will pick up 12V/4.2A power and convert to 5V/10 50W. Each USB 3.0 port will get 5V/2A 10W max power supply for USB 3.0 devices. Most of the high-power consumption devices just need 4~8W which means this USB 3.0 expansion card can light up 5X high power-consumption devices simultaneously. FebSmart built 5X electronic safety fuse, 4X voltage stable inductance and 5X voltage stable capacitors on the board, will protect users’ data and USB 3.0 devices. Never burn USB 3.0 device and never lost data. Add 5-Ports superspeed USB 3.0 expansion card on Desktop PCs. Enjoy more stable, superspeed and safe USB 3.0 connection with FebSmart.
Product Advantage:
1. 5X (3X USB-A and 2X USB-C) add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.
2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/10A max) supply for USB 3.0 devices. Light up 5X high power-consuming USB-A and USB-C devices simultaneously.
3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.
4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.
5. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.
Technical Specifications:
1. 3X USB-A and 2X USB-C 5Gbps Ports: Add 5X (3X USB-A and 2X USB-C) Superspeed 5Gbps max USB 3.0 ports on Desktop PCs for large data transfers. Backward compatible with USB 2.0 480Mbps and USB 1.1 12Mbps. Light up more high resolution USB 3.0 graphic adapters, easy stream Pro HD videos source

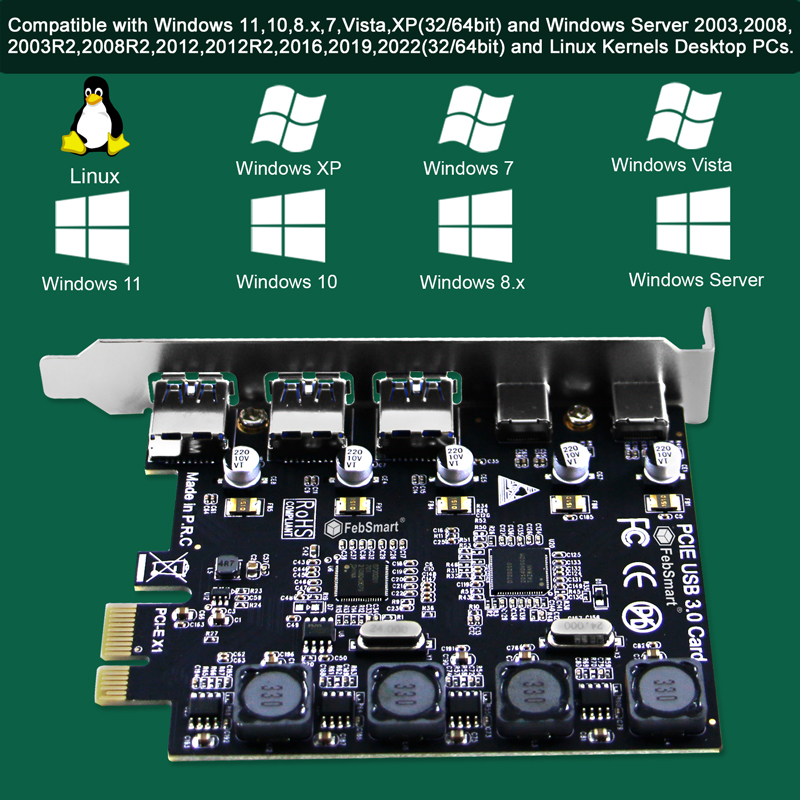

2. Support Windows and Linux: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. Plug and Play on most Linux kernels. NOT support MAC OS X.

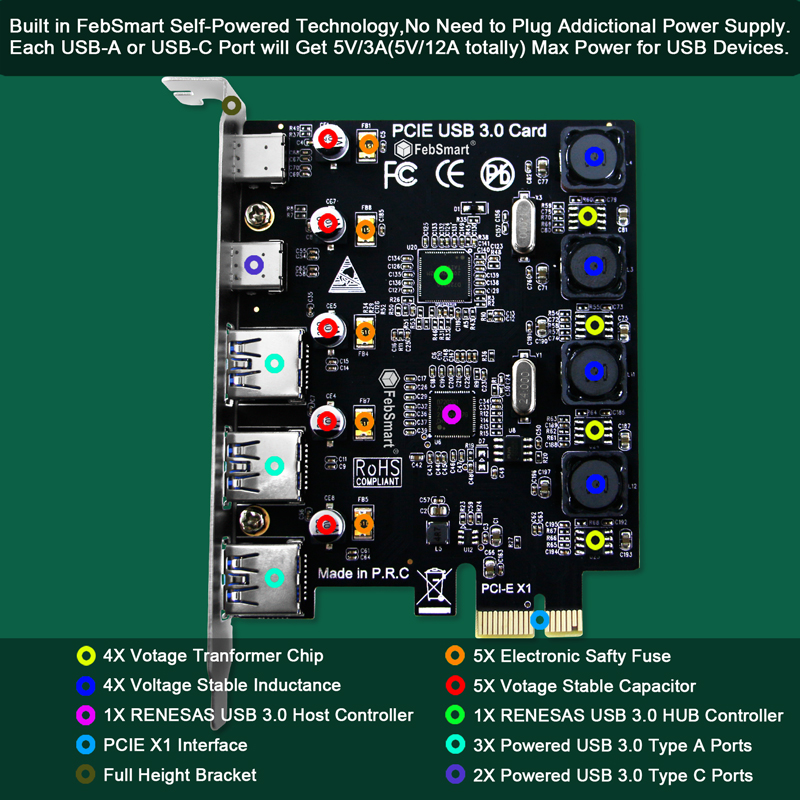

3. Safeguard Users DATA, Easy Install: Built in FebSmart Self-Powered technology no need to plug any power cable from computer power supply unit, enjoy super easy and safe installation. Designed 5X electronic safety fuse, 5X voltage stable capacitor and 4X voltage stable inductance, will protect USB 3.0 devices from overcurrent, overload ensure data security.

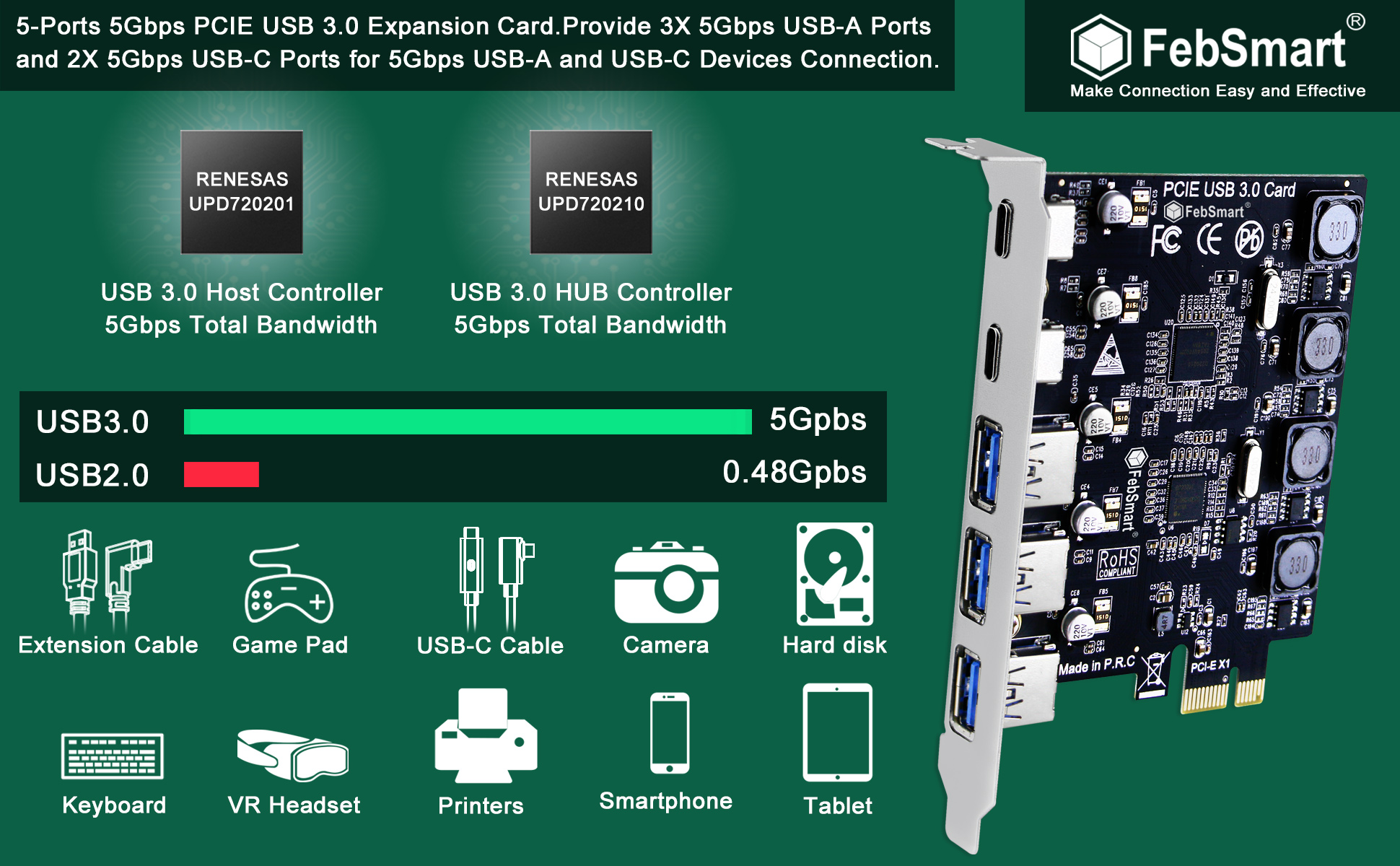

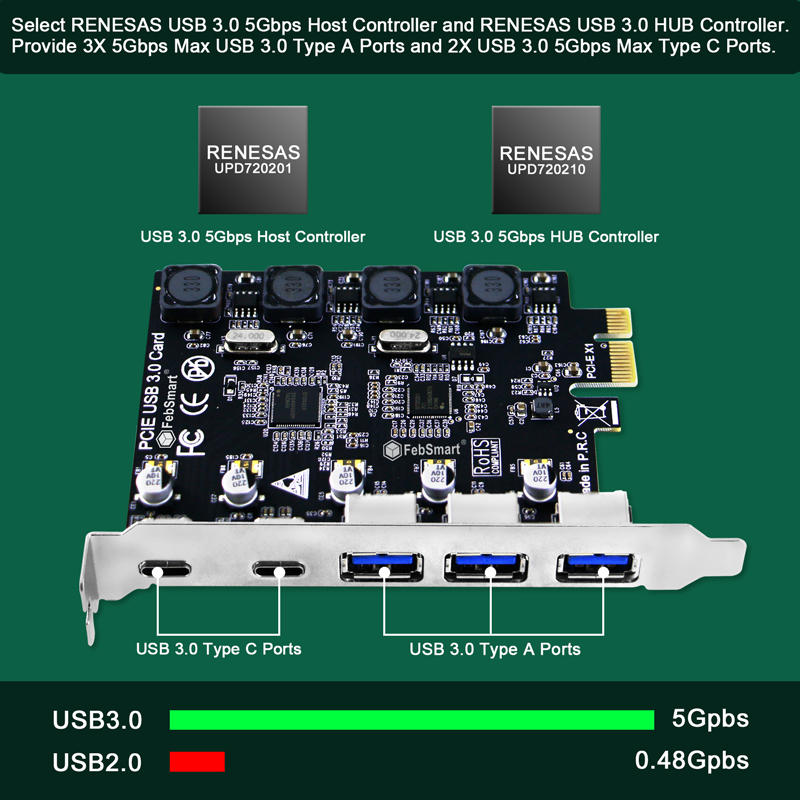

1. REENESAS USB 3.0 Host Controller: Based on RENESAS UPD720201 USB 3.0 host controller and RENESAS UPD 720210 USB 3.0 hub controller. Provide superspeed 5Gbps total bandwidth on 3X 5Gbps USB-A and 2X 5Gbps USB-C Ports. Compatible with AMD, Intel and ARM hardware platform Desktop PCs.
2. PCIE 2.0 Standard, PCIE X1 Interface: PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.
3. Support Standard Size PCs: Mounted with full height bracket for Standard Size PCs. NOT support low-profile bracket, do NOT work on Slim PCs.

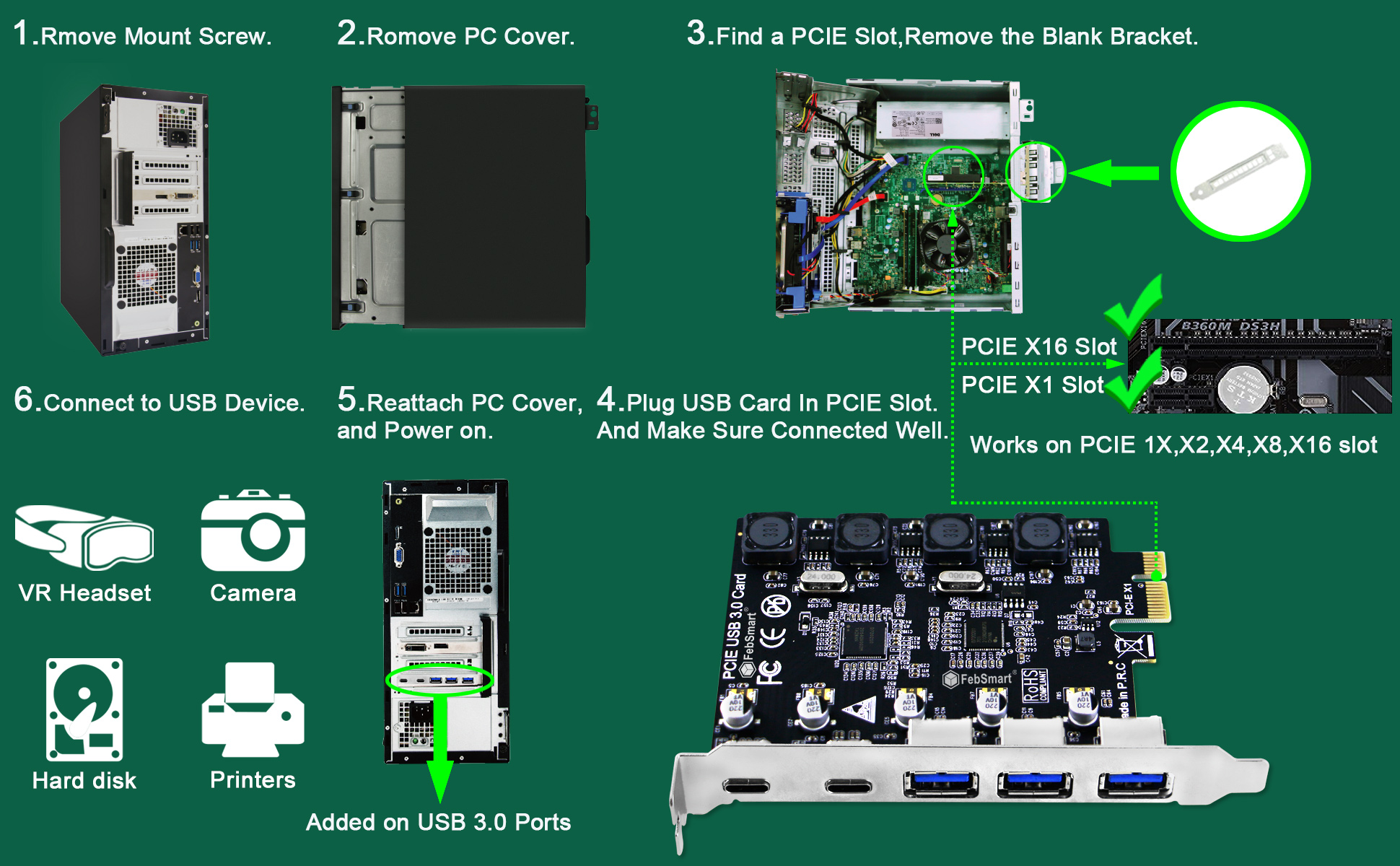

Easy Install on Desktop PCs:
Product Description:
FebSmart FS-U3C2-Pro is a PCIE X1 interface to 5-Ports (3X USB-A and 2X USB-C) superspeed 5Gbps USB 3.0 expansion card. It is based on 1X RENESAS UPD720201 USB 3.0 host controller and 1X RENESAS UPD720210 USB 3.0 HUB controller, will compatible with ARM, AMD, and Intel hardware platforms Desktop PCs. The added-on 3X USB-A ports and 2X USB-C ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, no need to plug any additional power cables from Desktop PCs power supply unit. Allow each USB 3.0 ports get 5V/2A 10W max (5V/10A 50W in total) power supply from motherboard. It is mainly used on Desktop PCs, Working Stations, and NAS Data Centers for high-power consumption USB 3.0 devices which including industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will also compatible with normal USB-A and USB-C interface devices such as USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smart phone, tablet and more.
Product Advantage:
1. 5X (3X USB-A and 2X USB-C) add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.
2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/10A max) supply for USB 3.0 devices. Light up 5X high power-consuming USB-A and USB-C devices simultaneously.
3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.
4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.
5. PCIE X1 interface design, will work on PCIE X1, X2, X4, X8, X16 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.
Compatible System:
1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.
2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.
3. Plug and Play on most Linux kernels.
4. NOT support MAC OS X.
Package: 1X FS-U3C2-Pro 1X User Manual 1X Mounting Screw
