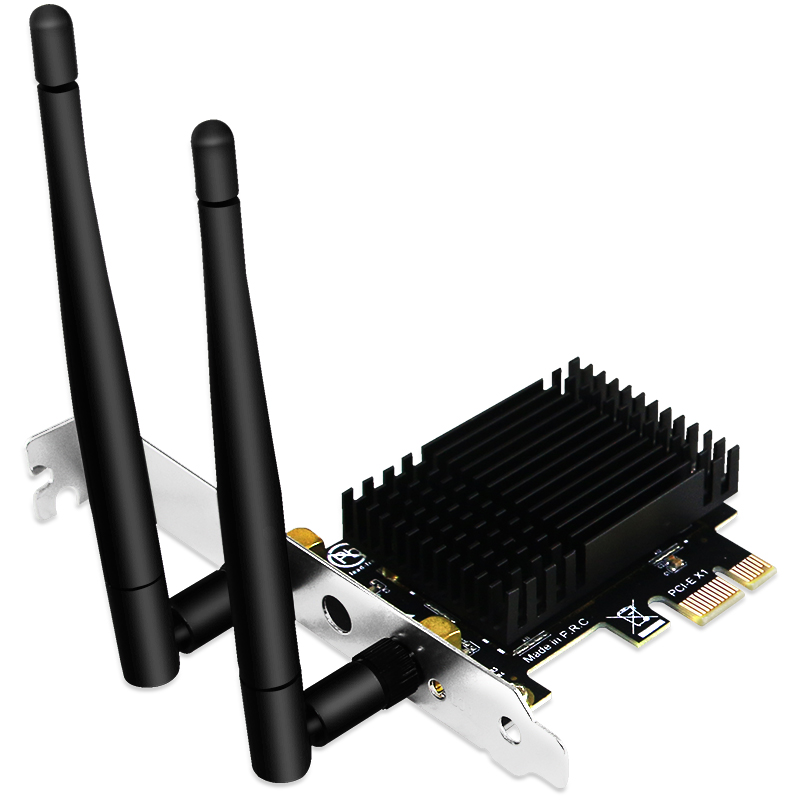

FS-AC87 Wireless AC Dual Band WiFi Card

IEEE802.11AC Dual Band Wi-Fi Adapter with Heatsink Technology

Model: FS-AC87

Antenna Power:2X5dBi

Band: 2.4GHz and 5GHz

Plug in Interface: PCI Express

Data Rate: 2.4G 300Mbps or 5G 867Mbps

System Reqiurements:Windows Server,8,8.1,10(32/64bit);Linux.

Driver Download:http://www.febsmart.com/download.php

FebSmart Wireless AC 1200Mbps Dual Band 2.4GHz 300Mbps 5GHz 867Mbps PCIE WiFi Card for Windows PCs or Servers, PCIE Wi-Fi Adapter with TX Beamformee and MU-MIMO Technology

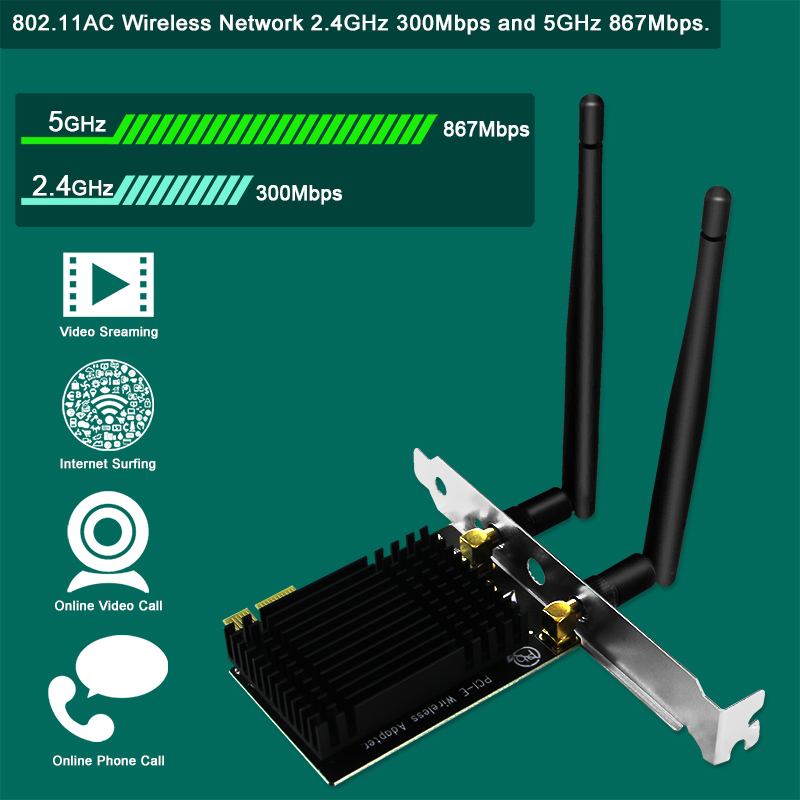

1.FS-AC87 offers lightning fast speed and stable wireless connection throughput at 2.4GHz 300Mbps and 5GHz 867Mbps for PCs. The 2X2 MU-MIMO and TX Beamformee technology allow connected device get Long Range, More stable, Few Loss network for internet surfing, file downloading ,online gaming and 4K Ultra HD video streaming.

2.Wi-Fi Protocol: IEEE 802.11 AC; Operation Frequency:5GHz and 2.4GHz;Channel Utilization: 2.4GHz 20/40 MHz,5GHz 20/40/80 MHz; Selected Qualcomm Atheros Wireless AC 2-Stream Network Solution to make sure device get max Wi-Fi throughput and enough bandwidth. Equipped 2X5dBi external omni-directional dual band antenna will enhance WiFi stability and reception range.

3.The added on Heatsink will cool PCIe WiFi card core components avoid over heat and ensure users connected device stays at peak speed. Advanced 802.11ac features such as 2-Stream MU-MIMO and Transmit Beamformee to increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection.

4.System Requirements: Windows 10(32/64bit) Driver Free; Windows 8, Windows 8.1, Windows7 (32/64bit) and Windows Server (32/64bit) need to install driver. Warning: Not for Windows XP/Vista System; Wireless Encryption: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES). Wireless Device Requirements: IEEE 802.11 a/b/g/n/ac wireless APs, Routers, Modems etc

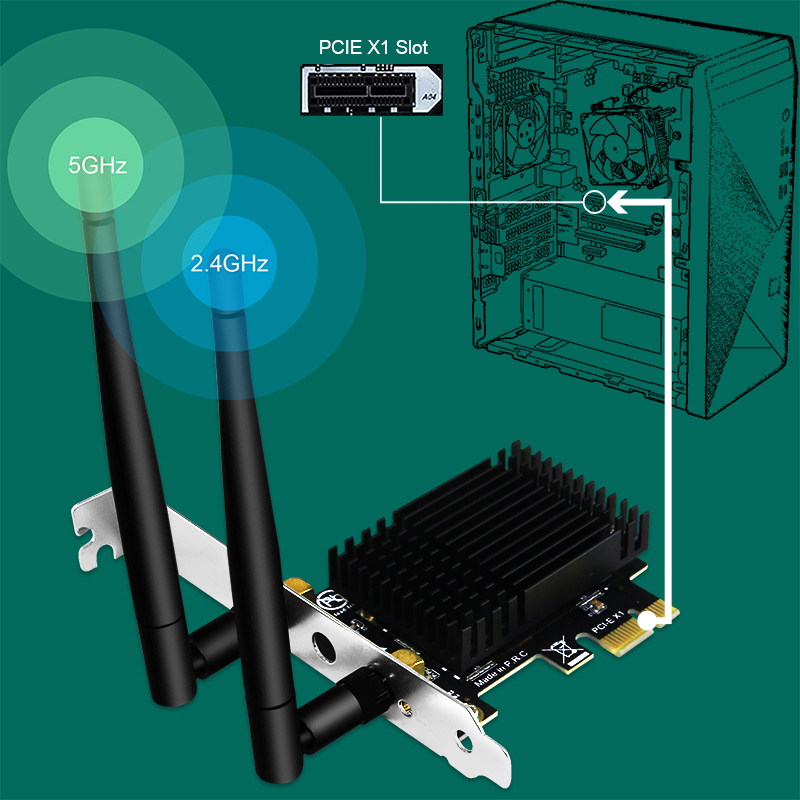

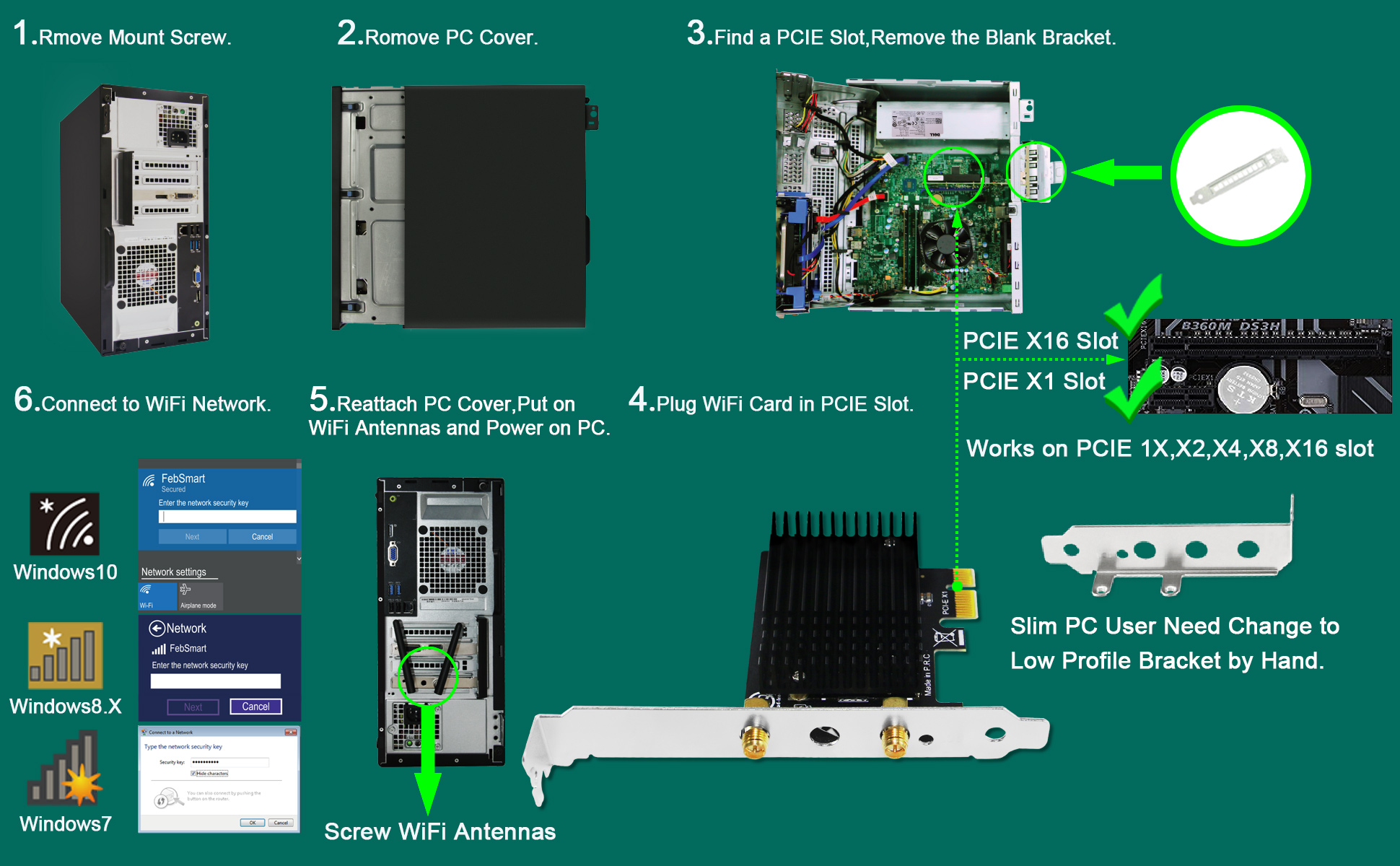

5.PCIE Wi-Fi Adapter Hardware: PCI-E X1 design will compatible on PCI-E X1, X4, X8, X16 slots. Based on PCI-E 2.0 comply with PCI-E 1.X,2.X,3.X. Low profile and full size bracket inside make sure it able to work on mini size and standard PCs , working stations. Get prompt tech-support at support@febsmart.com (7X24) or visit www.febsmart.com

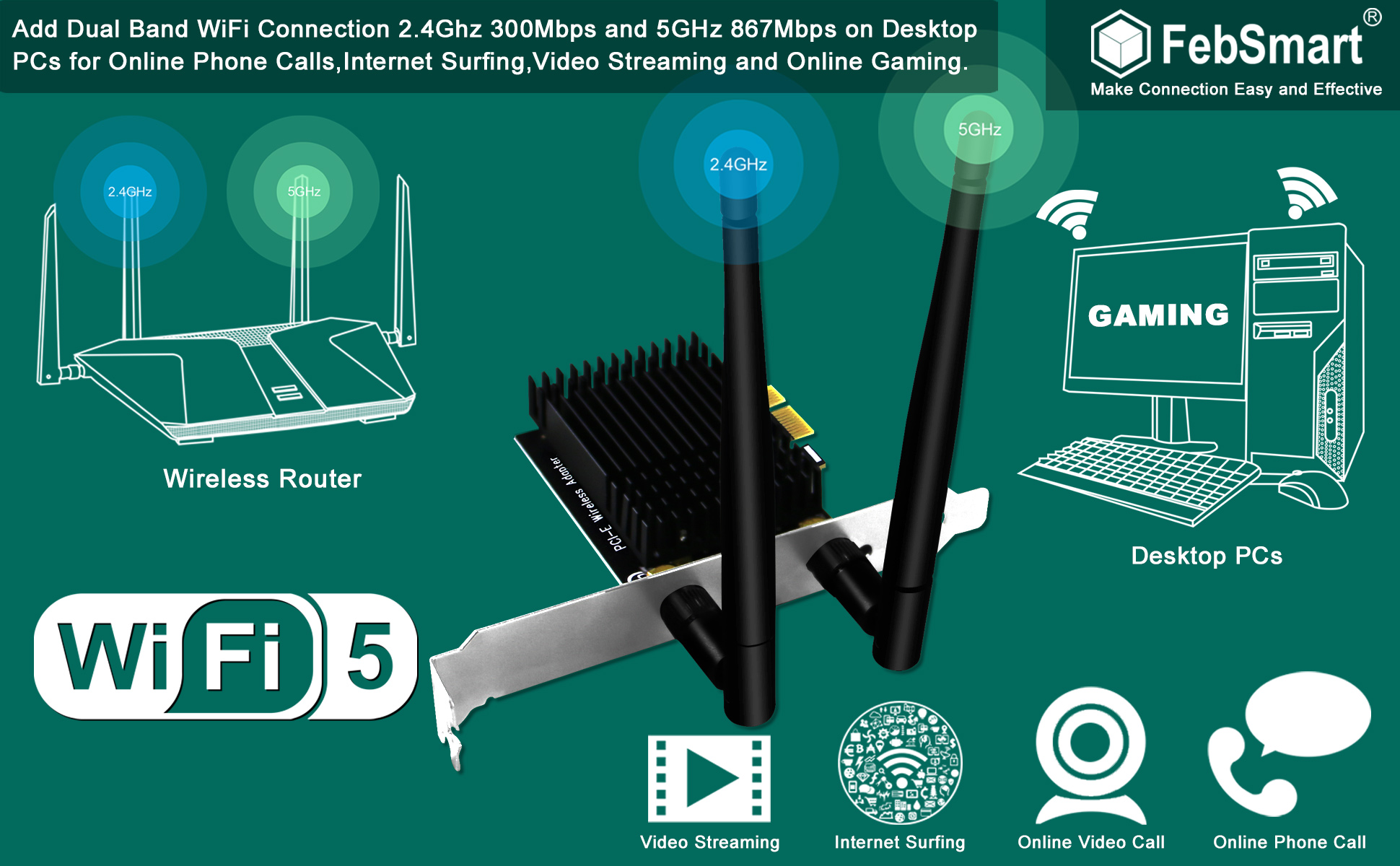

FS-AC87 is a wireless AC dual band 1200Mbps PCI Express WiFi Adapter. It offers lighting fast speed, stable and few loss network connectivity at 2.4GHz 300Mbps and 5GHz 867Mbps max throughput. It is a Easy and Cost-effective way to add wireless network on (home or office use) PCs and Working Stations for Internet surfing, Online gaming and 4K Ultra HD video streaming etc.

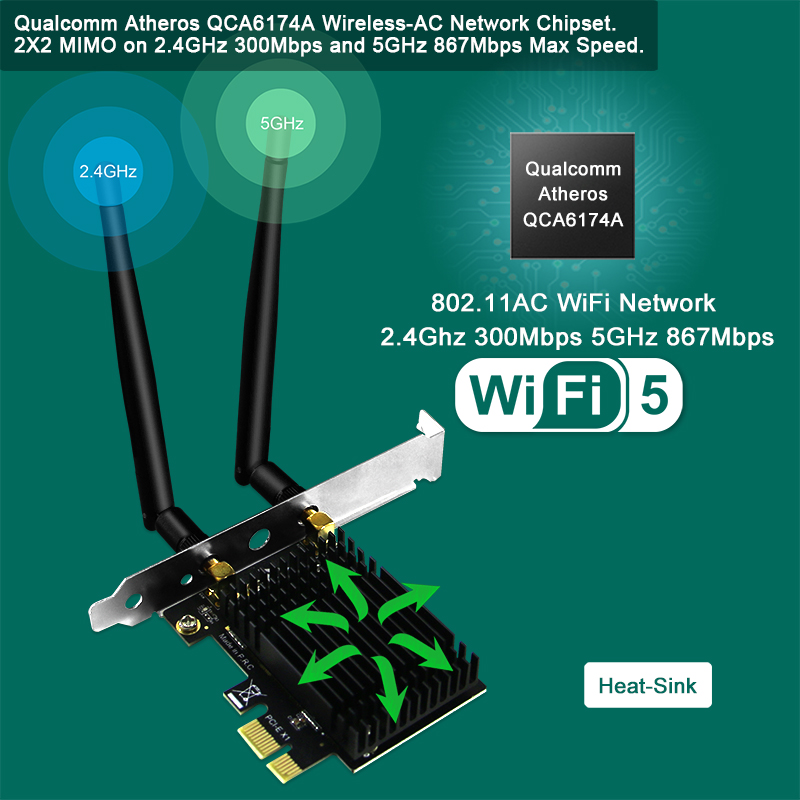

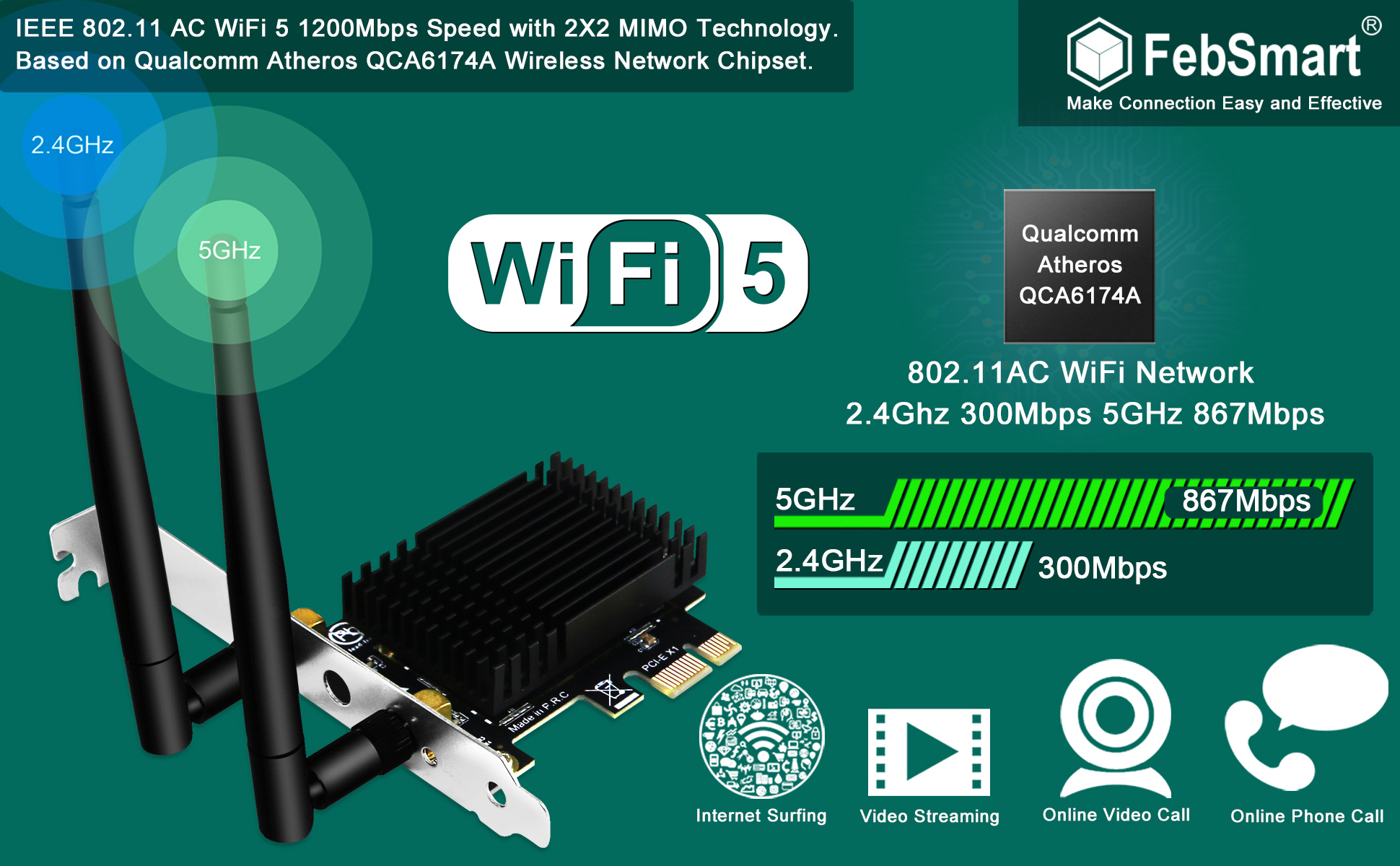

Qualcomm Atheros Wireless AC Network Solution with Advance Technology

Based on Qualcomm Atheros Wireless AC Network Platform. With advanced 802.11ac features such as 2-Stream 2X2 MU-MIMO and Transmit Beamformee to increase network capacity. Make sure device get 2.4GHz 300 Mbps and 5GHz 867Mbps max wireless throughput and enough bandwidth. The added on Heatsink will cool PCIe WiFi card core components avoid over heat and ensure users’s connected device stays at peak speed.


Product Specs:

Model Number:FS-AC87

Main Chip: Qualcomm Atheros

Operation Frequency: 5GHz and 2.4GHz

Wireless Signal Type: 2x2 802.11AC 2-Stream

Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP

Wireless Technology: TX Beamformee and 2X2 MU-MIMO

Compatible Device: Standard and Mini Size PCs (Working stations)

Wireless Standard: IEEE802.11AC, backward compatible with a/b/g/n

Antennas: 2X5dBi omni-directional external detachable dual band antenna

Hardware Interface: PCI-E 2.0 X1, Works on PCIE X1,X4,X8,X16 slot, Comply With PCIE 2.X,1.X,3.X

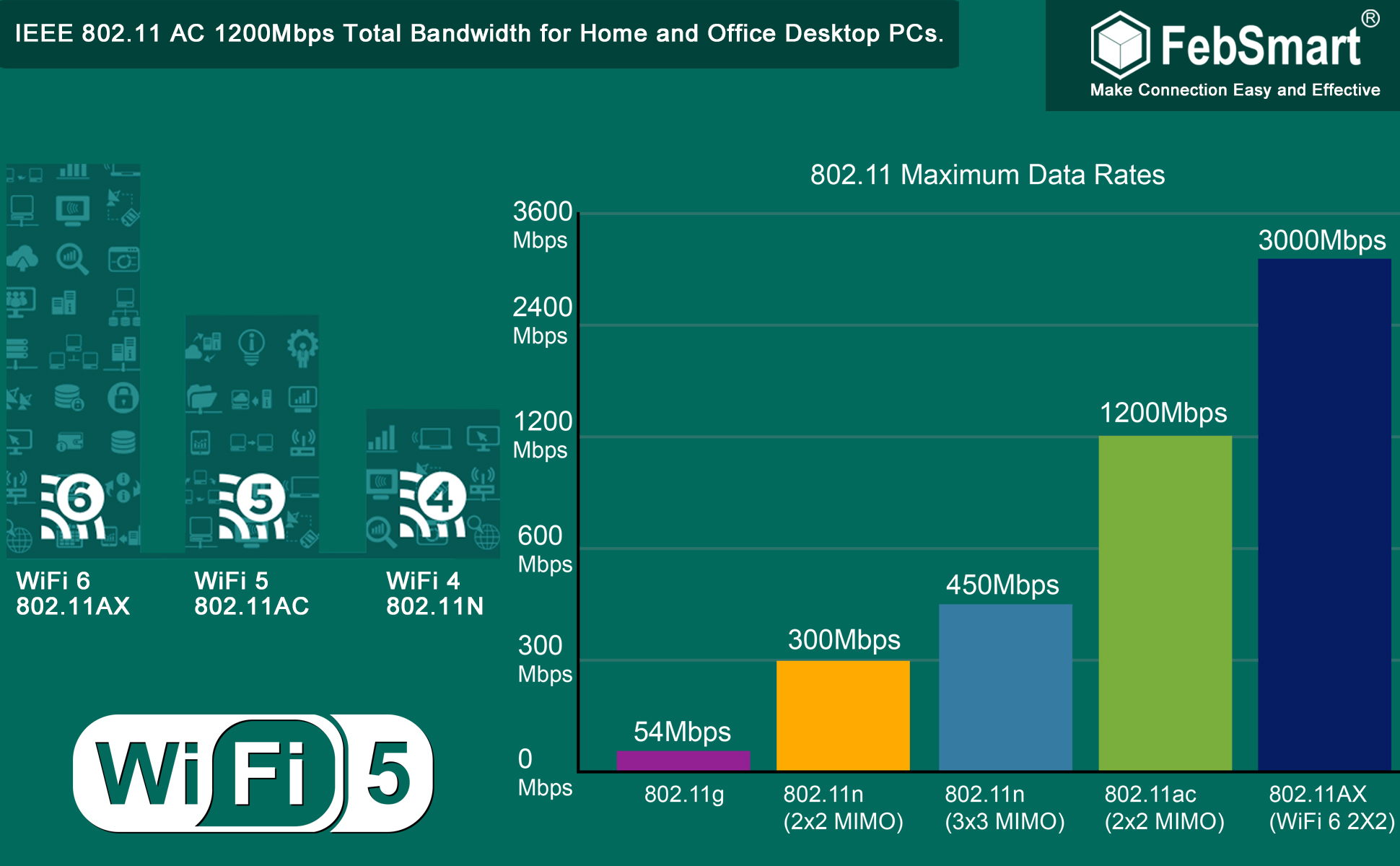

Max Wi-Fi Speed: 2.4GHz 40MHz 300Mbps (802.11AC/N),5GHz 80MHz 867Mbps (802.11AC); 40 MHz 433Mbps (802.11AC)

More Features: Connect to Motherboard PCIe Slot Directly; Enjoy a Super Stable Wireless Signal than USB WiFi Adapters


System Requirements:

NOT for Windows XP/Vista System

 Windows 10(32/64bit) DRIVER FREE.

Windows 8, Windows 8.1, Windows7, Windows Server (32/64bit) NEED to INSTALL DRIVER.


Package List:

1X FS-AC87

1X User Manual

2X 5dBi Antenna

1XMounting Screw

1X Low Profile Bracket
