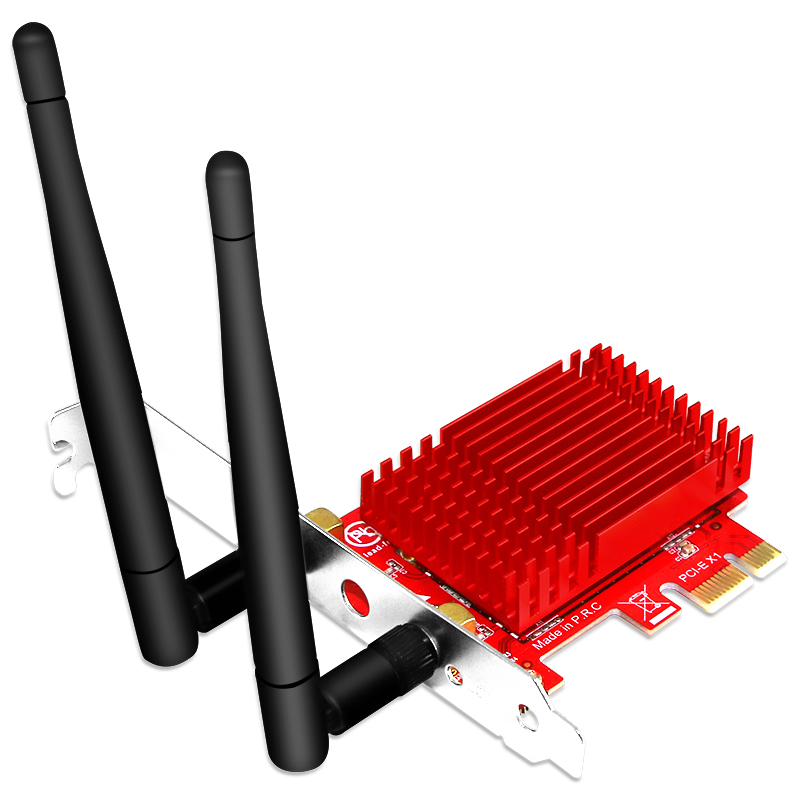

PCI Express Wireless-AC Dual Band 1200Mbps Network Adapter, 2.4GHz 300Mbps and 5GHz 867Mbps

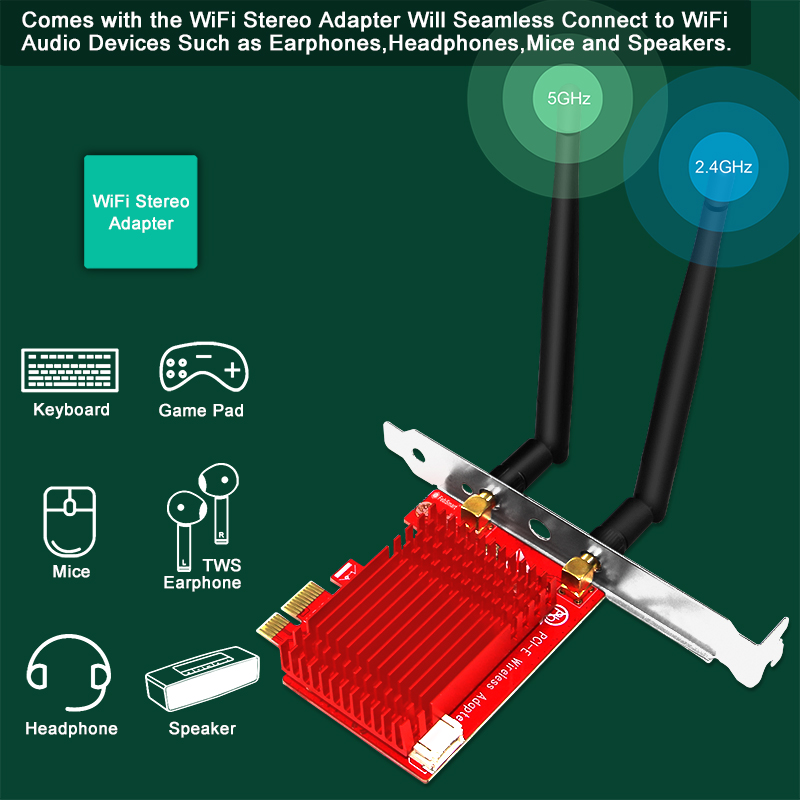

FebSmart FS-AC85SE is a Wireless-AC WiFi 5 dual band 1200Mbps PCIE WiFi card with WiFi stereo adapter. It offers lighting fast, stable, few losses, low latency wireless network connectivity at 2.4GHz 300Mbps and 5GHz 867Mbps on desktop PCs. Based on Qualcomm Atheros QCA6174A network solution, will compatible with ARM, INTEL, and AMD platforms. With advanced 802.11 AC features such as 2X2 MIMO and Transmit Beamformee will increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection. Added Heatsink on WiFi card will cool PCIE WiFi card core components avoid overheat and ensure connected device stays at peak speed. Equiped with 2X 3dBi omni-directional external detachable bual band WiFi antennas will enhance WiFi stability and reception range. Built in WiFi stereo adapter will allow PCs connect to WiFi audio devices such as WiFi earphone, WiFi headphone and WiFi speakers. It is an easy and cost-effective way to add wireless network on desktop PCs for audio transmission, internet surfing, online phone call, online video call, online gaming and 4K Ultra-HD video streaming.

Qualcomm Atheros QCA6174A 2X2 MIMO Wireless Network for Online Gaming and Video Streaming

Product Specifications:

1. Based on Qualcomm Atheros QCA6174A Wireless AC WiFi 5 network controller provide excellent performance wireless network connectivity and high quality audio transmission.

2. Advanced 802.11 AC features such as 2X2 MIMO and TX Beamformee to increase network capacity, as well as maximal likelihood (ML) decoding, low-density parity check (LDPC),maximum ratio combining (MRC) for robust link connection.

3. Make sure device get 2.4GHz 300 Mbps and 5GHz 867Mbps max wireless throughput and enough bandwidth for internet surfing, online gaming and 4K ultra HD video streaming etc.

4. The added on Heatsink will cool PCIE WiFi card core components avoid overheat and ensure users s connected device stays at peak speed.

Product Specification:

Major Chip: Qualcomm Atheros QCA6174A.

Compatible PCs: Standard Size PCs and Slim PCs.

Wireless Technology: 2X2 MU-MIMO, TX Beamformee.

Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP.

WiFi Antennas: 2X 3dBi Omni-directional External Detachable Dual Band WiFi Antennas.

Max Wi-Fi Speed: 2.4GHz 40MHz 300Mbps (802.11AC/N) and 5GHz 80MHz 867Mbps (802.11AC).

WiFi Standard: IEEE802.11 AC WiFi 5, Will compatible with IEEE 802.11 A/B/G/N/AC/AX Wireless Router, AP, and ISP.

Product Advantage: Connect to Motherboard PCIE Slot Directly, Provide More Stable WiFi Connection than USB WiFi Adapters.

Technical Specifications:

1. 2.4GHz 300Mbps and 5GHz 867Mbps: Provide dual band wireless network connection at 2.4GHz 300Mbps and 5GHz 867Mbps max speed for online gaming and 4K ultra-HD video streaming. Move the desktop PCs in home and office no wire ethernet cable limitation anymore.

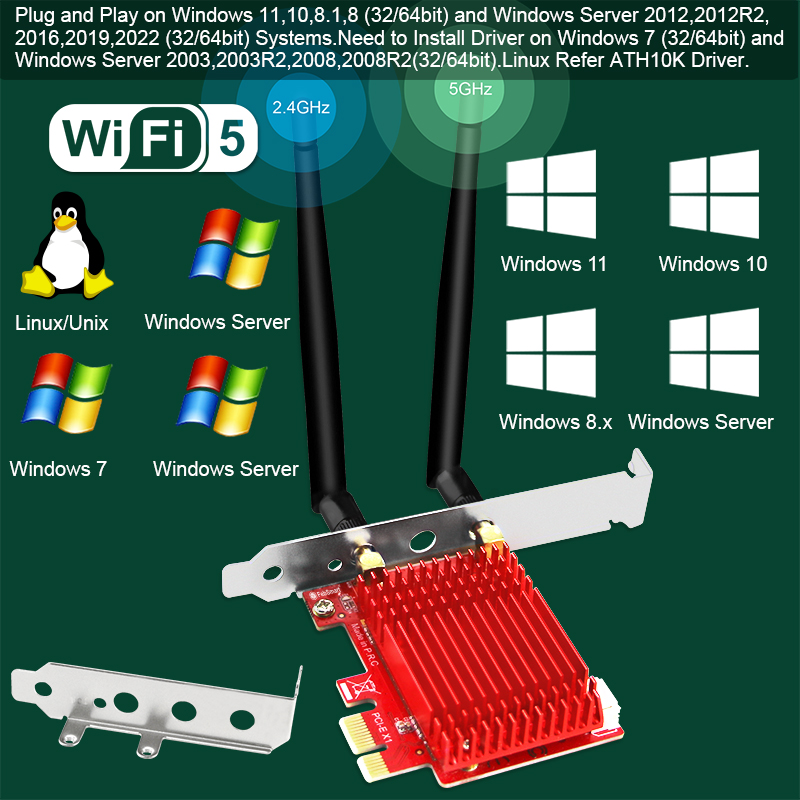

2. Support Windows and Linux Systems: Plug and Play on Windows 11, 10, 8.1, 8, 7 (32/64bits), Windows Server 2012, 2012R2, 2016, 2019, 2022 (32/64bit). Need to Install driver on Windows 7, XP (32/64bit), Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bits). Linux users please refer ATH10K driver.

3. Easy Install with Secured WiFi Source: Super Easy to install on supported system. Seamless connect to most wireless encryption routers, access point: WEP, WPA, WPA2 , WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

1. Qualcomm Atheros QCA6174A: Select the Qualcomm Atheros QCA6174A wireless AC WiFi 5 network controller will provide solid wireless network connection. The Qualcomm Atheros network solution will compatible AMD, Intel and ARM platform device such as PCs, Working Stations and NAS systems.

2. PCI Express 2.0 X1 Interface: PCI Express 2.0 standard design, compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard.

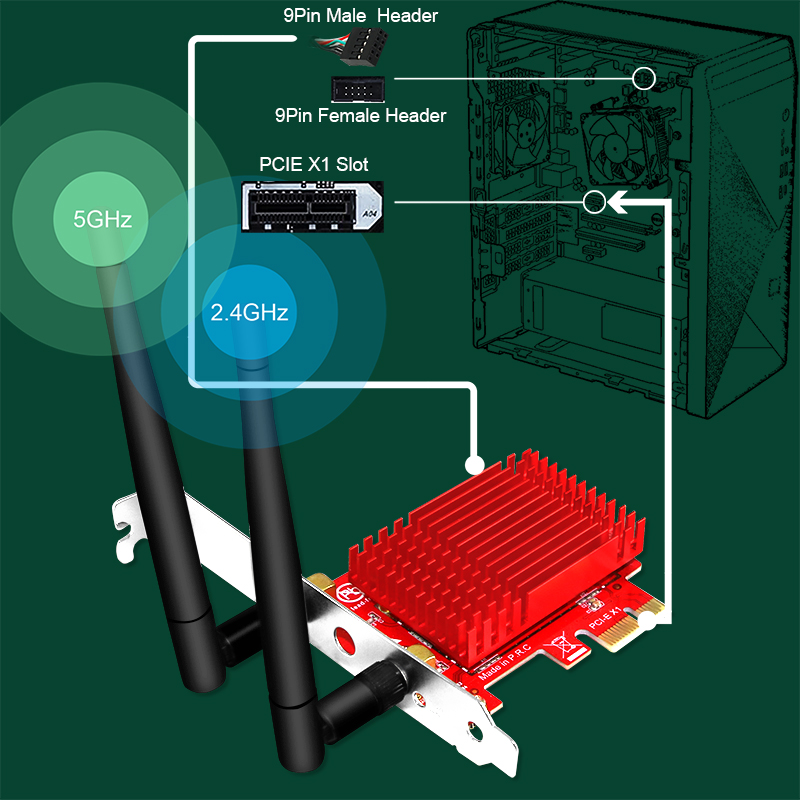

PCI Express X1 interface design will works on PCI Express X1, X2, X4, X8, X16 slot. Make sure the desktop PCs have at least one active and open PCI Express slot.

3. Works on Standard and Slim Size PCs: Mounted with the full height bracket, will works on the full size PCs and working stations. Packed with the low profile bracket, will works on the slim PCs and working stations.

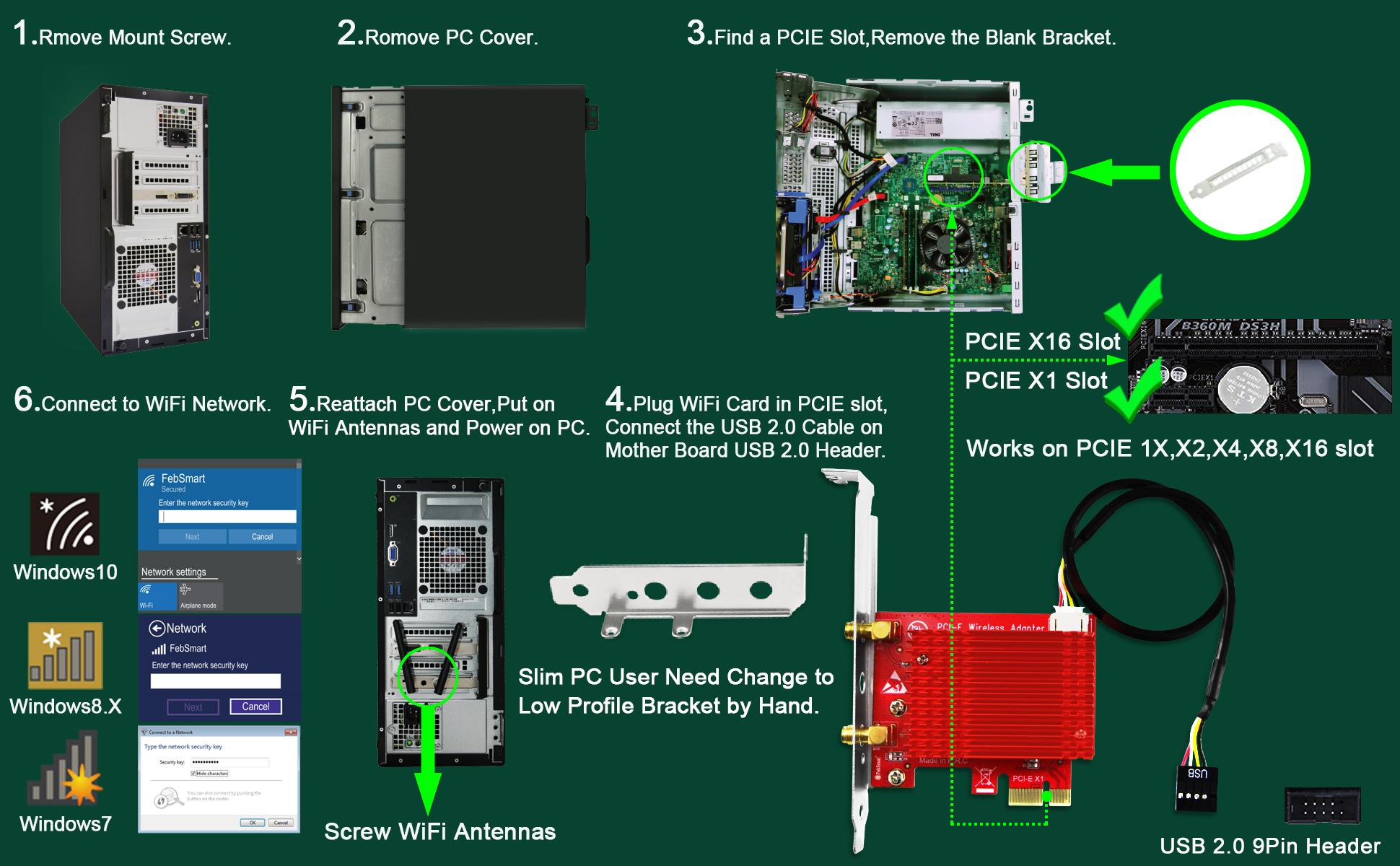

Easy Install on PCS

Product Description:

FebSmart FS-AC85SE is a Wireless-AC WiFi 5 dual band 1200Mbps PCIE WiFi card with WiFi stereo adapter. It offers lighting fast, stable, few losses, low latency wireless network connectivity at 2.4GHz 300Mbps and 5GHz 867Mbps on desktop PCs. Based on Qualcomm Atheros QCA6174A network solution, will compatible with ARM, INTEL, and AMD platforms. With advanced 802.11 AC features such as 2X2 MIMO and Transmit Beamformee will increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection. Added Heatsink on WiFi card will cool PCIE WiFi card core components avoid overheat and ensure connected device stays at peak speed. Equipped with 2X 3dBi omni-directional external detachable dual band WiFi antennas will enhance WiFi stability and reception range. Built in WiFi stereo adapter will allow PCs connect to WiFi audio devices such as WiFi earphone, WiFi headphone and WiFi speakers. It is an easy and cost-effective way to add wireless network on desktop PCs for audio transmission, internet surfing, online phone call, online video call, online gaming and 4K Ultra-HD video streaming.

Product Specifications:

Major Chip: Qualcomm Atheros QCA6174A.

Compatible PCs: Standard Size PCs and Slim PCs.

Wireless Technology: 2X2 MU-MIMO, TX Beamformee.

Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP.

WiFi Antennas: 2X 3dBi Omni-directional External Detachable Dual Band WiFi Antennas.

Max Wi-Fi Speed: 2.4GHz 40MHz 300Mbps (802.11AC/N) and 5GHz 80MHz 867Mbps (802.11AC).

WiFi Standard: IEEE802.11 AC WiFi 5, Will compatible with IEEE 802.11 A/B/G/N/AC/AX Wireless Router, AP, and ISP.

Product Advantage: Connect to Motherboard PCIE Slot Directly, Provide More Stable WiFi Connection than USB WiFi Adapters.

System Requirements:

Plug and Play on Windows 11, 10 (32/64bit), Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to Install Driver on Windows XP, 7, 8, 8.1 (32/64bit) Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit). Linux users please refer ATH10K driver.

Package List: 1X FS-AC85SE, 1X User Manual, 2X 3dBi Antennas, 1XMounting Screw, 1X USB 2.0 Cable, 1X Low Profile Bracket
