FS-U7S-Pro

Buy at Amazon
Cooperation

FS-U7S-Pro

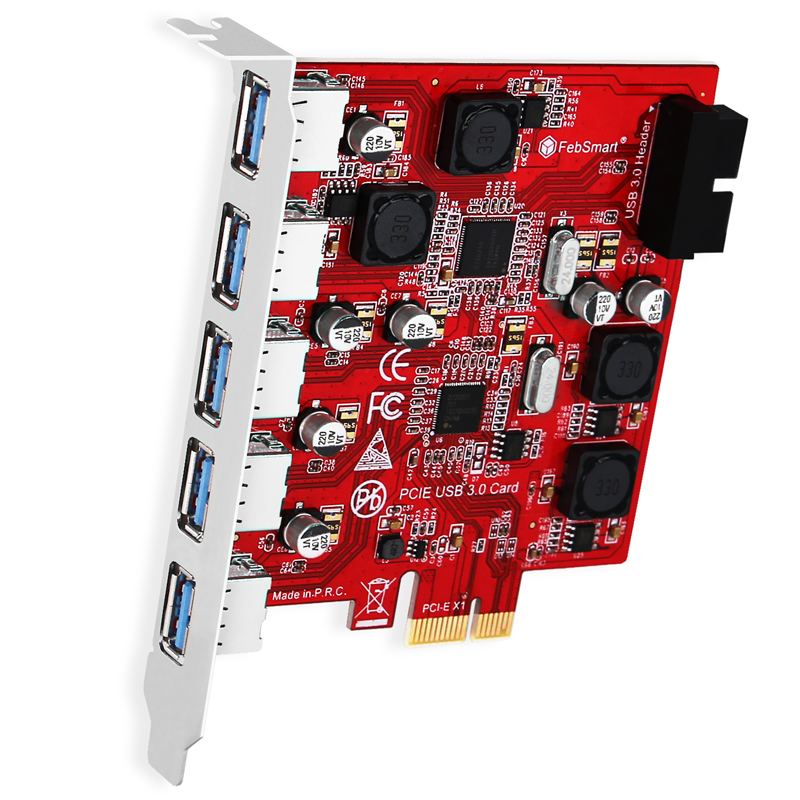

7 Ports PCI Express USB 3.0 Expansion Card

Model: FS-U7S-Pro

Max Speed: 5Gbps

Total Banwidth:5Gbps

USB Ports: 5X USB 3.0 Type A Ports & 1X 19Pin USB 3.0 Header

Plug in Interface: PCI Express 2.0 X1 Interface

Power Supply: Feb Smart Self-Power Technology

Compatible PCs Type: Standard Size PCs,NOT support Slim PCs

Compatible Device:Desktop PCs,Working Stations,NAS Systems

Compatible System:
1.Plug and Play on Windows 10,8.1,8(32/64bit) and Windows Server 2012,2012R2,2016,2019 2. Need to Install Driver on Windows XP, Vista,7(32/64bit) and Windows Server 2003,2003R2,2008,2008R2(32/64bit). 3.Works on most of Linus and Unix kernel.4.NOT for MAC OS.


Product Description

FebSmart FS-U7S-Proallow users add 7-USB 3.0(5-Ports External USB-A and 1X Internal 19pin USB 3.0 Header)superspeed 5Gbpsports on desktop computers for video, audio, photos or files transfer. Theinternal 19Pin USB 3.0 Headerwill allow PC extend2X USB-Ato front pannel.Build inFebSmart Self-Powered Technologyfor HDD/SSD enclosure, VR sensors etc high power-consuming data devices. It also providesstable and fast connection for normal USB device which includes web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. It is alow cost and effectiveway to add USB 3.0 Ports on desktop PCs. Alladd-on USB portswill not use mother baordUSB Main Lan speed,just an extra bandwidth by PCI Express on computers,servers or NAS system.


Bullet Piont:

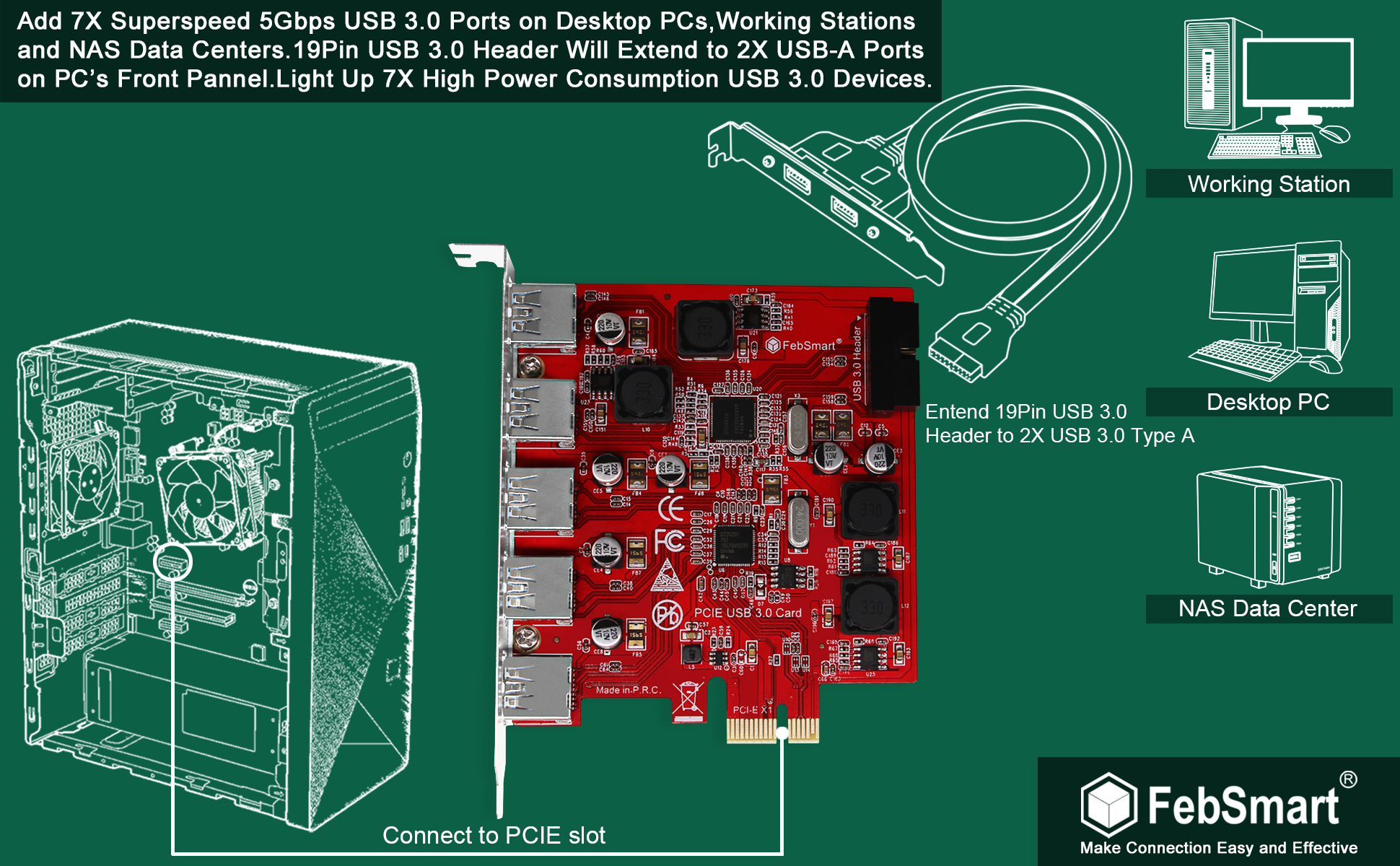

  •  1.This FS-U7S-Pro allow users add 5 external USB 3.0 type A ports and an internal 19Pin USB 3.0 header on desktop computer by PCI Express(1x) interface. The 19Pin USB 3.0 header will extended USB-A 2-Ports to computer front pannel use. All added-on USB 3.0 ports can provide superspeed 5Gbps max(totally) for videos, audios, photos and more files data transfer.
  • 2.Build in FebSmart Self-Powered Technology.Users do not need to plug any additional power cable on from power source and get 5V/12A max power supply for high-power consuming data device (NOT support fast charging) such as HDD/SSD enclosure, VR sensor etc. Plug & Play on most main stream Windows/Linux system. Enjoy super easy installation.

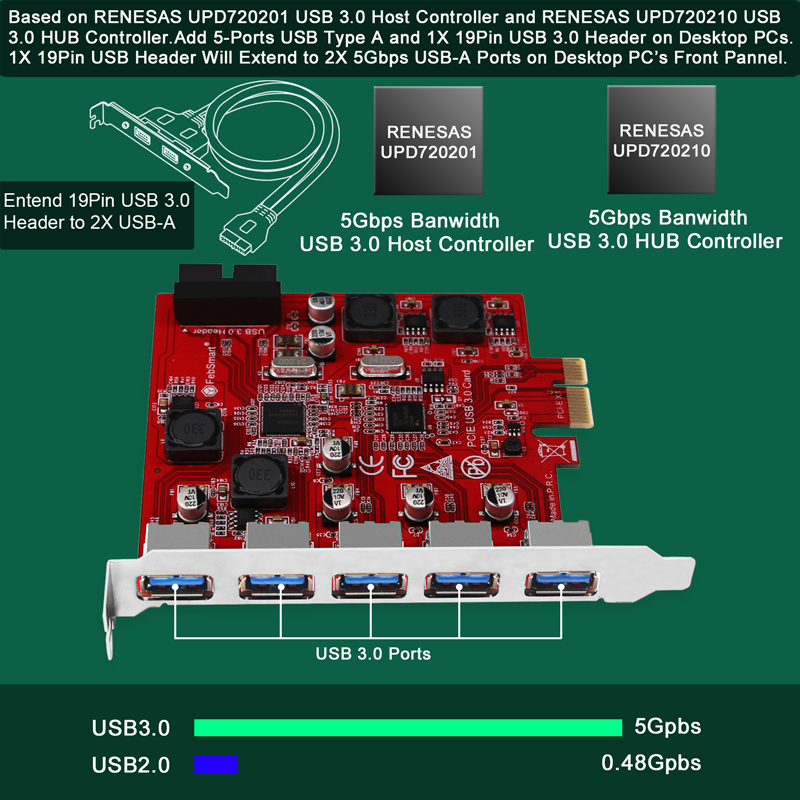

  • 3.Select high performance RENESAS USB 3.0 host controller and RENESAS USB 3.0 hub controller. Build in more technology:1. Added-on 4X power module to provide 12 ampere (each port 5V/2A max) current ensure adequate power supply for USB device. 2.Designed 8X electric circuit protector,7X voltage stable capacitance and 7X voltage stable inductance to protect data safety than ever.

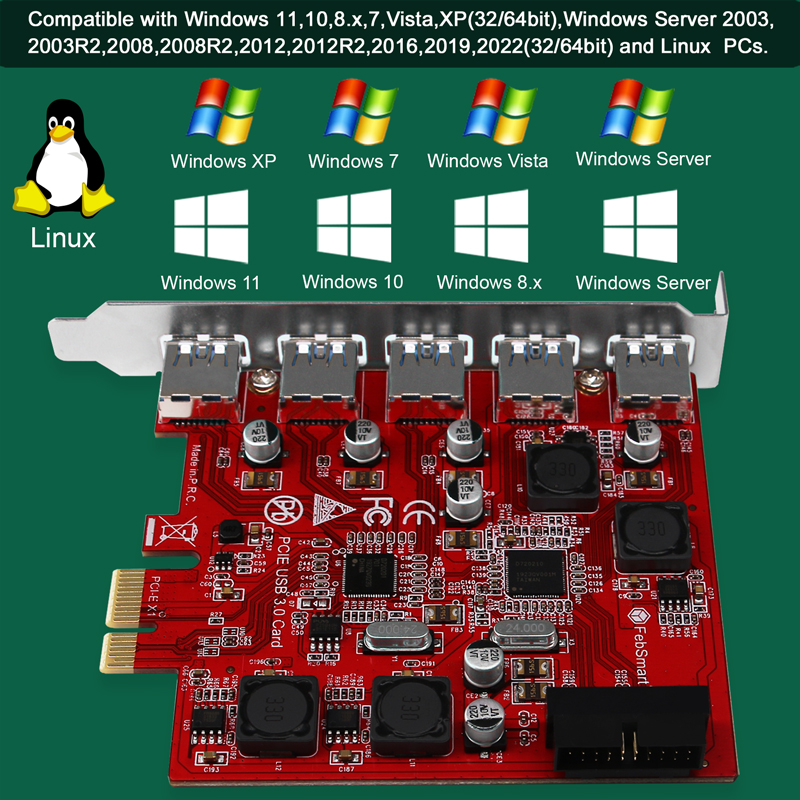

  • 4. Compatible System: 1. Plug and Play on Windows 10,8.1,8(32/64bit) and Windows Server 2012,2012R2,2016,2019.2. Need to install driver on Windows XP, Vista,7(32/64bit) and Windows Server 2003,2003R2,2008,2008R2(32/64bit).3. Works on most main strean Linux systems, no tech-support on Linux PCs. 4.NOT for MAC OS system.
  • 5.WARNING:1. Please install driver for USB card on Windows 7 and before version systems.2. Not works on slim PCs, No low-profile bracket inside.3. Make sure PCs mother board have spare PCIe slot for PCIe USB card.4. Make sure USB device is USB 3.0 or can't get USB 3.0 speed.5. All USB ports share 5Gbps banwidth.

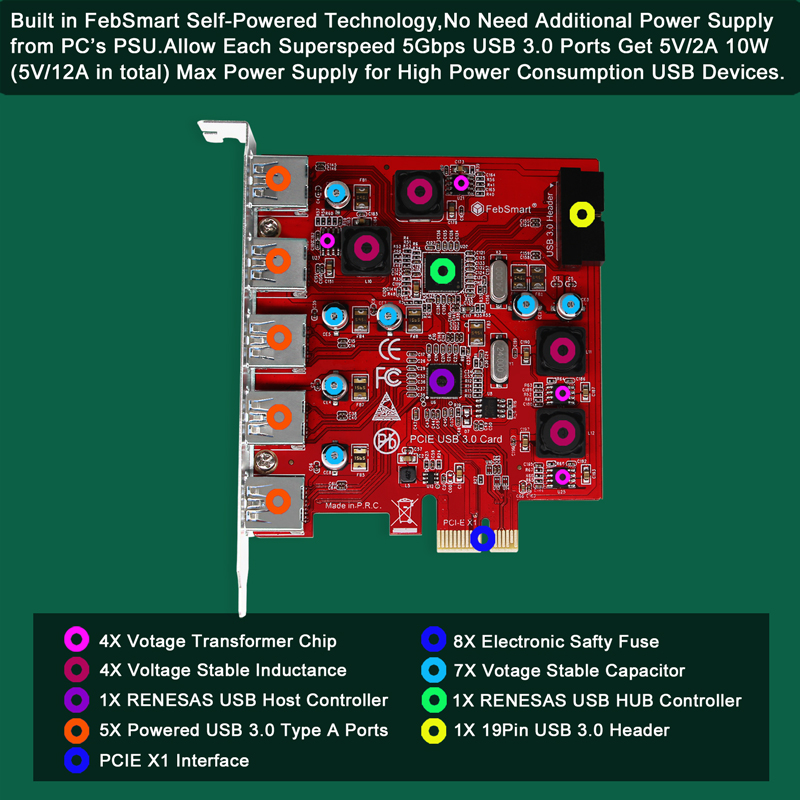

What is FebSmartSelf-Powered technology?

FebSmart Self-Powered Technology is a solution to add more power supply for USB expansion car FebSmart d. Th FebSmart e old version PCI Express USB card need to plug a power cable from the desktop computer power control center.Even you add additional power sometime it lack power when you running few high power-consuming devices simultaneously like hard disk. PCI Express Slot can provide 75W max almost 12V/6.25A.We add on a voltage transformer on the USB card get 5V/15A max power.Then we add a power module on each USB ports distribute current for each port 5V/2A.Most of the high power-consuming devices just need 4~8W which means this USB expansion card can be running few the high power-consuming device simultaneously in high speed. To protect data device, we build a safety electric circuit protector for each port. Do not worry data loss or burning the data device now. Add super fast USB 3.0 Controller Card on PCs.Choose More Stable Fast and Safe data Connection with Feb Smart.

Product Value:


  • Add 7x Ports USB 3.0for your desktop computer by PCI Express slot-Each port5Gbps data transfer speed for fast connection.
  • Bluid inFeb Smart Self-Powered Technology Provide sufficient power(8A max)supply for USB data device. Experience fast data transfer all the time. RunningHigh power-consuming devicesimultaneously in all USB ports now.
  • Internal USB card from mother board though a PCI Express Slot-Ensurestable connectionandlost few data transfer speed. Do't have lost connection issue like external USB HUB does.
  • Added on USB 3.0 card will not use CPU USB Main Lan,will just add1+ USB 3.0 lane 5Gbps bandwidthon mother board,willnot speed downtheUSB 3.0 main lane.


Package:1XFS-U7S-Pro 1XUser Manual 1XMini CD 1x Mounting Screw
