FS-HA-Pro

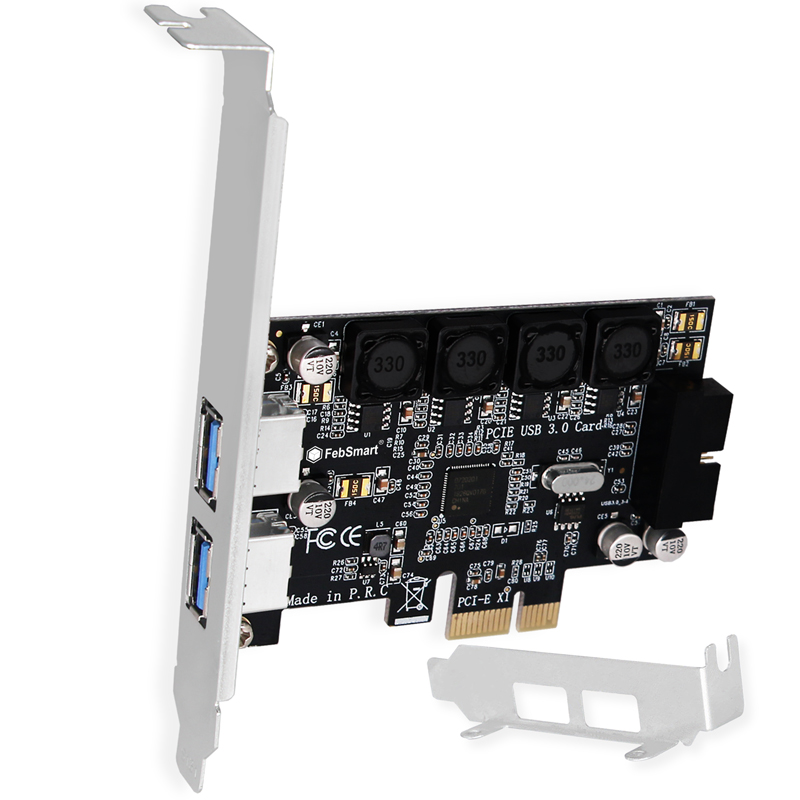

4 Ports PCI Express USB 3.0 Expansion Card

Model:FS-HA-Pro

Max Speed: 5Gbps

Total Banwidth:5Gbps

USB Ports:1X USB 3.0 19Pin Header & 2X USB-A Ports

Plug in Interface: PCI Express 2.0 X1 Interface

Power Supply: Feb Smart Self-Power Technology

Compatible PCs Type: Standard and Slim PCs

Compatible Device:Desktop PCs,Working Stations,NAS Systems

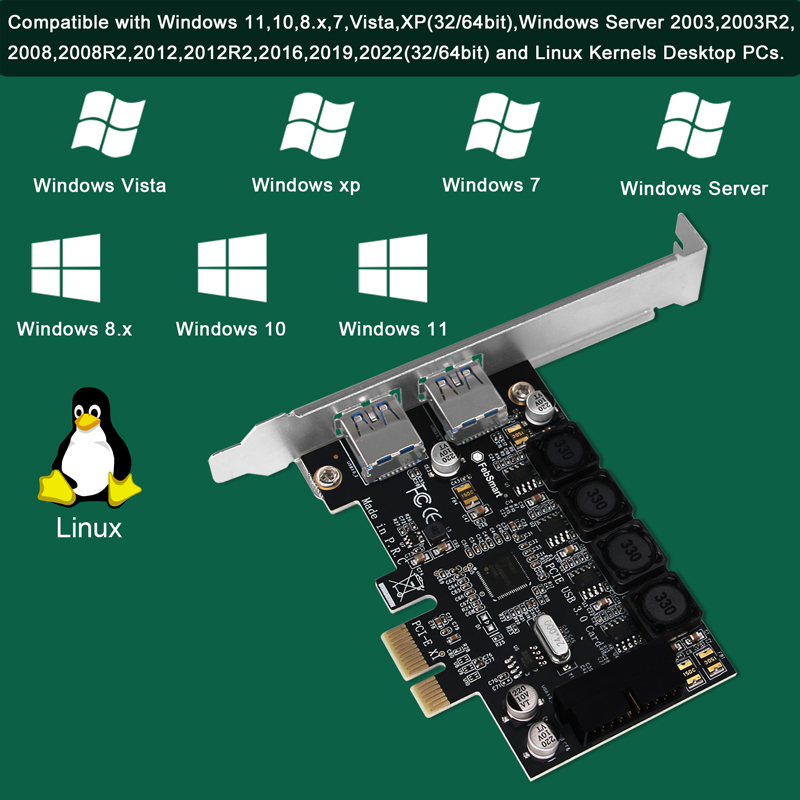

Compatible System:
1. Plug and Play on Windows 11,10,8.1,8(32/64bit) and Windows Server 2012,2012R2,2016,2019,2022.

2. Need to Install Driver on Windows XP, Vista,7(32/64bit) and Windows Server 2003,2003R2,2008,2008R2(32/64bit).

3. Works on most of Linus and Unix kernel. 4.NOT for MAC OS.


PCIE to 2X USB-A and 1X 19Pin USB 3.0 Header Card, Extend to 4X 5Gbps USB-A Ports

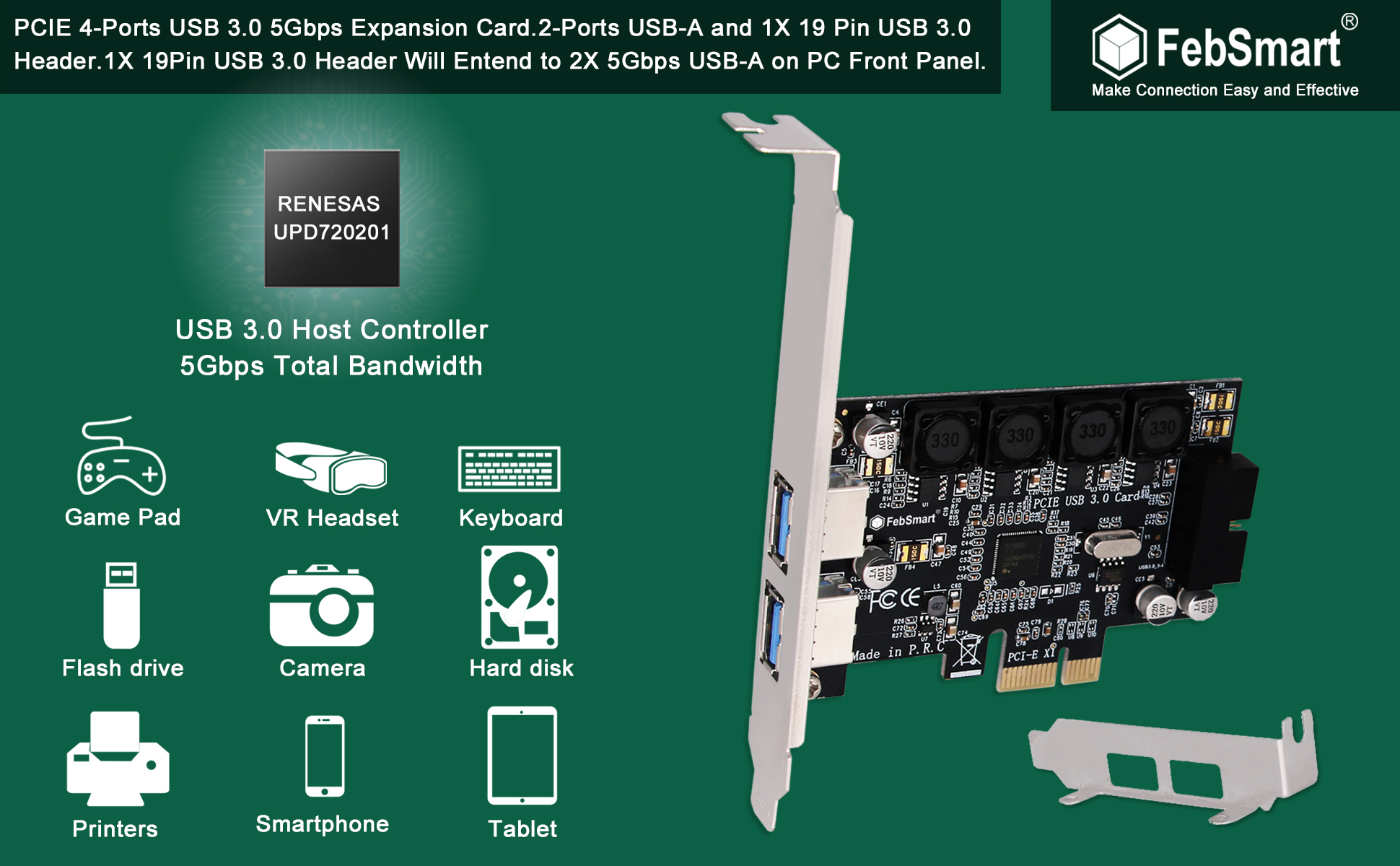

FebSmart FS-HA-Pro is a PCIE X1 interface to 2X 5Gbps USB-A and 1X 5Gbps 19Pin USB 3.0 header expansion card. The 19Pin USB 3.0 header will extend to Desktop PCs front panel 2X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs, Working Stations, and NAS Data Centers for large data transfer. It is based on RENESAS UPD720201 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platform Desktop PCs. All added-on 4X USB-A ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/8A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will also light up 4X normal USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

What is FebSmart Self-Powered Technology?

FebSmart FS-HA-Pro is a PCIE X1 interface to 2X 5Gbps USB-A and 1X 5Gbps 19Pin USB 3.0 header expansion card. The 19Pin USB 3.0 header will extend to Desktop PCs front panel 2X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs, Working Stations, and NAS Data Centers for large data transfer. It is based on RENESAS UPD720201 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platform Desktop PCs. All added-on 4X USB-A ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/8A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will also light up 4X normal USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

Product Advantage:

1. 4X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.

2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/8A max) supply for USB 3.0 devies. Light up 4X high power-consuming USB 3.0 devices simultaneously.

3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.

4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.

5. Add 4X 5Gbps USB-A ports on Desktop PCs, 2X USB-A in Desktop PCs back panel and 1X 19 Pin USB 3.0 Header will extend to Desktop PCs front panel 2X USB-A ports.

6. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

7. Full height bracket mount on USB card, will work on Standard Size PCs. Low profile in the package will work on Slim PCs.

Technical Specifications

1. USB 3.0 5Gbps Total Bandwidth: USB 3.0 standard, provide superspeed USB 3.0 5Gbps total bandwidth, each USB-A ports get 5Gbps max speed. Backward compatible with USB 2.0 480Mbps and USB 1.1 12Mbps. Supports high resolution USB Graphic Adapters, easy stream Pro HD video source.

2. Support Windows and Linux PCs: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. Plug and Play on most Linux kernels. NOT support MAC OS X.

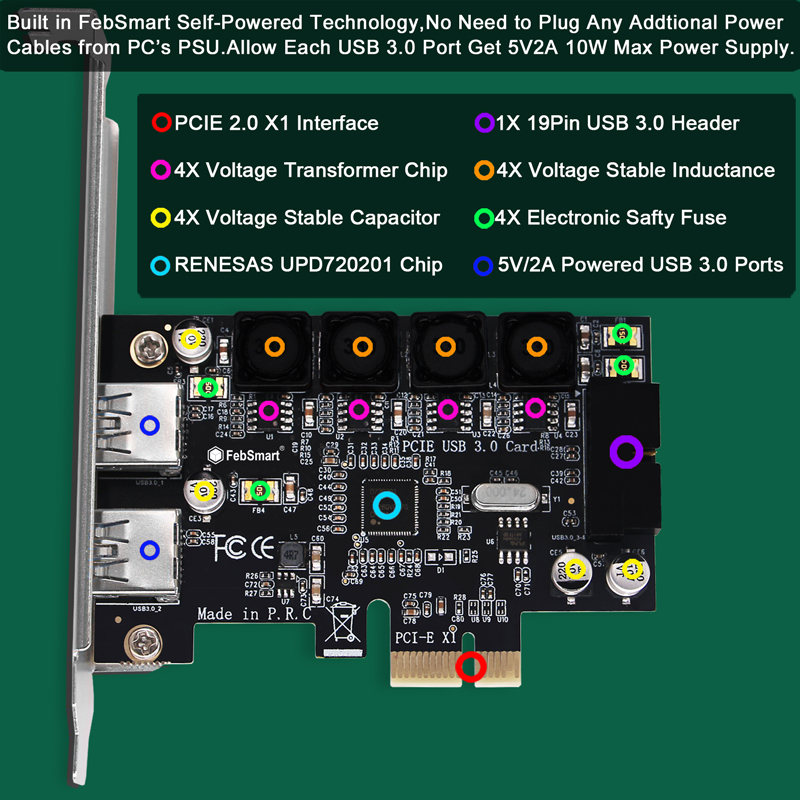

3. Easy Installation, Safeguard User's Data: Built in FebSmart Self-Powered technology no need to plug any power cable from Desktop PC's PSU, enjoy super easy and safe installation. Designed 4X electronic safty fuse, 4X voltage stable capacitor and 4X voltage stable inductance protect USB 3.0 device from overcurrent, overload ensure data security.

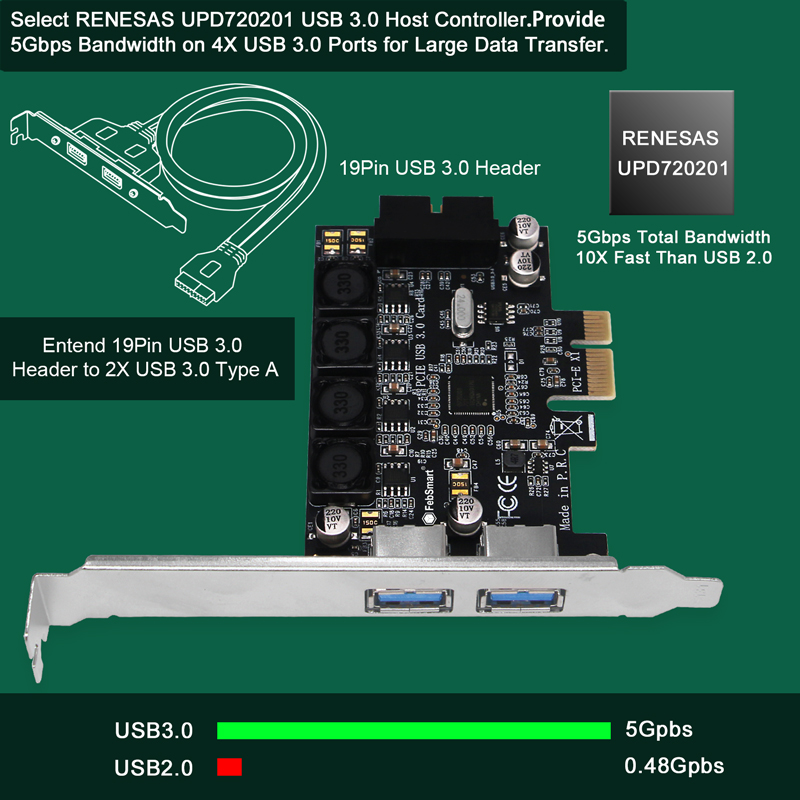

1. 5Gbps USB 3.0 Host Controller: Based on RENESAS UPD720201 USB 3.0 5Gbps host controller, will compatible with AMD, Intel and ARM hardware platform Desktop PCs. Light up 4X high power consumption USB 3.0 5Gbps devices simultaneously.

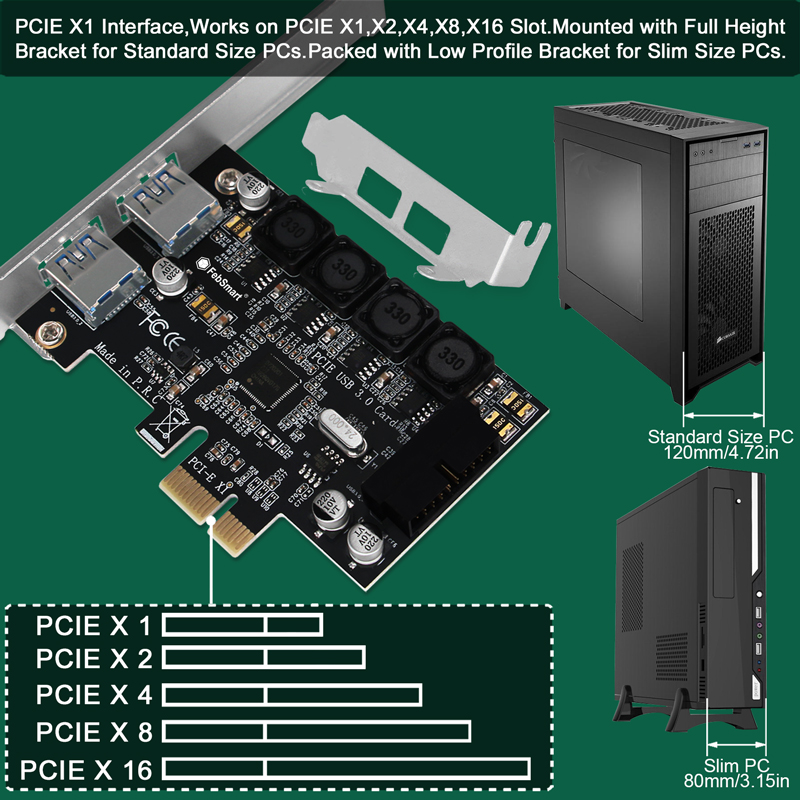

2. PCIE 2.0 Standard, PCIE X1 Interface: PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. Do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

3. Support Standard Size PCs and Slim PCs: Mounted with standard size bracket for standard size PCs. Packed with low-profile bracket, works on slim size PCs. Need change to the low profile braket by users.

Super Easy Install on Desktop PCs:

Product Description:

FebSmart FS-HA-Pro is a PCIE X1 interface to 2X 5Gbps USB-A and 1X 5Gbps 19Pin USB 3.0 header expansion card. The 19Pin USB 3.0 header will extend to Desktop PCs front panel 2X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs, Working Stations, and NAS Data Centers for large data transfer. It is based on RENESAS UPD720201 5Gbps USB 3.0 host controller, will compatible with ARM, AMD, and Intel hardware platform Desktop PCs. All added-on 4X USB-A ports will share 5Gbps total bandwidth. It is built in FebSmart Self-Powered Technology, users do not need to plug any additional power cable from PC’s power supply unit. Allow each 5Gbps USB-A port get 5V/2A (5V/8A in total) max power supply for high-power consuming USB 3.0 devices (NOT support fast charging) such as industrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations. It will also light up 4X normal USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smartphone, tablet, and more USB-A interface devices.

Product Advantage:

1. 4X add-on USB 3.0 ports with 5Gbps total bandwidth USB expansion card will not occupy Motherboard USB 3.0 Main Lane Speed, it is added-on bandwidth by PCIE X1 Main Lane.

2. Built in FebSmart Self-Powered Technology, no need to plug any power cable from Desktop PC’s power supply unit. Provide sufficient power (5V/8A max) supply for USB 3.0 devies. Light up 4X high power-consuming USB 3.0 devices simultaneously.

3. PCI Express bus connection, ensure fast and stable using experience lost few transfers’ speeds. Never have lost connection issue like external USB HUB does.

4. Fully support USB 3.0 (USB 3.1 GEN1, USB 3.2 GEN1) standard 5Gbps max speed, will backward compatible with USB 2.0 480Mbps speed and USB 1.1 12Mbps speed.

5. Add 4X 5Gbps USB-A ports on Desktop PCs, 2X USB-A in Desktop PCs back panel and 1X 19 Pin USB 3.0 Header will extend to Desktop PCs front panel 2X USB-A ports.

6. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot. X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.X, 2.X, 3.X, 4.X PCIE slot.

7. Full height bracket mount on USB card, will work on Standard Size PCs. Low profile in the package will work on Slim PCs.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.

2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

3. Plug and Play on most Linux kernels.

4. NOT support MAC OS X.

Package: 1X FS-HA-Pro 1X User Manual 1X Mounting Screw 1X Low Profile Bracket
