PCIE 3.0 X4 Interface to 2X USB 3.1 GEN2 10Gbps Ports Expansion Card,2X 10Gbps USB-C Ports

FebSmart FS-C2-Pro is a PCI Express 3.0 X4 interface to 2X 10Gbps USB 3.1 GEN2 Type C ports expansion card. It will provide 2X USB 3.1 GEN2 Type C 10Gbps ports on Desktop PCs for USB-C devices large data transfer and live data storage. It was built in FebSmart Self-Powered Technology, users no need to plug any additional power supply form PCs PSU, but each USB 3.1 GEN2 port get 5V/3A (5V/6A in total) max power supply. Allow all connected high-power consumption USB 3.1GEN2 devices get a superspeed 10Gbps (16Gbps in total) max speed. It is a cost-affective way add 2X 10Gbps USB-C ports on Desktop PCs, Working Stations, and MAC Pros for high power consumption USB 3.1 GEN2 Type C peripheral devices connection, which including NVME SSD enclosures, SATA SSD/HDD enclosures, VR-Systems, 10Gbps USB hubs and 4K USB-C video adapter. The 2X added on 10Gbps USB-C ports will not occupy mother board USB Main Lan speed, just an extra bandwidth by PCI Express X4 on Desktop PCs.

What is the FebSmart Self-Powered Technology?

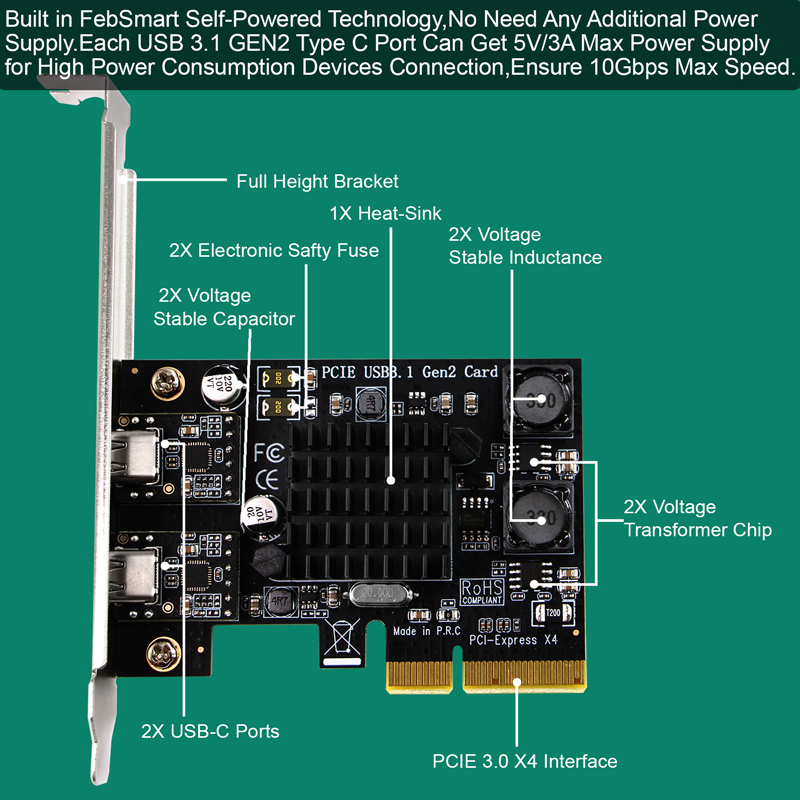

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.1 GEN2 expansion cards. The old version PCI Express USB card need to plug a power cable from the desktop PCs power supply unit. Even added-on additional power, USB ports still lack power when running few high power-consuming devices simultaneously, such as USB MVME SSD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 2X voltage transformer on 2X USB USB 3.1 GEN2 port, and pick up 12/2.5A transfer to 5V/6A 30W. Then distribute current to each port 5V/3A max power for USB 3.1 GEN2 devices. To protect users USB 3.1 GEN2 devices, FebSmart designed 2X electric safety fuse, 2X voltage stable capacitance and 2X voltage stable inductance. Do not worry data loss or burn USB devices now. Add superspeed plus 10Gbps USB 3.1 GEN2 host controller card on Desktop PCs. Choose More Stable, Fast and Safe data connection with FebSmart.

Technical Specification:

1. Superspeed Plus 10Gbps Max: Provide 2-Ports USB-C USB 3.1 GEN2 superspeed plus 10Gbps max data transfer rate, 16Gbps total bandwidth. 2X faster than USB 3.0 (5Gbps), 20X faster than USB 2.0 (0.48Gbps). Stream more Pixels video source such as 4K or 8K video source when works with external USB-C graphic cards.

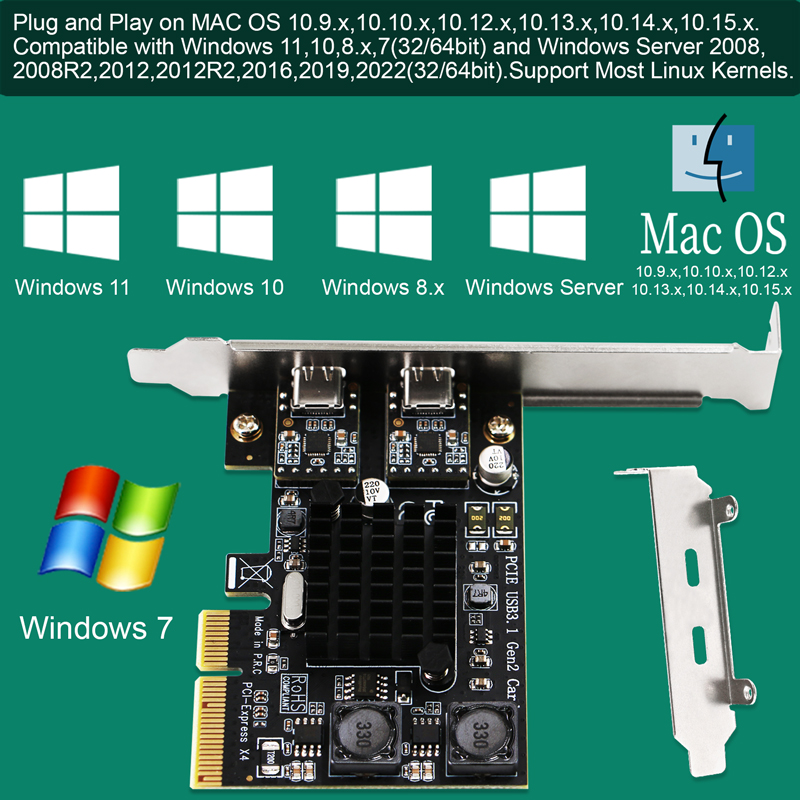

2. Windows and MAC OS System: Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. Supports most main stream Linux Kernels.

3. Easy Install, Safeguard User's Data: Built in FebSmart Self-Powered Technology, no need to plug any power cable from computer power supply unit, enjoy super easy and safe installation. Designed with 2X electric safty fuse, 2X voltage stable capacitance and 2X voltage stable inductance protect USB 3.1 GEN2 devices from overcurrent, overload ensure data security.

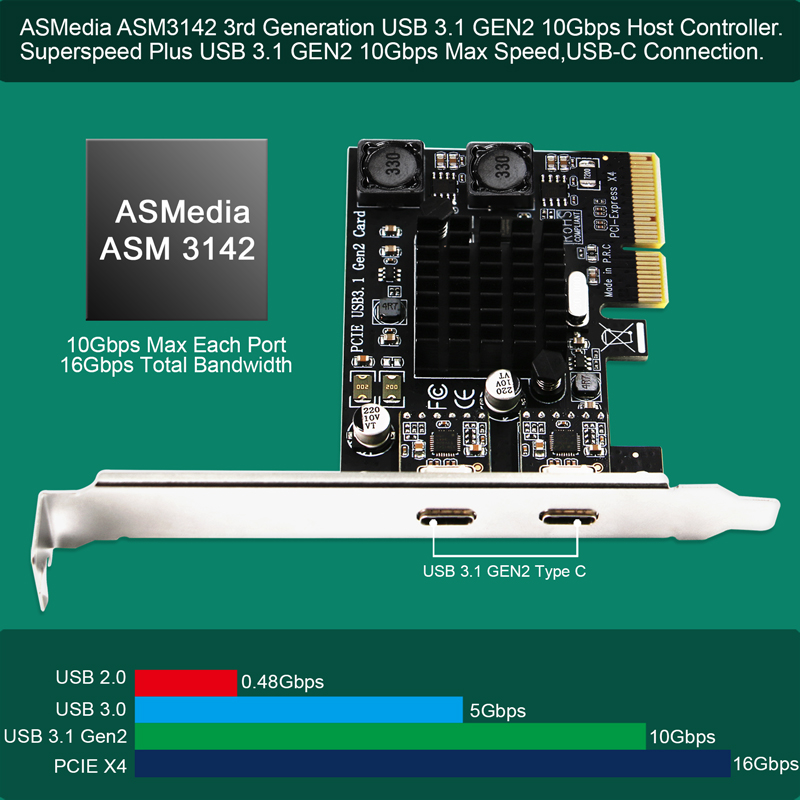

1. Heat-sink on ASM3142 Major Chip: Based on ASMedia ASM3142 USB 3.1 GEN2 16Gbps host controller, will provide 16Gbps total bandwidth on 2X USB-C Ports, each port will get 10Gbps max speed. Compatible with AMD, Intel, ARM and MAC hardware platforms. Designed 1X Heat-sink on ASMedia ASM3142 major chip, will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1 GEN2 devices always stay at peak speed 10Gbps.

2. PCI Express 3.0 X4 Interface: PCI Express 3.0 X4 (X2 signal) design will compatible with PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, and PCIE 1.0 5Gbps. PCIE X4 interface will compatible with PCIE X4, X8, X16 slot, NOT support PCIE X1, X2 slot. Users must make sure PCs Motherboard have 1X empty PCIE X16 slot before purchase.

3. Standard Size PCs and Slim PCs: Mounted with full height bracket for standard size PCs. Packed with low-profile bracket, works on slim size PCs. Slim PC users need change to the low profile braket by hand.

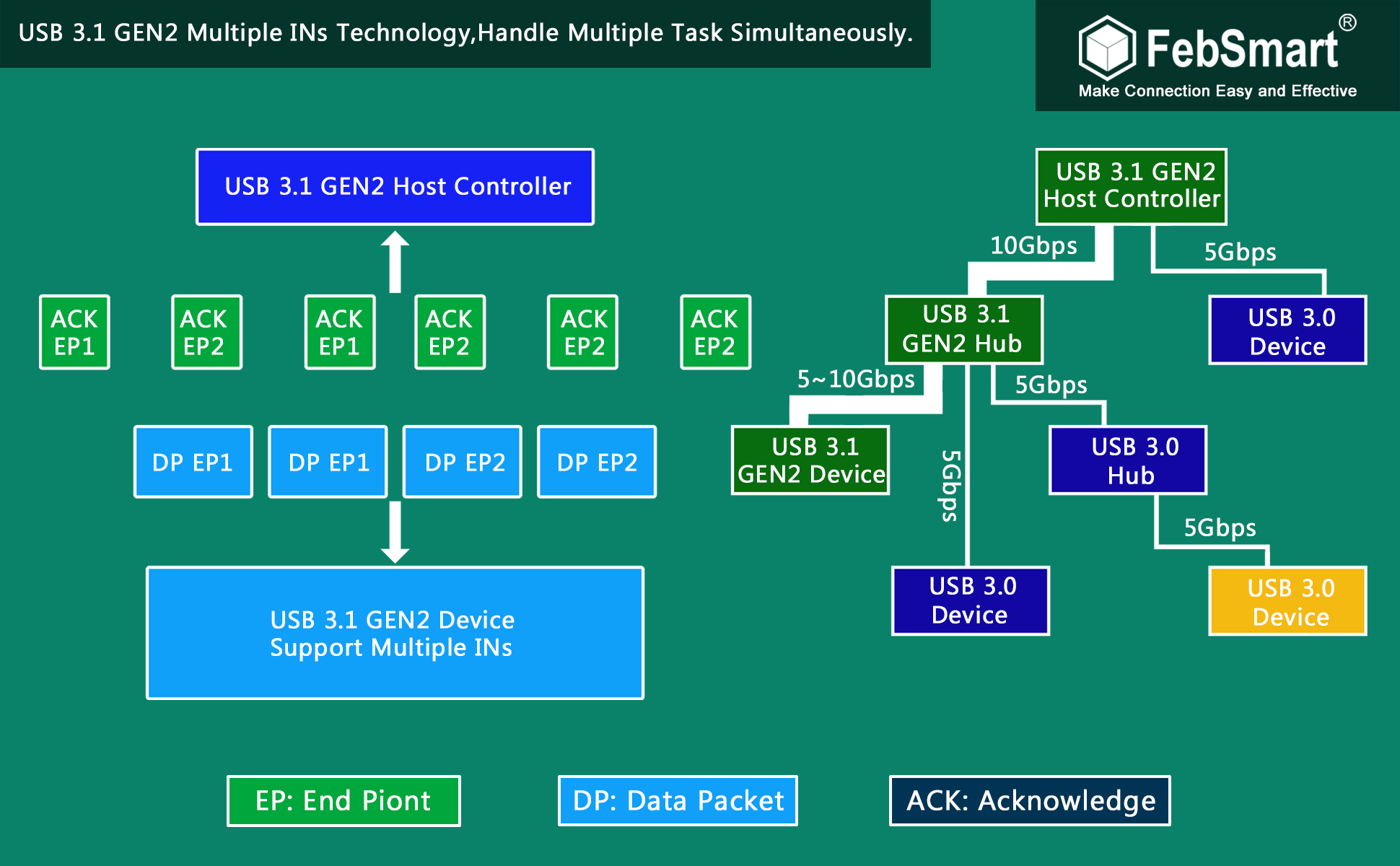

Achieving 10 Gbps Data Rates in USB 3.1 GEN2 Using Multiple INs and Hub Payload Buffering

What is USB 3.1 GEN2 Multiple-INs?

Now USB 3.1 can handle multiple device data transfer simultaneously, without waiting the first device accomplish it's task, NOT like USB3.0/2.0 does. USB 3.1 device may receive a second ACK TP for a different endpoint before it has a chance to respond to the first ACK TP. A more complex USB 3.1 device would take advantage of the multiple INs by servicing the requests separately, possibly returning data to each one, reducing the likelihood that Not Ready would need to be used.

How is Multiple-INs improving USB bandwidth?

When USB 3.0 Host Controller works with the external USB HUB is a “cut-through” model, upstream port and downstream ports on the hub were all operating at the same speed. When put in one USB 2.0 Hub all speed will down. Then USB 3.0 Host Cotroller can not run full speed. When USB 3.1 GEN2 Host Controller works with USB 3.1, 3.0 Hubs "Cut-through" will not work, with the new "store and forward” service, USB 3.1 hubs take a much more active role in making sure that the flow of data is smooth and the user’s experienced performance is not interrupted.

Easy Install on Desktop PCs:

Product Descreption:

FebSmart FS-C2-Pro is a PCI Express 3.0 X4 interface to 2X 10Gbps USB 3.1 GEN2 Type C ports expansion card. It will provide 2X USB 3.1 GEN2 Type C 10Gbps ports on Desktop PCs for USB-C devices large data transfer and live data storage. It was built in FebSmart Self-Powered Technology, users no need to plug any additional power supply form PCs PSU, but each USB 3.1 GEN2 port get 5V/3A (5V/6A in total) max power supply. Allow all connected high-power consumption USB 3.1GEN2 devices get a superspeed 10Gbps (16Gbps in total) max speed. It is a cost-affective way add 2X 10Gbps USB-C ports on Desktop PCs, Working Stations, and MAC Pros for high power consumption USB 3.1 GEN2 Type C peripheral devices connection, which including NVME SSD enclosures, SATA SSD/HDD enclosures, VR-Systems, 10Gbps USB hubs and 4K USB-C video adapter. The 2X added on 10Gbps USB-C ports will not occupy mother board USB Main Lan speed, just an extra bandwidth by PCI Express X4 on Desktop PCs.

Product Features:

1. Expand to 2X USB 3.1 GEN2 Type C 10Gbps ports on newly build desktop computers by PCIE 3.0 X4 interface.

2. Built in FebSmart Self-Powered Technology, no need additional power supply form PSU, provide each USB-C port 5V/3A (5V/6A in total) power supply for USB 3.1 GEN2 devices.

3. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB device always stay at peak speed 10Gbps max.

4. Support auto speed negotiation at USB 3.1 GEN2 10Gbps, USB 3.0 5Gbps, USB 2.0 480Mbps, and USB 1.1 12Mbps.

5. PCIE 3.0 standard with PCIE X4 (X2 signal) interface design will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard on PCIE X4, X8, X16 slot.

6. Packed with full height bracket and low-profile bracket, works on standard size PCs and slim PCs.

7. PCI Express communicate total bandwidth: PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, PCIE 1.0 5Gbps, users better put this card on PCIE 3.0/4.0 slot or can not get 16Gbps total bandwidth.

8. Compatible with USB 3.1 GEN2 specification revision 1.0 and Intel extensible host controller interface revision 1.1.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit).

2. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x.

3. Supports most main stream Linux kernels.

Package: 1X FS-C2-Pro 1X User Manual 1X Mount-screw 1X Low Profile Bracket
